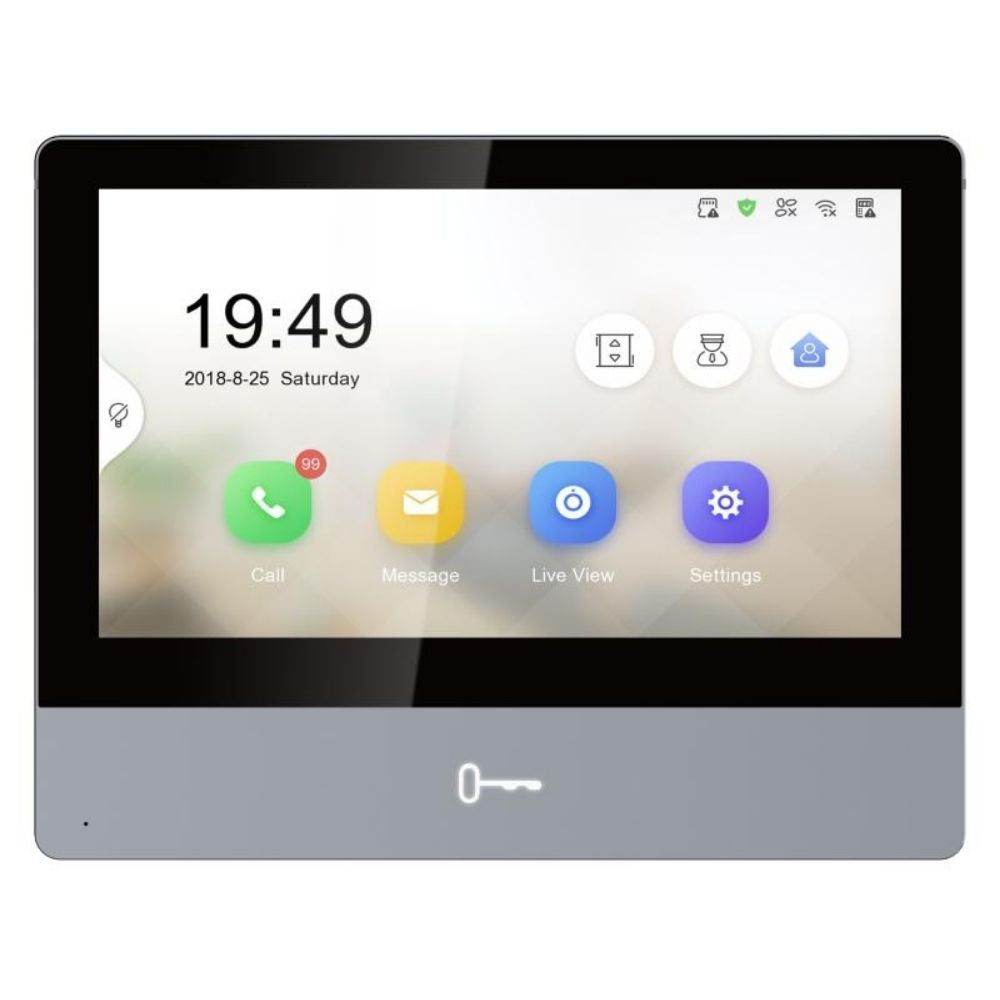

The Hikvision DS-KH8350-WTE1 is a premium 7-inch IPS indoor station from the KH8 Series, designed for modern intercom and security applications. With its award-winning design, rich communication functions, and seamless Hik-Connect mobile integration, it provides reliable video, audio, and alarm management in one compact device. Easy to install and configure without a PC, it’s an ideal solution for residential, office, and multi-apartment environments.
Key Features
-
7-inch IPS Touch Screen: 1024 × 600 resolution for vivid and responsive visuals.
-
Reddot Award Winner: Recognized for modern and user-friendly design.
-
Hik-Connect Mobile Control: Answer calls, open doors, and view cameras remotely.
-
PC-Free Operation: Easy to use with a quick setup wizard for fast deployment.
-
Full System Configuration: Manage intercom, alarms, and cameras directly on the screen.
-
Voice Messaging: Stores messages when unanswered.
-
Alarm Integration: Receive and respond to alarms via internal I/O terminals.
-
Elevator Access Control: Supports floor-to-floor communication and access.
-
Expandable System: Connect with door stations, indoor extensions, and network cameras.
Downloads
Perfect For:
- Residential apartments and homes
- Office buildings with intercom requirements
- Hotels and serviced residences
- Educational campuses
- Commercial facilities with multi-entry access
Installer Tips
-
Wired or Wi-Fi: Supports 2.4 GHz Wi-Fi or wired Ethernet for stable connections.
-
Mounting: Designed for surface mounting; optional table bracket DS-KABH8350-T available.
-
Storage: Use a TF card up to 128 GB for local recording and alarm capture.
-
Alarm I/O: Leverage 8 inputs and 2 outputs for full alarm system integration.
-
Power: Supports 12 VDC or PoE for flexible installation.
Quick-Read Specs
| Specification |
Detail |
| Operating System |
Linux |
| Processor |
Embedded high-performance processor |
| ROM / RAM |
32 MB / 128 MB |
| Display |
7-inch IPS capacitive, 1024 × 600 |
| Audio |
Built-in mic & speaker, G.711, noise suppression, echo cancellation |
| Storage |
TF card up to 128 GB |
| Network |
TCP/IP, SIP, RTSP, Wi-Fi (2.4 GHz) |
| Alarm I/O |
8 inputs / 2 outputs |
| Lock Control |
2 relays (high/low level, 3.3V/0V) |
| Linked Devices |
16 indoor extensions, 17 doorphones, 16 cameras |
| Installation |
Surface mount (optional table mount) |
| Power |
12 VDC / PoE, ≤ 8 W |
| Dimensions |
180 × 140 × 22.4 mm |
| Weight |
355 g (net), 899 g (gross) |
| Operating Temp |
-10 °C to 55 °C |
| Humidity |
10% – 90% (non-condensing) |
| Languages |
Multilingual (30+ languages) |
| Application |
Indoor |
Extra Info
Design Recognition
The DS-KH8350-WTE1 has won the prestigious Reddot Award, highlighting its sleek and modern user interface design.
Hik-Connect Integration
With Hik-Connect, users can answer calls, unlock doors, and monitor public cameras directly from their mobile devices.
All-in-One Control
Configure the full intercom system, alarms, and video feeds through the 7-inch touchscreen without needing a PC.
Expandable System
Supports multiple indoor units, door stations, and IP cameras for scalable installations.
Q&A
Q1: Does it support Wi-Fi?
Yes, it supports 2.4 GHz Wi-Fi (IEEE 802.11 b/g/n).
Q2: Can I expand the system with multiple devices?
Yes, it supports up to 16 indoor extensions, 17 doorphones, and 16 IP cameras.
Q3: Does it store images or messages?
Yes, with a TF card (up to 128 GB), it can store images, alarms, and voice messages.
Q4: What are the installation options?
It is designed for surface mounting, with an optional table bracket available.
Q5: Is it suitable for commercial use?
Yes, with its alarm integration, elevator control, and camera support, it is well-suited for both residential and commercial environments.
Q6: What languages are supported?
Over 30 languages including English, German, Spanish, French, Russian, Arabic, Portuguese, and more.
