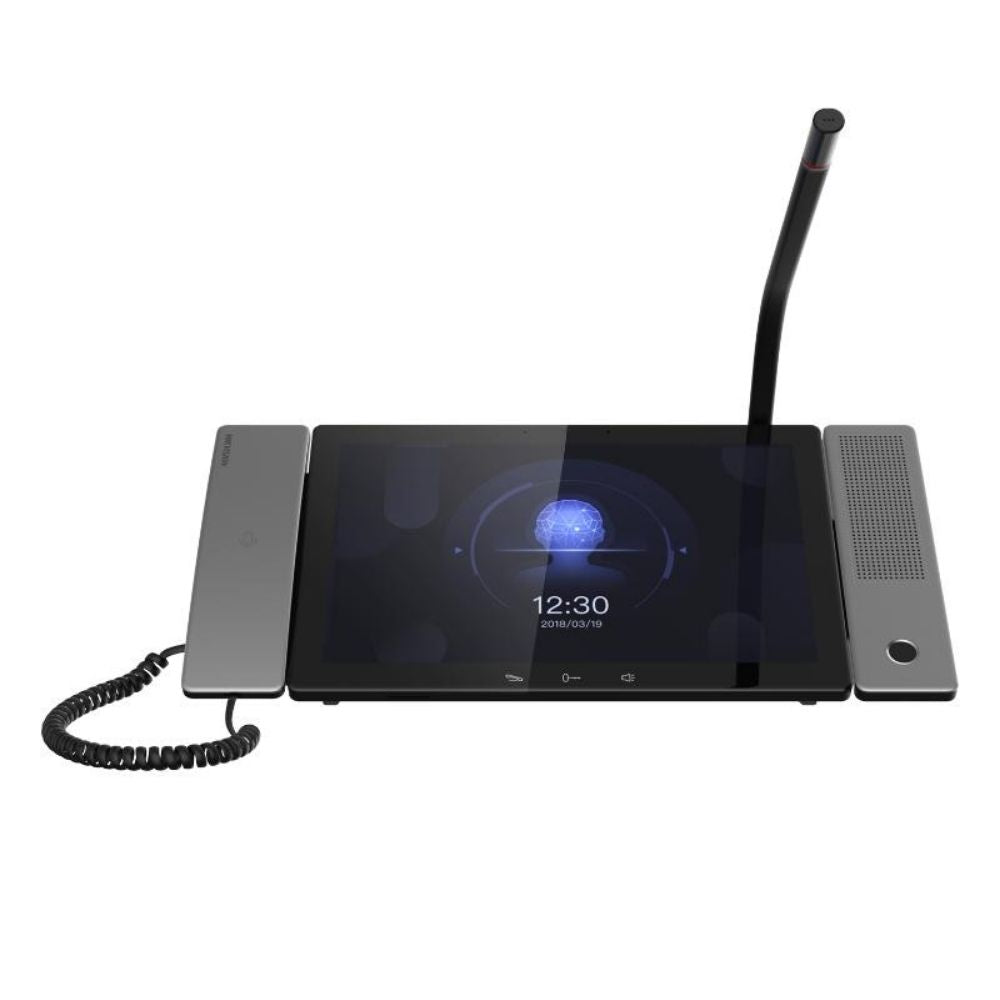

The Hikvision DS-KM9503 is a professional Video Intercom Android Main Station designed for property centers, security guard stations, and large communities. Featuring a 10.1-inch IPS touch screen, built-in SIP server, and extensive intercom functions, it enables operators to manage calls, alarms, and video feeds from a central hub. With its tempered glass design and Android interface, the DS-KM9503 offers reliability, scalability, and ease of use for large-scale deployments.
Key Features
-
10.1-inch IPS Display: 1280 × 800 resolution with capacitive touch screen.
-
Built-in SIP Server: Supports up to 10,000 devices and 128 cameras for large-scale use.
-
Flexible Audio Options: Built-in mic/speaker, 3.5mm earphone, and external microphone support.
-
Intercom Features: Call forwarding, waiting, cross-building calls, priority setup, and multi-party intercom.
-
Expandable Storage: Supports TF card up to 128 GB.
-
Multiple Interfaces: HDMI output, dual network ports, USB inputs, relay outputs, and alarm I/O.
-
Power Options: PoE or 12 VDC with ≤ 12 W consumption.
Downloads
Perfect For:
- Security guard stations
- Property management centers
- Large residential communities
- Office receptions & lobbies
- Industrial facility monitoring
Installer Tips
-
Mounting Options: Supports both table and wall mounting for flexible installation.
-
Network Setup: Use PoE for simplified cabling and power management.
-
Audio Optimization: For noisy environments, connect an external goose neck microphone.
-
System Expansion: Plan device allocation—up to 10,000 supported intercoms per main station.
-
Display Extension: Use HDMI output to extend visuals to larger screens during monitoring.
Quick-Read Specs
| Specification |
Detail |
| Operating System |
Android 7.1 |
| Display |
10.1-inch IPS, 1280 × 800 |
| Camera |
2 MP built-in |
| Storage |
TF card up to 128 GB |
| Capacity |
Supports 10,000 devices, 128 cameras |
| Audio |
Built-in mic & speaker, 3.5mm jack, goose neck mic input |
| Interfaces |
HDMI, USB, dual LAN, alarm I/O, relay lock |
| Power |
PoE / 12 VDC (≤ 12 W) |
| Dimensions |
292 × 166 × 31 mm |
| Installation |
Wall mount / Table mount |
Extra Info
Physical Interfaces
The DS-KM9503 is equipped with a rich set of physical interfaces designed to handle large-scale operations. It includes dual network ports for flexible LAN configurations, three USB ports for peripheral connections, an HDMI output for extended display, and a TF card slot supporting up to 128 GB for local storage. Additional connections such as alarm inputs, relay lock outputs, and a 3.5 mm audio jack provide versatile integration options for real-world deployment.
Flexible Audio Options
Operators can rely on the built-in microphone and speaker for daily intercom tasks, or connect a 3.5 mm earphone for private conversations. In environments where noise reduction is critical, the main station also supports a goose neck microphone, delivering clear and precise voice transmission. This flexibility makes it suitable for control rooms, receptions, and security guard stations.
Integrated SIP Server
With its built-in SIP server, the DS-KM9503 can register and manage up to 10,000 intercom devices and 128 network cameras simultaneously. This eliminates the need for additional hardware servers, making deployment simpler and cost-effective while ensuring reliable communication across large residential or commercial sites.
Scalable Storage
The TF card slot supports storage expansion up to 128 GB, allowing the device to store captured snapshots, logs, and intercom records locally. This feature ensures operators always have quick access to recent activity, even without a dedicated NVR.
Display Extension
The HDMI output port allows operators to project intercom calls, alarms, and monitoring pages onto a larger display. This feature is particularly useful in control centers where multiple personnel monitor events simultaneously, ensuring greater visibility and responsiveness.
System Integration
Thanks to its multiple inputs and outputs, the DS-KM9503 integrates smoothly with third-party security systems. Relay lock outputs enable direct control of electronic door locks, while alarm inputs connect to sensors such as PIR detectors or emergency buttons. This integration makes it a central hub for access control, intercom communication, and event monitoring.
Optional Accessory
The DS-KABM9503-O table mount bracket provides an alternative installation method, allowing operators to place the main station securely on desks or control counters. This is ideal for environments like property management offices or security guard stations where desktop operation is more practical than wall mounting.
Q&A
Q1: How many devices can it manage?
It supports up to 10,000 intercom devices and 128 network cameras.
Q2: Does it support wall and table mounting?
Yes, it comes with flexible installation options for both.
Q3: Can it connect to larger displays?
Yes, via the HDMI output port for external screens.
Q4: Is external audio supported?
Yes, it supports earphones and external microphones for better audio handling.
Q5: Does it have local storage?
Yes, it supports TF cards up to 128 GB for data storage.
Q6: What’s the power supply option?
It supports both PoE and 12 VDC input.
