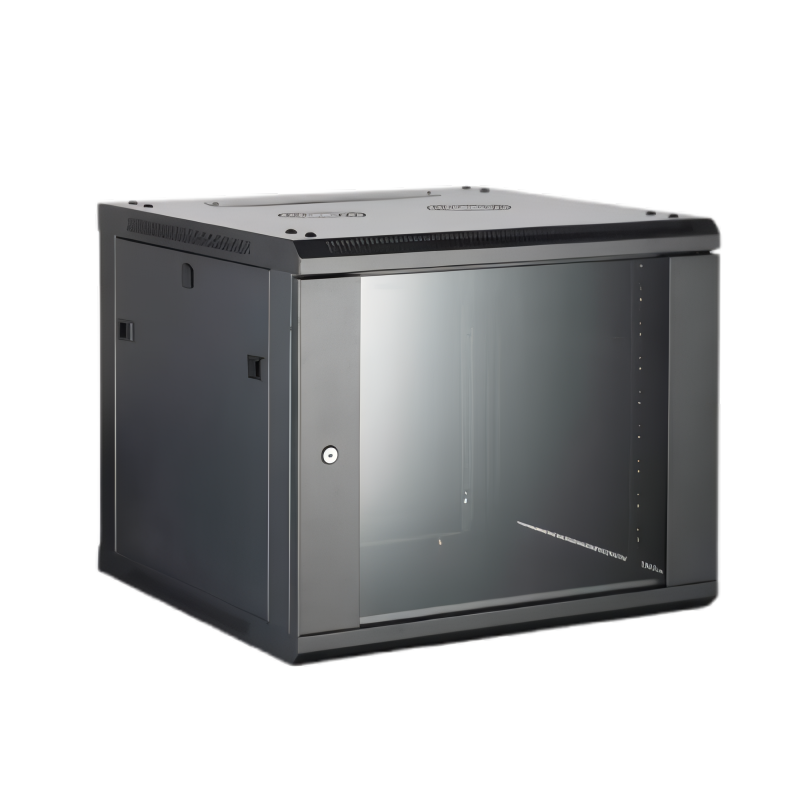

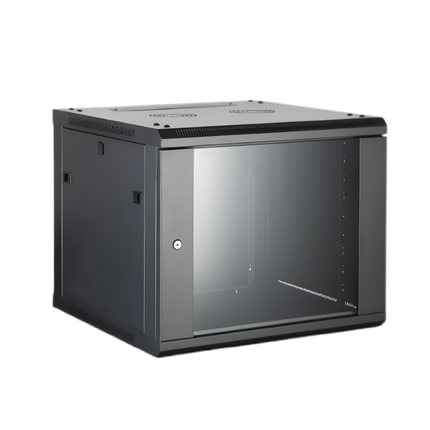

The Hikvision DS-XS Series Wall-Mounted Rack Cabinets (available in 4U, 6U, 9U, and 12U sizes) are engineered for efficient, secure housing of networking, telecom, and surveillance equipment. Designed for versatility and durability, these cabinets support standard 19-inch rack-mount devices and are ideal for compact to mid-sized installations. Their robust construction ensures reliable storage and organization in environments ranging from data centers and IT rooms to industrial and residential setups.
Key Features
-
Multiple Sizes (4U, 6U, 9U, 12U): Choose the rack size that best fits your installation needs.
-
Wall-Mounted Design: Saves floor space while providing organized housing for network and IT hardware.
-
Strong Load Capacity: 40 kg static load rating for secure equipment installation.
-
Compact Dimensions:
-
4U: 600 × 450 × 280 mm
-
6U: 600 × 450 × 368 mm
-
9U: 600 × 450 × 500 mm
-
12U: 600 × 450 × 635 mm
-
Glass Front Door (78% Open Area): Provides visibility, ventilation, and access security.
-
SPCC Steel Construction: Panels (1.0–1.5 mm thick) ensure strength and durability.
-
Expandable Accessories: Compatible with fans, PDUs, and optional shelves like the DS-XSPB04-S/B.
Downloads
Perfect For:
- Network or server equipment installation in compact spaces
- Telecommunications and cabling cabinets
- IT and telecom hardware pro within residential or commercial settings
- Organized setups requiring secure, visible enclosures
Installer Tips
-
Mounting Location: Securely attach to a solid wall that can support the cabinet’s full load, including installed equipment.
-
Ventilation: Use optional fans for enhanced cooling, especially when housing heat-generating devices.
-
Accessory Matching: Pair with optional trays, PDUs, or cable management solutions for improved organization and functionality.
-
Accessibility Considerations: Ensure the front glass door and side panels allow easy access during installation and future maintenance.
Quick-Read Specs
| Specification |
4U |
6U |
9U |
12U |
| Rack Units |
4U |
6U |
9U |
12U |
| Installation Type |
Wall-mounted |
Wall-mounted |
Wall-mounted |
Wall-mounted |
| Load Capacity |
40 kg |
40 kg |
40 kg |
40 kg |
| Dimensions (W×D×H) |
600 × 450 × 280 mm |
600 × 450 × 368 mm |
600 × 450 × 500 mm |
600 × 450 × 635 mm |
| Front Door |
4 mm glass, 78% open |
4 mm glass, 78% open |
4 mm glass, 78% open |
4 mm glass, 78% open |
| Security |
SPCC steel construction |
SPCC steel construction |
SPCC steel construction |
SPCC steel construction |
| Optional Accessories |
Shelf, fan, PDU |
Shelf, fan, PDU |
Shelf, fan, PDU |
Shelf, fan, PDU |
Extra Info
Compact, Flexible Options
The DS-XS Series comes in 4U, 6U, 9U, and 12U sizes, providing options for small to mid-sized installations. Whether you’re mounting just a few devices or a larger set of network equipment, these cabinets maximize space efficiency without compromising accessibility.
Durable, Reliable Build
SPCC steel construction and a 4 mm glass front door provide a balance of visibility, security, and strength. Designed to withstand frequent use, they are well-suited for both office and industrial deployments.
Scalable and Adaptable
With support for shelves, PDUs, and fans, these rack cabinets can grow with your installation needs, ensuring better cable management, cooling, and equipment accessibility.
Q&A
Q1: What sizes are available?
A1: The series comes in 4U, 6U, 9U, and 12U options for different installation needs.
Q2: How much load can it support?
A2: Each version supports a static load of up to 40 kg.
Q3: Is installation complicated?
A3: No, the wall-mounted design makes it straightforward, provided the wall can support the load.
Q4: Can I improve airflow?
A4: Yes, optional fans can be installed for better cooling.
Q5: What equipment fits inside?
A5: Standard 19-inch rack-mounted devices, including switches, patch panels, NVRs/DVRs, and PDUs.
