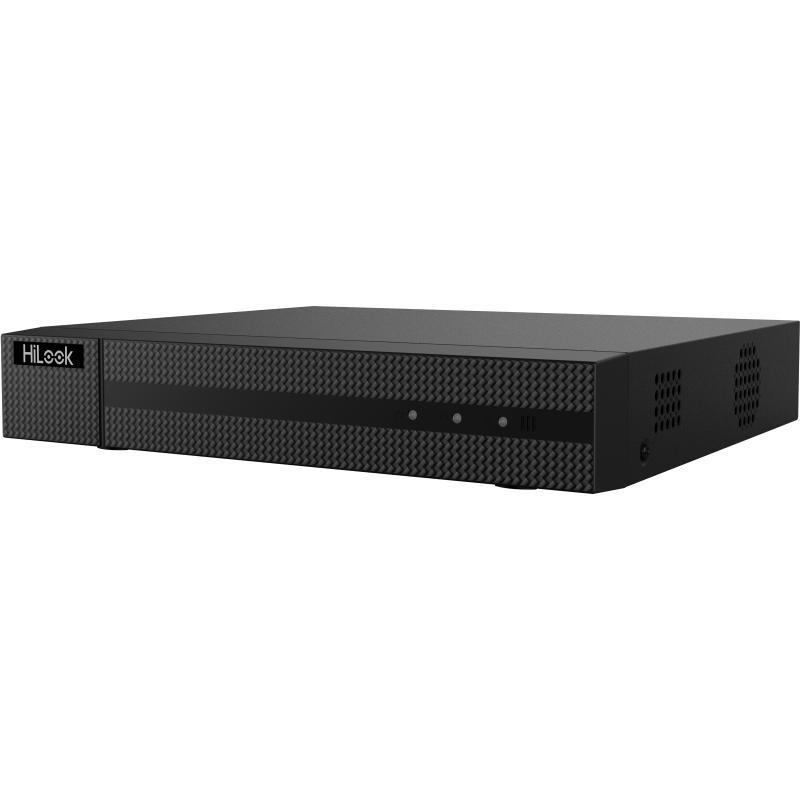

Hikvision HiLook DVR-204U-M1 TURBO HD 4-ch hybrid recorder with AI Motion Detection 2.0 and 8MP support

Description

The DVR-204U-M1 TURBO HD DVR is a compact hybrid digital video recorder designed for flexible surveillance integration across analog and IP systems. It supports deep learning-based Motion Detection 2.0 for improved accuracy in human and vehicle classification, helping significantly reduce false alarms while improving event search efficiency.

Key Features

  • Motion Detection 2.0 (Deep Learning AI): Automatically classifies human and vehicle targets and reduces false alarms from non-relevant motion such as lights or leaves.
  • Video Compression: Supports H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 for efficient storage and reduced bandwidth usage.
  • Hybrid Video Inputs: Compatible with HDTVI, AHD, CVI, CVBS, and IP cameras.
  • IP Camera Support: Up to 6 IP channels (expandable up to 8 channels in enhanced IP mode), supporting up to 8 MP resolution.
  • High Encoding Capability: Supports up to 8 MP @ 8 fps recording (channel 1 only).
  • Audio Over Coaxial Cable: Enables audio transmission through coaxial wiring for simplified installation.

Downloads

Datasheet Hikvision HiLook DVR-204U-M1 datasheet


Installer Tips

  • Camera Compatibility: Ensure all connected cameras support HDTVI/AHD/CVI/CVBS or compatible IP standards for smooth integration.
  • Channel Planning: Use channel 1 for the highest resolution (up to 8 MP @ 8 fps) when maximum detail is required.
  • Storage Setup: Install a surveillance-grade HDD (up to 10 TB supported) for reliable 24/7 recording performance.
  • Network Configuration: Enable HiLookVision or DDNS for easier remote access and mobile monitoring.
  • Wi-Fi Option: If using wireless connectivity, ensure a compatible USB Wi-Fi dongle is properly supported and positioned for stable signal.
  • Heat Management: Install in a well-ventilated area to maintain stable performance during continuous operation.
  • Firmware Updates: Regularly update firmware to maintain compatibility with newer IP cameras and security features like Motion Detection 2.0.


Quick-Read Specs

Model DVR-204U-M1
Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog Inputs 4-ch BNC
IP Inputs Up to 6-ch (up to 8-ch enhanced mode)
Max Resolution Up to 8 MP
Encoding Up to 8 MP @ 8 fps
Storage 1 SATA (up to 10 TB)
Network Bandwidth 96 Mbps
Remote Users 32
Power Supply 12 VDC, 1.5 A
Power Consumption ≤ 15 W (without HDD)


Physical Interface

1 Video and coaxial audio in
2 HDMI interface
3 VGA interface
4 AUDIO OUT (RCA)
5 AUDIO IN (RCA)
6 LAN network interface + USB interface
7 12 VDC power input
8 GND



Read more

Product form

Hikvision HiLook DVR-204U-M1 TURBO HD 4-ch hybrid recorder with AI Motion Detection 2.0 and 8MP support

SKU: DVR-204U-M1 Datasheet

Surveillance Hard Drive Storage
💾 Customize Your Storage:
HDDs are sold separately, so you can choose the exact size you need. 🟢 Surveillance-Grade Hard Drive Western Digital Purple or Seagate SkyHawk

$177.00 Incl. GST

    PayPalAmerican Express Apple Pay Google Pay MastercardShop Pay Visa

    Trusted by 5000+ happy customers

    FREE Express Delivery over $200

    Easy 30-Day Returns Policy

    Australian Warranty & Tech Support

    3-Year Hikvision Warranty

    Official Dahua Online Reseller | Australia’s #1 Dahua Specialist | Backed by Real Support

    We Sell Australian Stock Only, No Grey Import Products
    Order before 2pm for same day dispatch
    Click & Collect Learn More
    Bulk Pricing Available—Message Us On Whatsapp | Get a Quote

    Description

    The DVR-204U-M1 TURBO HD DVR is a compact hybrid digital video recorder designed for flexible surveillance integration across analog and IP systems. It supports deep learning-based Motion Detection 2.0 for improved accuracy in human and vehicle classification, helping significantly reduce false alarms while improving event search efficiency.

    Key Features

    • Motion Detection 2.0 (Deep Learning AI): Automatically classifies human and vehicle targets and reduces false alarms from non-relevant motion such as lights or leaves.
    • Video Compression: Supports H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 for efficient storage and reduced bandwidth usage.
    • Hybrid Video Inputs: Compatible with HDTVI, AHD, CVI, CVBS, and IP cameras.
    • IP Camera Support: Up to 6 IP channels (expandable up to 8 channels in enhanced IP mode), supporting up to 8 MP resolution.
    • High Encoding Capability: Supports up to 8 MP @ 8 fps recording (channel 1 only).
    • Audio Over Coaxial Cable: Enables audio transmission through coaxial wiring for simplified installation.

    Downloads

    Datasheet Hikvision HiLook DVR-204U-M1 datasheet


    Installer Tips

    • Camera Compatibility: Ensure all connected cameras support HDTVI/AHD/CVI/CVBS or compatible IP standards for smooth integration.
    • Channel Planning: Use channel 1 for the highest resolution (up to 8 MP @ 8 fps) when maximum detail is required.
    • Storage Setup: Install a surveillance-grade HDD (up to 10 TB supported) for reliable 24/7 recording performance.
    • Network Configuration: Enable HiLookVision or DDNS for easier remote access and mobile monitoring.
    • Wi-Fi Option: If using wireless connectivity, ensure a compatible USB Wi-Fi dongle is properly supported and positioned for stable signal.
    • Heat Management: Install in a well-ventilated area to maintain stable performance during continuous operation.
    • Firmware Updates: Regularly update firmware to maintain compatibility with newer IP cameras and security features like Motion Detection 2.0.


    Quick-Read Specs

    Model DVR-204U-M1
    Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
    Analog Inputs 4-ch BNC
    IP Inputs Up to 6-ch (up to 8-ch enhanced mode)
    Max Resolution Up to 8 MP
    Encoding Up to 8 MP @ 8 fps
    Storage 1 SATA (up to 10 TB)
    Network Bandwidth 96 Mbps
    Remote Users 32
    Power Supply 12 VDC, 1.5 A
    Power Consumption ≤ 15 W (without HDD)


    Physical Interface

    1 Video and coaxial audio in
    2 HDMI interface
    3 VGA interface
    4 AUDIO OUT (RCA)
    5 AUDIO IN (RCA)
    6 LAN network interface + USB interface
    7 12 VDC power input
    8 GND
