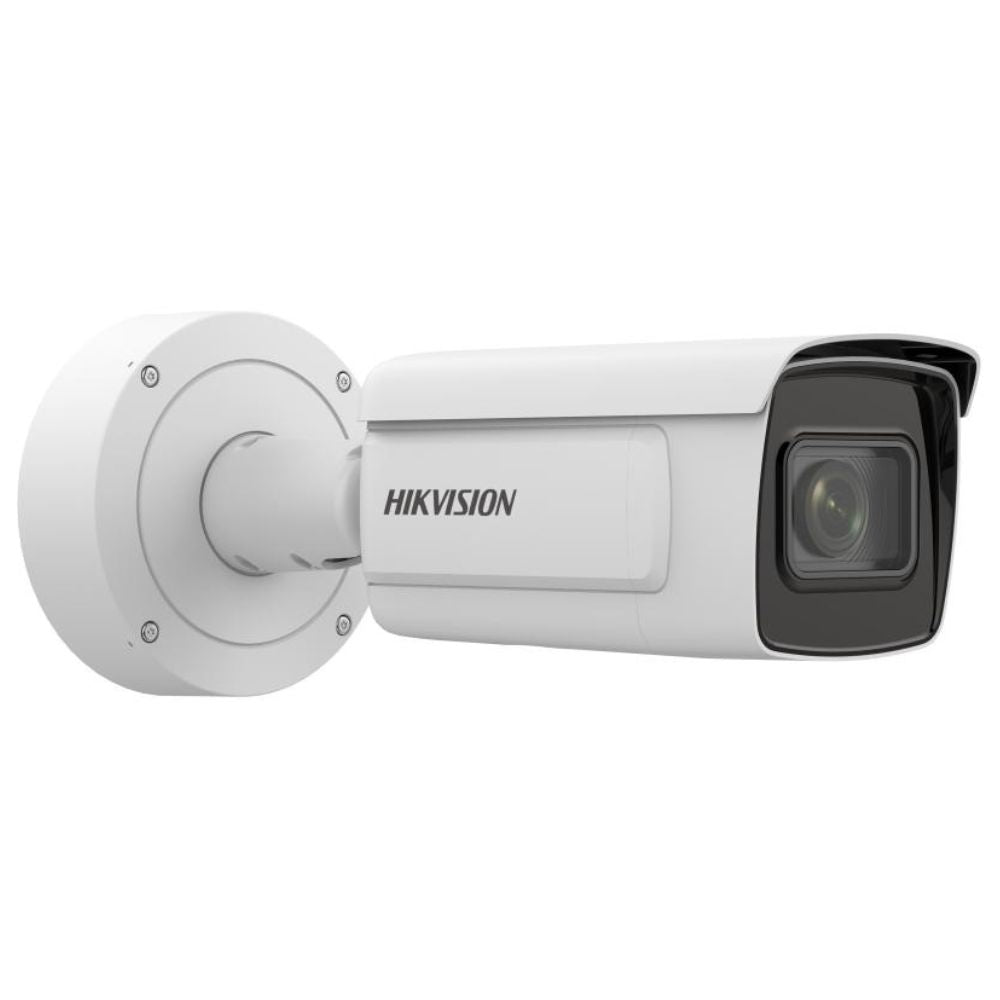

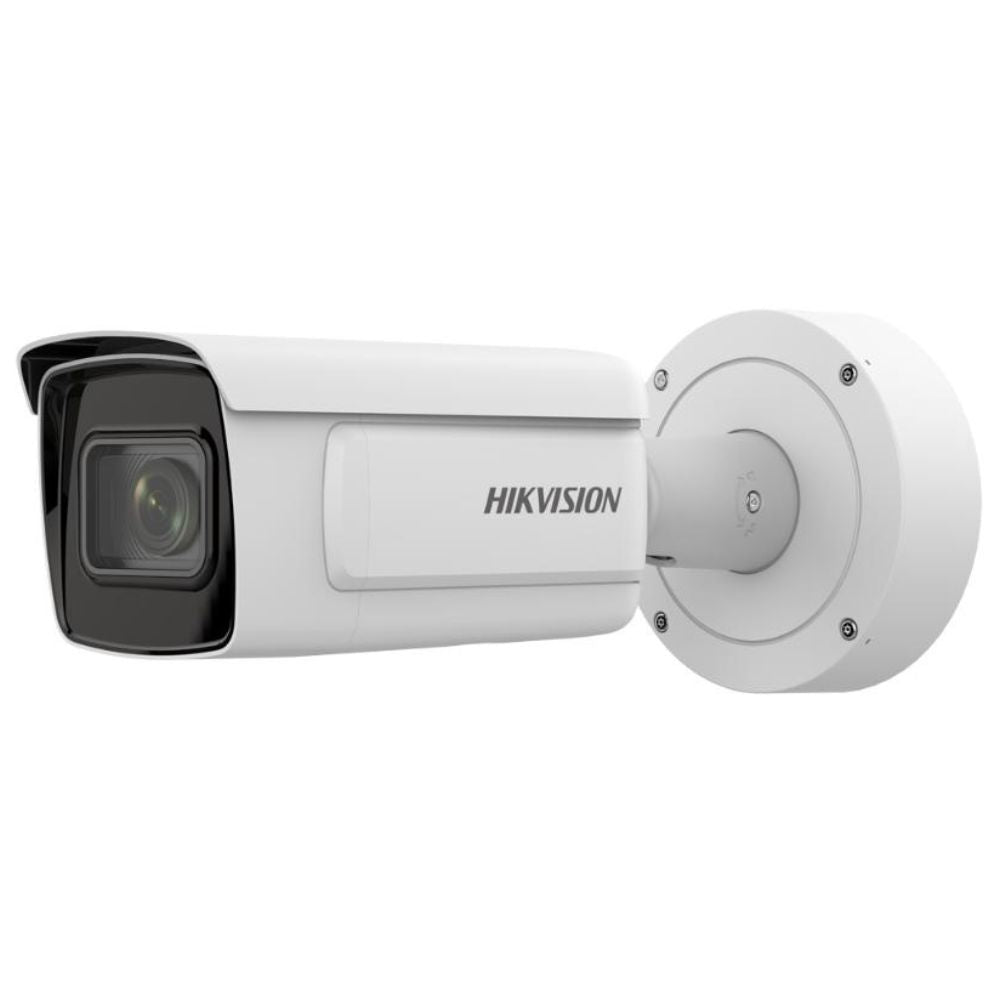

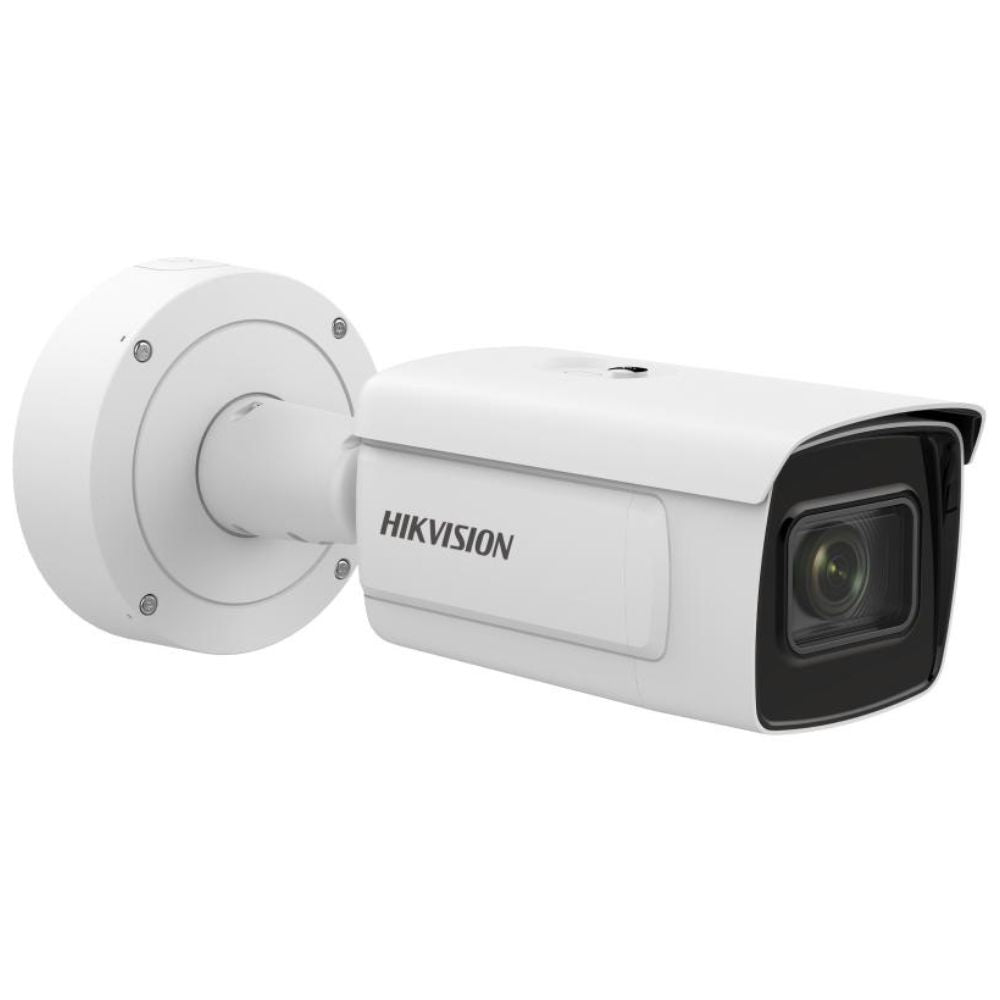

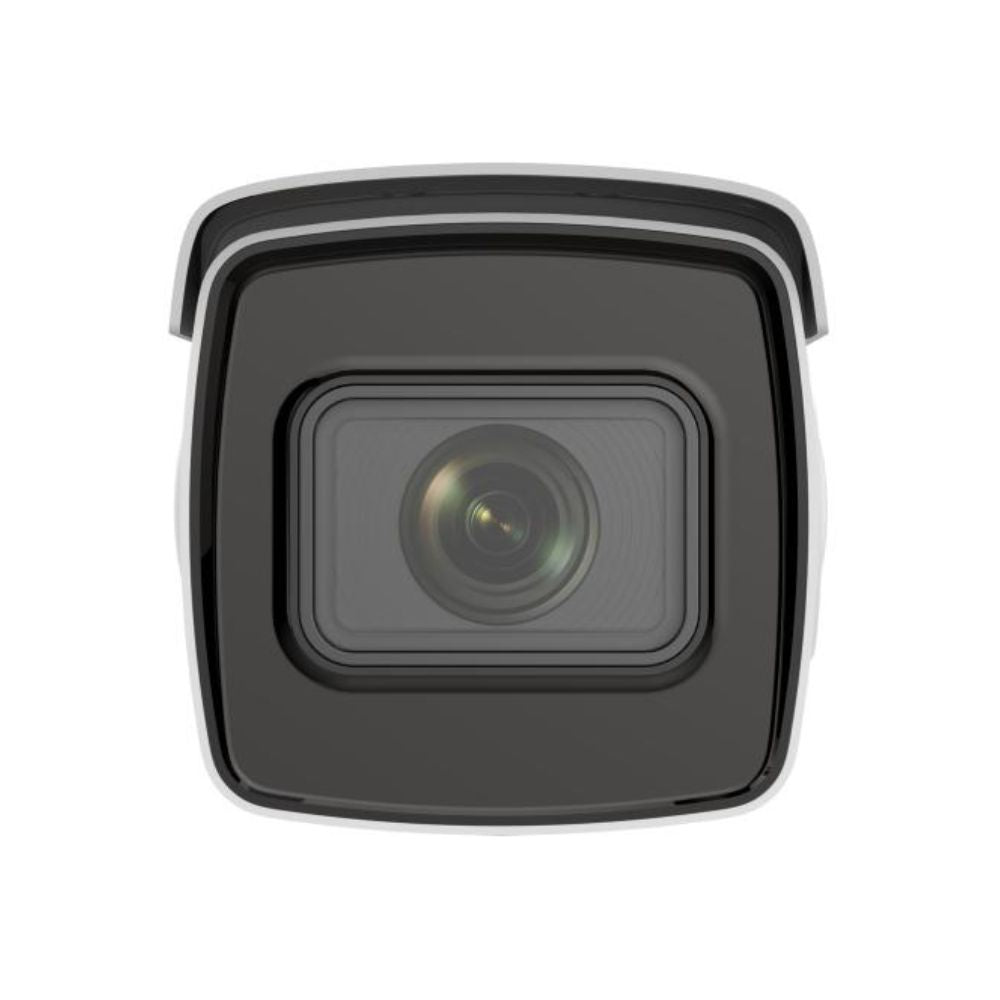

Hikvision iDS-2CD7A46G0/P-IZHS(Y) 4MP Varifocal Bullet Camera with Advanced License Plate Recognition and AI Perimeter Protection, 2.8-12mm Lens, 7 Series

Description

Experience top-tier security with the Hikvision iDS-2CD7A46G0/P-IZHS(Y) 4 MP ANPR IR Varifocal Bullet Network Camera. This advanced camera boasts License Plate Recognition (LPR) capabilities, exceptional low-light performance thanks to DarkFighter technology, and robust weatherproofing for reliable outdoor use. Ideal for both residential and commercial applications, it provides crystal-clear imaging and intelligent analytics for comprehensive surveillance, from monitoring driveways to managing parking lots.

Features

  • Deep Learning AI: Intelligently identifies and classifies humans and vehicles, significantly reducing false alarms from environmental factors like foliage or light changes.
  • License Plate Recognition (LPR): Captures and recognizes license plates with high accuracy, even complex structures, and supports blocklists/allowlists for tailored alerts.
  • DarkFighter Technology: Delivers exceptional image clarity in extremely low-light conditions, ensuring critical details are visible day and night.
  • 140 dB WDR: Provides clear imaging against strong backlighting, eliminating overexposed bright spots and underexposed dark areas.
  • Varifocal Lens: Offers flexible viewing angles (2.8 to 12 mm or 8 to 32 mm options) to suit various surveillance needs, from wide-area coverage to focused monitoring.
  • Efficient Compression: Utilizes H.265+ technology to drastically reduce bandwidth and storage requirements without compromising video quality.
  • All-Weather Durability: Built with IP67 water and dust resistance and IK10 vandal-proof ratings, ensuring reliable operation in harsh outdoor environments.
  • Parking Management: Smartly detects parking space status, identifies vacant spots, and can even perform license plate recognition in close-view mode for efficient parking control.
  • Perimeter Protection: Monitors for line crossing, intrusion, region entrance, and region exiting with advanced human and vehicle detection to secure your boundaries.

DOWNLOADS

Data Sheet IDS-2CD7A46G0/P-IZHSY (2.8-12MM)
Quick Start Guide IDS-2CD7A46G0/P-IZHSY (2.8-12MM) - Quick Start Guide
User Manual IDS-2CD7A46G0/P-IZHSY (2.8-12MM) - User Manual

Extra Info

Advanced AI for Smarter Surveillance
This camera leverages embedded deep learning algorithms to provide sophisticated perimeter protection and vehicle detection. This means it can distinguish between humans and vehicles, significantly reducing false alarms that plague traditional motion detection systems. Whether it's monitoring a fence line or a busy street, the camera intelligently filters out irrelevant movements caused by animals or environmental disturbances.

High-Accuracy License Plate Recognition
Beyond simple capture, the iDS-2CD7A46G0/P-IZHS(Y) excels at License Plate Recognition (LPR). Its deep learning algorithms provide high recognition accuracy for both common and complex license plate structures. This functionality is crucial for applications like access control, traffic monitoring, and identifying vehicles of interest using customizable blocklists and allowlists. It can even detect vehicle attributes like type, color, and brand.

Intelligent Parking Management
For parking areas, this camera offers powerful management capabilities. It can detect the status of parking spaces (up to 40 in distant view, 4 in close view) and identify vacant spots, triggering alerts for parking duration or timeout. In close view mode, it integrates LPR for comprehensive parking solutions, making it an invaluable tool for optimizing parking facility operations.

Robust Design for Challenging Environments
The iDS-2CD7A46G0/P-IZHS(Y) is engineered for resilience. Its IP67 and IK10 ratings guarantee protection against dust, water immersion, and impacts, making it suitable for exposed outdoor installations. The "-Y" model further features moderate anti-corrosion protection, extending its lifespan in coastal or acid rain-affected regions.

Tech Specs

Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.0005 Lux @ (F1.2, AGC ON)
B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time 1 s to 1/100,000 s
Day & Night IR cut filter
Blue glass module to reduce ghost phenomenon
Lens
Focal Length & FOV 2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°
8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°
Focus Auto, Semi-auto, Manual
Iris Type P-iris
Aperture 2.8 to 12 mm: F1.2 to F2.5
8 to 32 mm: F1.7 to F1.73
DORI (2.8 to 12 mm) Wide: D: 60 m, O: 23.8 m, R: 12 m, I: 6 m
Tele: D: 149 m, O: 59.1 m, R: 29.8 m, I: 14.9 m
DORI (8 to 32 mm) Wide: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m
Tele: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m
Illuminator
Supplement Light Type IR
Supplement Light Range 2.8 to 12 mm: 50 m
8 to 32 mm: 100 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
50 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream 50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Fifth Stream 50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Fourth stream: H.265/H.264/MJPEG
Fifth stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 4 fixed regions for each stream
Target Cropping Yes
e-PTZ Support Patrol and Auto Tracking settings
Audio
Audio Type Mono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
Simultaneous Live View Up to 20 channels
API Open Network Video Interface (Profile S, Profile G, Profile T, Profile M), ISAPI, SDK, ISUP
User/Host Up to 32 users
3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
Network Storage NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch Yes
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule, Alarm Trigger, Video Trigger
Wide Dynamic Range (WDR) 140 dB
SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR, Distortion Correction, Defog
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Image Stabilization EIS
Privacy Mask 8 programmable polygon privacy masks
Interface
Video Output 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Ethernet Interface 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Audio With -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A)
RS-485 With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key Yes
Power Output With -Y: 12 VDC, max. 100 mA
Wiegand -Y: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit)
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error), video quality diagnosis, vibration detection
Smart Event Scene change detection, audio exception detection, defocus detection
Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning
Deep Learning Function
Perimeter Protection Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Support combined event alarm triggering
Road Traffic and Vehicle Detection (Smart Function) Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)
Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.
Support vehicle and non-vehicle counting
Blocklist and allowlist (LPR) Up to 10,000 records
LPR Countries/Regions 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions
LPR Accuracy License plate recognition rate ≥98%
Capture rate ≥99%
Driving direction accuracy rate ≥98%
Vehicle Capture Speed Front installation in checkpoint scenario: up to 120 km/h
Side installation: up to 80 km/h
Capture Mode License Plate and Vehicle Mode, Vehicle Priority Mode
Metadata Intrusion detection, line crossing detection, region entrance detection, region exiting detection, road traffic
Parking Management Support distant view mode and close view mode
Distant view mode: support status detection on up to 40 parking spaces, parking duration detection, and vacant parking space alarm
Close view mode: support status detection on up to 4 parking spaces, license plate recognition, parking timeout alarm, and vacant parking space alarm
General
Power 12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block
PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.396 A to 0.295 A, max. 16.8 W
Material Aluminum alloy body
Dimension Without -Y: Ø 144 mm × 347 mm (Ø 5.7" × 13.7")
With -Y: Ø 140 mm × 351 mm (Ø 5.5" × 13.8")
Package Dimension 405 mm × 190 mm × 180 mm (15.9" × 7.5" × 7.1")
Weight Approx. 1950 g (4.2 lb.)
With Package Weight Approx. 3070 g (6.7 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter
Heater Yes
Device Management Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces
Approval
EMC FCC: 47 CFR Part 15, Subpart B
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
RCM: AS/NZS CISPR 32: 2015
IC: ICES-003: Issue 7
KC: KN32: 2015, KN35: 2015
Safety UL: UL 62368-1
CB: IEC 62368-1: 2014+A11
CE-LVD: EN 62368-1: 2014/A11: 2017
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
LOA: IEC/EN 60950-1
Environment CE-RoHS: 2011/65/EU
WEEE: 2012/19/EU
Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013, IK10: IEC 62262:2002
Anti-Corrosion Protection -Y: NEMA 4X (NEMA 250-2018)
Automotive and Railway EN50121-4
Other PVC FREE

Q&A

Q: What is the maximum resolution of this camera?
A: The camera provides high-quality imaging with a maximum resolution of 2688 × 1520 (4 MP).

Q: Does this camera perform well in low-light conditions?
A: Yes, it features DarkFighter technology and a minimum illumination of 0.0005 Lux in color (F1.2, AGC ON), ensuring excellent performance in very low light.

Q: Can this camera identify license plates?
A: Absolutely, it comes with embedded deep learning-based license plate capture and recognition algorithms for high accuracy.

Q: What are the available focal length options for the lens?
A: You can choose between a 2.8 to 12 mm varifocal lens or an 8 to 32 mm varifocal lens.

Q: Is this camera suitable for outdoor use?
A: Yes, it is rated IP67 for water and dust resistance and IK10 for vandal proofing, making it highly suitable for outdoor installations. The "-Y" model also offers moderate anti-corrosion protection.

Q: What kind of power input does the camera accept?
A: It can be powered by 12 VDC or PoE (IEEE 802.3at).

Q: Does this camera have on-board storage?
A: Yes, it has a built-in memory card slot that supports microSD/microSDHC/microSDXC cards up to 1 TB.

Q: What is the purpose of the "Deep Learning Function" in this camera?
A: The deep learning function enables advanced features like perimeter protection (line crossing, intrusion) with human and vehicle classification, as well as highly accurate road traffic and vehicle detection including license plate recognition and vehicle attribute analysis.

Q: Can this camera be used for parking management?
A: Yes, it supports parking space status detection, vacant parking space alarms, and can perform license plate recognition in close view mode for parking management.

Q: What is the recommended capture speed for vehicles with this camera?
A: For front installation in a checkpoint scenario, it can capture vehicles up to 120 km/h. For side installation, it can capture up to 80 km/h.

Read more

Product form

Hikvision iDS-2CD7A46G0/P-IZHS(Y) 4MP Varifocal Bullet Camera with Advanced License Plate Recognition and AI Perimeter Protection, 2.8-12mm Lens, 7 Series

SKU: IDS-2CD7A46G0/P-IZHSY (2.8-12MM)

🟢 IN STOCK— Delivery in 1–3 days.

$1,550.00 Incl. GST

    American Express Apple Pay Google Pay MastercardPayPalShop Pay Visa

    Trusted by 5000+ happy customers

    FREE Express Delivery over $200

    Easy 30-Day Returns Policy

    Australian Warranty & Tech Support

    Official Dahua Online Reseller | Australia’s #1 Dahua Specialist | Backed by Real Support

    We Sell Australian Stock Only, No Grey Import Products
    Order before 2pm for same day dispatch
    Click & Collect Learn More
    Bulk Pricing Available—Message Us On Whatsapp | Get a Quote

    Description

    Experience top-tier security with the Hikvision iDS-2CD7A46G0/P-IZHS(Y) 4 MP ANPR IR Varifocal Bullet Network Camera. This advanced camera boasts License Plate Recognition (LPR) capabilities, exceptional low-light performance thanks to DarkFighter technology, and robust weatherproofing for reliable outdoor use. Ideal for both residential and commercial applications, it provides crystal-clear imaging and intelligent analytics for comprehensive surveillance, from monitoring driveways to managing parking lots.

    Features

    • Deep Learning AI: Intelligently identifies and classifies humans and vehicles, significantly reducing false alarms from environmental factors like foliage or light changes.
    • License Plate Recognition (LPR): Captures and recognizes license plates with high accuracy, even complex structures, and supports blocklists/allowlists for tailored alerts.
    • DarkFighter Technology: Delivers exceptional image clarity in extremely low-light conditions, ensuring critical details are visible day and night.
    • 140 dB WDR: Provides clear imaging against strong backlighting, eliminating overexposed bright spots and underexposed dark areas.
    • Varifocal Lens: Offers flexible viewing angles (2.8 to 12 mm or 8 to 32 mm options) to suit various surveillance needs, from wide-area coverage to focused monitoring.
    • Efficient Compression: Utilizes H.265+ technology to drastically reduce bandwidth and storage requirements without compromising video quality.
    • All-Weather Durability: Built with IP67 water and dust resistance and IK10 vandal-proof ratings, ensuring reliable operation in harsh outdoor environments.
    • Parking Management: Smartly detects parking space status, identifies vacant spots, and can even perform license plate recognition in close-view mode for efficient parking control.
    • Perimeter Protection: Monitors for line crossing, intrusion, region entrance, and region exiting with advanced human and vehicle detection to secure your boundaries.

    DOWNLOADS

    Data Sheet IDS-2CD7A46G0/P-IZHSY (2.8-12MM)
    Quick Start Guide IDS-2CD7A46G0/P-IZHSY (2.8-12MM) - Quick Start Guide
    User Manual IDS-2CD7A46G0/P-IZHSY (2.8-12MM) - User Manual

    Extra Info

    Advanced AI for Smarter Surveillance
    This camera leverages embedded deep learning algorithms to provide sophisticated perimeter protection and vehicle detection. This means it can distinguish between humans and vehicles, significantly reducing false alarms that plague traditional motion detection systems. Whether it's monitoring a fence line or a busy street, the camera intelligently filters out irrelevant movements caused by animals or environmental disturbances.

    High-Accuracy License Plate Recognition
    Beyond simple capture, the iDS-2CD7A46G0/P-IZHS(Y) excels at License Plate Recognition (LPR). Its deep learning algorithms provide high recognition accuracy for both common and complex license plate structures. This functionality is crucial for applications like access control, traffic monitoring, and identifying vehicles of interest using customizable blocklists and allowlists. It can even detect vehicle attributes like type, color, and brand.

    Intelligent Parking Management
    For parking areas, this camera offers powerful management capabilities. It can detect the status of parking spaces (up to 40 in distant view, 4 in close view) and identify vacant spots, triggering alerts for parking duration or timeout. In close view mode, it integrates LPR for comprehensive parking solutions, making it an invaluable tool for optimizing parking facility operations.

    Robust Design for Challenging Environments
    The iDS-2CD7A46G0/P-IZHS(Y) is engineered for resilience. Its IP67 and IK10 ratings guarantee protection against dust, water immersion, and impacts, making it suitable for exposed outdoor installations. The "-Y" model further features moderate anti-corrosion protection, extending its lifespan in coastal or acid rain-affected regions.

    Tech Specs

    Camera
    Image Sensor 1/1.8" Progressive Scan CMOS
    Max. Resolution 2688 × 1520
    Min. Illumination Color: 0.0005 Lux @ (F1.2, AGC ON)
    B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
    Shutter Time 1 s to 1/100,000 s
    Day & Night IR cut filter
    Blue glass module to reduce ghost phenomenon
    Lens
    Focal Length & FOV 2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°
    8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°
    Focus Auto, Semi-auto, Manual
    Iris Type P-iris
    Aperture 2.8 to 12 mm: F1.2 to F2.5
    8 to 32 mm: F1.7 to F1.73
    DORI (2.8 to 12 mm) Wide: D: 60 m, O: 23.8 m, R: 12 m, I: 6 m
    Tele: D: 149 m, O: 59.1 m, R: 29.8 m, I: 14.9 m
    DORI (8 to 32 mm) Wide: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m
    Tele: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m
    Illuminator
    Supplement Light Type IR
    Supplement Light Range 2.8 to 12 mm: 50 m
    8 to 32 mm: 100 m
    Smart Supplement Light Yes
    IR Wavelength 850 nm
    Video
    Main Stream 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
    50 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
    60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
    60 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
    Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480)
    60 Hz: 30 fps (704 × 480, 640 × 480)
    Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
    60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
    Fourth Stream 50 Hz: 25 fps (704 × 576, 640 × 480)
    60 Hz: 30 fps (704 × 480, 640 × 480)
    Fifth Stream 50 Hz: 25 fps (704 × 576, 640 × 480)
    60 Hz: 30 fps (704 × 480, 640 × 480)
    Video Compression Main stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Third stream: H.265/H.264
    Fourth stream: H.265/H.264/MJPEG
    Fifth stream: H.265/H.264/MJPEG
    Video Bit Rate 32 Kbps to 8 Mbps
    H.264 Type Baseline Profile, Main Profile, High Profile
    H.265 Type Main Profile
    Bit Rate Control CBR, VBR
    Scalable Video Coding (SVC) H.264 and H.265 encoding
    Region of Interest (ROI) 4 fixed regions for each stream
    Target Cropping Yes
    e-PTZ Support Patrol and Auto Tracking settings
    Audio
    Audio Type Mono sound
    Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
    Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
    Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
    Environment Noise Filtering Yes
    Network
    Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
    Simultaneous Live View Up to 20 channels
    API Open Network Video Interface (Profile S, Profile G, Profile T, Profile M), ISAPI, SDK, ISUP
    User/Host Up to 32 users
    3 user levels: administrator, operator, and user
    Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
    Network Storage NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR),
    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
    Client iVMS-4200, Hik-Connect, Hik-Central
    Web Browser Plug-in required live view: IE 10, IE 11
    Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+
    Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
    Image Parameters Switch Yes
    Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
    Day/Night Switch Day, Night, Auto, Schedule, Alarm Trigger, Video Trigger
    Wide Dynamic Range (WDR) 140 dB
    SNR ≥ 52 dB
    Image Enhancement BLC, HLC, 3D DNR, Distortion Correction, Defog
    Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
    Image Stabilization EIS
    Privacy Mask 8 programmable polygon privacy masks
    Interface
    Video Output 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
    Ethernet Interface 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
    On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
    Audio With -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
    Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A)
    RS-485 With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
    Reset Key Yes
    Power Output With -Y: 12 VDC, max. 100 mA
    Wiegand -Y: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit)
    Event
    Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error), video quality diagnosis, vibration detection
    Smart Event Scene change detection, audio exception detection, defocus detection
    Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning
    Deep Learning Function
    Perimeter Protection Line crossing, intrusion, region entrance, region exiting
    Support alarm triggering by specified target types (human and vehicle)
    Support combined event alarm triggering
    Road Traffic and Vehicle Detection (Smart Function) Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)
    Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.
    Support vehicle and non-vehicle counting
    Blocklist and allowlist (LPR) Up to 10,000 records
    LPR Countries/Regions 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions
    LPR Accuracy License plate recognition rate ≥98%
    Capture rate ≥99%
    Driving direction accuracy rate ≥98%
    Vehicle Capture Speed Front installation in checkpoint scenario: up to 120 km/h
    Side installation: up to 80 km/h
    Capture Mode License Plate and Vehicle Mode, Vehicle Priority Mode
    Metadata Intrusion detection, line crossing detection, region entrance detection, region exiting detection, road traffic
    Parking Management Support distant view mode and close view mode
    Distant view mode: support status detection on up to 40 parking spaces, parking duration detection, and vacant parking space alarm
    Close view mode: support status detection on up to 4 parking spaces, license plate recognition, parking timeout alarm, and vacant parking space alarm
    General
    Power 12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block
    PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.396 A to 0.295 A, max. 16.8 W
    Material Aluminum alloy body
    Dimension Without -Y: Ø 144 mm × 347 mm (Ø 5.7" × 13.7")
    With -Y: Ø 140 mm × 351 mm (Ø 5.5" × 13.8")
    Package Dimension 405 mm × 190 mm × 180 mm (15.9" × 7.5" × 7.1")
    Weight Approx. 1950 g (4.2 lb.)
    With Package Weight Approx. 3070 g (6.7 lb.)
    Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    Startup and Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
    Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
    General Function Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter
    Heater Yes
    Device Management Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces
    Approval
    EMC FCC: 47 CFR Part 15, Subpart B
    CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
    RCM: AS/NZS CISPR 32: 2015
    IC: ICES-003: Issue 7
    KC: KN32: 2015, KN35: 2015
    Safety UL: UL 62368-1
    CB: IEC 62368-1: 2014+A11
    CE-LVD: EN 62368-1: 2014/A11: 2017
    BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
    LOA: IEC/EN 60950-1
    Environment CE-RoHS: 2011/65/EU
    WEEE: 2012/19/EU
    Reach: Regulation (EC) No 1907/2006
    Protection IP67: IEC 60529-2013, IK10: IEC 62262:2002
    Anti-Corrosion Protection -Y: NEMA 4X (NEMA 250-2018)
    Automotive and Railway EN50121-4
    Other PVC FREE

    Q&A

    Q: What is the maximum resolution of this camera?
    A: The camera provides high-quality imaging with a maximum resolution of 2688 × 1520 (4 MP).

    Q: Does this camera perform well in low-light conditions?
    A: Yes, it features DarkFighter technology and a minimum illumination of 0.0005 Lux in color (F1.2, AGC ON), ensuring excellent performance in very low light.

    Q: Can this camera identify license plates?
    A: Absolutely, it comes with embedded deep learning-based license plate capture and recognition algorithms for high accuracy.

    Q: What are the available focal length options for the lens?
    A: You can choose between a 2.8 to 12 mm varifocal lens or an 8 to 32 mm varifocal lens.

    Q: Is this camera suitable for outdoor use?
    A: Yes, it is rated IP67 for water and dust resistance and IK10 for vandal proofing, making it highly suitable for outdoor installations. The "-Y" model also offers moderate anti-corrosion protection.

    Q: What kind of power input does the camera accept?
    A: It can be powered by 12 VDC or PoE (IEEE 802.3at).

    Q: Does this camera have on-board storage?
    A: Yes, it has a built-in memory card slot that supports microSD/microSDHC/microSDXC cards up to 1 TB.

    Q: What is the purpose of the "Deep Learning Function" in this camera?
    A: The deep learning function enables advanced features like perimeter protection (line crossing, intrusion) with human and vehicle classification, as well as highly accurate road traffic and vehicle detection including license plate recognition and vehicle attribute analysis.

    Q: Can this camera be used for parking management?
    A: Yes, it supports parking space status detection, vacant parking space alarms, and can perform license plate recognition in close view mode for parking management.

    Q: What is the recommended capture speed for vehicles with this camera?
    A: For front installation in a checkpoint scenario, it can capture vehicles up to 120 km/h. For side installation, it can capture up to 80 km/h.

    Read more

    Recently viewed products

    © 2025 Spy Monkey Surveillance, Powered by Shopify

      • American Express
      • Apple Pay
      • Google Pay
      • Mastercard
      • PayPal
      • Shop Pay
      • Union Pay
      • Visa

      Login

      Forgot your password?

      Don't have an account yet?
      Create account
