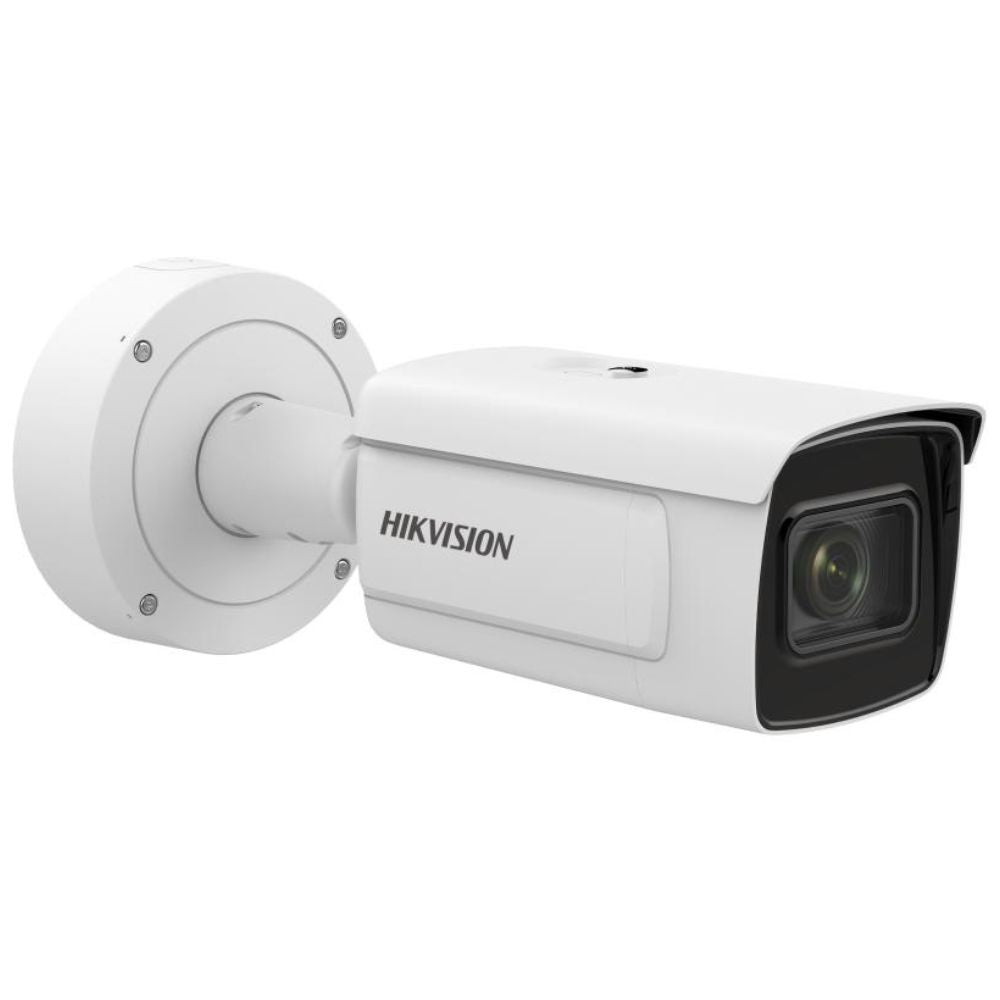

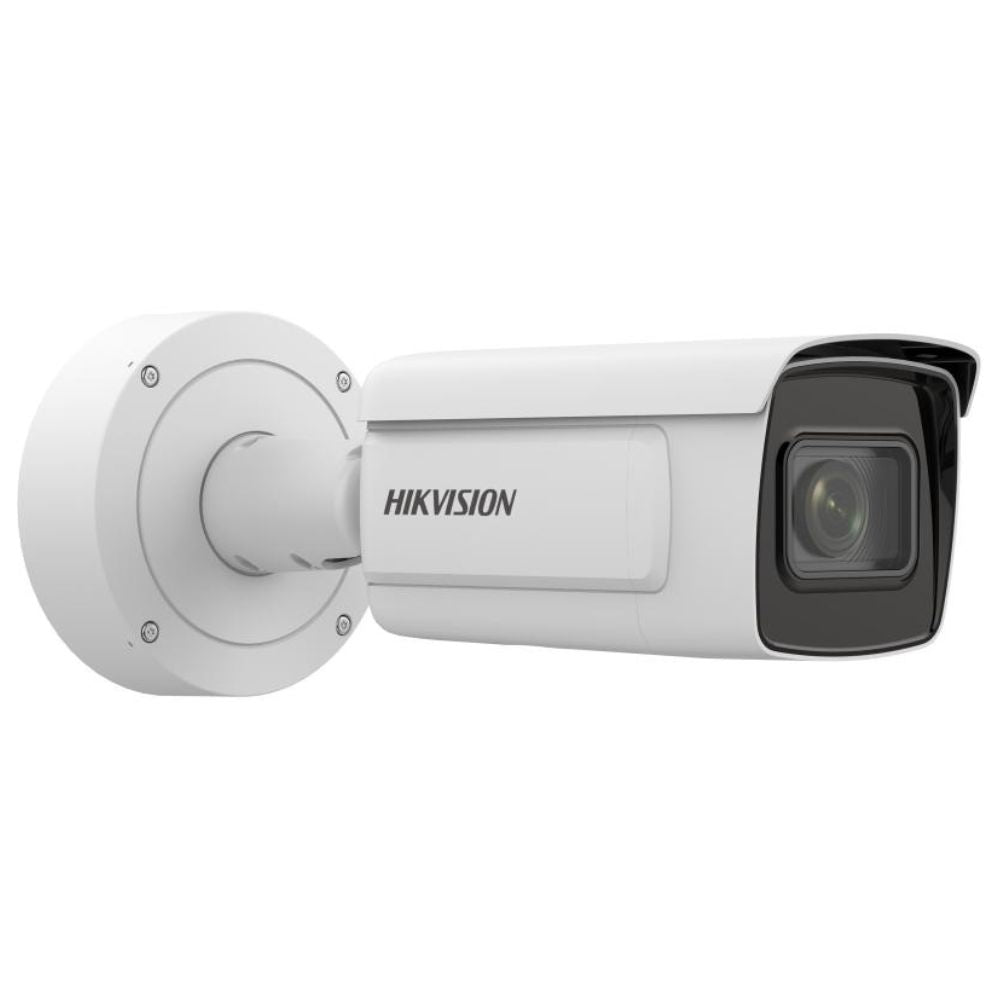

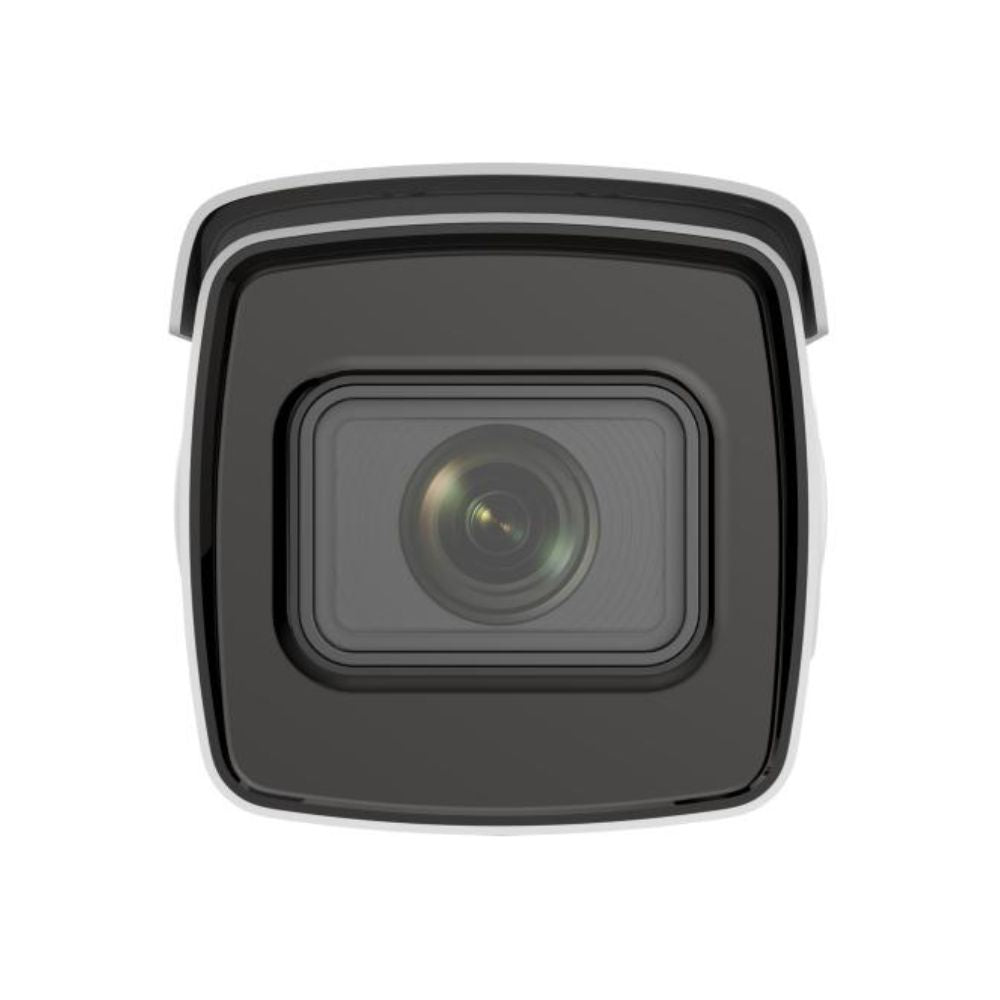

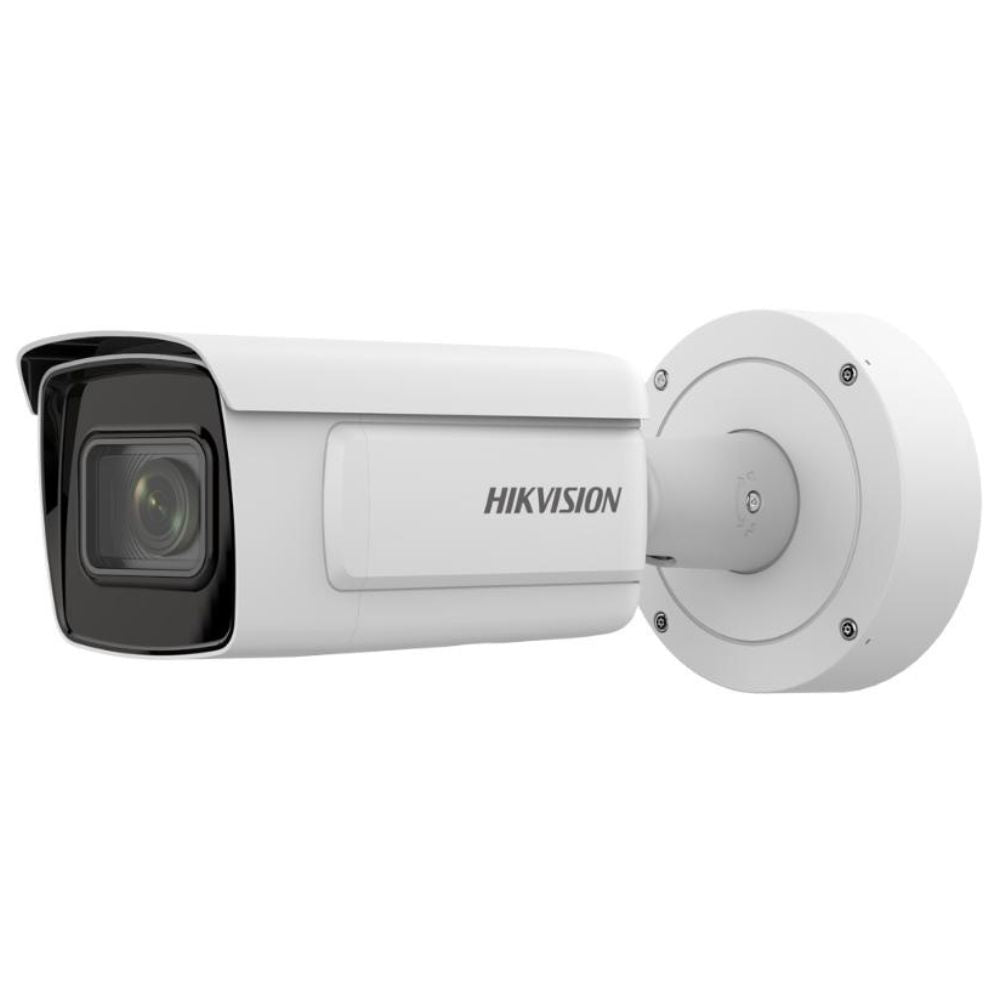

The Hikvision iDS-2CD7A46G0/P-IZHS(Y) delivers advanced imaging, AI-powered license plate recognition, and robust security in a durable bullet design. Built with 4 MP resolution, DarkFighter low-light technology, and 140 dB WDR, it ensures clear, detailed monitoring in all lighting conditions. With IP67 and IK10 protection, it withstands harsh outdoor conditions.
Features
-
4 MP High-Resolution Imaging – Crisp, detailed video for accurate monitoring.
-
DarkFighter Technology – Outstanding low-light performance for night surveillance.
-
140 dB WDR – Clear images even in challenging backlight conditions.
-
ANPR (Automatic Number Plate Recognition) – Accurate license plate capture and recognition for vehicles and motorcycles.
-
Perimeter Protection – Human/vehicle detection with reduced false alarms.
-
Parking Management – Detects space availability and triggers alarms for vacant or occupied status.
-
Multi-Stream Capability – Supports up to 5 video streams for flexible applications.
-
Durable Design – IP67 weatherproof and IK10 vandal-resistant housing.
Downloads
Extra Info
Smart Detection & Perimeter Protection
Powered by advanced deep learning algorithms, the system can accurately detect and classify moving objects as either humans or vehicles. This intelligent filtering capability significantly reduces false alarms caused by irrelevant motion—such as animals, swaying branches, or sudden lighting changes—allowing security teams to focus only on real threats. It is ideal for perimeter defense in high-security environments, improving both efficiency and response time.
Advanced ANPR & Traffic Monitoring
Equipped with embedded Automatic Number Plate Recognition (ANPR) technology, the camera can identify license plates with an accuracy rate of ≥98% under optimal lighting and positioning conditions. It supports blocklist and allowlist configurations for automated alerts, as well as vehicle attribute detection such as type, color, and direction of travel—making it well-suited for access control points, toll stations, and traffic monitoring applications.
Parking Space Management
This feature allows the system to monitor multiple parking bays simultaneously in both wide-area (distant view) and close-up monitoring modes. It can detect whether each space is occupied or vacant, track how long a vehicle has been parked, and generate availability data in real time—helping operators optimize parking usage and improve customer experience.
Reliable Operation in Harsh Environments
Built for durability, the device meets IP67 weatherproof and IK10 vandal-resistance standards, ensuring protection from dust, water, and physical impacts. It operates reliably across a wide temperature range, from -40 °C to 60 °C, making it suitable for extreme climates and outdoor deployments where long-term performance is critical.
Tech Specs
| Category |
Specification |
| Camera |
|
| Image Sensor |
1/1.8" Progressive Scan CMOS |
| Max. Resolution |
2688 × 1520 |
| Min. Illumination |
Color: 0.0005 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Speed |
1 s to 1/100,000 s |
| Day/Night |
IR cut filter; Blue glass module to reduce ghosting |
| Lens Options |
2.8–12 mm (F1.2–F2.5), 8–32 mm (F1.7–F1.73) |
| FOV |
2.8–12 mm: H 114.5°–41.8°, V 59.3°–23.6°, D 141.1°–48°; 8–32 mm: H 42.5°–15.1°, V 23.3°–8.64°, D 49.6°–17.3° |
| DORI (Wide) |
2.8–12 mm: D 60 m / O 23.8 m / R 12 m / I 6 m; 8–32 mm: D 150.3 m / O 59.7 m / R 30.1 m / I 15 m |
| DORI (Tele) |
2.8–12 mm: D 149 m / O 59.1 m / R 29.8 m / I 14.9 m; 8–32 mm: D 400 m / O 158.7 m / R 80 m / I 40 m |
| IR Range |
50 m (2.8–12 mm), 100 m (8–32 mm) |
| IR Wavelength |
850 nm |
| Smart Supplement Light |
Yes |
| Video |
|
| Main Stream |
Up to 25/30 fps @ 4 MP |
| Sub Streams |
Supports up to 5 simultaneous streams |
| Compression |
H.265+/H.265/H.264+/H.264/MJPEG |
| Bit Rate |
32 Kbps to 8 Mbps |
| ROI |
4 fixed regions per stream |
| Audio |
|
| Audio In/Out |
1 in, 1 out (line), mono sound |
| Compression |
G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC |
| Noise Filtering |
Yes |
| Network |
|
| Protocols |
TCP/IP, HTTPS, FTP, NTP, SMTP, IPv6, etc. |
| Live View |
Up to 20 channels |
| Storage |
microSD up to 1 TB, NAS, ANR |
| Security |
HTTPS, TLS 1.2/1.3, IP filtering, watermark, TPM 2.0 |
| Intelligent Functions |
ANPR, Perimeter Protection, Parking Management, Vehicle Attribute Detection |
| General |
|
| Operating Temp |
-40 °C to 60 °C (-40 °F to 140 °F) |
| Power Supply |
12 VDC ±20%, PoE (802.3at, Class 4) |
| Power Consumption |
Max. 14.28 W (DC) / 16.8 W (PoE) |
| Material |
Aluminum alloy |
| Dimensions |
Ø 144 mm × 347 mm (w/o -Y), Ø 140 mm × 351 mm (with -Y) |
| Weight |
~1950 g |
| Protection |
IP67, IK10 |
Q&A
Q: Can this camera recognize license plates without additional software?
A: Yes, it has built-in ANPR with high recognition accuracy for vehicles and motorcycles.
Q: Is it weatherproof and vandal-resistant?
A: Yes, it’s IP67-rated and IK10-rated for outdoor and high-risk environments.
Q: Can it detect available parking spaces?
A: Yes, it supports parking space status detection in both distant and close view modes.
Q: Does it filter out false alarms from irrelevant motion?
A: Yes, its deep learning algorithms focus on human and vehicle detection only.
Q: How many video streams can it output?
A: It supports up to five streams for different applications.
