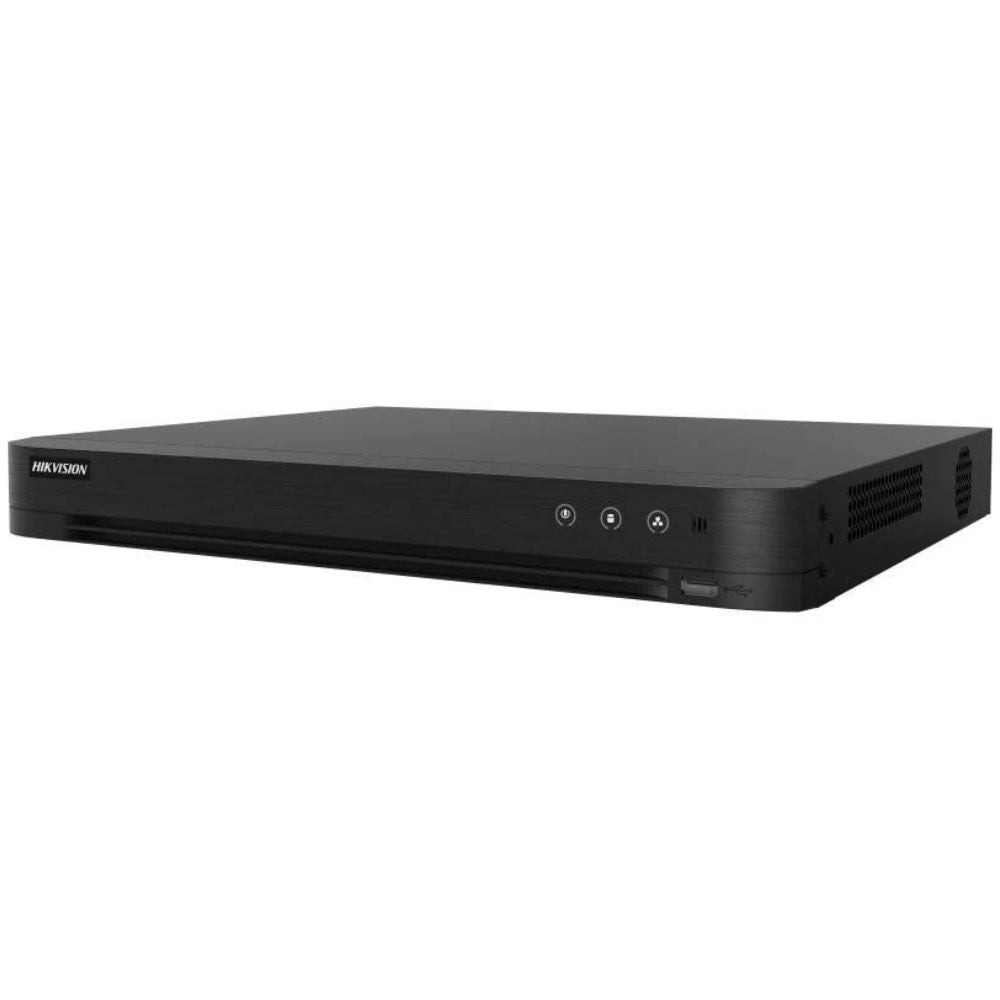

The Hikvision iDS-7216HUHI-M2/S is a powerful 16-channel AcuSense DVR that blends traditional analog support with intelligent deep learning analytics. Ideal for small to mid-sized commercial environments, this 1U recorder offers human/vehicle filtering, up to 8 MP encoding, and support for enhanced hybrid configurations, all while ensuring cost-effective storage via H.265 Pro+ compression.
Features
-
Deep Learning-Based Motion Detection 2.0 – Enabled on all analog channels, with accurate human/vehicle classification to reduce false alarms caused by irrelevant movement such as light shifts or tree leaves.
-
Perimeter Protection – Up to 4 analog channels support deep learning-based line crossing and intrusion detection, helping proactively deter threats.
-
Multi-format Hybrid Video Inputs – Connects HDTVI, AHD, HDCVI, CVBS, and IP cameras for flexible integration.
-
High-Resolution Recording – Supports up to 8 MP@8 fps or 5 MP@12 fps encoding for crisp video detail.
-
Enhanced IP Mode – Expand analog systems with up to 32 IP cameras (8 default, 16 with enhanced IP, 32 with reduced AI features).
-
Smart Search & Playback – Event-based and object-based search options make review faster and more efficient.
-
4K HDMI Output – Delivers high-quality local display with simultaneous HDMI and VGA outputs.
-
H.265 Pro+ Compression – Optimized video encoding significantly reduces bandwidth and storage requirements.
-
Smart Analytics Support – Enables various VCA functions like facial detection and smart events with compatible analog and IP cameras.
What's Included:
- Hikvision iDS-7216HUHI-M2/S DVR
- Power adapter (12 VDC, 5 A)
- SATA cables
- USB mouse
- Mounting accessories
- Quick start guide
DOWNLOADS
Key Info
Smart Detection Everywhere
Human and vehicle filtering with Motion Detection 2.0 is active on all analog channels by default, dramatically improving alert relevance and minimizing false triggers.
Smart Perimeter Protection
Protect key zones with up to 4 channels of AI-based intrusion and line-crossing detection—ideal for entrances, parking lots, or perimeter fencing.
Hybrid Video Support
16 BNC inputs plus up to 32 IP channels (8 default, 16–32 via enhanced IP mode) give unmatched flexibility when upgrading systems or expanding coverage.
High-Definition Recording
Capture critical details with encoding support up to 8 MP@8 fps and 5 MP@12 fps.
4K Local Output
Display high-res streams via the integrated HDMI port supporting up to 3840 × 2160 @30Hz, with simultaneous VGA output.
Efficient Storage Design
Includes 2 SATA ports (up to 10 TB each), H.265 Pro+ compression, and smart search functions for quick review of human/vehicle events.
Smart IP Features
Integrates seamlessly with Hikvision smart IP cameras for enhanced event detection, facial capture, and VCA.
Compact & Efficient
A 1U compact chassis makes it ideal for wall-mount or tight rack installations, with power efficiency under 19 W (no HDD).
Tech Specs
| Category |
Specification |
| Motion Detection 2.0 |
Human/Vehicle filtering (all analog channels) |
|
Deep learning classification for more accurate detection |
|
Quick search by object/event |
| Perimeter Protection |
Up to 4-ch human/vehicle classification (line crossing & intrusion) |
| Facial Detection |
Face picture detection and searchable capture |
| Recording |
|
| Video Compression |
H.265 Pro+, H.265, H.264+, H.264 |
| Encoding Resolution |
Up to 8 MP / 5 MP / 4 MP / 3 MP / 1080p / 720p / WD1 / CIF |
| Frame Rate |
8 MP@8 fps, 5 MP@12 fps, 4 MP@15 fps, others up to 30 fps |
| Dual-stream |
Supported |
| Audio Compression |
G.711u |
| Video & Audio |
|
| Analog Video Inputs |
16-ch, BNC interface (coaxitron supported) |
| IP Video Inputs |
8-ch (default), 16-ch (enhanced IP), up to 32-ch (AI limitations) |
| IP Camera Resolution |
Up to 8 MP |
| HDMI Output |
1-ch: 4K@30Hz, 2K@60Hz, 1080p@60Hz |
| VGA Output |
1-ch: 1080p, 1280×1024, 1280×720 |
| CVBS Output |
1-ch BNC: PAL 704×576 / NTSC 704×480 |
| Synchronous Playback |
16-ch |
| Audio Input |
1-ch RCA (expandable to 16 via coaxial) |
| Audio Output |
1-ch RCA |
| Two-Way Audio |
Supported via RCA input |
| Hybrid Input Support |
|
| HDTVI |
Up to 8 MP@15 fps, 5 MP@12/20 fps, 3K, 4 MP, 1080p, 720p |
| AHD |
Up to 5 MP@20 fps, 4 MP, 1080p, 720p |
| HDCVI |
Up to 8 MP@15 fps, 5 MP, 4 MP, 1080p, 720p |
| CVBS |
NTSC/PAL |
| Network |
|
| Bandwidth (In/Out) |
Total: 128 Mbps |
| Remote Connections |
Up to 128 |
| Network Protocols |
TCP/IP, DHCP, DDNS, Hik-Connect, HTTPS, ONVIF, SNMP, NTP, iSCSI, UPnP™ |
| Ethernet Interface |
1 × RJ45 10/100/1000 Mbps |
| Wi-Fi Support |
Via USB dongle (not included) |
| Storage & I/O |
|
| SATA |
2 interfaces, up to 10 TB each |
| USB |
Front: 1 × USB 2.0, Rear: 1 × USB 3.0 |
| Serial Port |
RS-485 |
| Alarm I/O |
Optional configuration (varies by model batch) |
| General |
|
| Power Supply |
12 VDC, 5 A |
| Power Consumption |
≤ 19 W (without HDD) |
| Operating Temp |
-10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity |
10% to 90% |
| Dimensions |
380 × 320 × 48 mm (15.0 × 12.6 × 1.9 in) |
| Weight |
≤ 2.1 kg (4.6 lb) |
Q&A
Q: Does it support 4K output?
Yes, the HDMI output supports up to 3840 × 2160 (4K) at 30Hz.
Q: Can motion detection and perimeter protection be used simultaneously?
No. Only one AI feature (motion detection 2.0 or perimeter protection) can be active per time.
Q: How many IP cameras can I add?
8 by default, 16 with enhanced IP mode, and up to 32 total (with limited AI functions).
Q: Is it compatible with Wi-Fi?
Yes, via a compatible USB Wi-Fi dongle (sold separately).
Q: Does it support facial recognition?
Yes, basic face picture detection and search is supported on select channels.
Q: What is the maximum HDD size?
Up to 10 TB per SATA interface (2 total).
