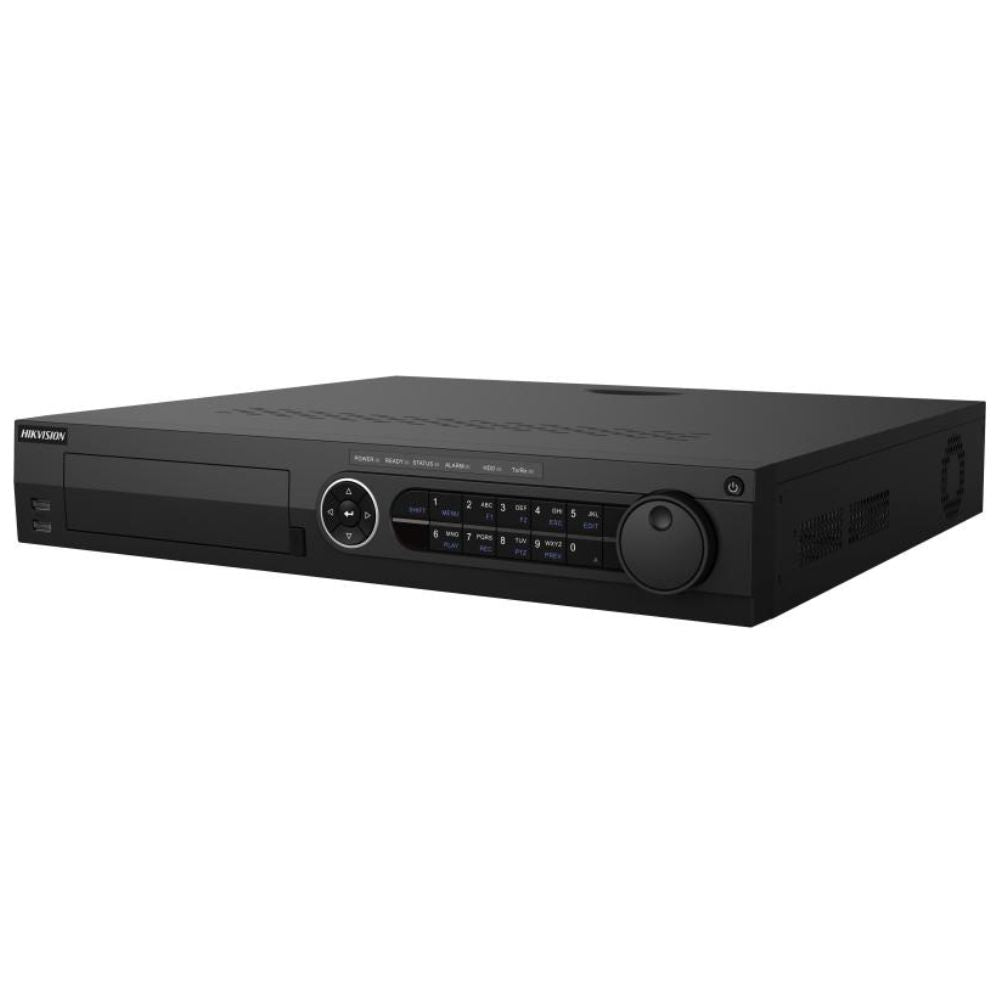

The Hikvision iDS-7332HUHI-M4/S is a hybrid DVR built for large-scale surveillance needs, combining deep learning-based perimeter protection, human/vehicle filtering, and versatile camera support across analog and IP inputs. With 4 SATA ports, RAID options, and smart search functions, it’s designed for enterprise, commercial, and retail environments where accurate alerts and efficient storage are essential.
Features
-
Deep Learning-Based Perimeter Protection – Detects and classifies human and vehicle intrusion on up to 16 analog channels.
-
Motion Detection 2.0 – Human/vehicle filtering reduces false alarms from irrelevant movement like leaves, shadows, or light changes.
-
Hybrid Video Inputs – Supports HDTVI, AHD, CVI, CVBS, and IP formats for versatile integration.
-
Up to 8 MP Encoding – Full channel encoding up to 5 MP at 12 fps, with select support for 8 MP@8 fps.
-
Up to 64 IP Cameras – Expands beyond 32 analog inputs to support hybrid or full-IP mode.
-
POS Integration – POS-triggered recording and overlay of transaction data onto video stream.
-
Dual HDMI Outputs – Includes one 4K HDMI output and another for Full HD.
-
Advanced Storage – 4 SATA interfaces, 1 eSATA, and RAID 0/1/5/6/10 support for redundancy and efficiency.
-
Compression Technology – H.265 Pro+ significantly reduces bandwidth and storage needs.
What's Included:
- Hikvision iDS-7332HUHI-M4/S DVR
- Power supply
- SATA cables
- Mounting screws
- USB mouse
- Quick start guide
DOWNLOADS
Key Info
Intelligent Detection & Filtering
Deep learning AI enables accurate motion detection 2.0 and perimeter protection by classifying humans and vehicles—minimizing false alarms and improving response times.
Multi-format Hybrid Input
Supports 32 analog BNC connections (TVI, AHD, CVI, CVBS), and up to 64 IP cameras with resolutions up to 12 MP.
Optimized Storage
Utilizes H.265 Pro+ compression and supports 4 SATA drives and 1 eSATA port—each up to 12 TB—with RAID for redundancy and performance.
Dual HDMI Display
Includes 1 HDMI1 (Full HD) and 1 HDMI2 (4K), each with independent output—ideal for dual monitor setups or control rooms.
POS Integration
Perfect for retail, the DVR overlays POS transaction data directly onto recorded footage and supports event-triggered recording.
Robust Video Capabilities
Supports encoding of 8 MP at 8 fps and full-channel 1080p@30 fps decoding, with full dual-stream and sub-stream configuration.
Flexible Playback & Search
16-channel synchronous playback and object-based smart search functions make reviewing footage faster and more efficient.
Reliable Connectivity
Includes dual Gigabit LAN interfaces with configurable bandwidth output and Hik-Connect/DDNS support for easy remote access.
Enterprise-Ready
Supports ONVIF, HTTPS, SNMP, and other advanced protocols, with alarm I/O and RS-485 for integration into wider systems.
Tech Specs
| Category |
Specification |
| Motion Detection 2.0 |
Human/Vehicle Analysis |
|
Deep learning-based motion detection 2.0 is enabled by default for all analog channels; classifies humans/vehicles to reduce false alarms from objects like leaves and lights |
|
Supports quick search by object or event type |
| Perimeter Protection |
Human/Vehicle Analysis: Up to 16-ch on channels 1/2/3/4/9/10/11/12/17/18/19/20/25/26/27/28 |
| Recording |
|
| Video Compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution |
8 MP/3K/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame Rate |
Main stream: 8 MP@8 fps, 3K@12 fps, 5 MP@12 fps, 4 MP@15 fps, 3 MP@18 fps, others @25/30 fps |
|
Sub-stream: WD1/4CIF/CIF @25 fps (P)/30 fps (N) |
| Video Bitrate |
32 Kbps to 10 Mbps |
| Dual-stream |
Supported |
| Stream Type |
Video, Video & Audio |
| Audio Compression |
G.711u |
| Audio Bitrate |
64 Kbps |
| Video and Audio |
|
| IP Video Input |
32-ch (up to 64-ch), up to 12 MP resolution, supports H.265+/H.265/H.264+/H.264 |
| Analog Video Input |
32-ch, BNC interface (1.0 Vp-p, 75 Ω), coaxitron support |
| Incoming Bandwidth |
320 Mbps |
| Outgoing Bandwidth |
256 Mbps |
| HDTVI Input |
8 MP, 3K, 5 MP, 4 MP, 3 MP, 1080p25/30, 720p25/30 |
| AHD Input |
5 MP, 4 MP, 1080p25/30, 720p25/30 |
| HDCVI Input |
4 MP, 1080p25/30, 720p25/30 |
| CVBS Input |
PAL/NTSC |
| CVBS Output |
1-ch, BNC (1.0 Vp-p, 75 Ω), PAL: 704×576, NTSC: 704×480 |
| HDMI 1 Output |
1-ch: 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| HDMI 2 Output |
1-ch: 4K (3840×2160)/30Hz, 2K (2560×1440)/60Hz, etc. |
| Video Output Mode |
HDMI1/VGA simultaneous, HDMI2/VGA independent |
| VGA Output |
1-ch: 1920×1080/60Hz, 1280×1024/60Hz, etc. |
| Audio Input |
4-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio |
1-ch, RCA (independent) |
| Synchronous Playback |
16-ch |
| Network |
|
| Remote Connection |
128 |
| Network Protocols |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP |
| Network Interface |
2 × RJ45 10M/100M/1000M self-adaptive |
| Auxiliary Interfaces |
|
| SATA |
4 SATA interfaces |
| eSATA |
Supported |
| Capacity |
Up to 12 TB per SATA disk |
| Serial Interface |
RS-232, RS-485 (full-duplex), Keyboard |
| Alarm In/Out |
16 in / 4 out |
| USB Interface |
Front: 2 × USB 2.0; Rear: 1 × USB 3.0 |
| General |
|
| Power Supply |
100 to 240 VAC, 50 to 60 Hz |
| Power Consumption |
≤ 55 W (without HDD) |
| Working Temperature |
-10 °C to +55 °C (+14 °F to +131 °F) |
| Working Humidity |
10% to 90% |
| Dimensions (W×D×H) |
445 × 400 × 71 mm (17.5 × 15.7 × 2.8 in) |
| Weight |
≤ 7 kg (without HDD) |
Q&A
Q: What makes this DVR “AcuSense”?
It uses deep learning algorithms to differentiate between humans, vehicles, and irrelevant objects—greatly reducing false alarms.
Q: Can I use both perimeter protection and motion detection 2.0 at once?
No, only one AI feature (either motion detection 2.0 or perimeter protection) can be active at a time per channel group.
Q: Does it support POS integration?
Yes, POS-triggered recording and overlay is supported for retail and transaction monitoring setups.
Q: What IP camera resolution is supported?
Up to 12 MP for IP camera inputs, with full compatibility for H.265+ compression.
Q: Is remote access possible?
Yes, via Hik-Connect app, browser, or third-party ONVIF-compliant VMS.
