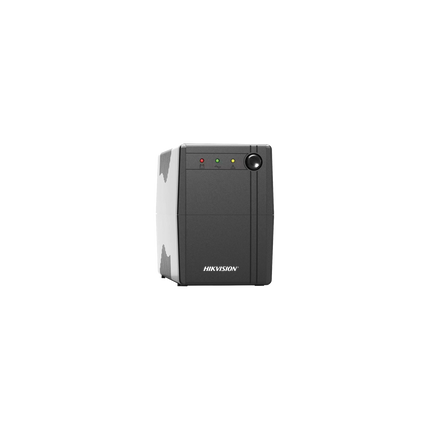

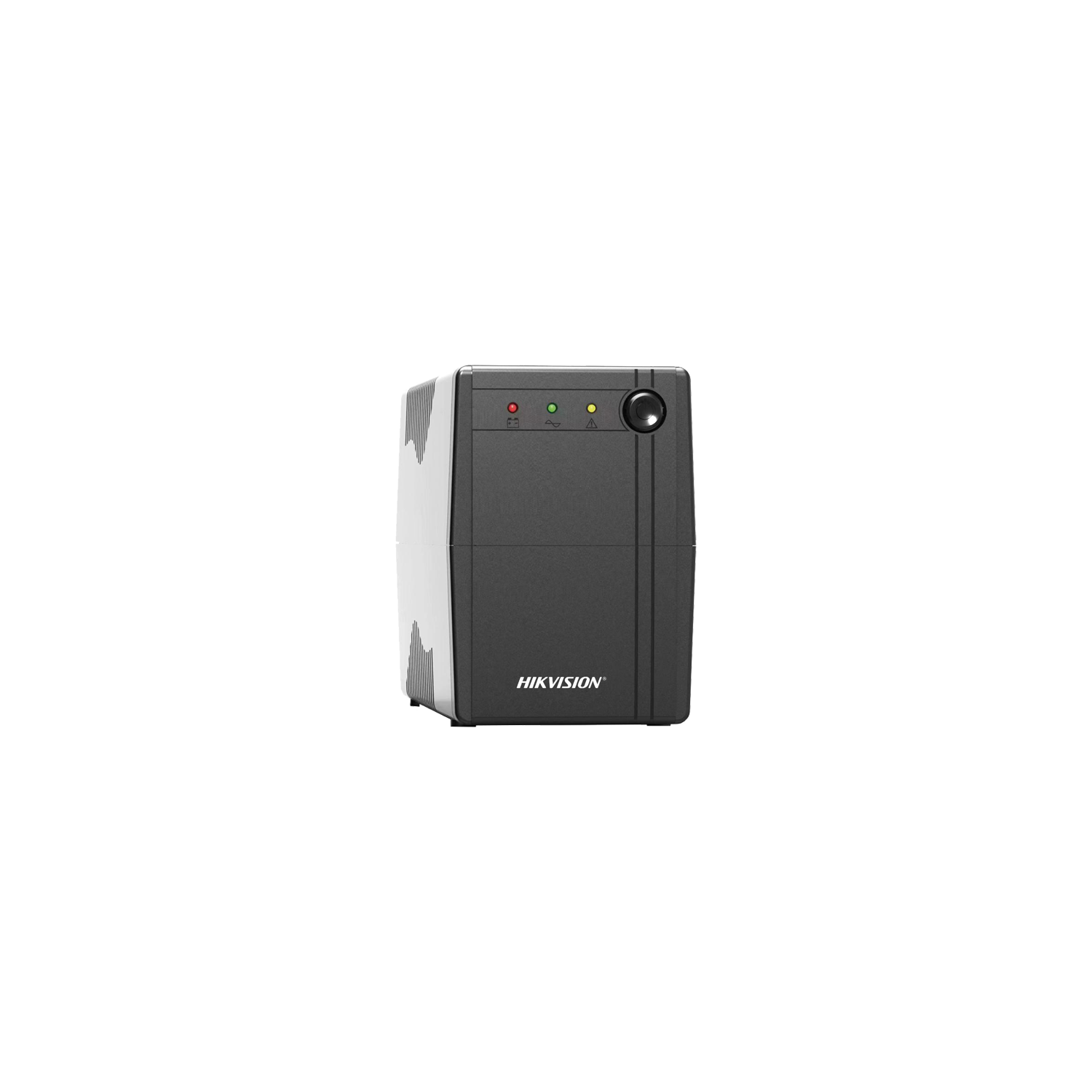

The Hikvision DS-UPS1000 is a robust 1000VA / 600W Uninterruptible Power Supply (UPS) designed to safeguard your critical electronics from power disruptions and fluctuations. Ideal for securing surveillance systems, network equipment, and home office setups, it ensures continuous operation during outages and protects against surges. With its compact design and quick-charging capabilities, it's a reliable solution for both residential and light commercial applications.
Features
-
Power Capacity: Provides 1000 VA / 600 W of reliable backup power for essential devices like DVRs, NVRs, routers, and small workstations.
-
Wide Input Voltage Range: Operates stably from 140 VAC to 290 VAC, ensuring consistent performance even with unpredictable power grids.
-
Built-in AVR: Automatic Voltage Regulation protects connected equipment from damaging voltage fluctuations, extending their lifespan.
-
Super Fast Charging: Recovers 90% battery capacity in just 4-6 hours, minimizing downtime after an outage.
-
Comprehensive Protection: Guards against surge, overload, and short circuits, securing your valuable electronics.
-
Compact Design: Its small footprint (274 mm × 95 mm × 139 mm) allows for easy integration into any space, from home offices to small server closets.
-
Clear Indicators & Alarms: LED indicators and audible alarms provide immediate status updates on working mode, charging, low battery, and faults.
-
Quick Transfer Time: Ensures seamless power transition (≤ 10 ms) during outages, preventing data loss and system reboots.
DOWNLOADS
Extra Info
Automatic Voltage Regulation (AVR)
The DS-UPS1000 features a built-in Automatic Voltage Regulator. This technology automatically detects and corrects voltage fluctuations in your incoming power supply. If the voltage is too low, it boosts it; if it's too high, it reduces it. This crucial feature protects your sensitive electronics from damage, which can lead to costly repairs or replacements, ensuring they receive a stable and clean power supply regardless of grid instability.
Robust Protection System
Beyond basic backup, this UPS incorporates multiple layers of protection. Surge protection shields your devices from sudden voltage spikes, commonly caused by lightning or power line issues. Overload protection prevents damage to both the UPS and connected equipment if too many devices are drawing excessive power. Short circuit protection immediately cuts power in the event of a fault, safeguarding the entire system. These integrated features ensure maximum safety and longevity for your valuable assets.
Efficient Power Management
The DS-UPS1000 is designed for efficiency. Its Pulse Width Modulation (PWM) waveform output ensures a stable and consistent power delivery during battery mode. The fast recharge time means your UPS is quickly ready for the next power event, providing peace of mind. Its compact and lightweight nature also contributes to efficient deployment and management in various environments, from a residential security setup to a small business network.
Tech Specs
| Specification |
Details |
| Model |
DS-UPS1000 |
| Power |
Capacity: 1000 VA / 600 W |
| Input Voltage Range |
140 VAC to 290 VAC |
| Input Frequency |
50/60 Hz |
| Output Voltage Range |
210 VAC to 235 VAC |
| Output Frequency |
50 Hz ± 0.5 Hz |
| Transfer Time |
≤ 10 ms |
| Waveform |
PWM |
| Battery Type |
12 V/9 Ah |
| Recharge Time |
4-6 hours (recover to 90% capacity) |
| Display Indicator |
Working Mode (AC Mode): Solid green
Charging Mode (DC Mode): Solid red
Overloading Mode: Flashing yellow |
| Alarm |
Charging Mode (DC mode): Sounding every 8 seconds
Low Battery: Sounding every second
Overloading Mode: Sounding every 0.5 seconds
Fault: Continuously sounding |
| Communicate Ports |
No |
| Full Protection |
Surge protection,
Overload protection,
Short circuit protection |
| Operating Temperature |
0 °C to 40 °C (32 °F to 104 °F) |
| Operating Humidity |
30% to 90% (non-condensing) |
| Dimension |
274 mm × 95 mm × 139 mm
(10.79" × 3.74" × 5.47") |
| Weight |
Approx. 5.4 kg (11.9 lb) |
Q&A
Q: What is the capacity of the Hikvision DS-UPS1000?
A: The DS-UPS1000 has a capacity of 1000 VA / 600 W.
Q: How quickly does the battery recharge?
A: The battery recharges to 90% capacity within 4-6 hours.
Q: Does this UPS protect against power surges?
A: Yes, the DS-UPS1000 includes full protection against surge, overload, and short circuits.
Q: What is the operating temperature range for this UPS?
A: It operates efficiently in temperatures ranging from 0 °C to 40 °C (32 °F to 104 °F).
Q: Can this UPS be used for CCTV systems?
A: Yes, with its capacity and protection features, it is an ideal solution for providing backup power to CCTV systems, NVRs, DVRs, and other surveillance equipment.
Q: What are the dimensions of the DS-UPS1000?
A: The dimensions are 274 mm × 95 mm × 139 mm (10.79" × 3.74" × 5.47").
