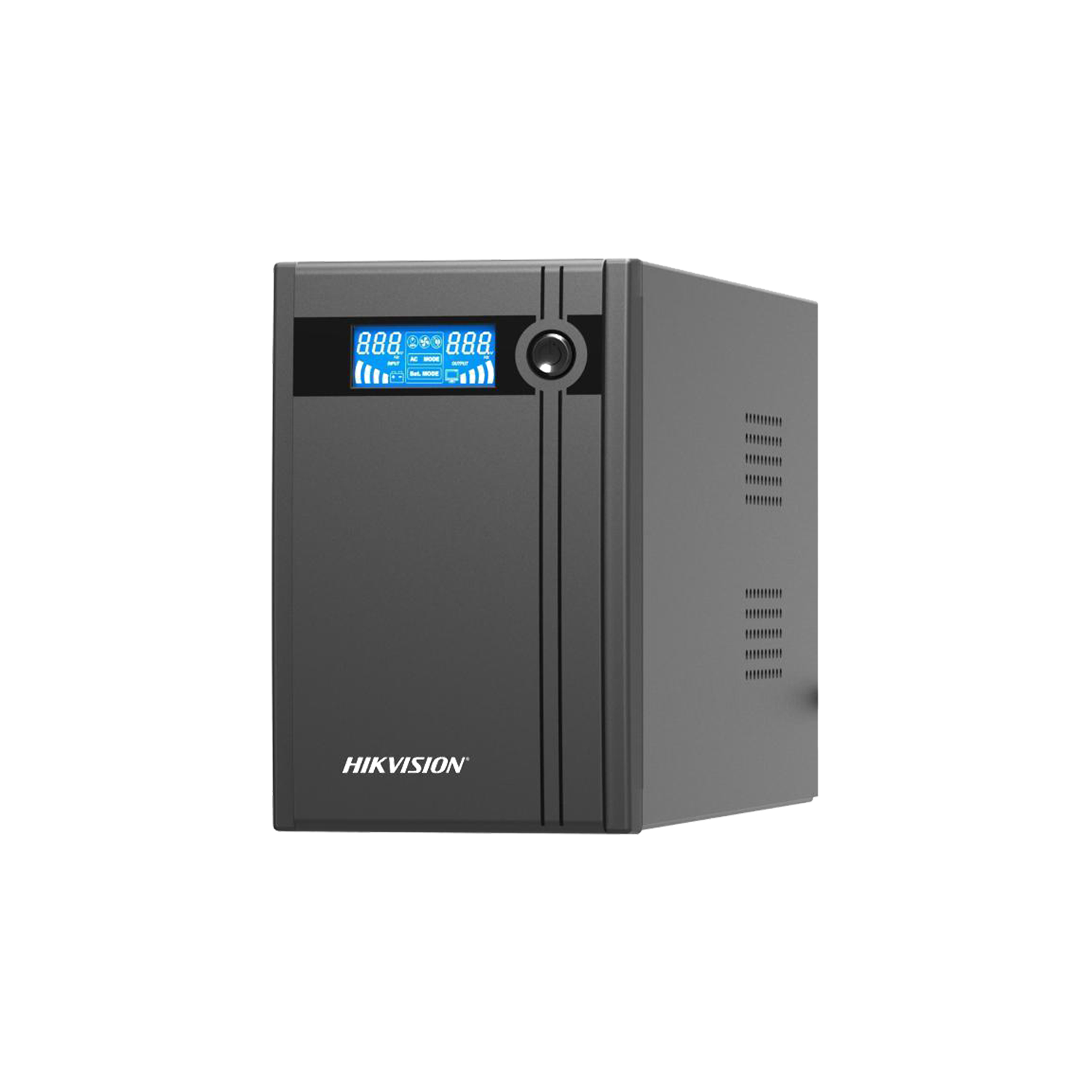

The DS-UPS2000 is a robust uninterruptible power supply (UPS) designed to safeguard your security systems and other critical electronics from power disruptions. With its built-in AVR and comprehensive protection features, it ensures a stable and reliable power supply, preventing data loss and equipment damage during outages or voltage fluctuations. Ideal for homes and businesses, this UPS provides peace of mind by keeping your essential devices running smoothly when the power goes out.
Features
-
Reliable Power Backup: Provides seamless power to your security cameras, NVRs, and other crucial devices during outages, ensuring continuous operation.
-
Automatic Voltage Regulation (AVR): Protects connected equipment from voltage fluctuations, delivering a stable and consistent power output.
-
Fast Recharging: Quickly recharges to 90% capacity within 6-8 hours, minimizing downtime between power events.
-
Wide Input Voltage Range: Adapts to varying power conditions (140 VAC to 290 VAC), making it suitable for diverse electrical environments.
-
Comprehensive Protection: Guards against overloads, short circuits, surges, and discharge, extending the lifespan of your valuable electronics.
-
Intuitive LCD Display: Easily monitor input/output voltage, battery capacity, and load level at a glance for informed management.
-
Remote Control via USB: Conveniently manage and monitor the UPS status remotely through its USB communication port.
-
Extended Runtime: Offers significant backup time, providing 70 minutes at 100W, 17 minutes at 300W, and 5 minutes at 600W, to keep essential systems online.
-
Compact Design: With dimensions of 345 mm × 122 mm × 192 mm, it fits discreetly into various installation environments.
DOWNLOADS
Extra Info
Uninterrupted Operation
The DS-UPS2000 ensures that your vital security equipment, such as surveillance cameras and network video recorders, remains operational even when the main power supply fails. This is crucial for maintaining continuous monitoring and recording, preventing gaps in your security coverage.
Stable Power Delivery
Equipped with an Automatic Voltage Regulator (AVR), this UPS actively stabilizes incoming power, correcting under-voltages and over-voltages without needing to switch to battery power. This feature is essential for sensitive electronics, protecting them from damage caused by unstable power grids and extending their operational life.
Clear Status Monitoring
The integrated LCD display provides real-time information on the UPS's operational status. Users can quickly check the input and output voltage, current battery capacity, and the connected load level. This transparency allows for proactive management and ensures you're always aware of your power backup status.
Robust Protection Mechanisms
Beyond just backup power, the DS-UPS2000 incorporates multiple layers of protection. It safeguards connected devices from sudden power surges, prevents damage from overloads, and protects its internal battery from deep discharge, which can extend the battery's lifespan. Short-circuit protection ensures safety during electrical faults.
Tech Specs
| Specifications |
Details |
| Features |
Built-in AVR
Super fast charging
Wide input voltage range
Overload protection
Short circuit protection
Surge protection
USB port for remote control
LCD display |
| UPS Capacity |
2000 VA / 1200 W |
| Input Voltage Range |
140 VAC to 290 VAC |
| Input Frequency |
50/60 Hz self-adaptive |
| Plug Type |
AU TYPE I |
| Output Voltage Range |
210 VAC to 235 VAC |
| Output Frequency |
50/60 Hz ± 0.5 Hz self-adaptive |
| Transfer Time |
≤ 10 ms |
| Waveform |
PWM |
| Outlet Type |
AU TYPE I |
| Outlet Number |
4 |
| Battery Type |
12 V/9 Ah *2 pcs, lead-acid battery |
| Recharge Time |
6-8 hours recover to 90% capacity |
| Typical Backup Time |
Run time at 100W: 70 min
Run time at 300W: 17 min
Run time at 600W: 5 min |
| Communicate Ports |
USB |
| Full Protection |
Surge protection, Overload protection, Discharge protection, Short circuit protection |
| LCD Display |
Input Voltage, Output Voltage, Battery capacity, load level |
| Alarm |
Charging Mode (DC mode): Sounding every 8 seconds
Low Battery: Sounding every second
Overloading Mode: Sounding every 0.5 seconds
Fault: Continuously sounding |
| Operating Temperature |
0 °C to 40 °C (32 °F to 104 °F) |
| Operating Humidity |
30% to 90% (non-condensing) |
| Dimension |
345 mm × 122 mm × 192 mm (13.58" × 4.80" × 7.56") |
| Weight |
Approx. 11 kg (24.3 lb) |
| Available Model |
DS-UPS2000 |
Q&A
Q: What is the capacity of the DS-UPS2000?
A: The DS-UPS2000 has a capacity of 2000 VA / 1200 W.
Q: How long does it take for the battery to recharge?
A: The battery recharges to 90% capacity in 6-8 hours.
Q: What type of outlets does this UPS have?
A: It has 4 AU TYPE I outlets.
Q: Can I monitor the UPS remotely?
A: Yes, the UPS includes a USB port for remote control and monitoring.
Q: What are the typical backup times for different power loads?
A: At 100W, it provides approximately 70 minutes of runtime. At 300W, it offers about 17 minutes, and at 600W, it provides around 5 minutes.
Q: What kind of protections does this UPS offer?
A: It offers surge protection, overload protection, discharge protection, and short circuit protection.
Q: What information is shown on the LCD display?
A: The LCD display shows input voltage, output voltage, battery capacity, and load level.
Q: What are the dimensions and weight of the DS-UPS2000?
A: The dimensions are 345 mm × 122 mm × 192 mm (13.58" × 4.80" × 7.56") and it weighs approximately 11 kg (24.3 lb).
