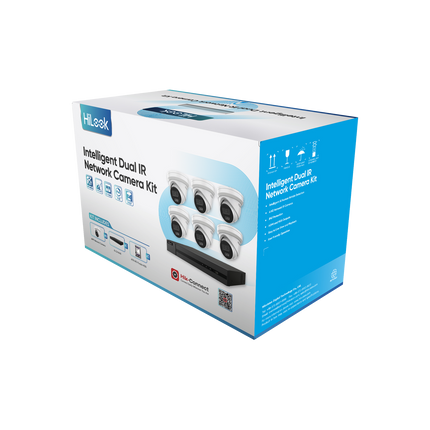

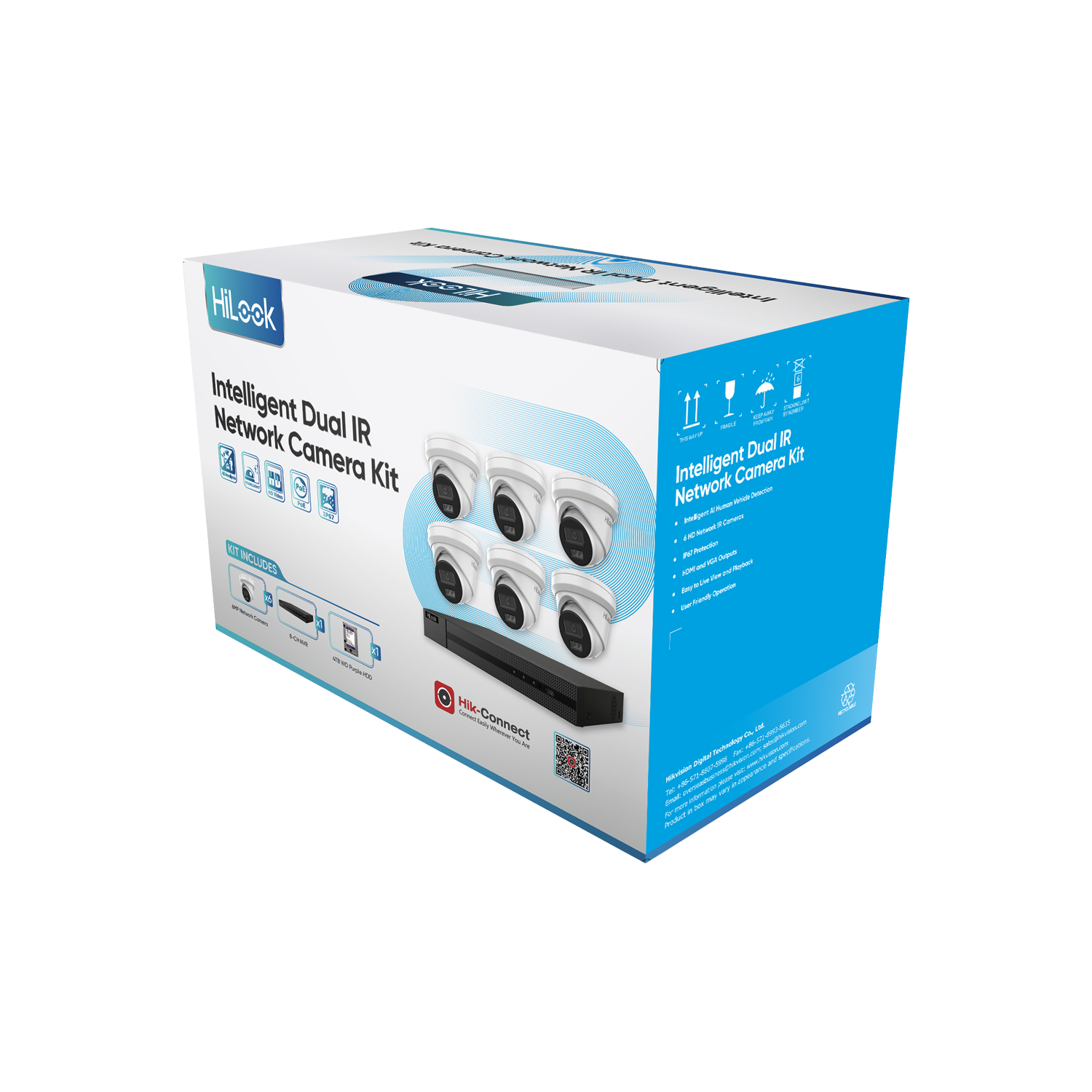

This all-in-one HiLookVision Network PoE Kit (IK-6486TH-MM/P) provides a comprehensive surveillance solution for small monitoring scenarios. Featuring an 8-channel NVR and six 6MP fixed turret cameras, it offers high-resolution video, efficient H.265+ compression, and easy Power over Ethernet (PoE) installation. With a pre-installed 4TB HDD, this kit is ready to deploy, making it ideal for homes, small businesses, or retail spaces requiring reliable and straightforward security monitoring.
Features
-
Complete Surveillance System: Everything needed for small monitoring scenarios is included in one convenient pack.
-
High-Resolution Monitoring: Capture crisp, detailed footage with six 6MP fixed turret network cameras.
-
Efficient Video Compression: H.265+ technology ensures optimal storage and bandwidth usage without compromising quality.
-
Simple Power over Ethernet (PoE): Enjoy hassle-free installation with power and data delivered over a single cable.
-
Ready-to-Use Storage: A 4TB pre-installed HDD provides ample storage for continuous recording.
-
Robust Weather Protection: Cameras are IP67 rated, offering excellent resistance to dust and water.
-
Enhanced Night Vision: IR illumination extends up to 30m for clear viewing in low-light conditions.
-
Smart Event Detection: Benefit from motion detection, line crossing, and intrusion detection with human and vehicle target classification.
DOWNLOADS
Extra Info
Crystal Clear Imaging
The included 6MP cameras deliver exceptional image clarity, allowing for detailed surveillance. With a wide dynamic range (WDR) of 120 dB, the cameras excel in scenes with strong backlighting, ensuring that both bright and dark areas are clearly visible. The minimum illumination of 0.005 Lux @ (F1.6, AGC ON) in color means these cameras perform well even in challenging lighting conditions before IR is activated.
Optimized Storage and Bandwidth
Leveraging H.265+ compression technology, this kit significantly reduces video file sizes without sacrificing quality. This means you can store more footage on the 4TB pre-installed hard drive and reduce the demands on your network bandwidth, making for a more efficient surveillance system.
Intelligent Detection Capabilities
Beyond basic motion detection, these cameras feature smart event capabilities such as line crossing and intrusion detection. Crucially, these smart events can differentiate between human and vehicle targets, reducing false alarms triggered by irrelevant movements and allowing for more precise security alerts.
Q&A
Q: What is the maximum resolution of the cameras in this kit?
A: The cameras offer a maximum resolution of 3200 × 1800 (6MP).
Q: Does the kit come with a hard drive?
A: Yes, the kit includes a 4TB pre-installed HDD.
Q: How many channels does the NVR support?
A: The NVR supports 8 channels.
Q: Is installation complicated?
A: No, the kit features Power over Ethernet (PoE) technology for easy installation, as power and data are supplied through a single cable.
Q: Can I access the system remotely?
A: Yes, you can use the HiLookVision client software for easy network management and remote viewing.
Q: What is the night vision range of the cameras?
A: The cameras have an IR supplement light range of up to 30 meters.
Q: Are the cameras suitable for outdoor use?
A: Yes, the cameras have an IP67 protection rating, making them suitable for outdoor environments and resistant to dust and water.
Q: What type of smart detection features are available?
A: The cameras support motion detection, video tampering alarms, line crossing detection, and intrusion detection, with the ability to distinguish between human and vehicle targets for line crossing and intrusion.
