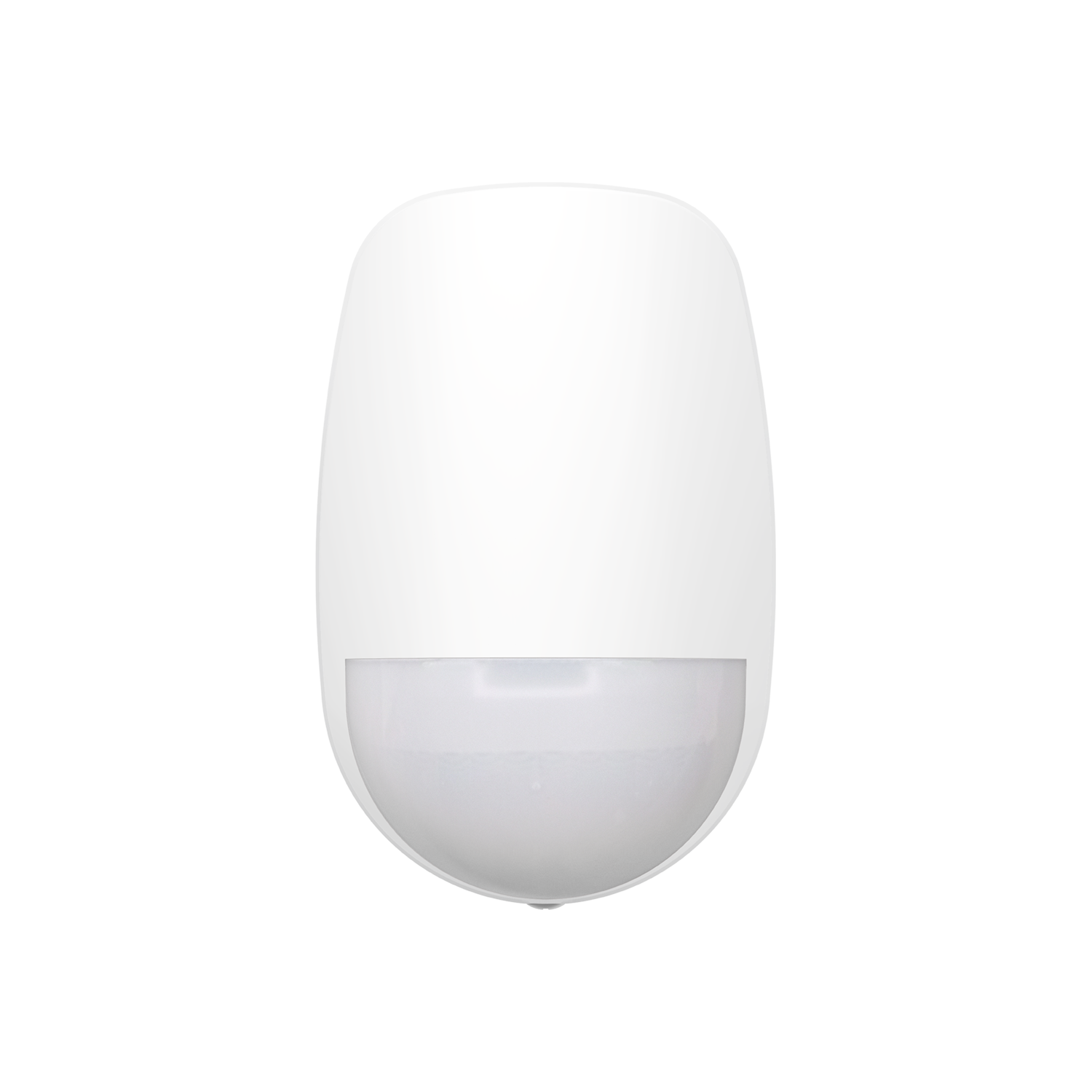

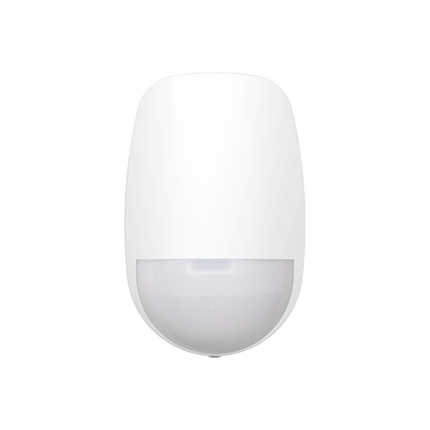

HiLook Alarm PIR Detector - HA-ALARM-PIR2

Description

Model: HA-ALARM-PIR2

Protect your premises with this high-precision Wired Dual-Tech Detector, engineered for robust indoor intrusion detection. Combining passive infrared and 24GHz microwave sensing, it offers accurate motion detection with advanced pet immunity and false alarm prevention.

šŸ”§ Key Features

  • Dual-tech detection: Passive Infrared + Microwave (24GHz)
  • Detection Range: 12m with wide 85.9Ā° angle
  • Pet immunity up to 30kg
  • Automatic sensitivity adjustment
  • 52-zone 3D optics with full creep-zone protection
  • Digital temperature compensation for reliable performance
  • Sealed optics to prevent insect interference
  • Selectable EOL resistors for alarm & tamper-proof wiring
  • IFT technology reduces false alarms
  • Wide voltage input: 9ā€“16VDC with polarity protection
  • Wall or ceiling mount brackets available (sold separately)

šŸ“Š Technical Specifications

  • Detection Method: Passive Infrared + Microwave
  • Detection Zones: 52
  • Detectable Speed: 0.3 ā€“ 2 m/s
  • Sensitivity: Auto / Pet
  • White Light Immunity: Up to 6500 lux
  • Microwave Frequency: 24GHz (24.15 ā€“ 24.25GHz)
  • Tamper Protection: Front cover tamper switch
  • Alarm Output: Normally Closed
  • LED Indicators: Green (PIR), Orange (Microwave), Blue (Alarm)

āš” Electrical & Environmental

  • Power Supply: 9 ā€“ 16 VDC (Typical: 12VDC)
  • Current Draw: Max 17mA @ 12VDC
  • Operating Temperature: -10Ā°C to 55Ā°C
  • Storage Temperature: -20Ā°C to 60Ā°C
  • Humidity: 10% ā€“ 90% (non-condensing)

šŸ“ Dimensions & Mounting

  • Size: 65.7mm Ɨ 103.8mm Ɨ 45.5mm
  • Weight: 99g
  • Mounting Height: 1.8m ā€“ 2.4m
  • Mounting Method: Wall (optional ceiling/wall bracket)

šŸ›  Optional wall & ceiling brackets available for flexible installation.
