Why Choose HiLook by Hikvision? delivers professional-grade video surveillance at unbeatable value. Designed for small to medium-sized security projects, HiLook offers a wide selection of IP cameras, NVRs, PTZs, intercoms, and alarm systems — all built for performance and reliability.
Features
-
Aluminum Alloy Construction – Provides strength and corrosion resistance with a clean, professional white finish.
-
Dual Cable Outlet Options – Includes both a side outlet and bottom outlet for flexible cable routing.
-
Interchangeable Waterproof Components – Comes with a waterproof bottom cover and side gland nut for optimal weather sealing.
-
Optimized Installation – Designed for seamless dome camera mounting on flat surfaces for a secure and tidy setup.
-
Compact and Lightweight – Low-profile design helps maintain a discreet camera installation without sacrificing durability.
What’s Included

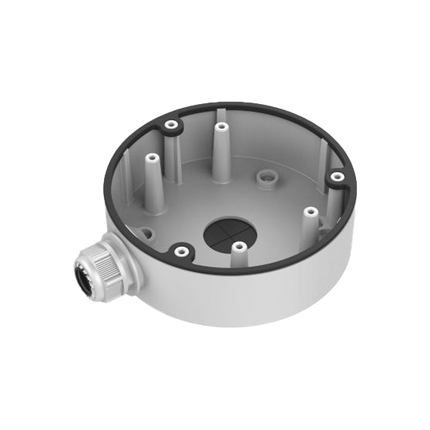

- DS-1280ZJ-DM21 Junction Box
- Gland nut for side outlet
- Mounting screws & fasteners
DOWNLOADS
Extra Info
Engineered for Dome Camera Integration
The DS-1280ZJ-DM21 is specifically designed to house and conceal cabling for compatible Hikvision dome cameras. It ensures a tamper-resistant and stable connection between the camera and the mounting surface.
Strong and Weather-Resistant Build
Crafted from high-quality aluminum alloy with a surface spray treatment, the box resists corrosion and environmental wear. Combined with waterproof components, it is well-suited for both indoor and outdoor applications.
Easy and Secure Mounting
With its simple design and included mounting accessories, the DS-1280ZJ-DM21 supports a maximum load of up to 4.5 kg (9.9 lb.) and should be installed on a flat surface capable of handling triple the combined weight of the box and camera.
Clean Design for Professional Installs
The box’s minimalist profile and white finish blend well into commercial and residential settings, offering a discreet and professional appearance.
Tech Specs
| Specification |
Details |
| Model |
DS-1280ZJ-DM21 |
| Description |
Junction Box for Dome Camera |
| Material |
Aluminum Alloy with surface spray treatment |
| Color |
Hikvision White |
| Dimensions |
Ø137 mm × 42 mm (Ø5.4" × 1.7") |
| Weight |
Approx. 280 g (0.62 lb.) |
| Cable Outlets |
Side and Bottom |
| Max Load |
4.5 kg (9.9 lb.) |
| Mount Type |
Wall or Ceiling (Flat Surface Only) |
| Environmental Use |
Indoor / Outdoor |
| Compatibility |
Hikvision Dome Cameras (model dependent) |
Q&A
Q: Can this junction box be used outdoors?
A: Yes, it includes waterproofing features such as a sealing cover and gland nut, making it suitable for outdoor use.
Q: What is the material of the box?
A: It is made of aluminum alloy with a surface spray treatment for enhanced corrosion resistance.
Q: What is the maximum load capacity?
A: The box supports up to 4.5 kg (9.9 lb.), suitable for most standard dome camera models.
Q: Can I conceal cables inside the box?
A: Yes, it supports both side and bottom cable routing for discreet cable management.
Q: Is it compatible with HiLook cameras?
A: While designed for Hikvision dome cameras, compatibility with HiLook models depends on the specific camera’s mounting pattern—check the datasheet for confirmation.
