Why Choose HiLook by Hikvision?
Delivers professional-grade video surveillance at unbeatable value. Designed for small to medium-sized security projects, HiLook offers a wide selection of IP cameras, NVRs, PTZs, intercoms, and alarm systems — all built for performance and reliability.
Features
-
Neat Cable Management – Protects and conceals cables for tidy installations.
-
Aluminum Alloy Construction – Ensures lightweight durability and corrosion resistance.
-
Multiple Cable Entries – Includes side and bottom inlet options with waterproof rubber grommets.
-
Weather-Resistant Design – Supports outdoor applications when sealed properly.
-
Wide Compatibility – Works with various Hikvision dome camera models (refer to model-specific datasheets).
-
Easy Installation – Comes with installation screws and rubber sealing plugs.
What’s Included
- DS‑1280ZJ‑DM8 Junction Box
- Mounting Screws & Fasteners
DOWNLOADS
Extra Info
Purpose-Built for Dome Cameras

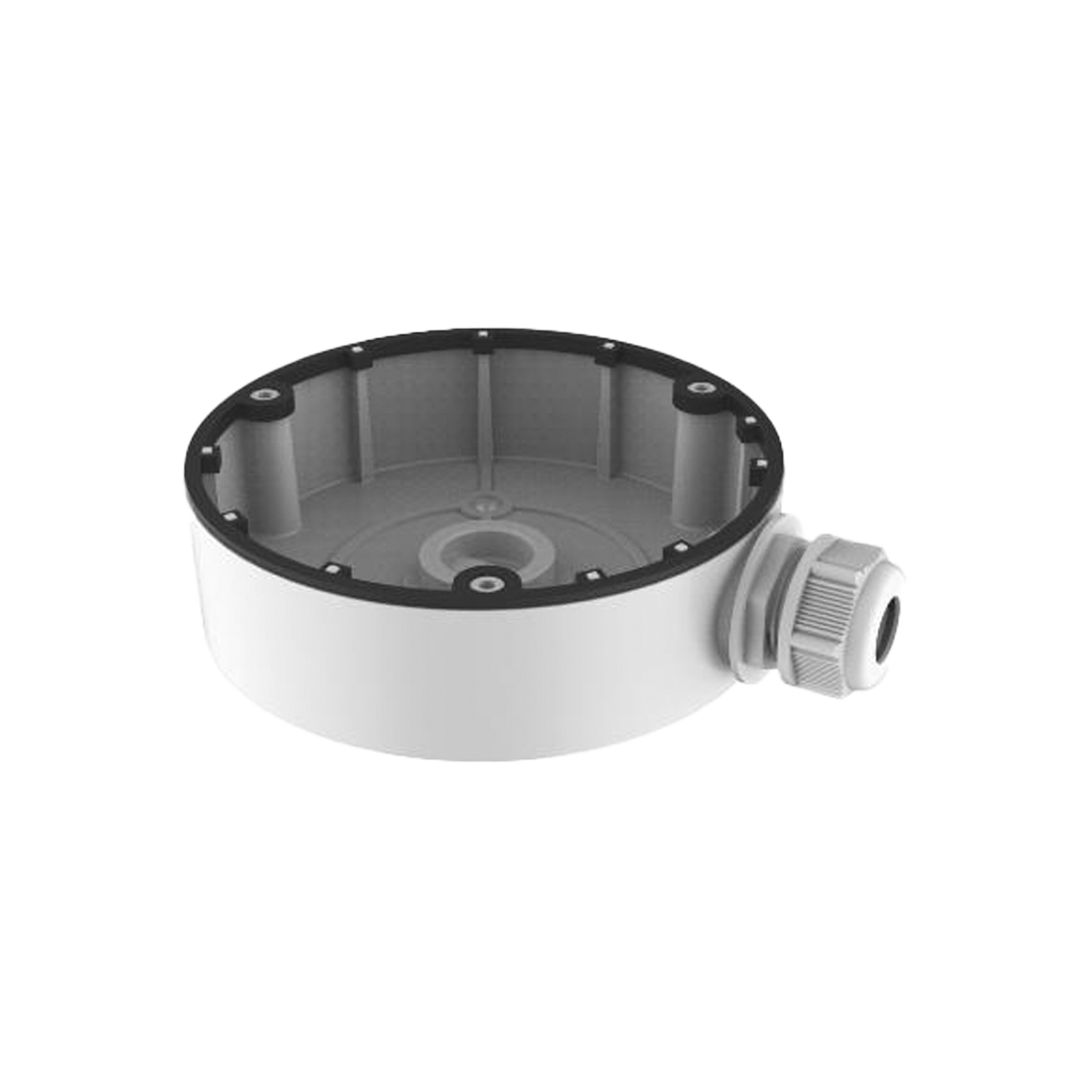

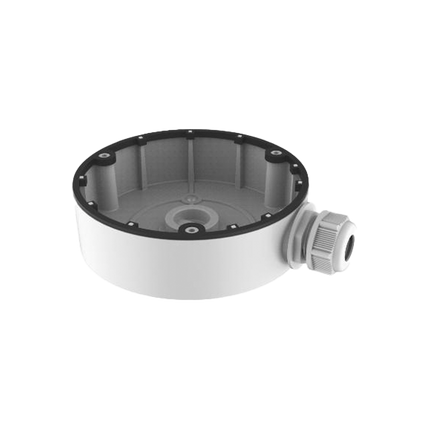

The DS‑1280ZJ‑DM8 is a junction box specifically designed for Hikvision dome cameras. Its mounting design aligns seamlessly with supported models, offering a clean, secure, and professional-grade installation.
Durable Aluminum Construction
Made from high-quality aluminum alloy and finished in Hikvision White, the DS‑1280ZJ‑DM8 offers a sleek yet tough exterior. It weighs approximately 210 g (0.46 lb.) and provides long-lasting support in both indoor and outdoor environments.
Compact and Weather-Ready
Measuring only 126.7 mm in diameter and 35 mm in height, this junction box maintains a low-profile appearance. While it helps protect camera wiring from the elements, weatherproofing performance depends on proper installation, including the use of waterproof rubber gaskets (not included).
Tech Specs
| Specification |
Details |
| Model |
DS-1280ZJ-DM8 |
| Material |
Aluminum Alloy |
| Color |
White / Black |
| Dimensions |
Φ126.7 mm × 35 mm |
| Weight |
Approx. 210 g (0.46 lb) |
| Load Capacity |
Max. 1 kg (2.2 lb) |
| Installation |
Wall or ceiling mount |
| Cable Ports |
Side inlet & bottom inlet |
| Ingress Protection |
IP-rated sealing (when used with plugs) |
Q&A
Q: Is the DS-1280ZJ-DM8 compatible with all Hikvision dome cameras?
A: No, it is compatible only with specific Hikvision dome models. Always check the camera's accessory compatibility list before purchase.
Q: Can it be used outdoors?
A: Yes, it is designed with a waterproof seal for safe outdoor installation. Make sure to use the rubber gasket to maintain waterproofing.
Q: What is the material used?
A: It is made from aluminum alloy, which is corrosion-resistant and suitable for rugged environments.
Q: Are there multiple cable entry points?
A: Yes, it supports both side and bottom cable routing for flexible installation.
Q: Does the package include screws and installation materials?
A: Typically, yes. Mounting screws and a sealing rubber ring are included, but this may vary by supplier.
