Why Choose HiLook by Hikvision? delivers professional-grade video surveillance at unbeatable value. Designed for small to medium-sized security projects, HiLook offers a wide selection of IP cameras, NVRs, PTZs, intercoms, and alarm systems — all built for performance and reliability.
Features
-
Aluminum Alloy Construction – Provides strength and corrosion resistance with a clean, professional finish.
-
Optimized Aesthetic Design – Built-in outlet hole enhances visual appeal and contributes to a neater installation.
-
Improved Waterproofing – Designed with water-resistant sealing features to protect camera wiring in outdoor use.
-
Simple Integration – Seamlessly coordinates with the lower dome housing for quick and convenient installation.
What’s Included
- DS‑1273ZJ‑140 Wall Mount Bracket
- Mounting Screws & Fasteners
DOWNLOADS
Extra Info
Engineered for Dome Camera Compatibility

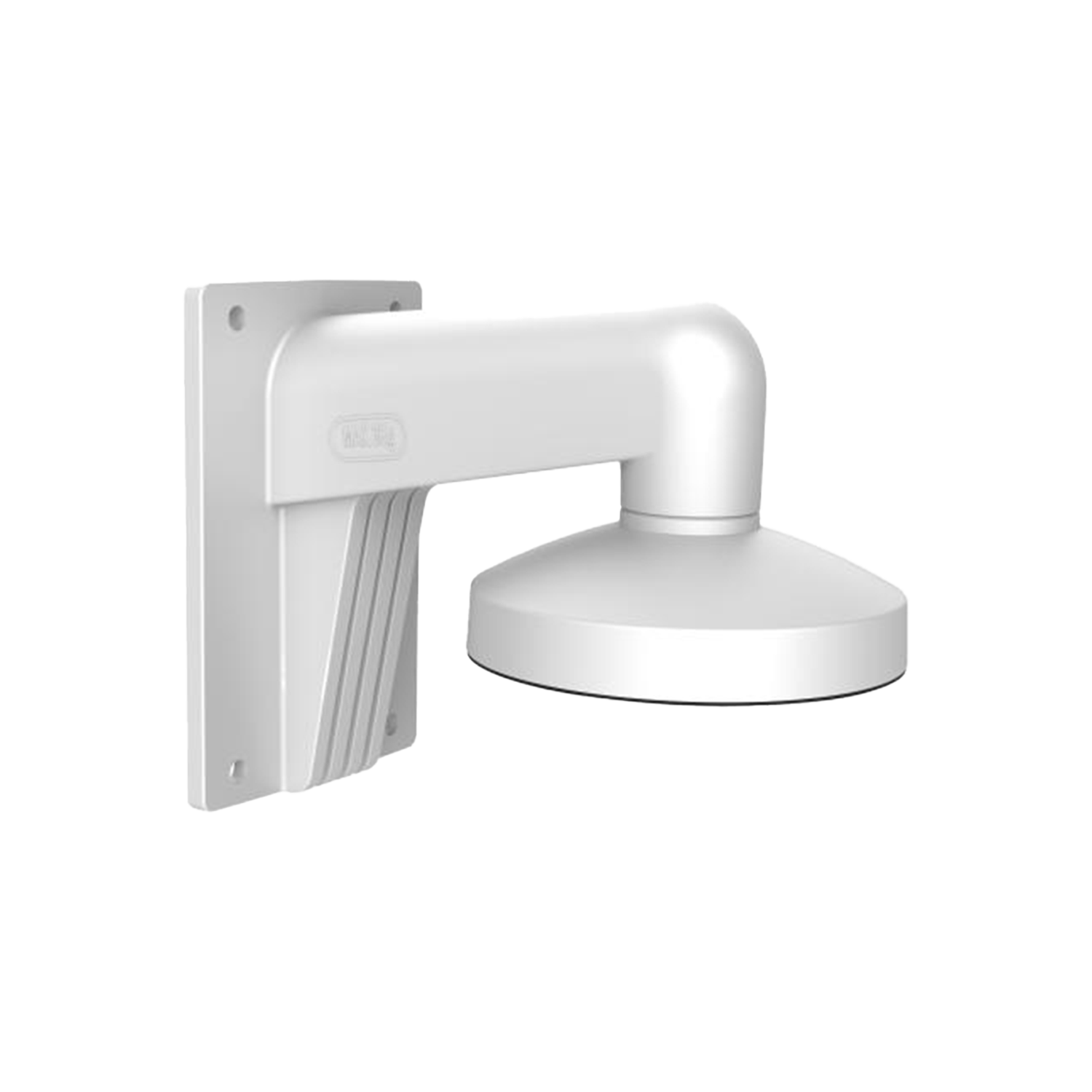

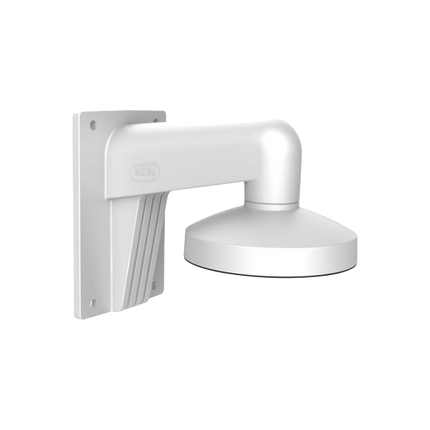

The DS‑1273ZJ‑140 is designed to mount Hikvision DS‑2CC51xxP(N) dome cameras, including VP, VPIR, and VPIRH variants. It ensures a stable and tamper-resistant setup for reliable video surveillance in any setting.
Strong and Lightweight Build
Crafted from aluminum alloy, the bracket is both lightweight and strong, weighing approximately 703 g (1.55 lb.). The protective spray coating further enhances durability against the elements.
Supports Safe, Heavy-Duty Mounting
This bracket can safely carry up to 4.5 kg (9.9 lb.) and should be installed on a flat wall that can hold at least three times the combined weight of the camera and bracket.
Clean, Compact Form Factor
With a rounded design (Φ140 mm) and precise dimensioning, the DS‑1273ZJ‑140 offers a discreet yet professional look that integrates seamlessly into any installation environment.
Tech Specs
| Specification |
Details |
| Model |
DS‑1273ZJ‑140 |
| Description |
Wall Mounting Bracket for Dome Cameras |
| Compatible Models |
DS‑2CC51xxP(N) Series: VP, VPIR, VPIRH |
| Material |
Aluminum Alloy with surface spray treatment |
| Color |
Hikvision White |
| Dimensions |
Φ140 mm × 183.5 mm × 232 mm (Φ5.51" × 7.22" × 9.13") |
| Weight |
Approx. 703 g (1.55 lb.) |
| Max Load |
4.5 kg (9.9 lb.) |
| Mount Type |
Wall Mount |
| Environmental Use |
Indoor / Outdoor |
Q&A
Q: Is this bracket compatible with outdoor use?
A: Yes, it features a waterproof design for safe use in outdoor installations.
Q: What material is the bracket made of?
A: It is constructed from high-quality aluminum alloy with a corrosion-resistant coating.
Q: What is the weight capacity of the bracket?
A: It supports a maximum load of 4.5 kg, suitable for most DS‑2CC51xxP(N) dome models.
Q: Does the bracket support cable concealment?
A: Yes, it includes a built-in outlet hole for discreet and secure cable management.
Q: Which dome models is it compatible with?
A: It is designed for DS‑2CC51xxP(N)‑VP, DS‑2CC51xxP(N)‑VPIR, and DS‑2CC51xxP(N)‑VPIRH.
