VIP Vision | 2-Wire H-Series Complete Intercom Kit - INTKIT-H

Description

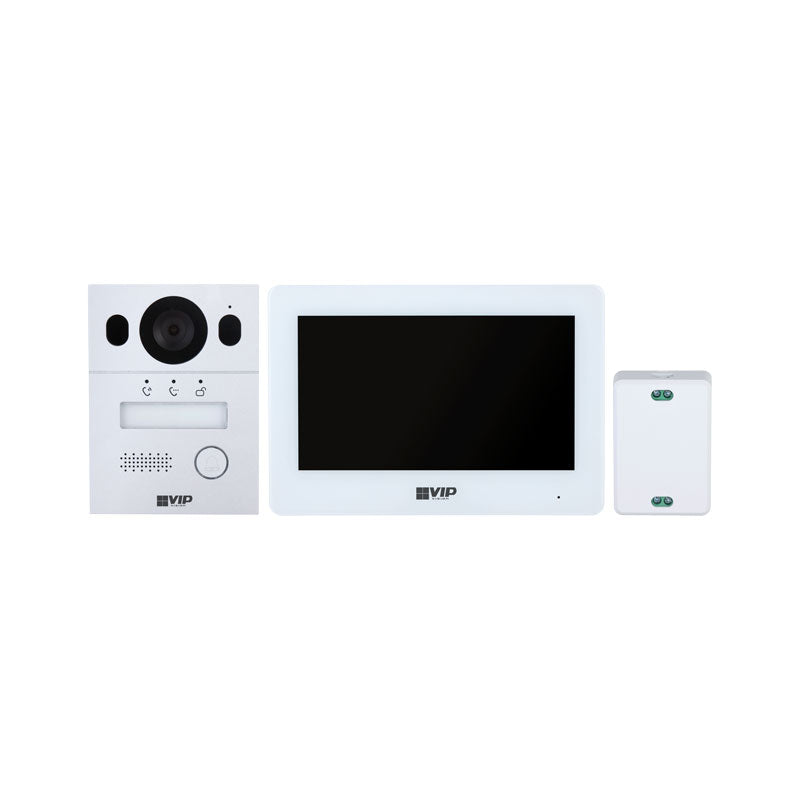

VIP Vision | 2-Wire H-Series Complete Intercom Kit

Perform incredibly fast upgrades using existing 2-wire infrastructure, without the need for any configuration, with the INTKIT-H 2-Wire intercom kit from VIP Vision. It is the perfect upgrade solution to your old intercom or door bell system. Optionally, connect the system to the Internet via the WiFi monitor for remote view and operation.

Key Features:

  • 2.0MP wide-angle door camera with IR illumination
  • 7” capacitive touchscreen indoor intercom monitor
  • Supports existing 2-wire infrastructure — no re-cabling required
  • WiFi connectivity for mobile app remote view and control
  • Door station can call all programmed indoor monitors
  • Compatible with most electric door strikes and maglocks
  • IP65 & IK07-rated door station with tamper detection
  • Visitors can leave video messages (SD card required)

The INTKIT-H offers everything you need to setup a single door camera & indoor monitor over existing 2-wire cabling, and connect to the internet for remote view.

Includes:

  • 1 x INTRDS-H: 2.0MP Intercom Door Station
  • 1 x INTMON-H: 7'' Touchscreen Indoor Monitor

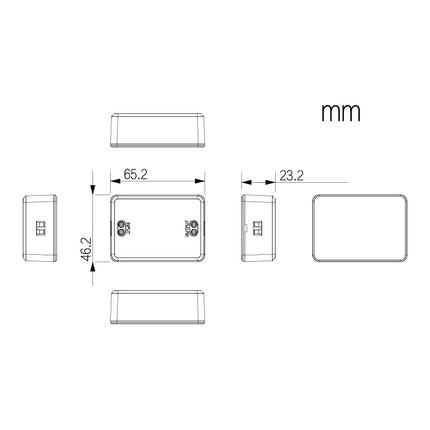

  • 1 x INTCON-H: 1 x 2-wire Input Module with 1 x Extender Module and 1 x Terminating Modules
  • 1 x INTIPRDSGSB: Door Station Surface Mount
  • 1 x Alarm I/O leads & DC plug-to-2-wire lead
  • 1 x Mounting kits for door station & monitor
  • 1 x 48VDC Power Supply

Downloads

Datasheet 2-Wire H-Series Product Datasheet
User Manual 2-Wire H-Series Indoor Monitor User Manual
User Manual 2-Wire H-Series Door Station User Manual
User Manual 2-Wire H-Series Controller User Manual


Tech Specs

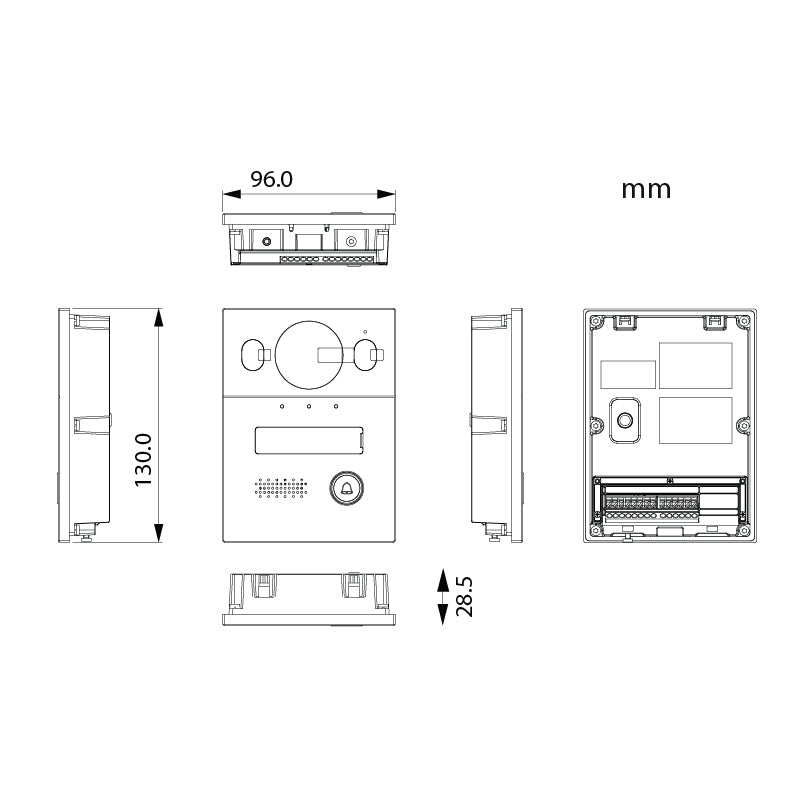

Door Station (Model: INTRDS-H)
Camera 1/2.8" 2.0MP CMOS HDR, 960×576 @25fps
Field of View Horizontal 110° / Vertical 60°
Audio Built-in microphone & speaker, bidirectional talk
Tamper Detection Yes
Ingress Protection IP65
Vandal Resistance IK07
Mounting Surface or flush mount
Power Via INTCON-H controller
Power Consumption ≤1.5W (standby), ≤10W (working)
Dimensions 130 × 96 × 28.5mm
Weight 0.502kg

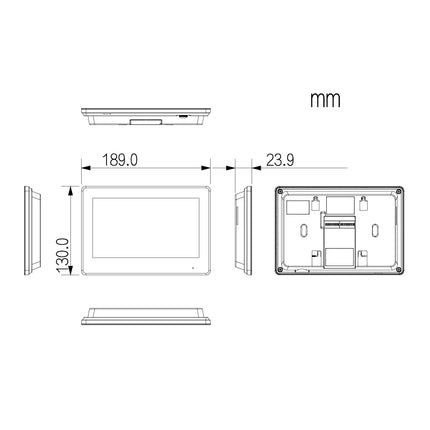

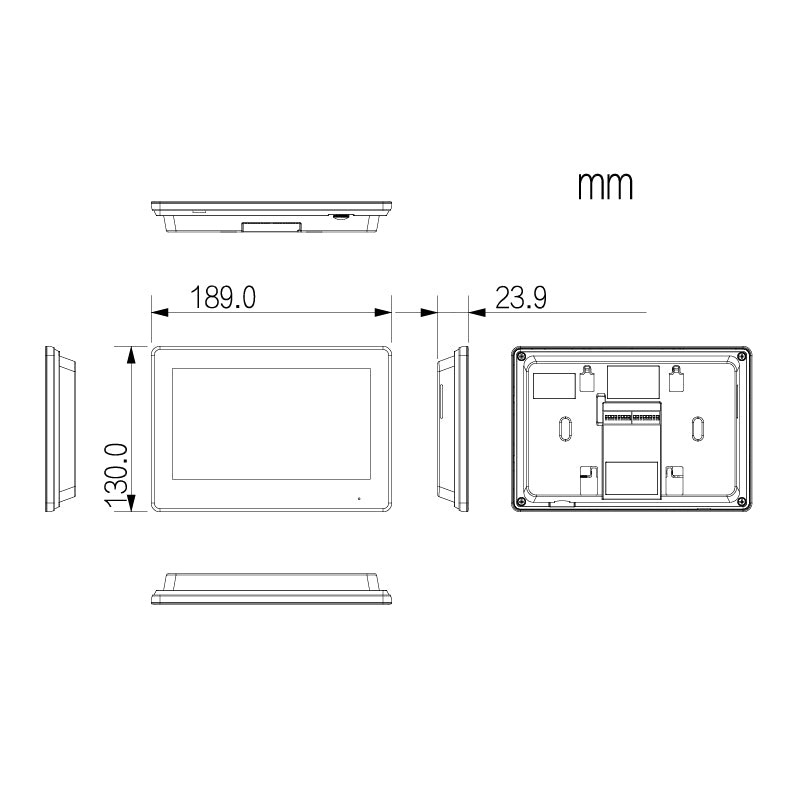

Indoor Monitor (Model: INTMON-H)
Display 7” Colour TFT LCD (1024×600)
Audio Built-in loudspeaker, half-duplex with door station, full-duplex with app
Video Compression H.264
Alarm Support 6 input / 1 output / 1 x RS485
Wi-Fi IEEE802.11b/g/n
Network Protocol IPv4, UDP, DNS, TCP
Storage MicroSD up to 64GB (sold separately)
Power Output 12V, 200mA
Power Consumption ≤2.5W (standby), ≤10W (working)
Installation Surface wall mount
Operating Temperature -10°C to +55°C
Dimensions 130 × 189 × 23.9mm
Weight 0.633kg

4-Year Manufacturer's Warranty

✔️ Warehoused and ships from Sydney.
✔️ All our products are 100% genuine. No Grey Imports!
✔️ Electronic devices are all eligible for any manufacturer software updates!

The warranty covers defects in materials or broken components that could affect the regular operation of the product. If a device is faulty, we will mediate the warranty process with the manufacturer for you. We will handle this as fast and efficiently as possible. We will not wait for the manufacturer to send your replacement, when your item is determined to be faulty we will send you a new replacement as soon as possible.

Please get in touch with our support team at support@SpyMonkey.com.au or 1300-049-519.

  • The warranty does not cover damage to the product resulting from incorrect installation or negligence, damage caused by a natural disaster, or theft.
  • We will not cover inbound shipping of the return to us.
  • We will cover outbound shipping for any replacements to the customer.
  • We will need the serial number of the product and your order number.
  • Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.

Read more

Product form

VIP Vision | 2-Wire H-Series Complete Intercom Kit - INTKIT-H

SKU: INTKIT-H Datasheet

🟢 IN STOCK— Delivery in 1–3 days.

$478.00 $454.00 Incl. GST

    American Express Apple Pay Google Pay MastercardPayPalShop Pay Visa

    Trusted by 5000+ happy customers

    FREE Express Delivery over $200

    Easy 30-Day Returns Policy

    Australian Warranty & Tech Support

    4-Year VIP Vision Warranty

    Official Dahua Online Reseller | Australia’s #1 Dahua Specialist | Backed by Real Support

    We Sell Australian Stock Only, No Grey Import Products
    Order before 2pm for same day dispatch
    Click & Collect Learn More
    Bulk Pricing Available—Message Us On Whatsapp | Get a Quote
