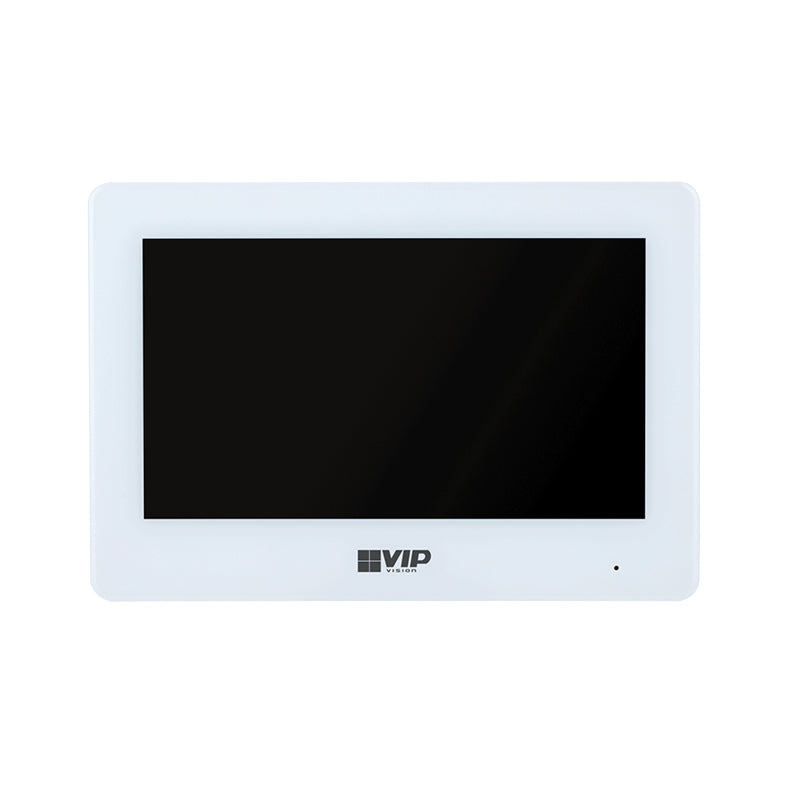

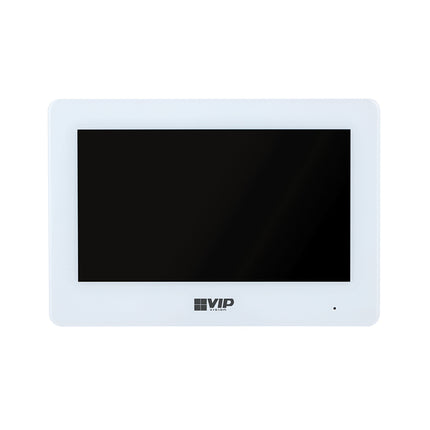

VIP Vision INTMON-H 7” Touchscreen Indoor Monitor
Upgrade your intercom to a professional 2-wire solution with the INTMON-H 2-Wire Monitor with WiFi. The monitor connects to the door station (INTRDS-H) via the 2-wire controller module (INTCON-H). Answer door station calls and unlock electric strikes/sensors via the monitor; store messages and capture local snapshots and recording via the INTMON-H.
Interface with hardwired alarm sensors and even add HDCVI cameras to be viewed via the monitor. The INTMON-H also has built-in WiFi to connect your wireless network for remote view & intercom calling via your app and smartphone/tablet device.
Product Features:
✔️ 7” colour TFT LCD display with 1024 × 600 resolution
✔️ Capacitive touchscreen for easy operation
✔️ Built-in speaker and microphone for clear audio
✔️ Supports half-duplex talk with door station & full-duplex with app
✔️ Connects via Wi-Fi (IEEE802.11b/g/n) for remote monitoring
✔️ Supports up to 64GB MicroSD card for video message storage
✔️ 6 alarm input channels, 1 output channel, and RS485 interface
✔️ Compatible with VIP Vision™ 2-Wire Hybrid Series
✔️ Low power consumption (≤ 2.5W standby / ≤ 10W working)
✔️ Simple surface wall mounting design with included bracket
Includes:
- Includes a branch terminal
Downloads
Tech Specs
| Display |
7” Colour TFT LCD |
| Resolution |
1024 (H) × 600 (V) |
| Video Compression |
H.264 |
| Audio Input/Output |
1 input / Built-in loudspeaker |
| Audio Bit Rate |
16 kHz; 16-bit |
| Talk Mode |
Half-duplex (door station) / Full-duplex (app) |
| Alarm Interface |
6 inputs / 1 output / 1 RS485 |
| Storage |
Supports up to 64GB MicroSD (sold separately) |
| Wi-Fi |
IEEE802.11b/g/n |
| Network Protocol |
IPv4, UDP, DNS, TCP |
| Operating Temperature |
-10°C to +55°C |
| Power Output |
12V, 200mA |
| Power Consumption |
≤ 2.5W (standby), ≤ 10W (working) |
| Installation |
Surface wall mounting |

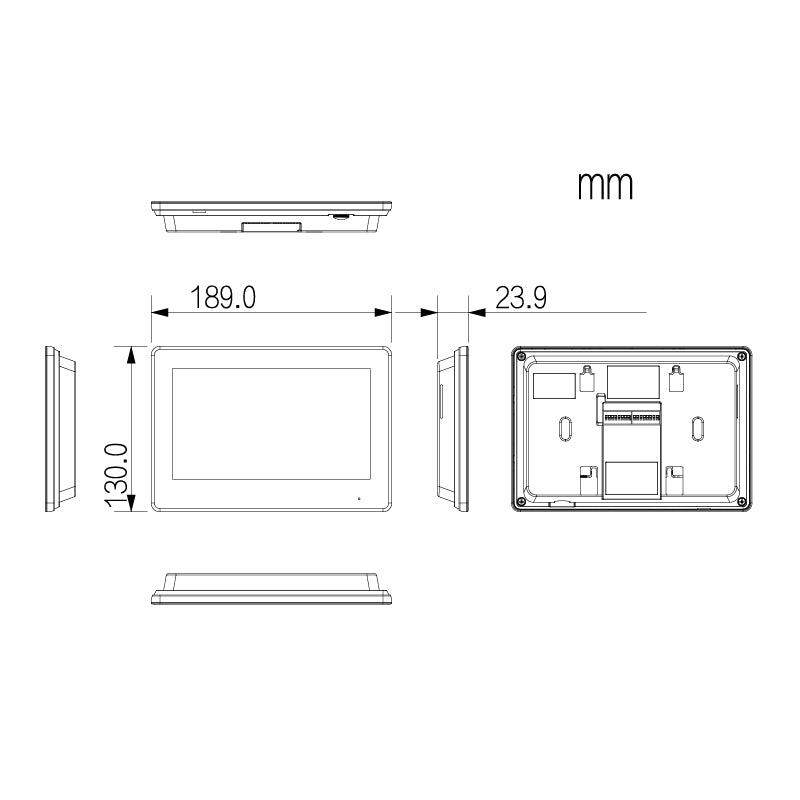

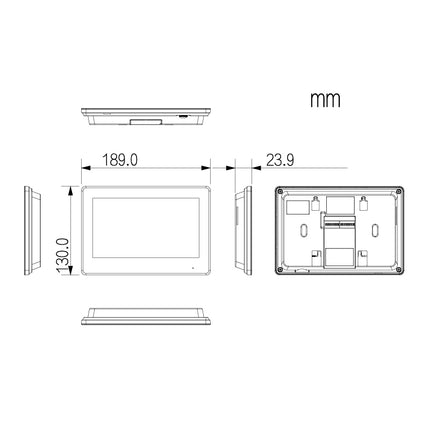

| Dimensions |
130 × 189 × 23.9 mm |
| Weight |
0.633 kg |
