VIP Vision | 2-Wire H-Series 2.0MP Intercom Door Station - INTRDS-H

Description

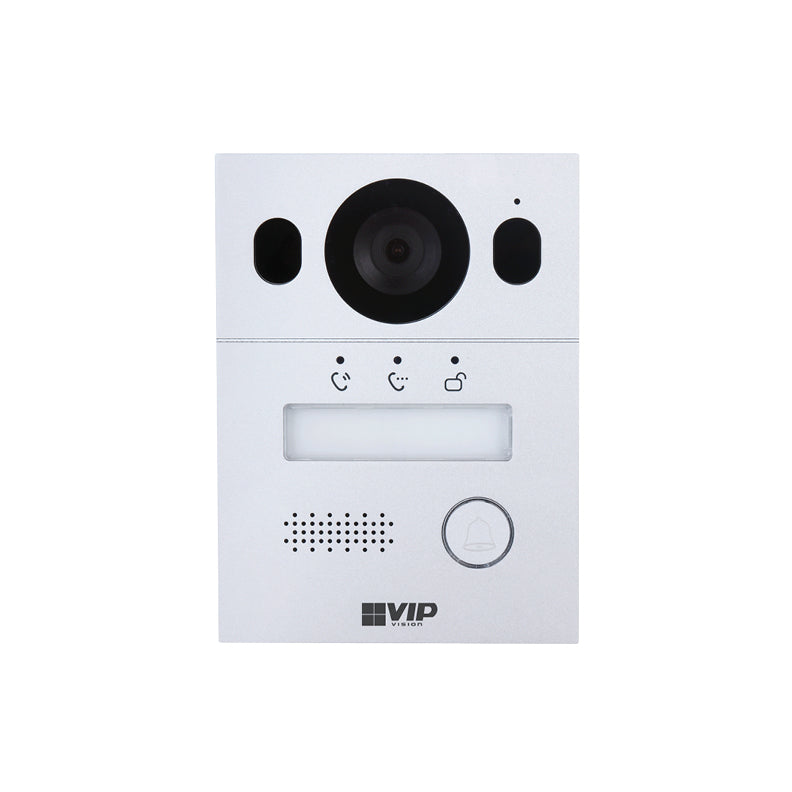

VIP Vision INTRDS-H 2.0MP 2-Wire Intercom Door Station

The VIP Vision 2-Wire Intercom Door Station offers a quick way to upgrade your existing 2-Wire intercom or doorbell to a professional VIP Vision intercom solution. Available as a complete kit in the INTKIT-H, choose additional INTRDS-H units to scale your 2-Wire intercom system.

Product Features:

✔️ 2.0MP 1/2.8" CMOS HDR camera with wide 110° (H) / 60° (V) field of view
✔️ Supports bidirectional audio communication with built-in speaker and microphone
✔️ Tamper detection for added security
✔️ IP65 rated weatherproof front panel with IK07 vandal resistance
✔️ Works via INTCON-H controller (2-wire power input)
✔️ Supports both flush and surface mounting options
✔️ Low power consumption (≤1.5W standby / ≤10W working)
✔️ Compatible with VIP Vision™ 2-Wire Hybrid Intercom Series
✔️ Ideal for single-door intercom or system expansion setups

Downloads

Datasheet 2-Wire H-Series Product Datasheet
User Manual 2-Wire H-Series Door Station User Manual


Tech Specs

Main Processor Embedded Processor
Camera System 1/2.8" 2.0MP CMOS HDR
Field of View Horizontal: 110° / Vertical: 60°
Video Resolution 960 (H) × 576 (V) @25fps
Audio Input 1 (built-in microphone)
Audio Output Built-in loudspeaker
Bidirectional Talk Supported
Network Protocol TCP/IP
Tamper Detection Yes
Ingress Protection IP65
Vandal Resistant IK07
Installation Flush mount / Surface mount
Power Input via INTCON-H Controller
Power Consumption ≤1.5W (standby), ≤10W (working)

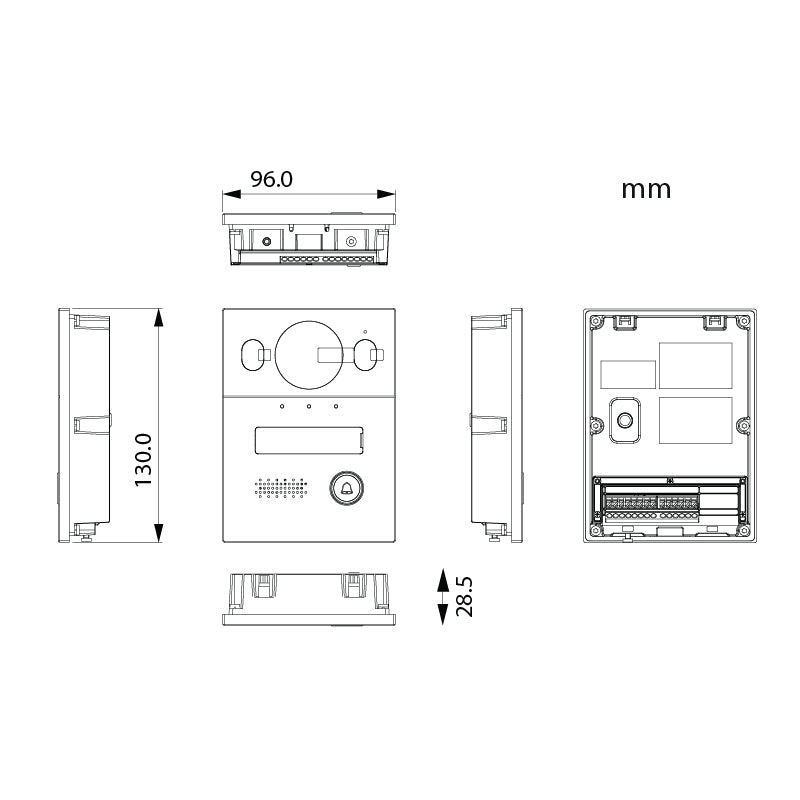

Dimensions 130 × 96 × 28.5 mm
Weight 0.502 kg

4-Year Manufacturer's Warranty

✔️ Warehoused and ships from Sydney.
✔️ All our products are 100% genuine. No Grey Imports!
✔️ Electronic devices are all eligible for any manufacturer software updates!

The warranty covers defects in materials or broken components that could affect the regular operation of the product. If a device is faulty, we will mediate the warranty process with the manufacturer for you. We will handle this as fast and efficiently as possible. We will not wait for the manufacturer to send your replacement, when your item is determined to be faulty we will send you a new replacement as soon as possible.

Please get in touch with our support team at support@SpyMonkey.com.au or 1300-049-519.

  • The warranty does not cover damage to the product resulting from incorrect installation or negligence, damage caused by a natural disaster, or theft.
  • We will not cover inbound shipping of the return to us.
  • We will cover outbound shipping for any replacements to the customer.
  • We will need the serial number of the product and your order number.
  • Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
