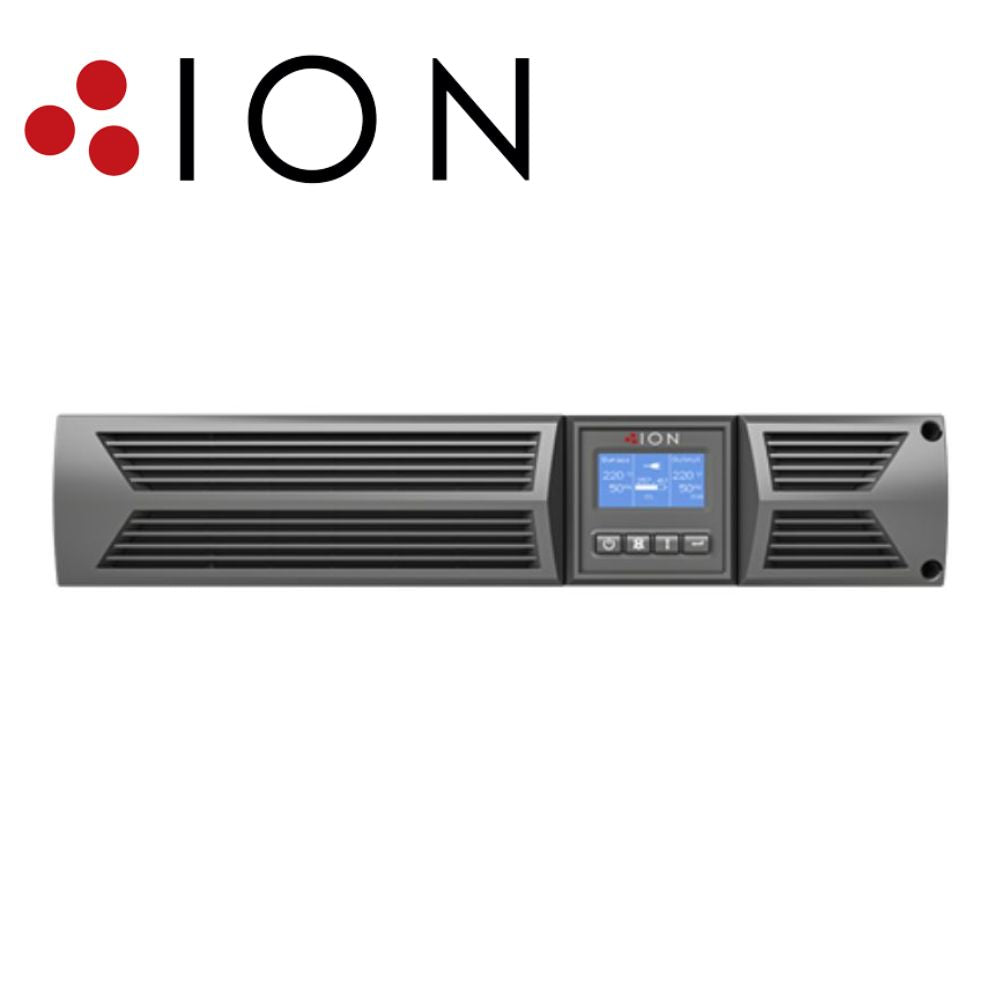

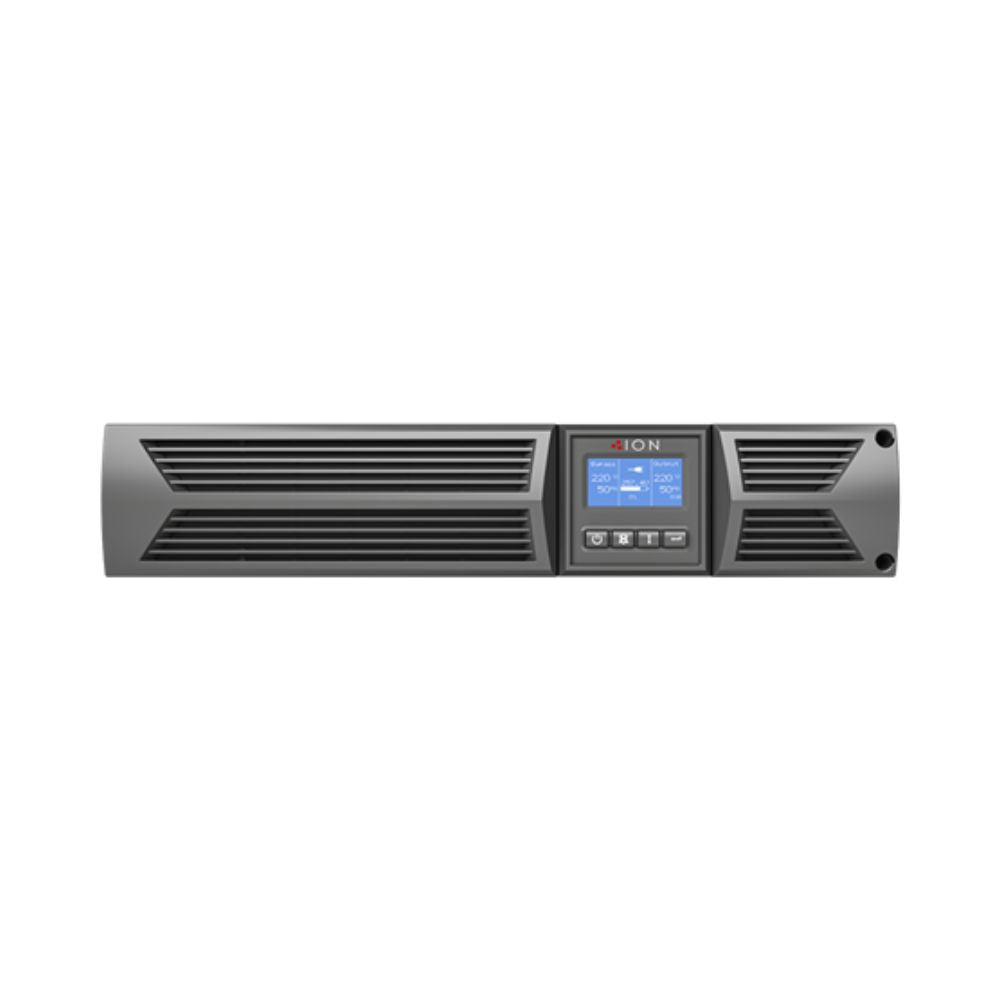

ION F18 1000VA / 900W Ol UPS, 2U Rack/Tower, 8 X C13 (Two Group Of 4 X C13) - F18-1000

Description

Description

ION USAGE CALCULATOR: https://ionups.com.au/ups-selector/

Online UPS

Enterprise class rack / tower

The ION F18 Rack/Tower UPS delivers online power quality and scalable battery runtimes for rack servers, voice and data networks, storage systems and other IT equipment.

With an efficiency rating of >95+, the F18 UPS cuts energy costs while packing up to 3kVA of power into only 2RU of rack space 6kVA of power into only 3RU of rack space and 10kVA of power into only 5RU of rack space.

The F18 UPS range also has a LCD user interface to simplify monitoring. The F18 range is the perfect way to flexibly integrate reliable power supply and protection for high-end computing and applications exposed to potential data loss corruption and downtime.

Downloads

Online UPS Enterprise class rack/tower - F18-1000 - Datasheet

Tech Specs

Online UPS Enterprise class rack / tower F18-1000

Output
Output Power Capacity 900Watts / 1000VA 1800Watts / 2000VA 2700Watts / 3000VA
Max Configurable Powe 900Watts / 1000VA 1800Watts / 2000VA 2700Watts / 3000VA
Nominal Output Voltage 230V
Voltage Regulation Less than 5%
Frequency 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
Topology Double Conversion Online
Waveform Type Pure Sine Wave
Output Connections IEC C13 (8) IEC C13 (8) IEC C13 (8) IEC C19 (1)
Bypass Internal Bypass (Automatic and Manual operation)
Input
Nominal Input Voltage 230V
Input frequency Range 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections IEC-320 C14 IEC-320 C14 IEC-320 C20
Input Voltage Range for main Operations 170 - 280V
Overload Capacity
Line Mode 12s at 102%-130% Load; 1.5s at 130%-150% Load
Battery Mode ≥ 110 % ± 10%, Fault after 30 Seconds; ≥ 120 % ± 10 %, Fault after 100ms
Efficiency
Line Mode > 88% > 89% > 92%
Battery Mode > 83% > 83% > 86%
ECO Mode > 95% > 95% > 95%
UPS Batteries
Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical Recharge Time 3-6 hour(s
Expected Battery Life (years) 3-5 years
Extendable Run Time Yes
Communications & Management
Interface Port(s) RS232 / USB / EPO
Communications Card Slot Optional SNMP / AS400 Card
Control Pane Load / Battery / Input / Output / Operating Mode Information
Audible Alarm Yes
UPS Dimensions F18-1000 F18-2000 F18-3000
RU 2 2 2
Maximum Height 86mm 86mm 86mm
Maximum Width 440mm 440mm 440mm
Maximum Depth 435mm 435mm 605mm
Net Weight 17kg 20kg 29kg
Colour Black
EBM Dimensions FEBM-360 FEBM-480 FEBM-720
RU 2 2 2
Maximum Height 86mm 86mm 86mm
Maximum Width 440mm 440mm 440mm
Maximum Depth 435mm 435mm 605mm
Net Weight

22kg 28kg 38kg
Colour Black
Environmental
Operating Environment 0 - 40 °C
Operating Relative Humidity 0 - 95 %
Operating Elevation 0-3000 meters
Storage Temperature -15 - 45 °C
Storage Relative Humidity 0 - 95 %
Storage Elevation 0-15000 meters
Audible Noise at 1 meter from surface of unit 40.0dBA 40.0dBA 45.0dBA
Conformance
Approvals CE
Standard Warranty 3 Year Advanced Replacement*

ION F18 1000VA / 900W Ol UPS, 2U Rack/Tower, 8 X C13 (Two Group Of 4 X C13) - F18-1000

Product form

SKU: F18-1000

$1,300.20 Incl. GST

    • Guaranteed secure & safe checkout.

      paypal
    • FREE Express Courier Shipping for all orders over $100
    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products

    Description

    Description

    ION USAGE CALCULATOR: https://ionups.com.au/ups-selector/

    Online UPS

    Enterprise class rack / tower

    The ION F18 Rack/Tower UPS delivers online power quality and scalable battery runtimes for rack servers, voice and data networks, storage systems and other IT equipment.

    With an efficiency rating of >95+, the F18 UPS cuts energy costs while packing up to 3kVA of power into only 2RU of rack space 6kVA of power into only 3RU of rack space and 10kVA of power into only 5RU of rack space.

    The F18 UPS range also has a LCD user interface to simplify monitoring. The F18 range is the perfect way to flexibly integrate reliable power supply and protection for high-end computing and applications exposed to potential data loss corruption and downtime.

    Downloads

    Online UPS Enterprise class rack/tower - F18-1000 - Datasheet

    Tech Specs

    Online UPS Enterprise class rack / tower F18-1000

    Output
    Output Power Capacity 900Watts / 1000VA 1800Watts / 2000VA 2700Watts / 3000VA
    Max Configurable Powe 900Watts / 1000VA 1800Watts / 2000VA 2700Watts / 3000VA
    Nominal Output Voltage 230V
    Voltage Regulation Less than 5%
    Frequency 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
    Topology Double Conversion Online
    Waveform Type Pure Sine Wave
    Output Connections IEC C13 (8) IEC C13 (8) IEC C13 (8) IEC C19 (1)
    Bypass Internal Bypass (Automatic and Manual operation)
    Input
    Nominal Input Voltage 230V
    Input frequency Range 50/60 Hz +/- 3 Hz (auto sensing)
    Input Connections IEC-320 C14 IEC-320 C14 IEC-320 C20
    Input Voltage Range for main Operations 170 - 280V
    Overload Capacity
    Line Mode 12s at 102%-130% Load; 1.5s at 130%-150% Load
    Battery Mode ≥ 110 % ± 10%, Fault after 30 Seconds; ≥ 120 % ± 10 %, Fault after 100ms
    Efficiency
    Line Mode > 88% > 89% > 92%
    Battery Mode > 83% > 83% > 86%
    ECO Mode > 95% > 95% > 95%
    UPS Batteries
    Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
    Typical Recharge Time 3-6 hour(s
    Expected Battery Life (years) 3-5 years
    Extendable Run Time Yes
    Communications & Management
    Interface Port(s) RS232 / USB / EPO
    Communications Card Slot Optional SNMP / AS400 Card
    Control Pane Load / Battery / Input / Output / Operating Mode Information
    Audible Alarm Yes
    UPS Dimensions F18-1000 F18-2000 F18-3000
    RU 2 2 2
    Maximum Height 86mm 86mm 86mm
    Maximum Width 440mm 440mm 440mm
    Maximum Depth 435mm 435mm 605mm
    Net Weight 17kg 20kg 29kg
    Colour Black
    EBM Dimensions FEBM-360 FEBM-480 FEBM-720
    RU 2 2 2
    Maximum Height 86mm 86mm 86mm
    Maximum Width 440mm 440mm 440mm
    Maximum Depth 435mm 435mm 605mm
    Net Weight

    22kg 28kg 38kg
    Colour Black
    Environmental
    Operating Environment 0 - 40 °C
    Operating Relative Humidity 0 - 95 %
    Operating Elevation 0-3000 meters
    Storage Temperature -15 - 45 °C
    Storage Relative Humidity 0 - 95 %
    Storage Elevation 0-15000 meters
    Audible Noise at 1 meter from surface of unit 40.0dBA 40.0dBA 45.0dBA
    Conformance
    Approvals CE
    Standard Warranty 3 Year Advanced Replacement*
