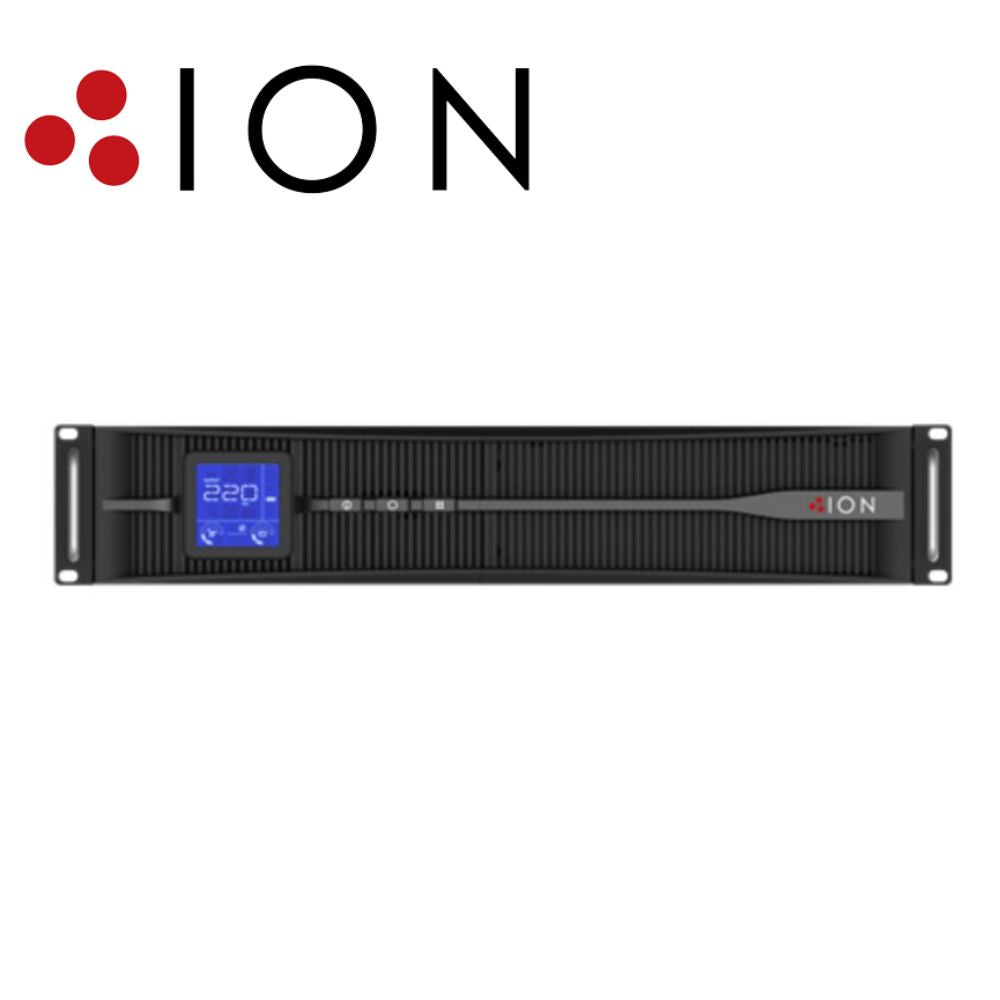

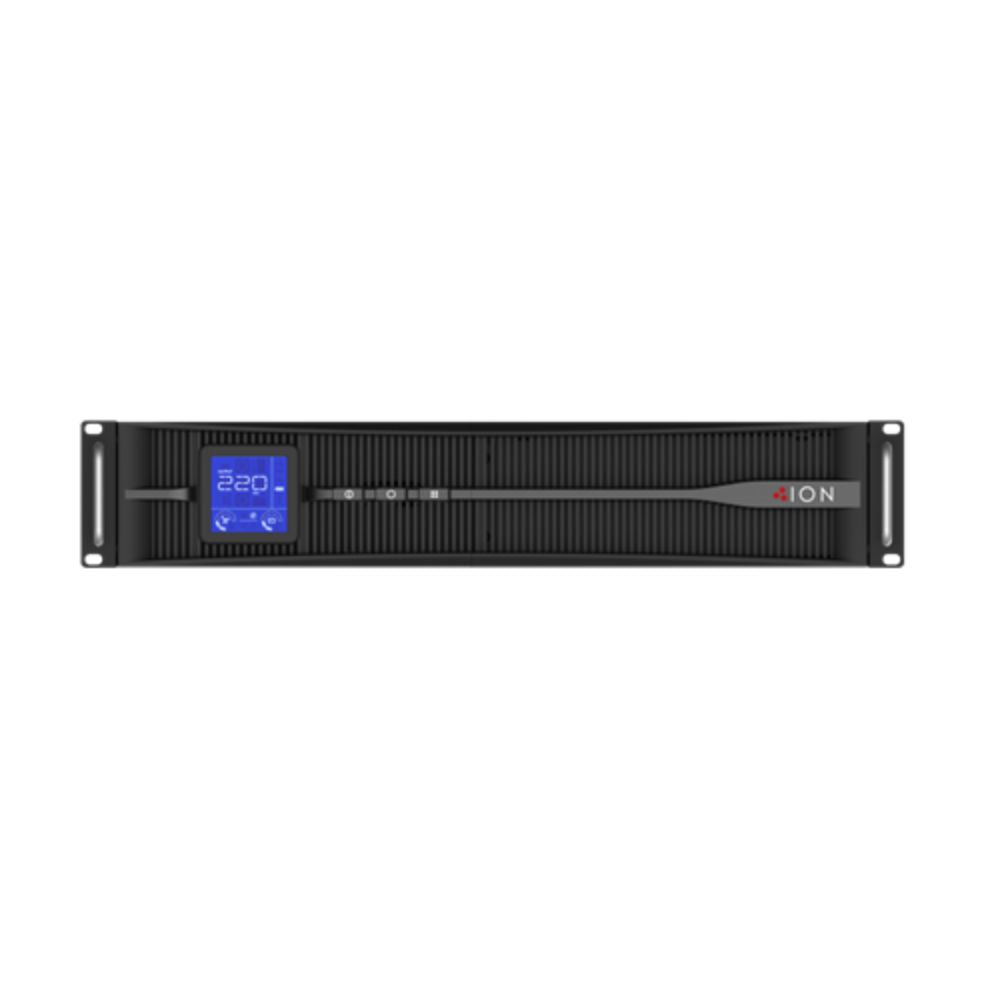

ION F18 Lithium ION 1000VCA/900W Online UPS, SNMP Card, 15AMP Output: 6 X C13 - F18L-2000

Description

Description

ION USAGE CALCULATOR: https://ionups.com.au/ups-selector/

F18L-2000
Lithium-ION Online UPS
Ultra efficient, high power

The ION Lithium F18 Rack/Tower UPS delivers high power density Online power quality in a compact footprint. With its longer life span, 5 Year Warranty* and optional scalable battery run times for rack servers, voice and data networks, storage systems and other IT equipment. The ION Lithium F18 UPS cuts energy costs with its charge and recharge efficiency while packing up to 3kVA of power into only 2RU of rack space. The F18 UPS range also has an LCD user interface to simplify monitoring and comes with SNMP monitoring as standard. The ION Lithium F18 range is the perfect way to flexibly integrate reliable power supply and protection for high-end computing and applications exposed to potential data loss, corruption and downtime.

Features

  • DSP Control
  • 0.9 Output power factor
  • Wide Input range
  • High efficiency
  • Input THDi <5%
  • Output Voltage Regulation <1%
  • Output THDi <2%
  • Extendable Run Time
  • Dual input
  • Power Management Software
  • Multiple Communication Ports
  • Operational SNMP & Relay Cards & Temperature Compensation
  • 1+1 Parallel
  • Compact design
Downloads

Lithium-ION UPS Ultra efficient, high power - F18L-2000 - Datasheet

Tech Specs

Lithium-ION Online UPS Ultra efficient, high power F18L-2000

Output
Output power capacity 1800Watts / 2000VA
Max Configurable Power 1800Watts / 2000VA
Nominal Output Voltage 208 / 220 / 230 / 240 ± 1% (settable)
Voltage Regulation Less than 5%
Output Frequency 50/60 (auto sensing)
Topology Double Conversion Online
Waveform type Pure Sinewave
Output Connections IEC C13 (6)
Bypass Internal Bypass (Automatic operation)
Input
Nominal Input Voltage 120 - 295 V
Input frequency 50 / 60 ± 10% (auto-sensing)
Input Connections IEC-320 C20
Input voltage range for main operations 120 - 295 V
Overload Capacity
Line Mode 101%-115% load for 1 min, 116%-133% load for 1s, above 134% load for 200ms
Battery Mode ≥ 110 % ± 10%, Fault after 30 Seconds; ≥ 120 % ± 10 %, Fault after 100ms
Efficiency
AC/AC Efficiency > 91.6%
UPS Batteries
Battery Type Lithium ION Battery
Voltage (VDC) 48
Typical Recharge Time 3 - 6 hour(s)
Charging Current 4 A
Expected Battery Life 5 - 10 years
Extendable Run Time No
Communications & Management
Interface Port USB / RS232
Communications Card Slot SNMP Included / (RS232 & dry contact optional)
Control panel Load / Battery / Input / Output / Operating Mode Information
Audible Alarm Battery low-voltage, mains abnormal, UPS fault, output overload
UPS Physical
RU 2
Maximum Height 86mm
Maximum Width 440mm
Maximum Depth 570mm
Net Weight 13.6kg
Colour Black
Environmental
Operating Environment 0 - 60°C (Best operating temperature is 0 - 40°C, output power derated from 40°C - 60°C )
Operating Relative Humidity 0 - 95 %
Operating Elevation 0 - 3000 meters
Storage Temperature -15 - 45 °C
Storage Relative Humidity 0 - 95 %
Storage Elevation 0 - 15000 meters
Audible Noise at 1 meter from surface of unit < 55.0 dB
Conformance
Approvals CE
Standard warranty 5 Year Limited Warranty*

Read more

Product form

ION F18 Lithium ION 1000VCA/900W Online UPS, SNMP Card, 15AMP Output: 6 X C13 - F18L-2000

SKU: F18L-2000

🟢 IN STOCK— Delivery in 1–3 days.

$3,827.47 Incl. GST

    American Express Apple Pay Google Pay MastercardPayPalShop Pay Visa

    Trusted by 5000+ happy customers

    FREE Express Delivery over $200

    Easy 30-Day Returns Policy

    Australian Warranty & Tech Support

    Official Dahua Online Reseller | Australia’s #1 Dahua Specialist | Backed by Real Support

    We Sell Australian Stock Only, No Grey Import Products
    Order before 2pm for same day dispatch
    Click & Collect Learn More
    Bulk Pricing Available—Message Us On Whatsapp | Get a Quote
