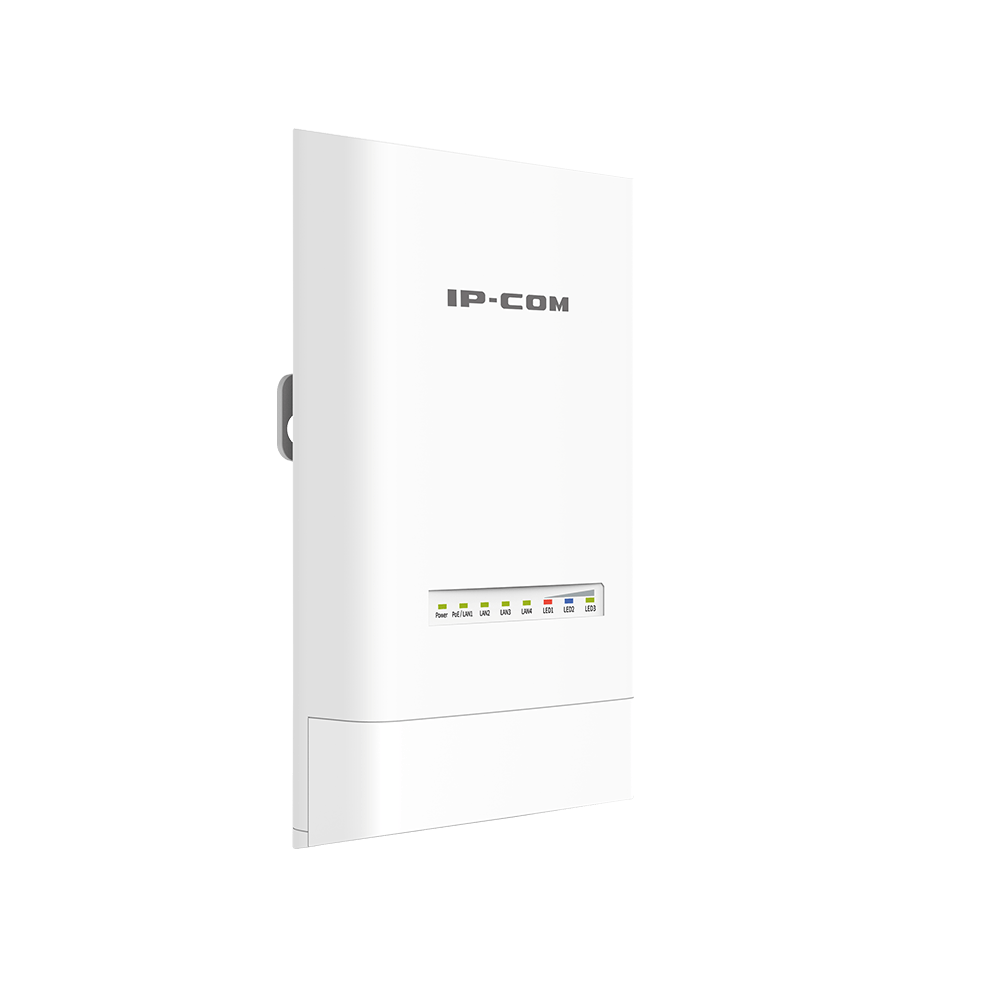

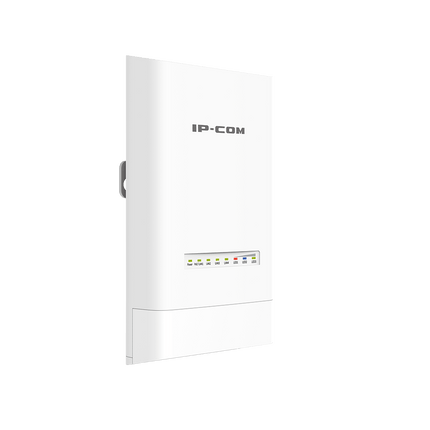

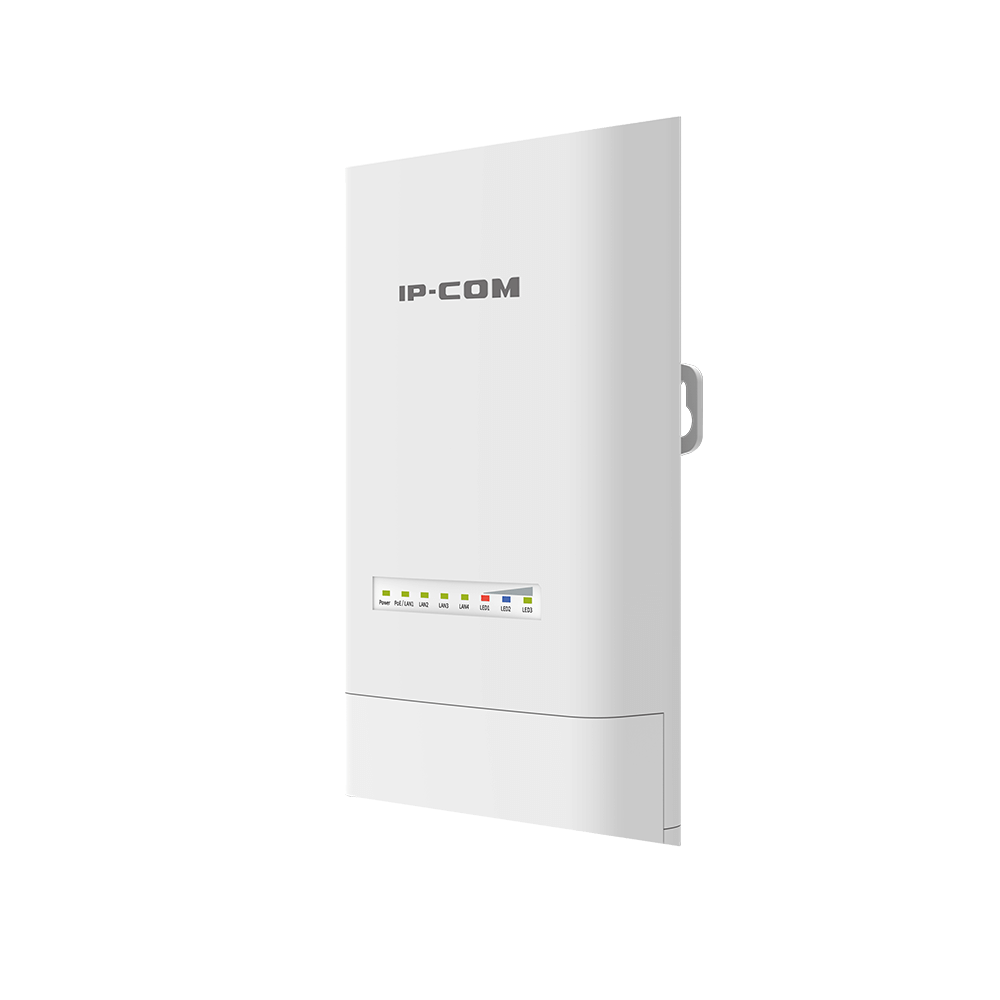

CPE6S Overview
CPE6S 5GHz Outdoor CPE is designed to PtP&P2MP solutions for video surveillance transmission and wireless broadband access. Adopts of 11ac wireless technology, the maximum wireless rate can be up to 867Mbps. It features with 12dBi dual polarization directional antenna to provide an efficient way to pick up and maintain a stable long range connection.
Key Features:

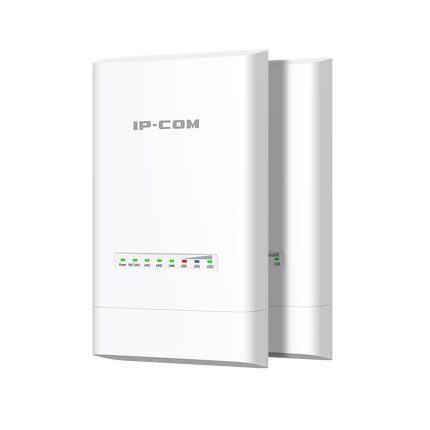

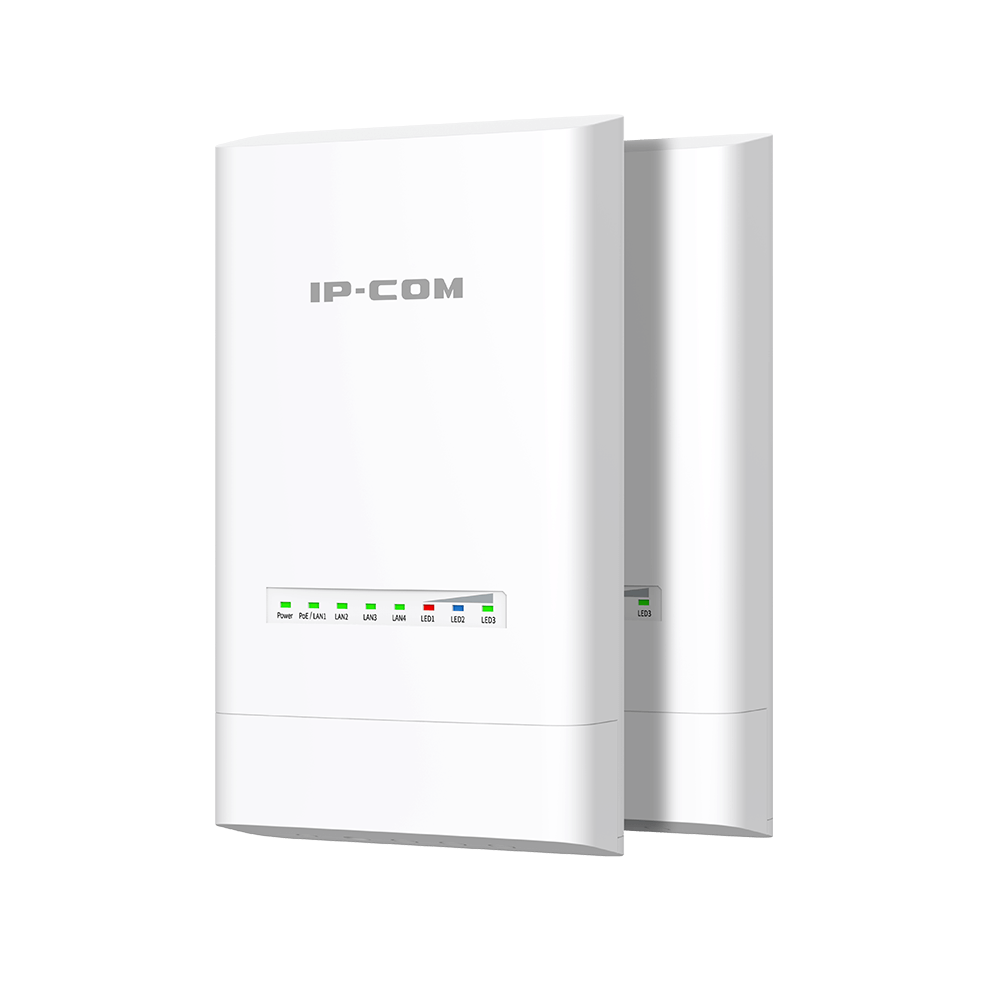

- Pre-configured & plug and play（kit）
- 5GHz 11AC 867Mbps
- 12dbi directional antenna
- Four fast ethernet Port
- IP65 waterproof enclosure
- 6000V Lightning Protection
- 12V 1A DC/12V 1A Passive PoE supported
5-Years Manufacturer's Warranty
As an authorised distributor, our products are eligible for all standard warranties and firmware updates offered by their manufacturers.
IP-COM 5GHz OUTDOOR CPE 12dBi POINT TO POINT AUTO-PAIRING 4 x ETHERNET IP65 867Mbps UPTO 5KM POLE/ WALL MOUNTED 12V PASSIVE POE/ 12VDC WHITE 193Hx109Wx61D (MM)
5+km transmission Range
CPE6S adopts of internal power amplifier and 12dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network up to 5km.
Flexible power supply method enable it easy to deployment
CPE6S support 12V 1A Passive PoE and 12V 1A DC power supply optional. It helps the engineer to deployment the device flexiblely.
ipMAX--IP-COM TDMA proprietary protocol
ipMAX is IP-COM TDMA (Time Division Multiple Access) proprietary protocol to improve performance and capacity for wireless P2MP outdoor application scenarios. In outdoor environment, the CPE use highly directional antennas to connect to the Basestation from distances that can span several kilometers. the CPE can't sense each other, they become ""hidden nodes"" and cannot coordinate access to the wireless channel. Thus the Basestation experiences frequent collisions from stations transmitting simultaneously. As the network scales, these collisions build up exponentially, increasing latency and lowering throughput. With ipMAX, it coordinate all the data transmission and allocates time to active clients to provide greater noise immunity performance when compared to the conventional 802.11 CSMA/CA (Carrier Sense Multiple Access / Collision Avoidance) protocol.
