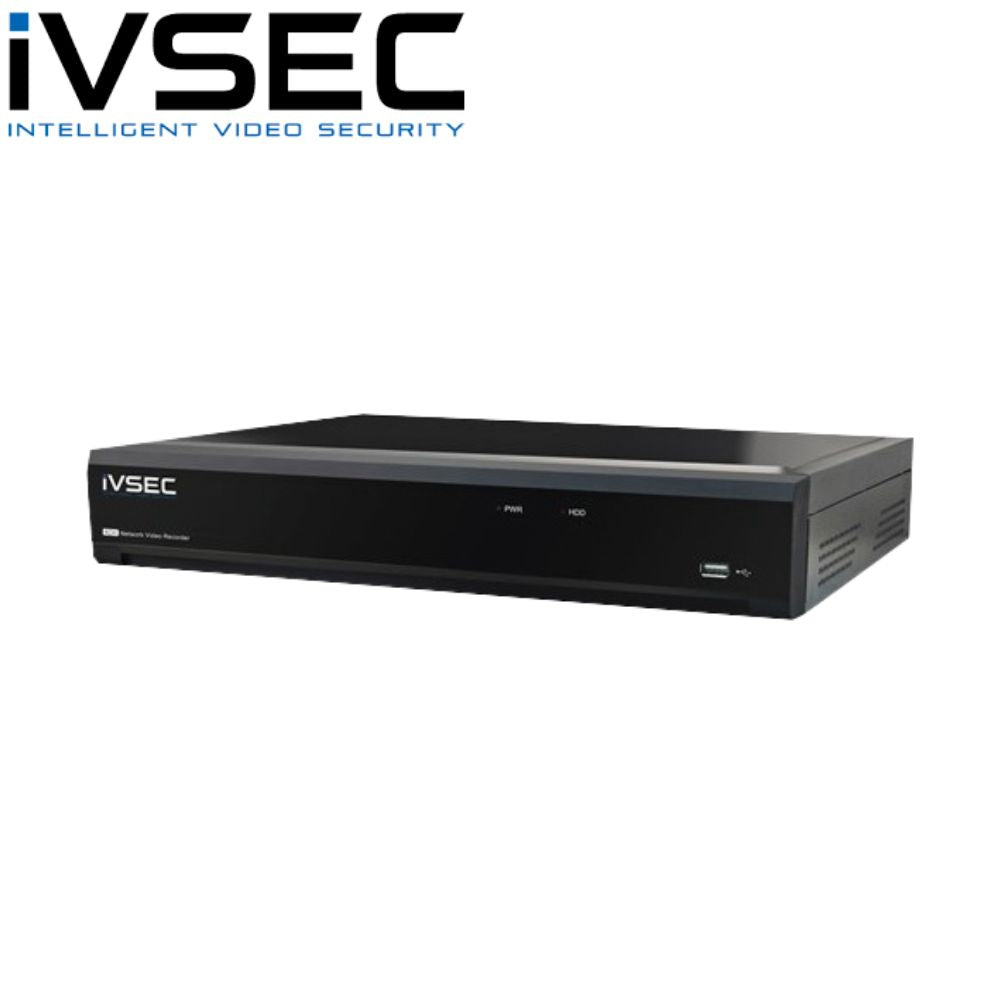

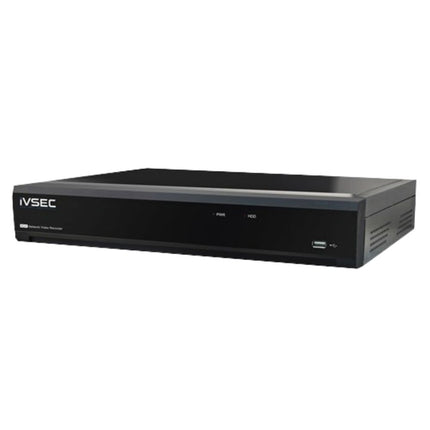

IVSEC NR004XA 4-Channel LX Series PoE NVR, 8MP, 4K Output, H.265+, 1 HDD Bay, BASIC IVS

Description

The IVSEC NR004XA is a compact yet powerful 4-channel Network Video Recorder (NVR) designed for seamless integration with IVSEC X Range IP cameras. Supporting up to 8MP resolution and advanced video compression (H.264/H.265), it delivers efficient storage and smooth playback. With built-in Power over Ethernet (PoE) ports, intuitive search methods, and full remote access via IVSEC’s mobile and desktop applications, this NVR provides reliable and intelligent surveillance management.

Features:

  • 4 Channels – Supports up to 4 IP cameras simultaneously.
  • Up to 8MP Resolution – Delivers clear and detailed video quality.
  • H.264/H.265 Compression – Saves hard drive space while maintaining image quality.
  • 50 Mbps Throughput – Smooth performance for multiple high-resolution streams.
  • PoE+ Ports – 4 built-in ports supporting up to 30W each for plug-and-play installation.
  • AI & IVS Support – Compatible with camera-based analytics including face recognition, line crossing, and human/vehicle detection.
  • Remote Control – Access and manage via IVSEC VMS software, web browser, or mobile app.
  • Expandable Storage – 1 HDD bay supporting up to 10TB per drive.
  • Multiple Search Modes – Time, event, and IVS filtering for quick video review.

Downloads

IVSEC 4-Channel Network Video Recorder - NR004XA Download Datasheet

IVSEC Logo NDAA Compliant Badge 100% Australian Owned  |  NDAA Compliant
Secure. Reliable. Australian.

IVSEC is an Australian brand offering high-quality video surveillance equipment at affordable prices. The IVSEC range of IP cameras is characterised by their ease of installation, intuitive settings, quality of finish, and Australian support.

Tech Specs

IVSEC NR004XA – 4 Channel Network Video Recorder

Maximum Channels 4
Maximum Video Resolution 8MP
Throughput 50 Mbps
Video Compression H.264, H.264+, H.265, H.265+, MJPEG
Video Output 4K, 1080p, 720p, D1, VGA
Display Layout 1 / 4 view
Intelligent Video (camera dependent) Motion Detection, IVS, Face Recognition, Human & Vehicle Detection, Line Crossing, Stationary Object, Heat Map, License Plate Detection, etc.
Search Methods Time, Event, Snapshot, IVS filter, Time-lapse, Tagging
Total Storage Potential 10 TB (1 × SATA HDD, up to 10TB per drive)
PoE Ports 4 × PoE+ (802.3at, 30W each)
Power Supply DC48V / 1.2A
Power Consumption 5W (without HDD)
Connectors HDMI, Audio Out, USB ×2, RJ45 LAN ×1, 4 × PoE+, Power Input
Protocols TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP, RTSP, DDNS, NTP, UPNP, SMTP, P2P (QR code)
Language Options English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russian, Arabic, Japanese, Korean, etc.
Operating Environment 10°C to 50°C, <90% RH
Software Device Config Tool, Surveillance Client (CMS/VMS), Mobile App
In The Box Power supply, Mouse, Remote control, HDD screws, Quick installation guide
Dimensions (mm) 300 × 227 × 53
Weight 1 kg
