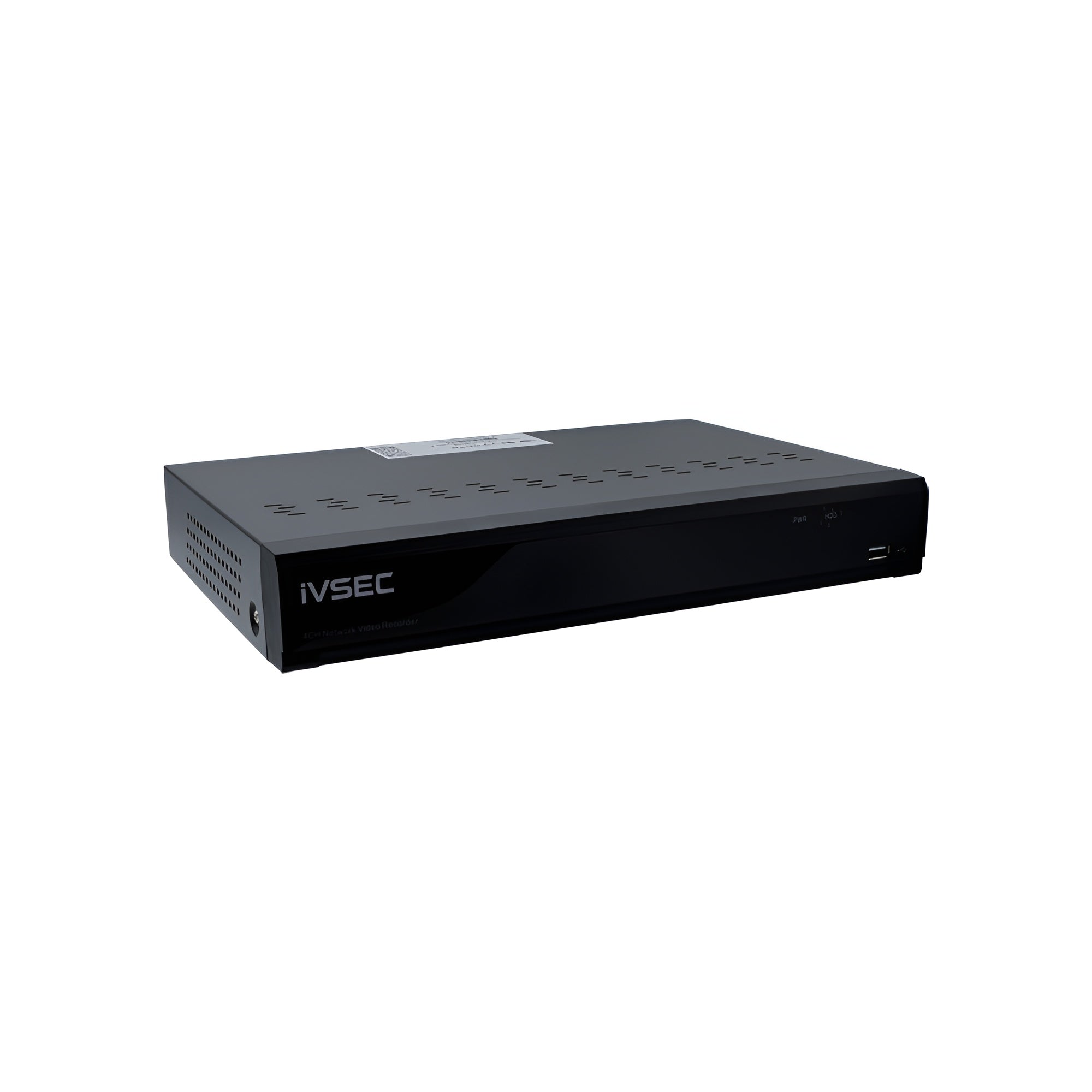

IVSEC NR004XB LX Series 4-Channel PoE NVR, 12MP, 4 PoE Ports, 1 Bay, 16TB Max, H.265+, BASIC IVS

Description

The IVSEC NR004XB is a compact yet powerful 4-channel Network Video Recorder (NVR) designed for seamless integration with IVSEC X Range IP cameras. Supporting up to 12MP resolution and advanced video compression (H.264/H.265), it delivers efficient storage, smooth playback, and intelligent monitoring. With built-in Power over Ethernet (PoE) ports, advanced search functions, and full remote access through IVSEC’s mobile and desktop applications.

Features:

  • 4 Channels – Supports up to 4 IP cameras simultaneously.
  • Up to 12MP Resolution – Captures ultra-clear and detailed video.
  • H.264/H.265 Compression – Optimizes storage without compromising image quality.
  • 50 Mbps Throughput – Ensures smooth multi-stream video performance.
  • PoE+ Ports – 4 integrated ports deliver both power and data for plug-and-play camera setup.
  • AI & IVS Support – Compatible with analytics such as face detection, human & vehicle tracking, perimeter intrusion, and line crossing (camera dependent).
  • Remote Access – Manage and monitor via IVSEC VMS software, web browser, or mobile app.
  • Expandable Storage – 1 HDD bay supports up to 16TB per drive.
  • Flexible Search Options – Filter by time, event, IVS analytics, snapshots, or time-lapse review.

Downloads

IVSEC 4-Channel PoE Network Video Recorder - NR004XB Download Datasheet

IVSEC Logo NDAA Compliant Badge 100% Australian Owned  |  NDAA Compliant
Secure. Reliable. Australian.

IVSEC is an Australian brand offering high-quality video surveillance equipment at affordable prices. The IVSEC range of IP cameras is characterised by their ease of installation, intuitive settings, quality of finish, and Australian support.

Tech Specs

IVSEC NR004XB – 4 Channel PoE Network Video Recorder

Maximum Channels 4
Maximum Video Resolution 12MP
Throughput 50 Mbps
Video Compression H.264, H.264+, H.265, H.265+, MJPEG
Video Output Resolution 4K, 1080p, 720p, 1.3MP, D1, VGA
Display Layout 1 / 4 view
Intelligent Video (Camera Dependent) Motion Detection, IVS, Face Recognition, Human & Vehicle Detection, Line Crossing, Stationary Object, Counting, Heat Map, License Plate Detection, Video Tampering, Rare Sound Detection
Search Methods Continuous, Scheduled, IVS Triggered, Time-lapse, Snapshot, Tagging, Thumbnail (Slice) Search
Total Storage Potential 16 TB (1 × SATA HDD, up to 16TB)
HDD Bays 1 × 3.5" SATA
PoE Ports 4 × PoE+ (802.3at, 30W each)
Non-PoE Ports 1 × RJ45 (Gigabit Ethernet)
Audio Streaming Two-way audio support
Power Supply DC 48V, 1.2A
Power Consumption 5W (without HDD)

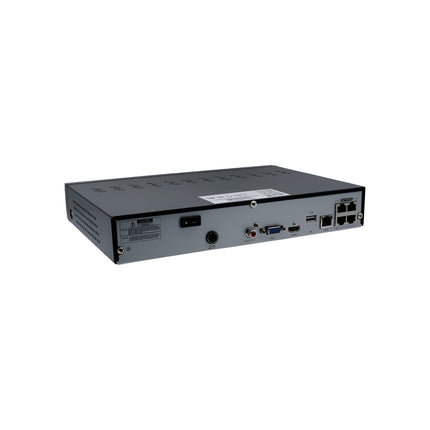

Connectors HDMI, VGA, Audio In/Out, 2 × USB2.0, RJ-45, Power Input, Power Switch
Protocols TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP, RTSP, DDNS, NTP, PPPOE, UPNP, SMTP, P2P (QR code)
Language Options English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish, Turkish, Bulgarian, Hebrew
Operating Environment 5°C to 40°C (41°F–113°F), 20%–80% RH
Software Device Search, Config Tool, Surveillance Client (CMS/VMS), IVSEC X Mobile App
In The Box Quick installation guide, Mouse, HDD screws, Power supply
Dimensions (H × W × L) 53 × 300 × 227 mm
Packaging Dimensions 100 × 430 × 270 mm
Weight (Net / Gross) 0.7 kg / 1.0 kg
