| Maximum Channels |
8 |
| Maximum Video Resolution |
12MP |
| Throughput |
76 Mbps |
| Video Compression |
H.264, H.264+, H.265, H.265+, MJPEG |
| Video Output Resolution |
4K, 1080p, 720p, 1.3MP, D1, VGA |
| Display Layout |
1 / 4 / 8 view |
| Intelligent Video (Camera Dependent) |
Motion Detection, IVS, Perimeter Intrusion Detection, Face Recognition, Human & Vehicle Detection, Line Crossing, Stationary Object, Heat Map, Crowd Density, Queue Length, License Plate Detection, Rare Sound Detection, Video Tampering |
| Search Methods |
Continuous, Scheduling, Event Triggered, IVS Filter, Snapshot, Tagging, Time-Lapse, Slice (Thumbnail), Timeline Search |
| Total Storage Potential |
16TB (1 × SATA HDD bay, up to 16TB per drive) |
| HDD Bays |

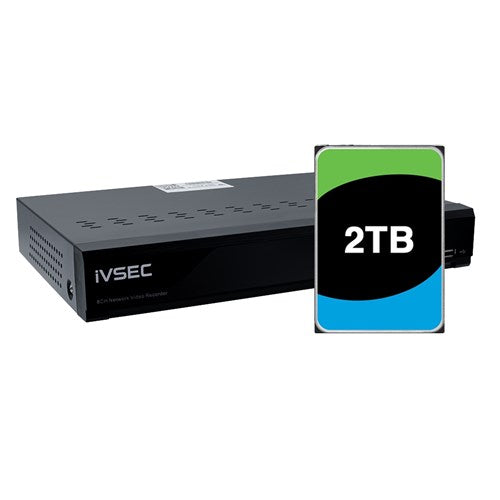

1 × 3.5" SATA Slot (2TB pre-installed) |
| PoE Ports |
8 × PoE+ (802.3at) |
| Non-PoE Ports |
1 × RJ-45 LAN |
| Power Supply |
DC 48V, 1.2A |
| Power Consumption |
5W (without HDD) |
| Connectors |

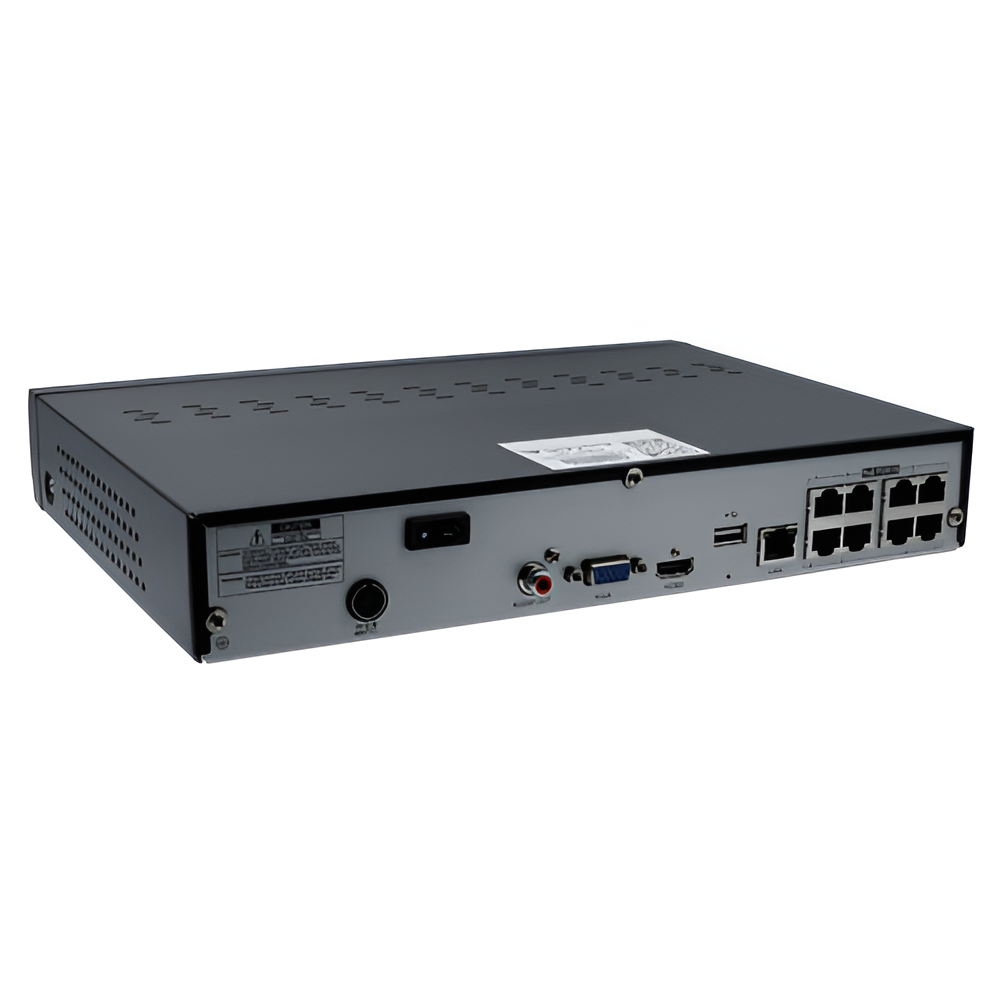

HDD: 3.5" SATA Slot ×1, USB2 ×2, RJ-45 ×1 + 8 × PoE+, HDMI, VGA, Audio In/Out, Power Jack, On/Off Switch |
| Protocols |
TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP, RTSP, DNS, DDNS, NTP, PPPoE, UPNP, SMTP, P2P (QR Code) |
| Language Options |
English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russian, Hebrew, Turkish, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish |
| Audio Streaming |
Two-way Audio |
| Operating Environment |
5°C to 40°C (41°F–113°F), Humidity: 20%–80% RH |
| Software |
Device Config Tool, Surveillance Client (CMS/VMS), “IVSEC X” Mobile App |
| In The Box |
Printed Quick Installation Guide, Mouse, HDD Screws, Power Supply |
| Product Dimensions (H × W × L) |
53 × 300 × 227 mm |
| Packaging Dimensions (H × W × L) |
100 × 430 × 270 mm |
| Weight (Net / Gross) |
2.03 kg / 2.33 kg |
