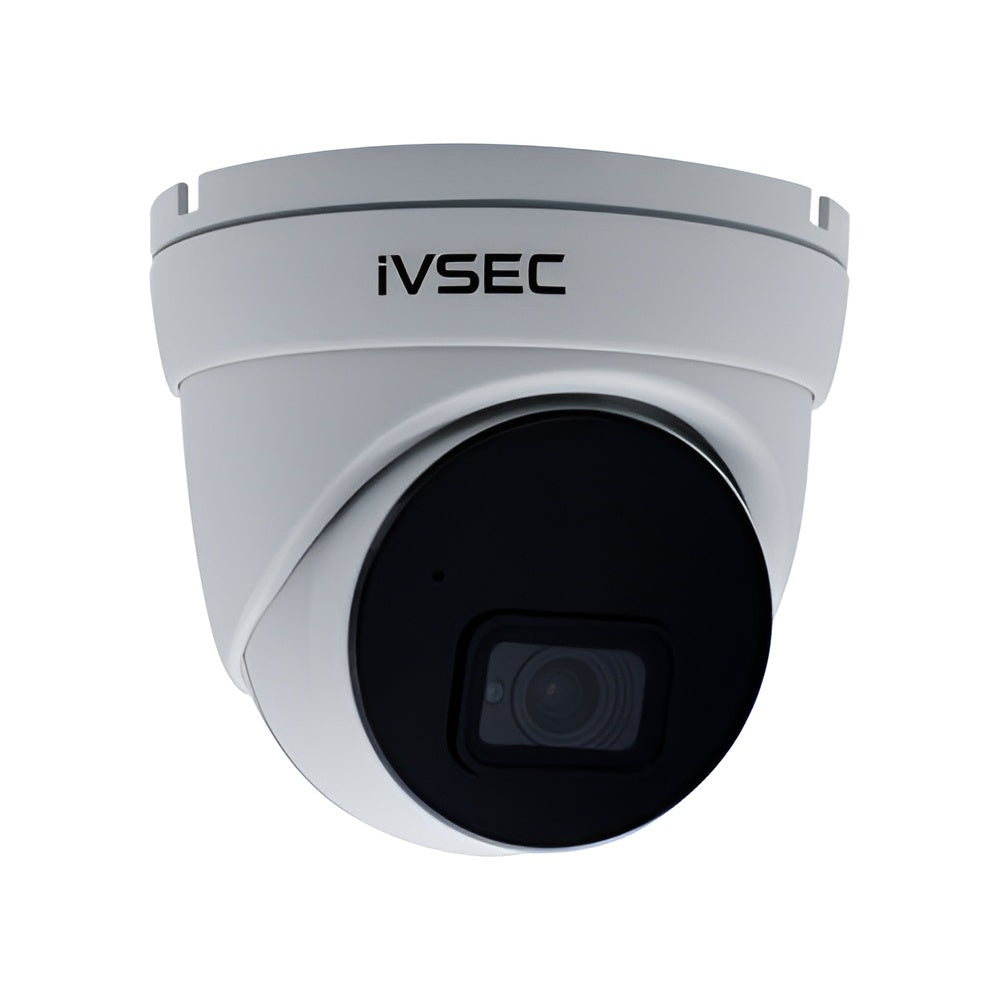

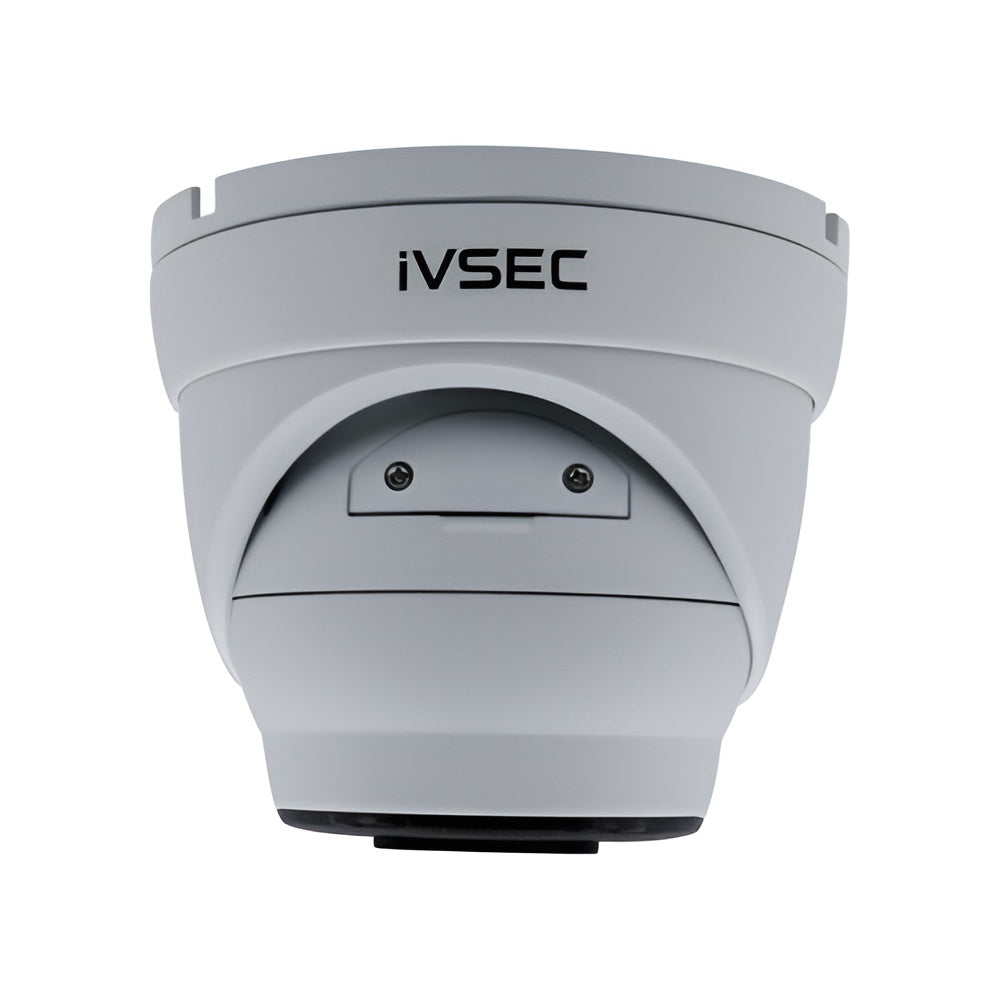

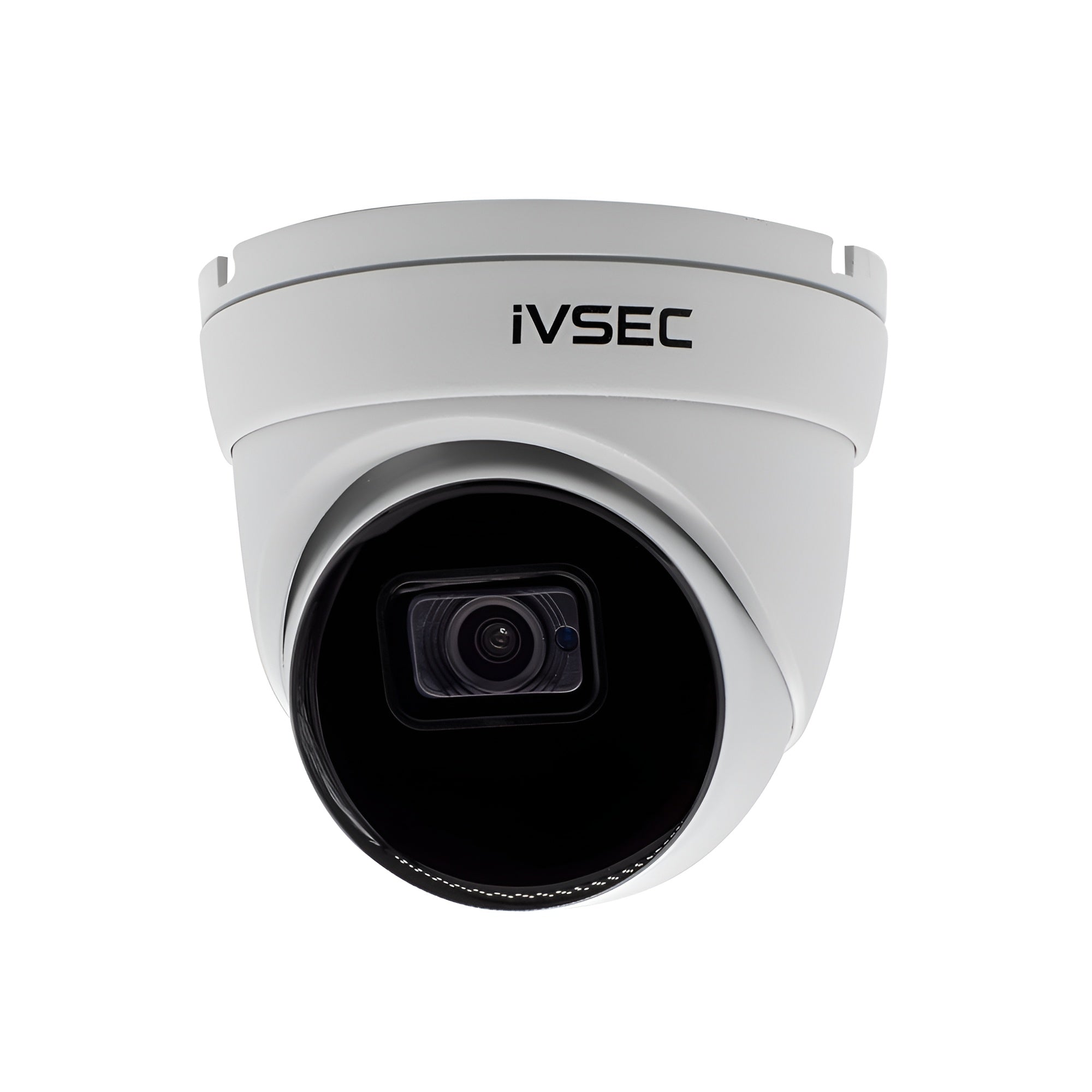

The IVSEC NC340XB is a cutting-edge 12MP turret-style security camera engineered for professional surveillance applications. Featuring a 1/2.3″ Progressive CMOS image sensor, it delivers 4512 × 2512 ultra-high-resolution video, capturing every detail with exceptional clarity. Its 3.6 mm fixed lens offers a wide 87° horizontal field of view, while the 30 m Smart IR night vision ensures reliable performance in low-light conditions.
Features:
-
12MP Resolution – 4512 × 2512 for ultra-detailed video clarity.
-
3.6mm Fixed Lens – Wide 87° horizontal field of view.
-
Smart IR Night Vision – Up to 30m visibility in low light.
-
Advanced AI Detection – Human, vehicle, and face detection, plus perimeter protection, queue, and crowd analysis.
-
Multiple Image Enhancements – Smart IR, 3D Noise Reduction, Defog, White Balance, and more.
-
Weatherproof IP67 & Vandal Resistant – Built for outdoor reliability and durability.
-
Power over Ethernet (PoE) – Easy one-cable installation.
-
Edge Recording – Supports microSD/SDHC card for local storage.
-
Audio Streaming – Built-in microphone for clear audio capture.
Downloads
100% Australian Owned | NDAA Compliant
nSecure. Reliable. Australian.
IVSEC is an Australia brand offering high-quality video surveillance equipment at affordable prices. The IVSEC range of IP cameras is characterised by their ease of installation, intuitive settings, quality of finish, and Australian support.
Tech Specs
IVSEC Security Camera: 12MP Turret fixed, 3.6mm, 15FPS, POE, IP66, 30M IR, MIC, IVS - NC340XB
| Camera Type |
Turret |
| Image Sensor |
1/2.3″ Progressive CMOS |
| Maximum Video Resolution (Megapixels) |
12 |
| Maximum Video Resolution |
4512 × 2512 |
| Frames Per Second (FPS) |
15 |
| Lens |
3.6 mm (H.FOV: 87°) |
| Lens Type |
Fixed |
| Maximum Night IR Distance (M) |
30 |
| LED |
IR |
| Video Compression |
H.265+, H.265, H.264+, H.264, MJPEG |
| ONVIF |
ONVIF (Profile S/G/T) 21.12 or greater, HTTP API |
| Accessories |
IV2422X, IV2433X, IV2444X, IV2455X, IV2457X, IV2477X |
| Outdoor Use |
Yes |
| IP Rating |
IP67 |
| Vandal Resistant |
Yes |
| Day/Night Mode |
Auto |
| Image Enhancement |
Smart IR, Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue, Corridor Mode, Mirror, Angle Flip, Back Light, White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction |
| Intelligent Video (IVS) |
Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Human & Vehicle Detection, Face Detection, Cross Counting, Crowd Density Detection, Queue Length Detection, Heatmap |
| Edge Recording |
microSD/SDHC Card |
| Multiple Streams (encode format) |
3 Streams |
| Software |
Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app (QR code) |
| Protocols |
TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SNMP, P2P (QR code) |
| Language |
English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russian, Hebrew, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish |
| Cloud Option (Camera Only) |
Dropbox |
| Audio Streaming |
Yes (microphone included) |
| Ethernet |
Ethernet (10/100 Base-T) |
| Power Over Ethernet |
Yes |
| Power Supply |
Power over Ethernet IEEE 802.3af, DC12V |
| Power Consumption |
< 7W |
| Connectors |
RJ-45, DC Power Input, Reset Button |
| Operating Environment |
-30°C ~ +55°C / ≤ 95% RH |
| In The Box |
Free Software (from FTP), Printed quick user guide, Installation template, Mounting screws and plugs |
| Product Dimensions (H × W × L) mm |
100 × 100 × 100 |
| Packaging Dimensions (H × W × L) mm |
120 × 130 × 130 |
| Weight (Net) kg |
0.50 |
| Weight (Gross) kg |
0.90 |
| Warranty |
3 Year Warranty |
More Info
IVSEC Security Camera: 12MP Turret fixed, 3.6mm, 15FPS, POE, IP66, 30M IR, MIC, IVS - NC340XB
Crystal Clear Clarity
High resolution ensures every detail is captured with precision, for the ultimate surveillance experience.
Capture the Moment
Incredible speed, providing you with smooth and seamless footage. Never miss a moment.
Cater to your surveillance needs
Device configuration tool enables seamless maintenance and allows searching the network for IVSEC devices.
Monitor & Update Remotely
View live camera footage, receive alerts on-the-go, schedule alarms and more with the iVSEC App.
Full Vivid Colour
Advanced features with vibrant colour and high-quality imaging at night.
Value AI
Complete protection with accurate and targeted alerts to potential threats, reducing false alarms.
Professional AI
Now capable of processing advanced AI features, thanks to the inclusion of a specifically designed AI chipset.
Made to Withstand the Elements
With a metal casing, IP66 provides weatherproof monitoring and incredible durability.
Video Management Software
Aggregate NVR/IP cameras easily. Pool viewable camera channels and feeds at numerous locations.
