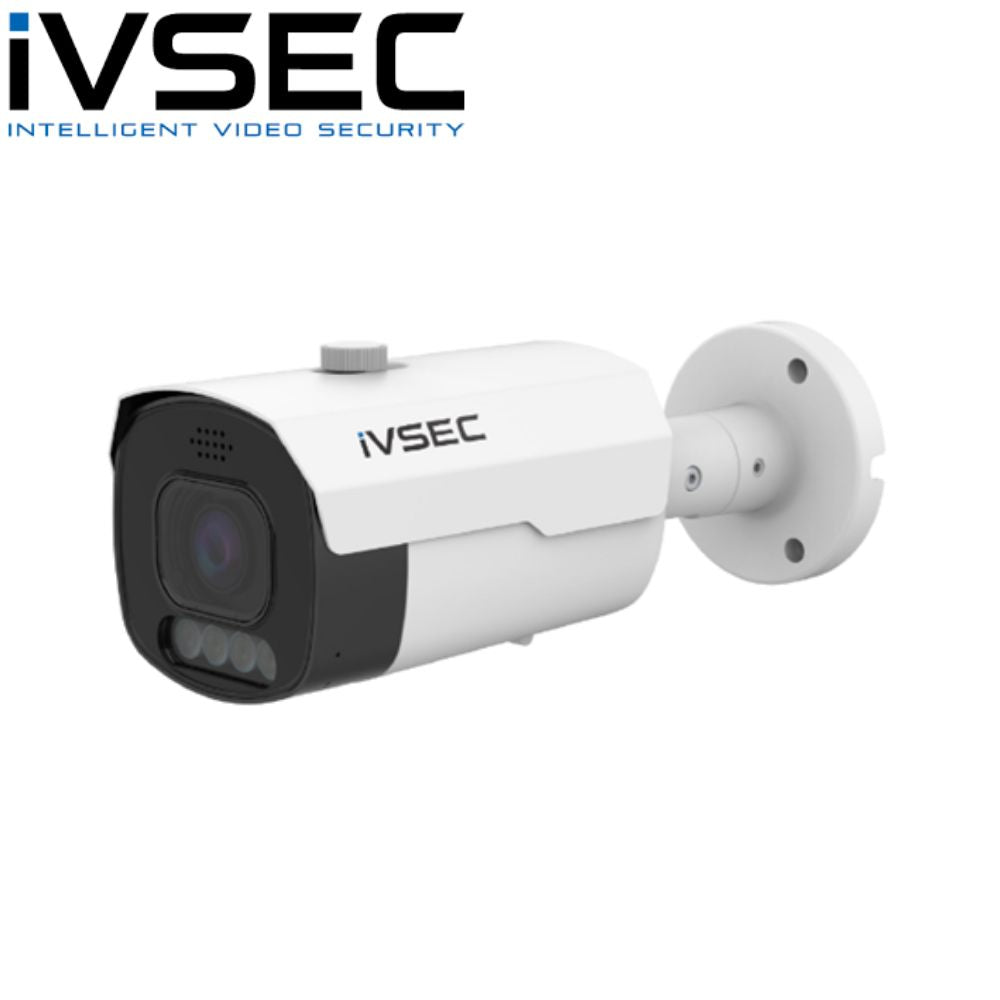

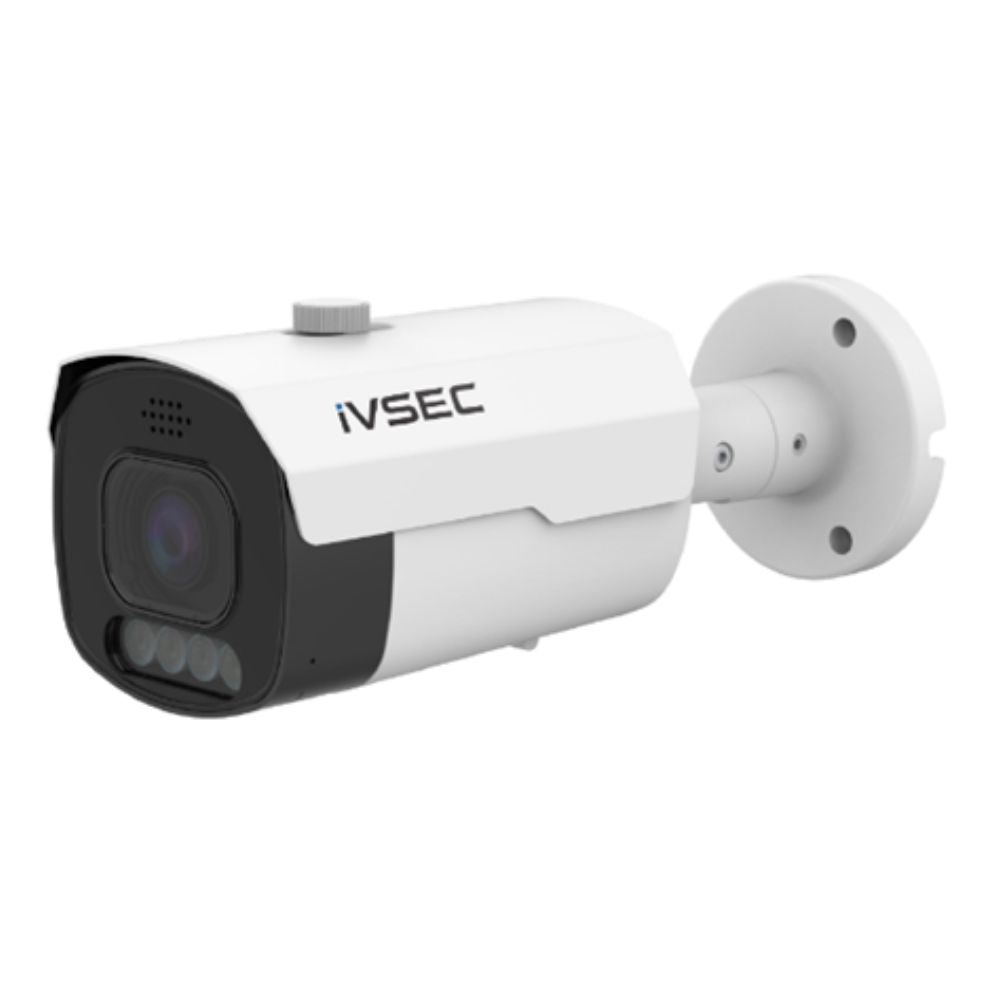

The IVSEC NC317ADX is a 5MP motorised bullet camera with advanced deterrent features including red/blue strobing lights and a siren. Users can speak directly through the mobile app or trigger the siren remotely. It supports full colour at night and features a robust metal housing ideal for outdoor installation. Powered by advanced AI, it offers accurate human and vehicle detection, reducing false notifications and improving security performance.
Features:
-
5MP Resolution – 2880 × 1620 delivers sharp and detailed images.
-
2.8–12mm Motorised Lens – Adjust viewing angle remotely for flexible coverage.
-
Advanced Deterrence – Red/blue strobe lights and siren for active threat prevention.
-
Full Colour or IR Night Vision – White, red, blue, and IR LEDs ensure visibility up to 30m.
-
AI Detection – Detects faces, humans, vehicles, and unusual sounds.
-
Two-Way Audio – Built-in mic and speaker for direct communication up to 8m.
-
Weatherproof IP66 – Durable metal casing ensures reliable outdoor performance.
-
Power over Ethernet (PoE) – One cable for both power and data.
-
Edge Recording – Supports microSD/SDHC card for local backup storage.
Downloads
100% Australian Owned | NDAA Compliant
Secure. Reliable. Australian.
IVSEC is an Australian brand offering high-quality video surveillance equipment at affordable prices. The IVSEC range of IP cameras is characterised by their ease of installation, intuitive settings, quality of finish, and Australian support.
Tech Specs
IVSEC Security Camera: 5MP, 2.8–12mm Motorised Lens, Advanced Deterrence, Two-Way Audio, IP66 – NC317ADX
| Camera Type |
Bullet |
| Image Sensor |
1/2.7″ Progressive CMOS |
| Maximum Video Resolution (Megapixels) |
5 |
| Maximum Video Resolution |
2880 × 1620 |
| Lens |
2.8–12mm (H.FOV: 113°–35°) |
| Lens Type |
Motorised Zoom |
| Maximum Night IR Distance (M) |
30 |
| Video Compression |
H.265+, H.265, H.264+, H.264, MJPEG |
| ONVIF |
Profile S/G/T (Firmware 21.12 or later), HTTP API |
| IP Rating |
IP66 |
| Operating Environment |
-35°C to 60°C, Humidity: 20%–95% RH |
| Dimensions (Ø × H) |
151 × 113 mm |
| Weight (Net) |
0.9 kg |
| Accessories |
IV2422X, IV2477X, IV2433X, IV2490X |
| Power Supply |
PoE IEEE 802.3af, DC12V |
| Power Consumption |
<10.5W |
| Connectors |
RJ-45, DC Power Input, Reset Button |
| Outdoor Use |
Yes |
| Vandal Resistant |
Yes |
| Frame Rate at Resolution |
25 fps |
| Day/Night Mode |
Schedule (Time-Based), Full Colour (White LEDs) or Day/Night (IR LEDs) |
| LED Types |
IR, Warm White, Red, and Blue |
| Image Enhancement |
SMART IR, Flip, Brightness, Contrast, Saturation, Sharpness, Hue, Mirror, Corridor Mode, Back Light, White Balance, Shutter, Exposure, Defog, 3D DNR |
| Edge Recording |
MicroSD/SDHC Card |
| Multiple Streams |
3 Streams |
| Audio Streaming |
Two-way audio (microphone up to 8m, speaker included) |
| Protocols |
TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SNMP, P2P (QR code) |
| Intelligent Video (IVS) |
Face Detection, Human & Vehicle Detection, Perimeter Intrusion Detection, Line Crossing, Cross Counting, Stationary Object Detection, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection, Rare Sound Detection |
| Cloud Option |
Dropbox |
| Software |
Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile App (QR code) |
| Power Over Ethernet |
Yes |
| Ethernet |
10/100 Base-T |
| In The Box |
Free Software (ivsecurity.com.au/support/software), Printed Quick User Guide, Installation Template, Mounting Screws and Plugs |
| Warranty |
3-Year Warranty |
More Info
IVSEC Security Camera: 5MP, 2.8–12mm Motorised Lens, Advanced Deterrence, Two-Way Audio, IP66 – NC317ADX
Crystal Clear Clarity
High resolution ensures every detail is captured with precision, for the ultimate surveillance experience.
Capture the Moment
Incredible speed, providing you with smooth and seamless footage. Never miss a moment.
Cater to your surveillance needs
Device configuration tool enables seamless maintenance and allows searching the network for IVSEC devices.
Monitor & Update Remotely
View live camera footage, receive alerts on-the-go, schedule alarms and more with the iVSEC App.
Full Vivid Colour
Advanced features with vibrant colour and high-quality imaging at night.
Deter, Detect, and Defend
In built protection Siren, Flashing Lights, and Scheduling Assistant for Enhanced Security. Advanced Deterrent.
Value AI
Complete protection with accurate and targeted alerts to potential threats, reducing false alarms.
Professional AI
Now capable of processing advanced AI features, thanks to the inclusion of a specifically designed AI chipset.
Two-Way Audio
Allows for remote communication between the camera and a connected device.
Sensor & Schedule Light
Motion triggered smart night vision provides colour even in dark conditions.
Made to Withstand the Elements
With a metal casing, IP66 provides weatherproof monitoring and incredible durability.
Video Management Software
Aggregate NVR/IP cameras easily. Pool viewable camera channels and feeds at numerous locations.
