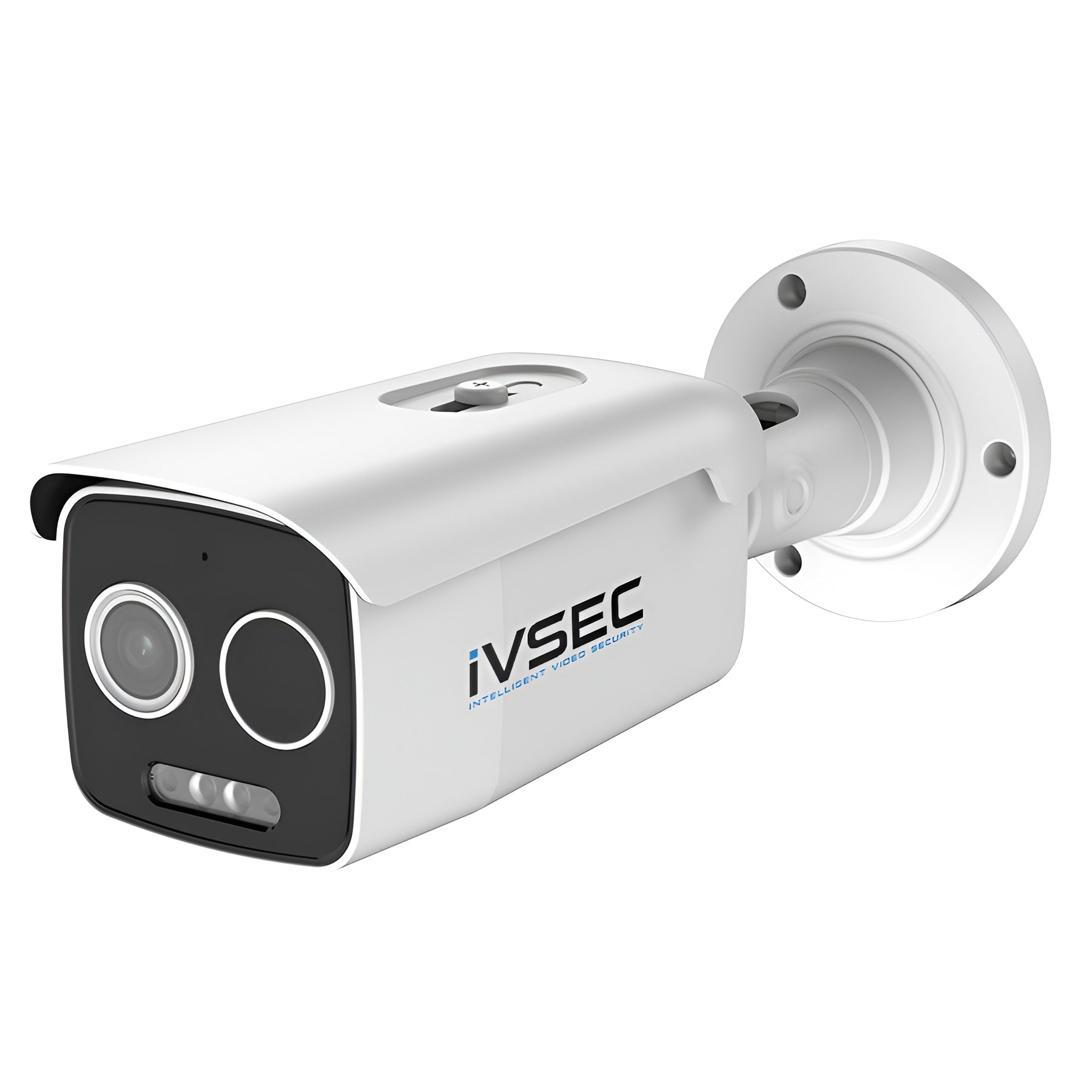

The IVSEC NC630ADX is a state-of-the-art bi-spectrum thermal IP camera that combines colour and thermal imaging into one unit for unparalleled situational awareness. Featuring a 5MP colour sensor and 1MP thermal sensor, it captures full colour by day and thermal readings by night. With a fixed 3.2 mm lens, 100 m IR range, and advanced AI analytics including face detection, licence plate reading, intrusion, and temperature measurement, the NC630ADX is built for high-end monitoring in diverse environments.
Features:
-
Dual Imaging: Colour + Thermal – 5MP (2592 × 1944) colour + 1MP (1280 × 720) thermal sensor
-
Fixed 3.2 mm Lens – Wide 81° (colour) / 56° (thermal)
-
Thermal Sensitivity & Range – ≤ 40 mK (F1.0, 25Hz) with spectral range 8–14 µm
-
Long IR Illumination – Up to 30 m night IR support
-
AI Analytics – Face & vehicle detection, perimeter intrusion, line crossing, heat map, licence plate reading, fire detection, temperature measurement
-
Edge Recording – microSD / SDHC card support
-
Weather & Vandal Proof – IP67 rated and durable design
-
Power over Ethernet (PoE+) – Single cable for data and power (IEEE 802.3at)
-
Multiple Streams – 3 colour streams + 2 thermal streams
Downloads
100% Australian Owned | NDAA Compliant
Secure. Reliable. Australian.
IVSEC is an Australian brand offering high-quality video surveillance equipment at affordable prices. The IVSEC range of IP cameras is characterised by their ease of installation, intuitive settings, quality of finish, and Australian support.
Tech Specs
IVSEC Security Camera: 5MP Bullet Colour + 1MP Thermal, Fixed 3.2 mm, IP67 – NC630ADX
| Camera Type |
Thermal / Bi-spectrum |
| Image Sensor (Colour) |
5MP Progressive CMOS |
| Image Sensor (Thermal) |
1MP CMOS |
| Maximum Video Resolution (Colour) |
2592 × 1944 |
| Maximum Video Resolution (Thermal) |
1280 × 720 |
| Frames Per Second (FPS) |
25 |
| Lens |
3.2 mm (Colour: 81° / Thermal: 56°) |
| Lens Type |
Fixed |
| Pixel Pitch (Thermal) |
12 µm |
| Spectral Range (Thermal) |
8–14 µm |
| Thermal Sensitivity |
≤ 40 mK @ 25°C F1.0, 25Hz |
| Thermal Reflective Temperature Range |
–20 °C to 150 °C |
| Colour Palettes (Thermal) |
Yes |
| Maximum Night IR Distance (M) |
30 |
| LEDs |
Red & Blue, White |
| Video Compression |
H.265+, H.265, H.264+, H.264, MJPEG |
| ONVIF depends on firmware version |
ONVIF (Profile S/G/T), HTTP API |
| Accessories |
IV2422X, IV2433X, IV2444X, IV2447X, IV2455X |
| Outdoor Use |
Yes |
| IP Rating |
IP67 |
| Vandal Resistant |
Yes |
| Day/Night Mode |
Auto |
| Image Enhancement |
Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue, Mirror, Angle Flip, Back Light, White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction |
| Intelligent Video (IVS) |
Face Detection, Human & Vehicle Detection, Perimeter Intrusion, Line Crossing, Cross Counting, Heat Map, Crowd Density, Queue Length, Licence Plate Detection, Rare Sound Detection, Sound Detection, Video Tampering, Region Enter/Exit, Fire Detection, Temperature Measurement |
| Edge Recording |
microSD / SDHC Card |
| Multiple Streams |
3 Colour streams / 2 Thermal streams |
| Software |
Device Search/Config Tool, CMS/VMS, Mobile app (QR code) |
| Protocols |
TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, P2P (QR code) |
| Language |
English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russian, Hebrew, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish |
| Cloud Option (Camera Only) |
Dropbox |
| Audio Streaming |
No |
| Ethernet |
Ethernet (10/100 Base-T) |
| Power Over Ethernet |
Yes (IEEE 802.3at) |
| Power Supply |
PoE+, DC12V |
| Power Consumption |
<14W |
| Connectors |
RJ-45, DC Power Input, Audio In, Audio Out, Alarm In/Out ×1, Reset Button, SD Card Slot |
| Operating Environment |
–30°C to 60°C (–22°F to 149°F), Humidity ≤90% RH |
| In The Box |
Free software (FTP), Printed quick user guide, Installation template, Mounting screws & plugs |
| Product Dimensions (H × W × L) mm |
301 × 108 × 108 |
| Packaging Dimensions (H × W × L) mm |
330 × 150 × 150 |
| Weight (Net) |
0.80 kg |
| Weight (Gross) |
0.50 kg |
| Warranty |
3 Year Warranty |
More Info
IVSEC Security Camera: 5MP Bullet Colour + 1MP Thermal, Fixed 3.2 mm, IP67 – NC630ADX
Crystal Clear Clarity
High resolution ensures every detail is captured with precision, for the ultimate surveillance experience.
Capture the Moment
Incredible speed, providing you with smooth and seamless footage. Never miss a moment.
Cater to your surveillance needs
Device configuration tool enables seamless maintenance and allows searching the network for IVSEC devices.
Monitor & Update Remotely
View live camera footage, receive alerts on-the-go, schedule alarms and more with the iVSEC App.
Full Vivid Colour
Advanced Features with Vibrant Color and High-Quality Imaging at Night.
Deter, Detect, and Defend
In built protection Siren, Flashing Lights, and Scheduling Assistant for Enhanced Security. Advanced Deterrent.
Value AI
Complete protection with accurate and targeted alerts to potential threats & reducing false alarms.
Made to Withstand the Elements
With a metal casing, IP66 provides weatherproof monitoring & incredible durability.
Video Management Software
Aggregate NVR/IP cameras easily. Pool viewable camera channels & feeds at numerous locations.
