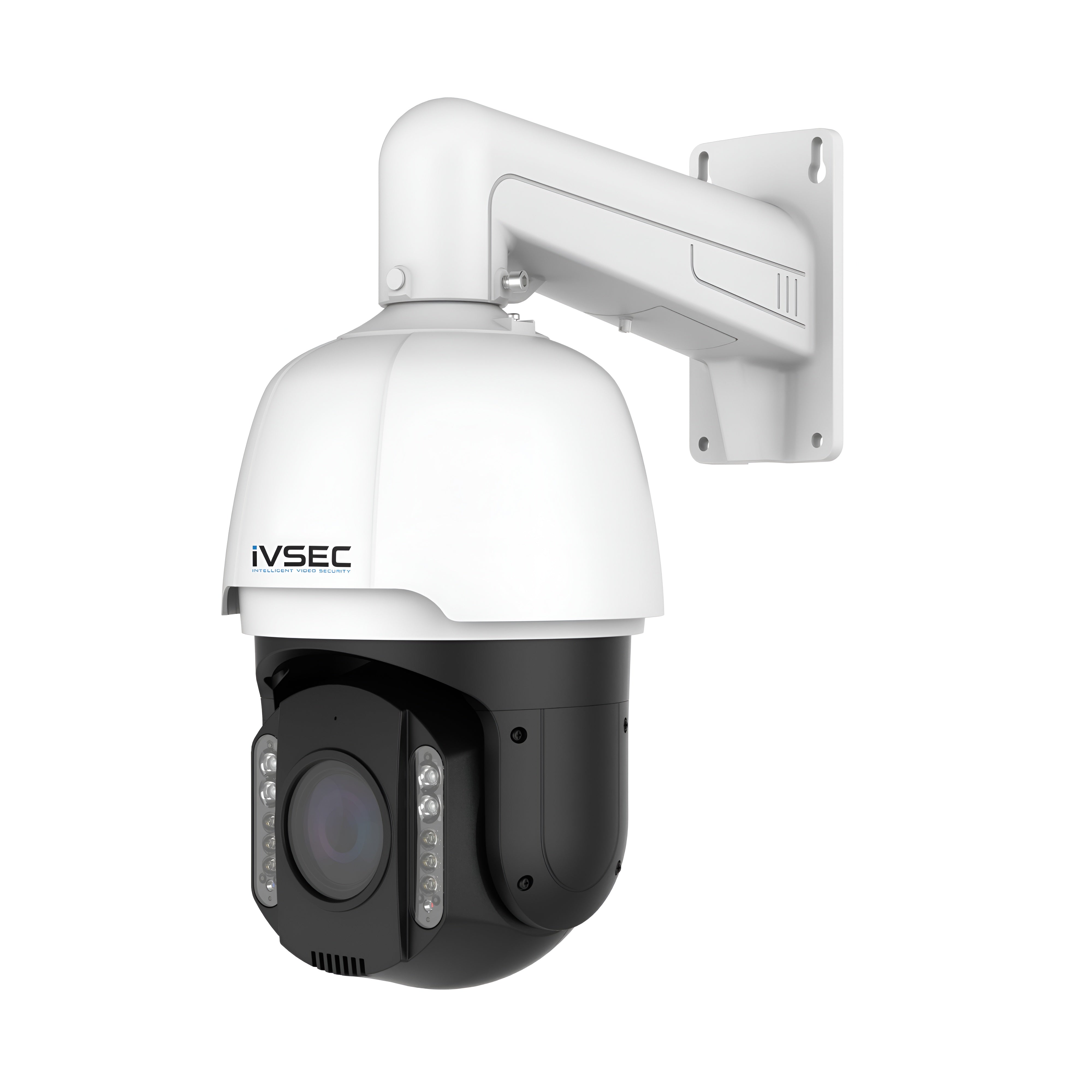

The IVSEC NC693ADX is a powerful 8MP PTZ surveillance camera designed for large-scale monitoring in challenging environments. Equipped with a 37× optical zoom lens and advanced low-light performance, it captures high-quality video across wide areas. Its Smart IR up to 200m ensures clear visibility in complete darkness, while Active Deterrent red & blue lights with dual white LEDs enhance security.
Features:
-
8MP Ultra HD Resolution – 3840 × 2160 for crystal-clear detail.
-
37× Optical Zoom Lens – 5.5mm to 202mm for distant object capture.
-
200m Smart IR Night Vision – Clear imaging even in total darkness.
-
Active Deterrent Lights – Red & blue strobe LEDs plus dual white lights.
-
Advanced AI Detection – Human & vehicle detection, face recognition, and perimeter protection.
-
Starlight Performance – Enhanced low-light sensitivity for vivid clarity.
-
Auto Tracking – Intelligent PTZ control following moving targets automatically.
-
Durable Design – IP67 weatherproof and IK10 vandal-resistant housing.
-
Power over Ethernet (PoE+) – Simplified one-cable installation.
Downloads
100% Australian Owned | NDAA Compliant
Secure. Reliable. Australian.
IVSEC is an Australian brand offering high-quality video surveillance equipment at affordable prices. The IVSEC range of IP cameras is characterised by their ease of installation, intuitive settings, quality of finish, and Australian support.
Tech Specs
IVSEC Security Camera: 8MP, 37× Optical Zoom, PTZ, Active Deterrence, IP67, IK10 – NC693ADX
| Camera Type |
PTZ |
| Image Sensor |
1/1.8" Progressive CMOS |
| Maximum Video Resolution (Megapixels) |
8 |
| Maximum Video Resolution |
3840 × 2160 |
| Frames Per Second (FPS) |
25 |
| Lens |
5.5mm – 202mm (H.FOV: 52° to 1.5°) |
| Lens Type |
Motorised Pan, Tilt and Zoom |
| Maximum Night IR Distance (M) |
200 |
| LED |
Red & Blue, Dual White |
| Video Compression |
H.265+, H.265, H.264+, H.264, MJPEG |
| ONVIF |
Profile S/G/T/M (firmware 21.12 or later), HTTP API |
| Accessories |
IV2488X |
| Outdoor Use |
Yes |
| IP Rating |
IP67 |
| Vandal Resistant |
Yes (IK10) |
| Day/Night Mode |
Auto |
| Image Enhancement |
Flip Mode, Brightness, Contrast, Saturation, Sharpness, Hue, Mirror, Angle Flip, Backlight, White Balance, Shutter, Exposure, Defog, 3D Noise Reduction |
| Intelligent Video (IVS) |
Face Recognition, Human & Vehicle Detection, Perimeter Intrusion, Line Crossing, Stationary Object Detection, Counting, Heat Map, Region Entry/Exit, License Plate Recognition |
| Edge Recording |
Micro SD/SDHC Card |
| Multiple Streams |
3 Streams |
| Software |
Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile App (QR Code) |
| Protocols |
IPv4/IPv6, TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, SMTP, UPnP, DNS, DDNS, NTP, PPPOE, RTP/RTSP, SNMP, SMTP, P2P (QR Code) |
| Language |
English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russian, Hebrew, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish |
| Cloud Option |
Dropbox |
| Audio Streaming |
Built-in microphone & speaker, with external mic/speaker input |
| Ethernet |
10/100 Base-T Ethernet |
| Power Over Ethernet |
Yes (IEEE 802.3af) |
| Power Supply |
PoE (802.3af), DC36V, or AC24V |
| Power Consumption |
<45W |
| Connectors |
RJ-45, DC Power Input, Audio In/Out, Alarm In/Out |
| Operating Environment |
-30°C to 60°C, ≤90% RH |
| In The Box |
Free software (ivsecurity.com.au/support/software), Quick user guide, Mounting template, Screws and plugs |
| Product Dimensions (H × W × L) mm |
338 × 207 × 207 |
| Packaging Dimensions (H × W × L) mm |
510 × 310 × 310 |
| Weight (Net) kg |
5.27 |
| Weight (Gross) kg |
6.00 |
| Warranty |
3 Year Warranty |
More Info
IVSEC Security Camera: 8MP, 37× Optical Zoom, PTZ, Active Deterrence, IP67, IK10 – NC693ADX
Crystal Clear Clarity
High resolution ensures every detail is captured with precision, for the ultimate surveillance experience.
Capture the Moment
Incredible speed, providing you with smooth and seamless footage. Never miss a moment.
Cater to your surveillance needs
Device configuration tool enables seamless maintenance and allows searching the network for IVSEC devices.
Monitor & Update Remotely
View live camera footage, receive alerts on-the-go, schedule alarms and more with the iVSEC App.
Full Vivid Colour
Advanced features with vibrant colour and high-quality imaging at night.
Deter, Detect, and Defend
In built protection Siren, Flashing Lights, and Scheduling Assistant for Enhanced Security. Advanced Deterrent.
Value AI
Complete protection with accurate and targeted alerts to potential threats & reducing false alarms.
Two-Way Audio
Allows for remote communication between the camera and a connected device.
Sensor & Schedule Light
Motion triggered smart night vision provides colour even in dark conditions.
Made to Withstand the Elements
With a metal casing, IP66 provides weatherproof monitoring & incredible durability.
Professional AI
Now capable of processing advanced AI features, thanks to the inclusion of a specifically designed AI chipset.
Video Management Software
Aggregate NVR/IP cameras easily. Pool viewable camera channels & feeds at numerous locations.
