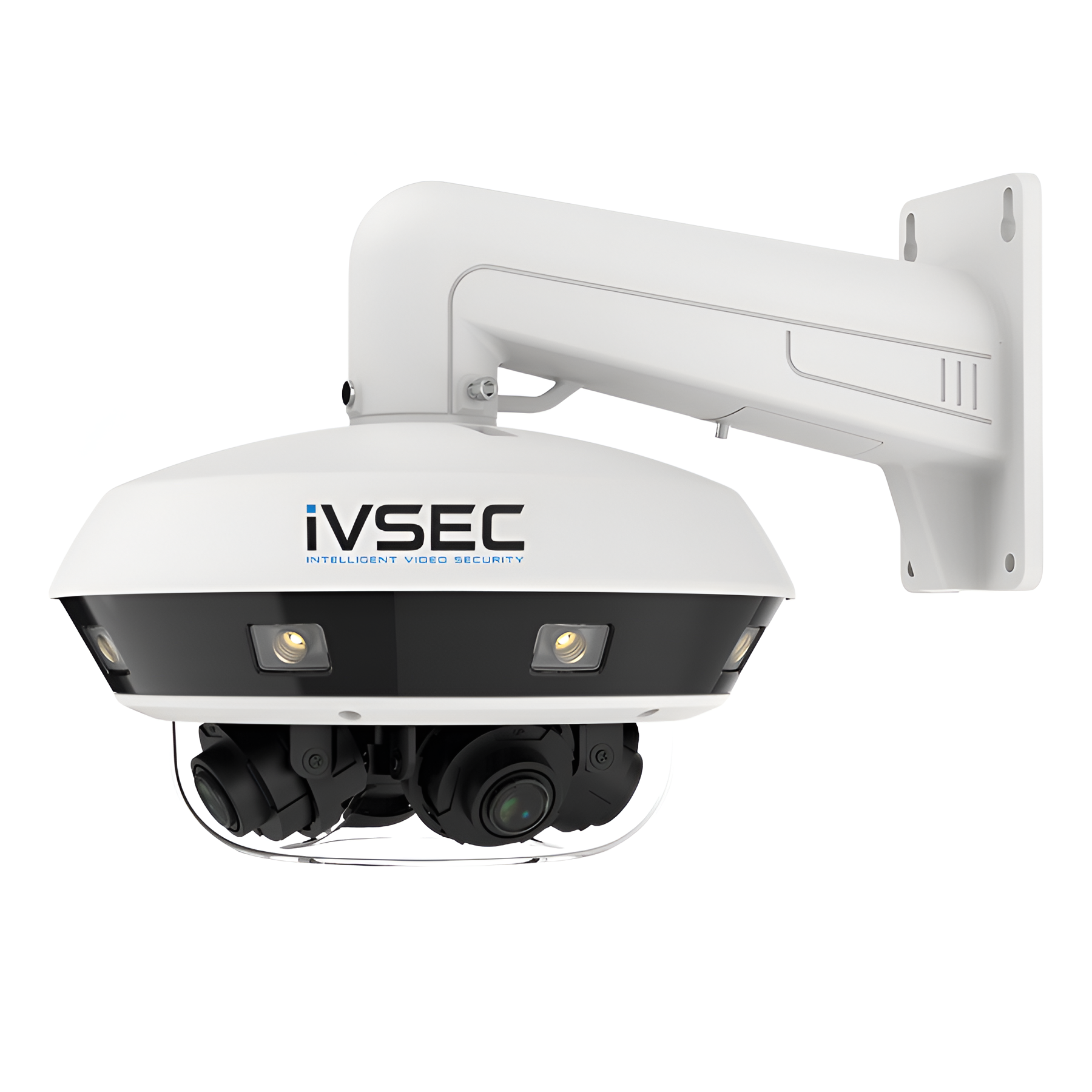

The IVSEC NC540ADX is an advanced 360° multi-lens security camera engineered for large-area surveillance. Featuring four adjustable 8MP lenses, it captures ultra-high-definition detail across every angle, ensuring no blind spots. With starlight imaging, built-in dual-source IR and warm LED lighting, and comprehensive AI detection capabilities.
Features:
-
360° Panoramic Coverage – Four adjustable 8MP lenses deliver seamless all-around surveillance.
-
8MP × 4 Resolution – Captures up to (2880 × 1620) × 4 clarity with true detail in every direction.
-
Motorised Zoom – 2.8mm–12mm focal length (H.FOV: 35°–112°) for flexible viewing.
-
Starlight Technology – Superior low-light performance with IR and warm white dual illumination.
-
Advanced AI Detection – Includes face recognition, pedestrian & vehicle detection, intrusion, region monitoring, queue length, heat map, and license plate recognition.
-
Weatherproof & Vandal Resistant – Built tough with IP67 and IK10 ratings for outdoor durability.
-
Power over Ethernet (PoE) – IEEE 802.3af for easy installation using a single cable.
-
Edge Recording – Supports microSD/SDHC for local backup and continuous recording.
-
Cloud Backup Option – Compatible with Dropbox for remote access.
Downloads
100% Australian Owned | NDAA Compliant
Secure. Reliable. Australian.
IVSEC is an Australian brand offering high-quality video surveillance equipment at affordable prices. The IVSEC range of IP cameras is characterised by their ease of installation, intuitive settings, quality of finish, and Australian support.
Tech Specs
IVSEC Security Camera: 8MP × 4, 2.8–12mm, 360° Coverage, AI Analytics, IP67/IK10 - NC540ADX
| Camera Type |
Multi-Lens 360° Security Camera |
| Image Sensor |
1/2.7″ Progressive CMOS × 4 |
| Maximum Video Resolution (Megapixels) |
8 × 4 |
| Maximum Video Resolution |
(2880 × 1620) × 4 |
| Frames Per Second (FPS) |
30 |
| Lens |
2.8–12mm (H.FOV: 35°–112°) |
| Lens Type |
Motorised Zoom |
| Maximum Night IR Distance (M) |
30 |
| LED |
IR, Warm White |
| Video Compression |
H.265+, H.265, H.264+, H.264, MJPEG |
| ONVIF depends on firmware version |
ONVIF (Profile S/G/T/M) 21.12 or greater, HTTP API |
| IP Rating |
IP67 |
| Vandal Resistant |
Yes (IK10) |
| Outdoor Use |
Yes |
| Day/Night Mode |
Auto |
| Image Enhancement |
Rotate, Saturation, Brightness, Contrast, Sharpness, White Balance, BLC, 3D DNR, HLC |
| Intelligent Video (IVS) |
Motion Detection, Face Recognition, Pedestrian & Vehicle Detection, Line Crossing, Object Detection, Cross Counting, Heat Map, Crowd Density, Queue Length, License Plate Recognition, Intrusion, Region Entrance/Exit |
| Edge Recording microSD/SDHC Card |
Micro SD/SDHC Card |
| Multiple Streams (encode format) |
3 Streams |
| Software |
Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile App (QR code) |
| Protocols |
IPv4/IPv6, TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, SMTP, UPnP, DNS, DDNS, NTP, PPPOE, RTP/RTSP, SNMP, P2P (QR Code) |
| Language |
English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russian, Hebrew, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish |
| Cloud option (camera only) |
Dropbox |
| Audio Streaming |
Yes – Input connector for external mic |
| Ethernet |
Ethernet (10/100/1000 Base-T) |
| Power Over Ethernet |
Yes (IEEE 802.3af) |
| Power Supply |
Power over Ethernet IEEE 802.3af, DC12V, AC24V |
| Power Consumption |
< 39W |
| Connectors |
RJ-45, DC Power Input, Analog Video Output, Audio In, Audio Out, Alarm In/Out ×4 |
| Operating Environment |
-30ºC to 55ºC (-22ºF to 131ºF), Humidity ≤95% RH |
| In The Box |
Free software (FTP), Printed quick user guide, Installation template, Mounting screws and plugs |
| Product Dimensions (H × W × L) mm |
195 × 300 × 300 |
| Packaging Dimensions (H × W × L) mm |
500 × 395 × 385 |
| Weight (Net) kg |
4.60 |
| Weight (Gross) kg |
5.00 |
| Warranty |
3 Year Warranty |
More Info
IVSEC Security Camera: 8MP × 4, 2.8–12mm, 360° Coverage, AI Analytics, IP67/IK10 - NC540ADX
Crystal Clear Clarity
High resolution ensures every detail is captured with precision, for the ultimate surveillance experience.
Capture the Moment
Incredible speed, providing you with smooth and seamless footage. Never miss a moment.
Cater to your surveillance needs
Device configuration tool enables seamless maintenance and allows searching the network for IVSEC devices.
Monitor & Update Remotely
View live camera footage, receive alerts on-the-go, schedule alarms and more with the iVSEC App.
Full Vivid Colour
Advanced features with vibrant colour and high-quality imaging at night.
Value AI
Complete protection with accurate and targeted alerts to potential threats, reducing false alarms.
Professional AI
Now capable of processing advanced AI features, thanks to the inclusion of a specifically designed AI chipset.
Made to Withstand the Elements
With a metal casing, IP67 provides weatherproof monitoring and incredible durability.
Sensor & Schedule Light
Motion triggered smart night vision provides colour even in dark conditions.
Deter, Detect, and Defend
In built protection Siren, Flashing Lights, and Scheduling Assistant for Enhanced Security. Advanced Deterrent.
