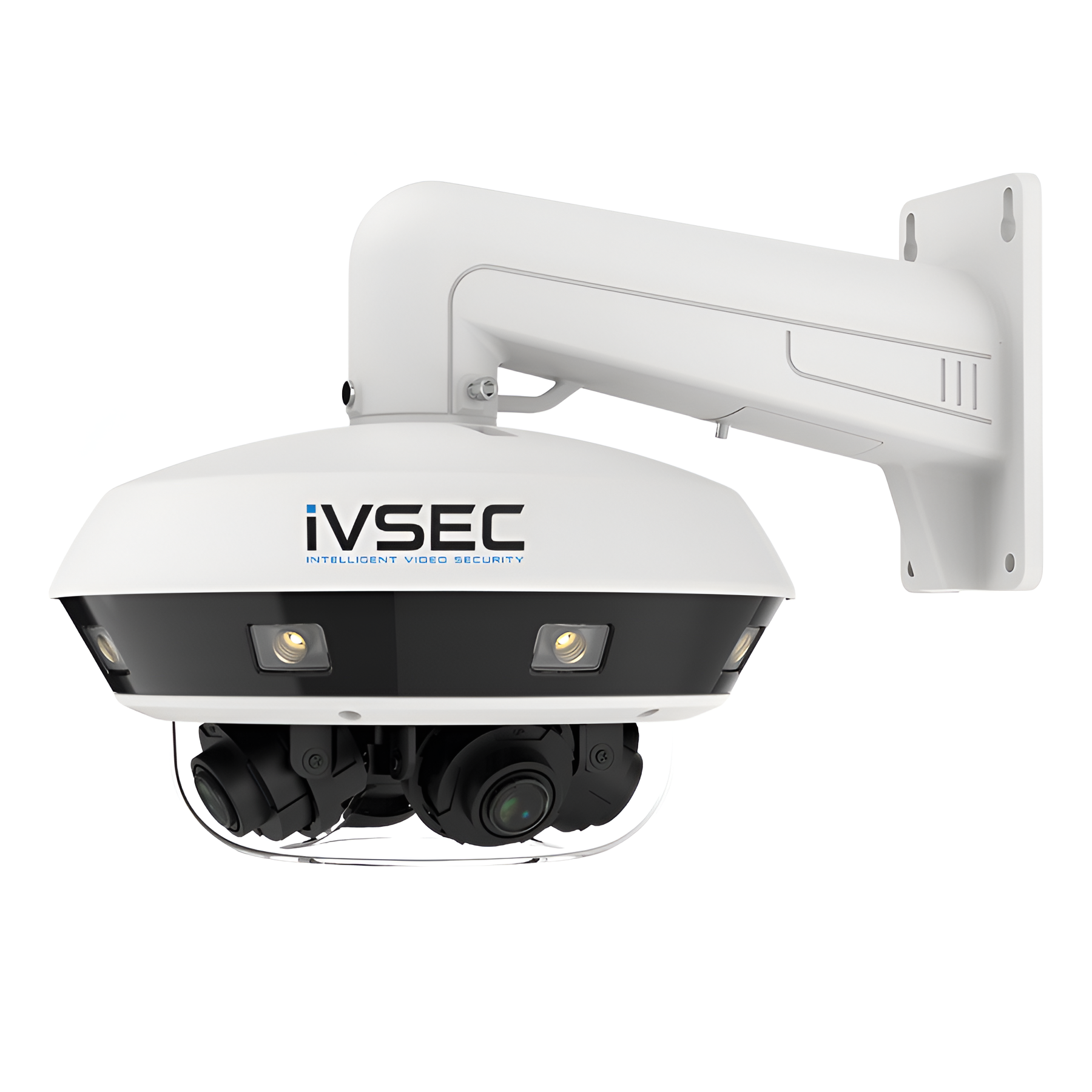

The IVSEC NC542ADX Security Camera delivers exceptional 360° surveillance performance with its innovative four-lens design, offering complete area coverage and crystal-clear 8MP video per channel. Each lens can be individually adjusted for flexible viewing, ensuring no blind spots. This advanced model combines AI-driven detection, intelligent video analytics, and motorised zoom lenses for powerful performance in demanding environments, both indoor and outdoor.
Features:
-
8MP × 4 Resolution – Delivers ultra-high clarity across all channels for a complete 360° view.
-
Four Adjustable Lenses – Capture every angle simultaneously using four independent CMOS sensors.
-
Motorised Zoom Lens (2.8mm–12mm) – Enables flexible field of view adjustments (H.FOV: 48°–112°).
-
Smart Dual Light – Integrated IR and white LEDs for reliable night surveillance up to 35m.
-
Advanced AI Analytics – Detects faces, pedestrians, vehicles, intrusions, queues, and more with high accuracy.
-
Edge Recording – Supports microSD/SDHC cards for local recording and backup.
-
Weatherproof & Vandal Resistant – IP67 and IK10 rated for tough outdoor environments.
-
Power over Ethernet (PoE+) – Simplifies installation using one cable for power and data.
-
Wide Compatibility – Supports ONVIF Profiles S/G/T and multiple protocols.
Downloads
100% Australian Owned | NDAA Compliant
Secure. Reliable. Australian.
IVSEC is an Australian brand offering high-quality video surveillance equipment at affordable prices. The IVSEC range of IP cameras is characterised by their ease of installation, intuitive settings, quality of finish, and Australian support.
Tech Specs
IVSEC Security Camera: 8MP × 4, 2.8–12mm Motorised Zoom, 360°, IP67, IK10 – NC542ADX
| Camera Type |
360° Multi-Lens |
| Image Sensor |
1/1.8″ Progressive CMOS × 4 |
| Maximum Video Resolution (Megapixels) |
8 × 4 |
| Maximum Video Resolution |
3840 × 2160 |
| Frames Per Second (FPS) |
25 |
| Lens |
2.8mm – 12mm (H.FOV: 48°–112°) |
| Lens Type |
Motorised Zoom |
| Maximum Night IR Distance (M) |
35 |
| LED |
IR, White |
| Video Compression |
H.265+, H.265, H.264+, H.264, MJPEG |
| ONVIF depends on firmware version |
ONVIF (Profile S/G/T), HTTP API |
| Accessories |
IV2491X (included), IV2444X, IV2488X |
| Outdoor Use |
Yes |
| IP Rating |
IP67 |
| Vandal Resistant |
Yes (IK10) |
| Day/Night Mode |
Auto |
| Image Enhancement |
Rotate, Saturation, Brightness, Contrast, Sharpness, White Balance, BLC, 3D DNR, HLC |
| Intelligent Video (IVS) |
Motion Detection, Face Recognition, Pedestrian & Vehicle Detection, Line Crossing, Object Detection, Cross Counting, Heat Map, Crowd Density, Queue Length, License Plate Recognition, Intrusion, Region Entrance, Region Exit |
| Edge Recording |
Micro SD/SDHC Card |
| Multiple Streams (encode format) |
2 Streams |
| Software |
Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile App (QR Code) |
| Protocols |
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP, PPPoE |
| Language |
English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russian, Hebrew, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish |
| Cloud Option (camera only) |
Dropbox |
| Audio Streaming |
Yes – Input connector for external microphone |
| Ethernet |
Ethernet (10/100/1000 Base-T) |
| Power Over Ethernet |
Yes |
| Power Supply |
Power over Ethernet IEEE 802.3at, DC12V, AC24V |
| Power Consumption |
<43W |
| Connectors |
RJ-45, DC Power Input, Analog Video Output, Audio In, Audio Out, Alarm In/Out ×4 |
| Operating Environment |
-30°C to 55°C (-22°F to 131°F), Humidity ≤95% RH |
| In The Box |
Free Software (FTP download), Printed Quick Guide, Installation Template, Mounting Screws and Plugs |
| Product Dimensions (H × W × L) mm |
195 × 300 × 300 |
| Packaging Dimensions (H × W × L) mm |
500 × 395 × 385 |
| Weight (Net) |
7.00 kg |
| Weight (Gross) |
9.00 kg |
| Warranty |
3 Year Warranty |
More Info
IVSEC Security Camera: 8MP × 4, 2.8–12mm Motorised Zoom, 360°, IP67, IK10 – NC542ADX
Crystal Clear Clarity
High resolution ensures every detail is captured with precision, for the ultimate surveillance experience.
Capture the Moment
Incredible speed, providing you with smooth and seamless footage. Never miss a moment.
Cater to your surveillance needs
Device configuration tool enables seamless maintenance and allows searching the network for IVSEC devices.
Monitor & Update Remotely
View live camera footage, receive alerts on-the-go, schedule alarms and more with the iVSEC App.
Full Vivid Colour
Advanced features with vibrant colour and high-quality imaging at night.
Value AI
Complete protection with accurate and targeted alerts to potential threats, reducing false alarms.
Professional AI
Now capable of processing advanced AI features, thanks to the inclusion of a specifically designed AI chipset.
Made to Withstand the Elements
With a metal casing, IP67 provides weatherproof monitoring and incredible durability.
Sensor & Schedule Light
Motion triggered smart night vision provides colour even in dark conditions.
Deter, Detect, and Defend
In built protection Siren, Flashing Lights, and Scheduling Assistant for Enhanced Security. Advanced Deterrent.
Video Management Software
Aggregate NVR/IP cameras easily. Pool viewable camera channels & feeds at numerous locations.
