Description

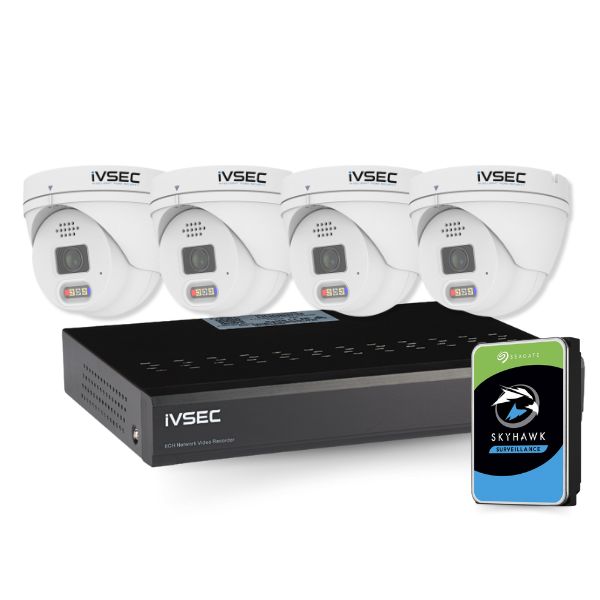

Kit Includes:
4 x IVSEC 12MP Adv. Deter Turret, 3.6mm - NC340ADX
1 x IVSEC 8-Channel 12MP NVR - NR308XC + Selected Hard DriveKit Features:
The NC340ADX, a formidable turret-style camera, integrates advanced active deterrent functions with cutting-edge surveillance technology. Its 1/2.3″ Progressive CMOS sensor captures high-res video up to 12 megapixels, ensuring crystal-clear imagery.
CRYSTAL CLEAR CLARITY
High resolution ensures every detail is captured with precision, for the ultimate surveillance experience.
CAPTURE THE MOMENT
Incredible speed, providing you with smooth and seamless footage. Never miss a moment.
CATER TO YOUR SURVEILLANCE NEEDS
Device configuration tool enables seamless maintenance and allows searching the network for IVSEC devices.
MONITOR & UPDATE REMOTELY
View live camera footage, receive alerts on-the-go, schedule alarms and more with the iVSEC App.
DETER, DETECT, AND DEFEND
In built protection Siren, Flashing Lights, and Scheduling Assistant for Enhanced Security. Advanced Deterrent.
VALUE AI
Complete protection with accurate and targeted alerts to potential threats & reducing false alarms.
PROFESSIONAL AI
Now capable of processing Advanced Al features, thanks to the inclusion of a specifically designed Al Chipset.
TWO-WAY AUDIO
Allows for remote communication between the camera and a connected device.
SENSOR & SCHEDULE LIGHT
Motion triggered smart night vision provides colour even in dark conditions.
MADE TO WITHSTAND THE ELEMENTS
With a metal casing, IP66 provides weatherproof monitoring & incredible durability.
VIDEO MANAGEMENT SOFTWARE
Aggregate NVR/IP cameras easily. Pool viewable camera channels & feeds at numerous locations.
Datasheets
IVSEC 12MP Adv. Deter Turret, 3.6mm - NC340ADX - Information | Datasheet
IVSEC 8-Channel 12MP NVR - NR308XC - Information | Datasheet
Tech Specs

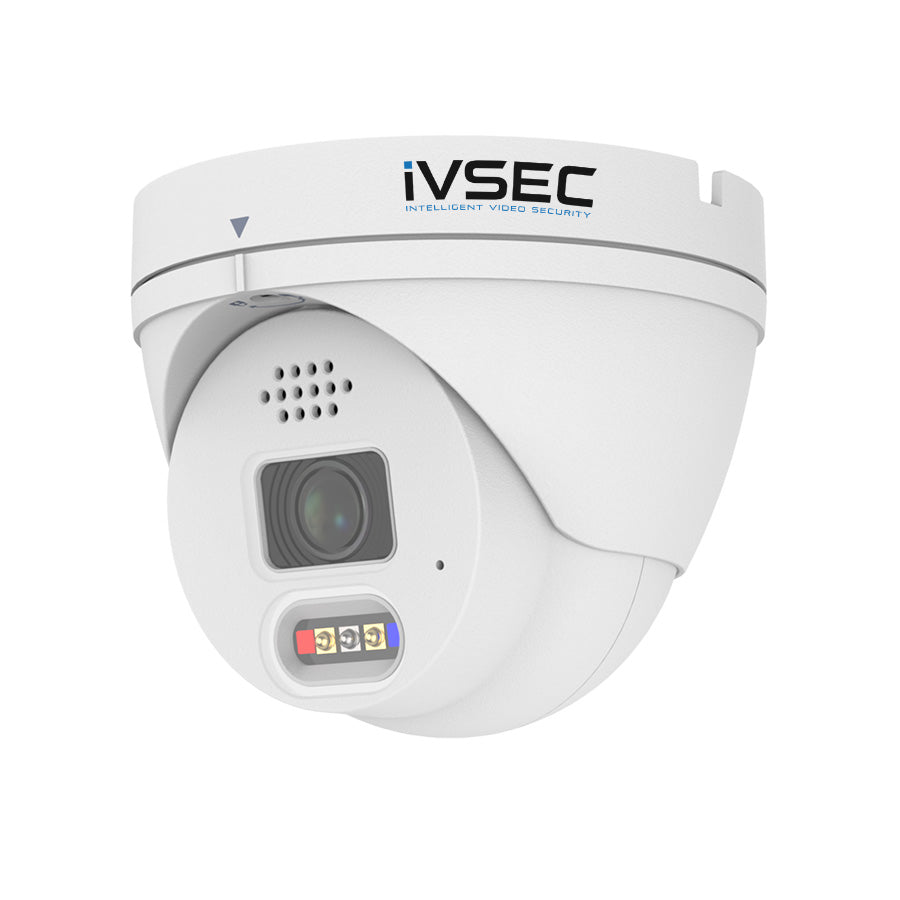

IVSEC 12MP Adv. Deter Turret, 3.6mm - NC340ADX
| Camera Type |
Turret |
| Image Sensor |
1/2.3″ Progressive CMOS |
| Maximum Video Resolution (Megapixels) |
12 |
| Maximum Video Resolution |
4096 × 3072 |
| Frames Per Second (FPS) |
15 |
| Lens |
3.6mm |
| Lens Type |
Fixed |
| Maximum Night IR Distance (M) |
30 |
| LED |
IR, Red & Blue, White |
| Video Compression |
H.265+, H.265, H.264+, H.264, MJPEG |
| ONVIF depends on firmware version |
ONVIF (Profile S/G/T) |
| Accessories |
IV2422X, IV2433X, IV2444X, IV2455X, IV2457X, IV2477X |
| Outdoor Use |
Yes |
| IP Rating |
IP67 |
| Vandal Resistant |
Yes (IK10) |
| Day/Night Mode |
Auto |
| Image Enhancement |
Smart IR, Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue, Corridor Mode, Mirror, Angle Flip, Back Light, White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction |
| Intelligent Video (IVS) |
Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Human and vehicle detection, Face Detection, Cross Counting, Crowd Density Detection, Queue Length Detection, Heatmap |
| Edge Recording microSD/SDHC Card |
Micro SD/SDHC Card |
| Multiple Streams (encode format) |
3 Streams |
| Software |
Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app (QR code) |
| Protocols |
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP, PPPoE |
| Language |
English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russia, Hebrew, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish |
| Cloud option (camera only) |
Dropbox |
| Audio Streaming |
Yes – input connector for external mic |
| Ethernet |
Ethernet (10/100/1000 Base-T) |
| Power Over Ethernet |
Yes |
| Power Supply |
Power over Ethernet IEEE 802.3at, DC12V, AC24V |
| Power Consumption |
< 14W |
| Connectors |
RJ-45, DC Power Input, Analog Video Output, Audio In, Audio Out, Alarm in or out *4. |
| Operating Environment |
-30ºC to 55ºC (-22ºF-131ºF) Humidity: ≤95% RH |
| In The Box |
Free Software available from FTP, Printed quick user guide, Installation template, Mounting screws and plugs |
| Product Dimensions (H x W x L) mm |
100 x 100 x 100 |
| Packaging Dimensions (H x W x L) mm |
120 x 130 x 130 |
| Weight (Net) kg |
0.50 |
| Weight (Gross) kg |
0.90 |
| Warranty |
3 Year Warranty |

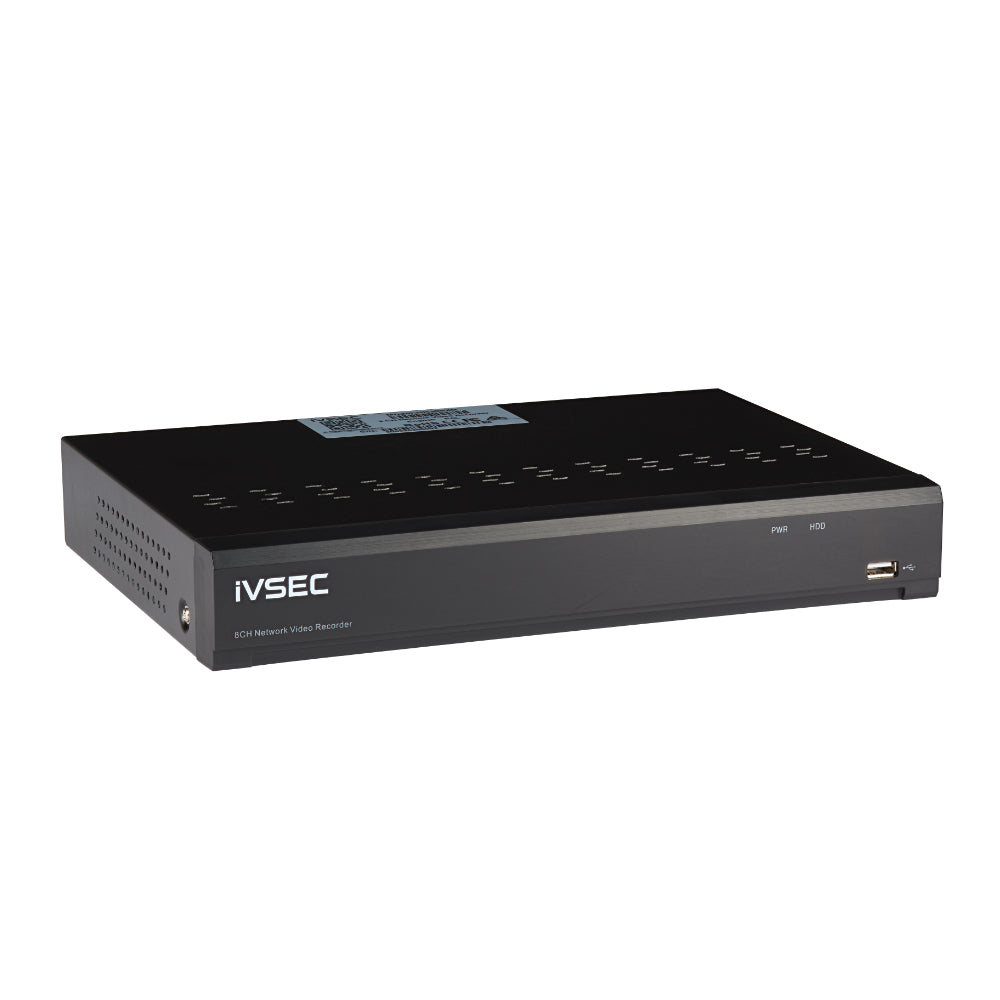

IVSEC 8-Channel 12MP NVR - NR308XC
| Maximum Channels |
8 |
| Maximum Video Resolution (Megapixels) |
12MP |
| Examples of Channels at a resolution with FPS |
128 Mbps |
| Video Compression |
H.264, H.265 |
| Video Output Resolution |
4K, HD-1080p, HD-720p, 1.3 MP, D1, VGA |
| Image Display |
1, 4, 6, 8, 9 |
| Search Method |
Continuous, Scheduling, Event Triggered ( PIR, IVS, Motion, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection, Face Detection, Cross Counting) |
| Total Storage Potential (TB) |
16 |
| HDD Bays, Size |
Bays x 1, Up to 16TB per HDD |
| Software |
Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app |
| Protocols |
TCP, HTTP, HTTPS, DHCP, DDNS, NTP, SMTP, PPPOE, RTSP, UPnP, ONVIF, P2P, QR Code |
| Language |
English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russia, Hebrew, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish |
| Audio Streaming |
Out |
| Power Over Ethernet Switch Ports |
8 up to 802.3at(30w) |
| Power Over Ethernet |
Yes |
| Power Supply |
DC48V/2A |
| Power Consumption |
8W （Without HDD） |

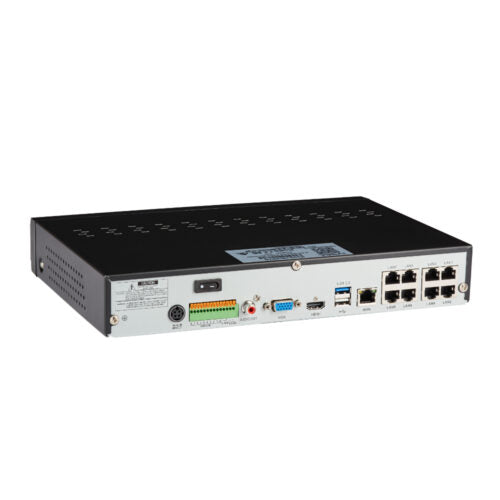

| Connectors |
HDD: 3.5″ SATA HDD Slot x 1, USB2 Female x 2, USB3 Female x 1, Gigabit Ethernet: RJ-45 Port x 1 and 8 x PoE+ ports, HDMI and VGA, Alarm ports 8 in and 1 out, Audio out, Power Jack input, On off switch |
| Operating Environment |
5ºC to 45ºC (41ºF-113ºF) Humidity: 20%-80% RH |
| In The Box |
Printed quick installation guide, Mouse, Remote control, HDD screws, Power supply. |
| Warranty |
24 months parts |
| Product Dimensions (H x W x L) mm |
53 x 300 x227 |
| Packaging Dimensions (H x W x L) mm |
100 x 430 x 270 |
| Weight (Net) kg |
1.7 |
| Weight (Gross) (kg) |
2 |
