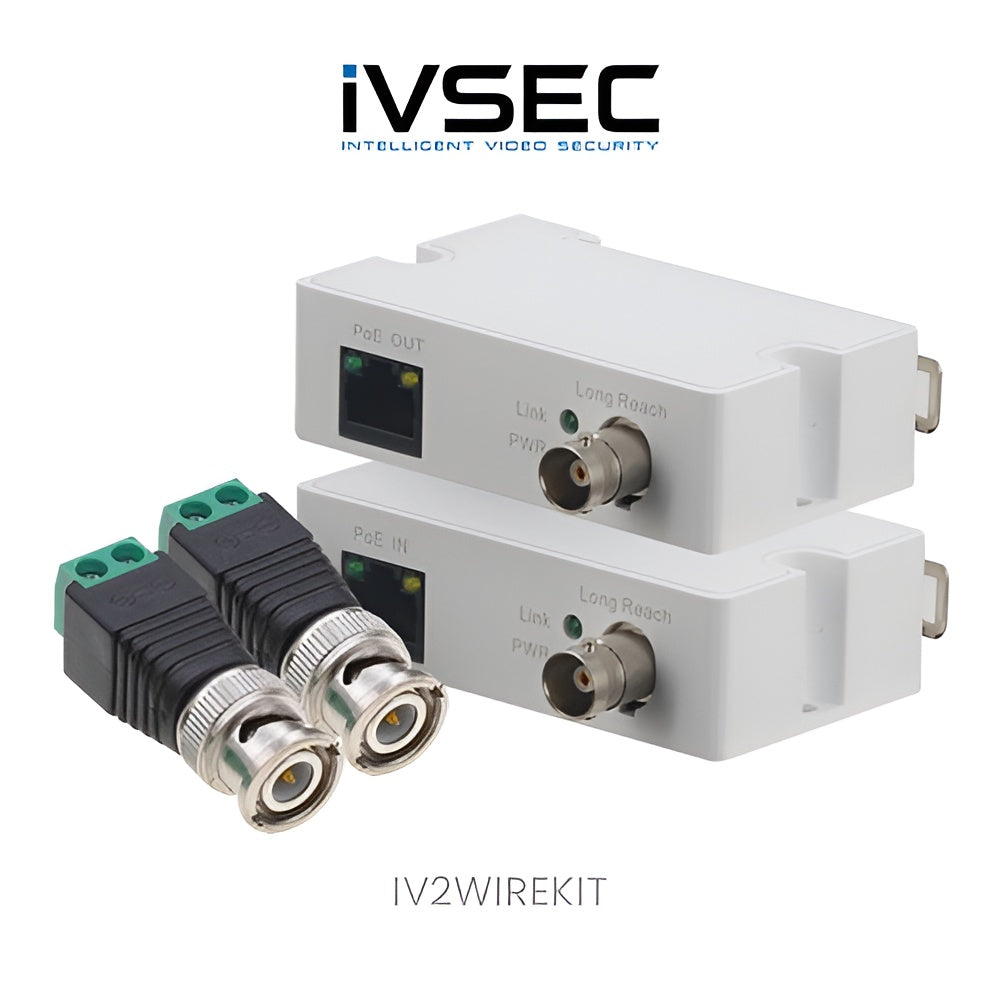

IVSEC Single-Port Long Reach Ethernet over Coax Extender - IV2WIREKIT

Description

The IVSEC Single-Port Long Reach Ethernet over Coax Extender is a versatile solution designed to extend network connectivity and power supply through existing coaxial cabling. The system includes both transmitter and receiver units, converting RJ45 to BNC connections for long-distance PoE transmission. Supporting IEEE standards and multiple data rates, it ensures reliable performance and flexibility for professional surveillance installations.

Features:

  • Dual-Unit Design – Includes both transmitter and receiver modules for complete signal extension.
  • Long-Distance Transmission – Supports up to 1000m over RG59 coaxial cable (100Mbps up to 400m, 10Mbps up to 1000m).
  • PoE Support – Compatible with IEEE802.3af and IEEE802.3at power supply standards.
  • Flexible Speed Options – Offers 100Mbps and 10Mbps transmission modes based on distance.
  • Auto-Adaptive Port – Supports MDI/MDIX self-adaptation for simplified setup.
  • Wide Compatibility – Complies with IEEE802.3, IEEE802.3u, and IEEE802.3x standards.
  • Reliable Protection – Features 4KV common mode and 2KV differential mode lightning protection.
  • Durable Design – Compact, lightweight (61g) build with high temperature and humidity tolerance.

Downloads

IVSEC Single-Port Long Reach Ethernet over Coax Extender Download Datasheet

IVSEC Logo NDAA Compliant Badge 100% Australian Owned | NDAA Compliant
Secure. Reliable. Australian.

IVSEC is an Australian brand offering high-quality video surveillance equipment at affordable prices. The IVSEC range of IP cameras and accessories is characterised by their ease of installation, intuitive configuration, durable build, and trusted Australian support.

Tech Specs

IVSEC Single-Port Long Reach Ethernet over Coax Extender

Type Transmitter / Receiver
Function Port 1 × 10/100 Mbps Base-TX, 1 × BNC
Power Consumption < 2W
Transmission Bandwidth RG59 coaxial cable: 400m @ 100Mbps, 1000m @ 10Mbps
PoE Protocol IEEE802.3af / IEEE802.3at
Network Standards IEEE802.3, IEEE802.3u, IEEE802.3x
Lightning Protection Common Mode 4KV, Differential Mode 2KV
Operating Temperature -30°C ~ 65°C
Operating Humidity 5% ~ 95%
Weight 61g
Dimensions (W × D × H) 79mm × 52mm × 23mm

Performance (RG59 Cable Example)

Distance (m) Bandwidth (Mbps) Load Capacity (W) @ 48V Load Capacity (W) @ 53V
100 100 21 25.5
200 100 15 24
300 100 11 19
400 100 9 16
500 10 7 13
800 10 5 8
1000 10 4 6
