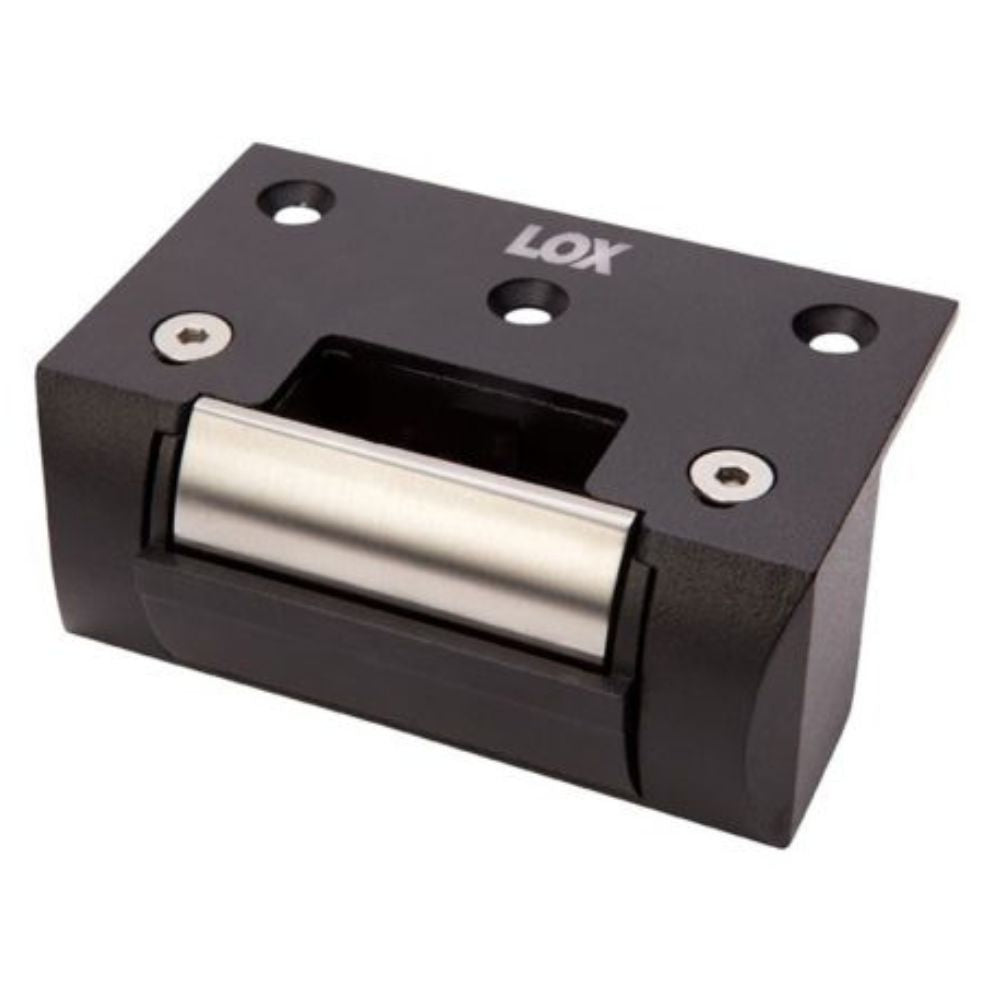

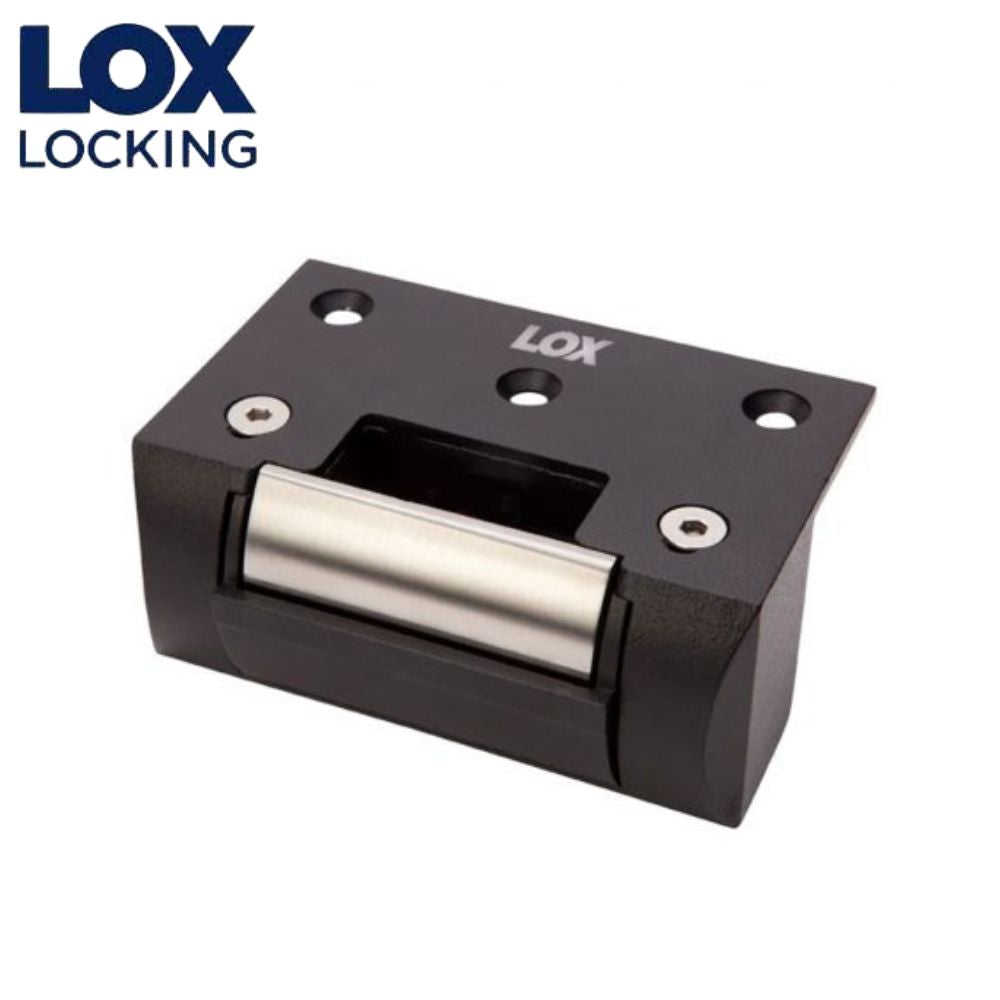

Description
The LOX ES15 Series surface mount Electric Door Strikes can be used for pedestrian gates and light commercial applications. They are dual voltage products accepting voltages of either 12 or 24VDC. The ES15 Electric Strikes are site interchangeable from Fail-Secure to Fail Safe (Power to Release to Power to Lock) by only using a small screwdriver.
The ES15 Series Strikes come with a 5-year warranty and have a holding strength of up to 1200kg. The non-monitored ES15 version is weather resistant IP56 rated.
ES15 Facts
- Weather Resistant (IP56)
- 5 year warranty
- Simple Power To Lock/Power To Release interchange
- Dual-Voltage: 12 or 24VDC
Datasheet
LOX Electric Strike Surface Mounted (RIM Mounted) Weather Resistant - ES15
Tech Specs
| ES15 |
WEATHER RESISTANT ELECTRIC STRIKE SURFACE MOUNTED |
| HOLDING STRENGTH |
UP TO 1200KG TESTED 1 MILLION CYCLES |
| VOLTAGE/CURRENT |
DUAL VOLTAGE 12/24VDC 12VDC = 200mA 24VDC = 100mA |
| IP RATING |
IP56 WEATHER RESISTANT |
| ENVIRONMENTAL |
OPERATIONAL TEMPERATURE RANGE - 20 DEG. C TO 60 DEG. C |
