Description

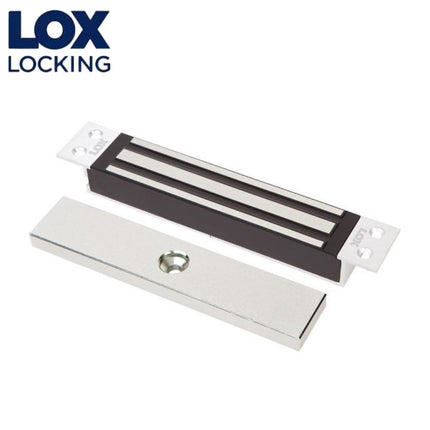

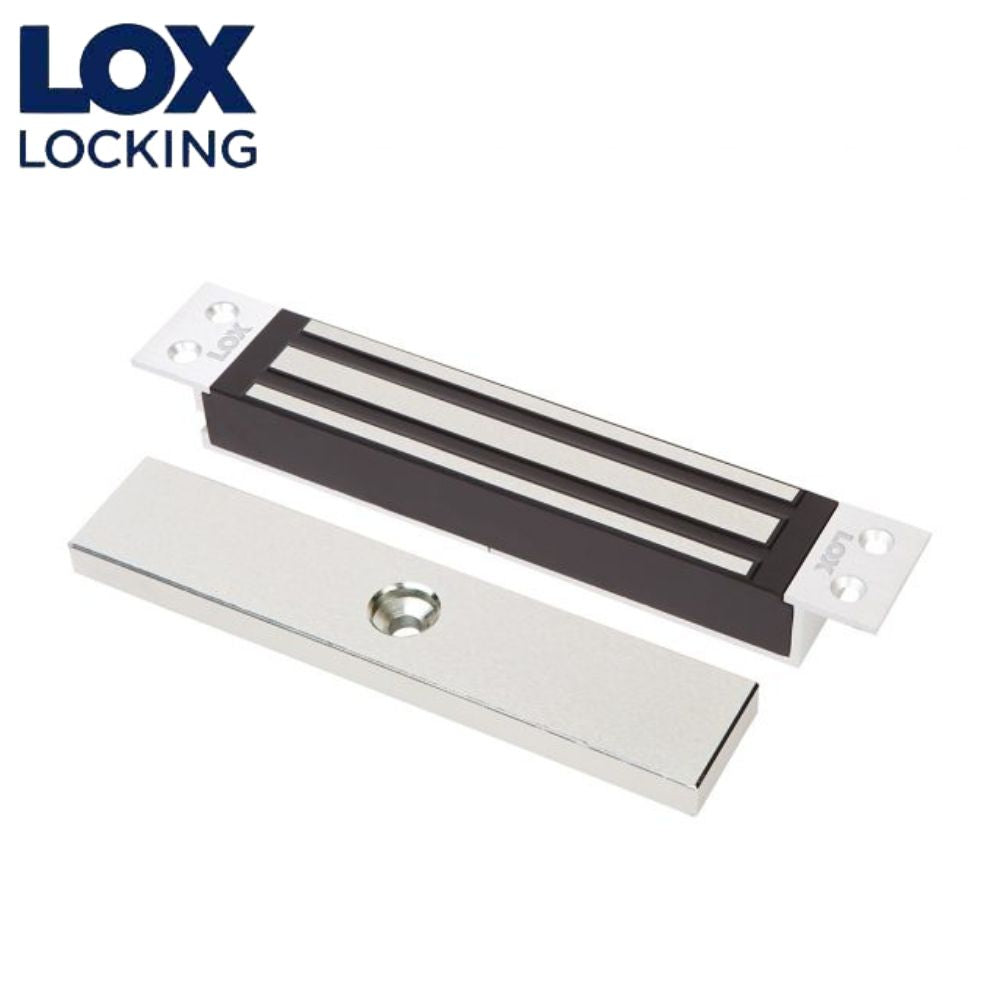

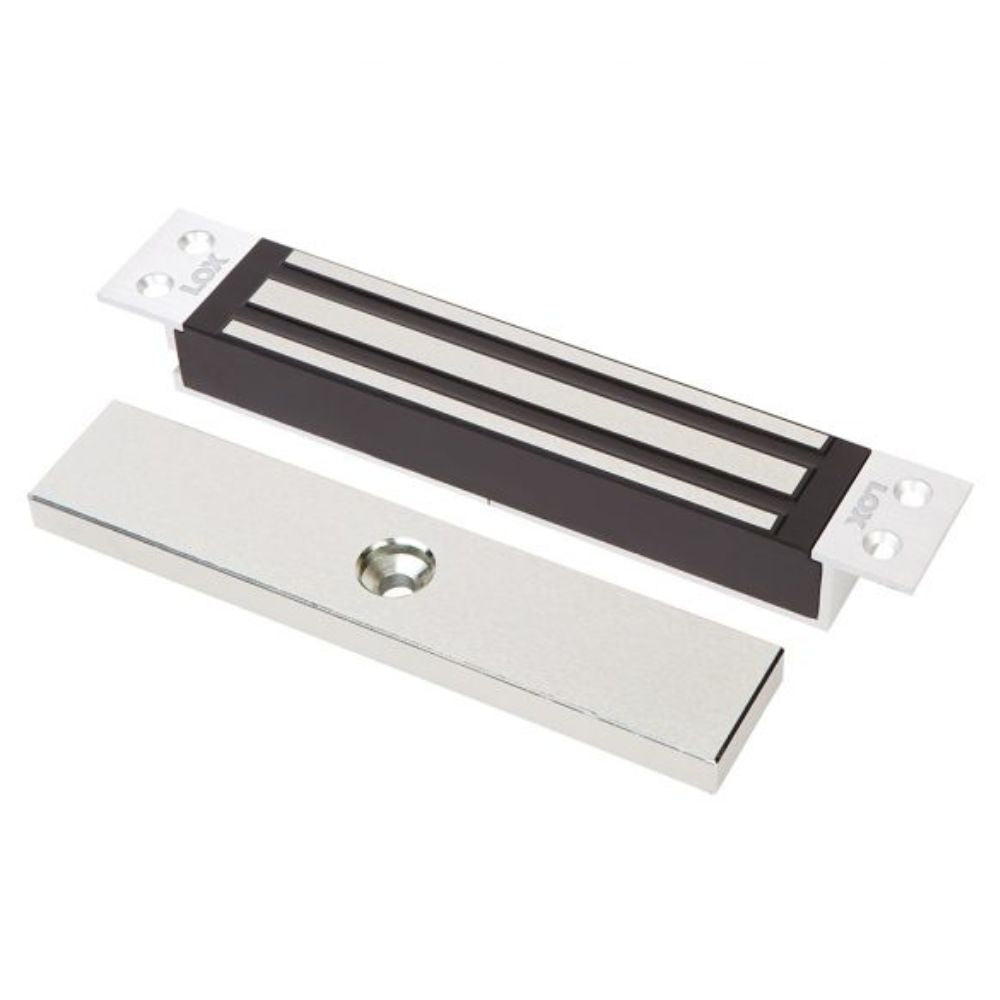

The LOX EM3500M Flush Mount Electro Magnetic Lock was designed for securing single leaf internal sliding doors. The lock is mortised into the door frame and has a holding force of up to 280kg. It has Lock Status Sensor (LSS) monitoring function (Hall-Effect).
EM3500FM Facts
- Built-in Hall Effect Sensor for monitoring the lock/unlock status of the locking device (LSS)
- Built-in varistor (MOV) surge protection
- CE/RCM Approvals
- Lifetime warranty
- No residual magnetism
Datasheet
LOX Flush Mount Electro Magnetic Lock Monitored - EM3500FM
Tech Specs
| EM3500FM |
FLUSH MOUNT ELECTRO MAGNETIC LOCK MONITORED |
| HOLDING STRENGTH |
UP TO 280KG, TESTED TO 400.00 CYCLES |
| VOLTAGE/CURRENT |
DUAL VOLTAGE 12/24VDC 12VDC = 500mA 24VDC = 250mA |
| APPROVALS |
CE C-TICK |
| LSS MONITORING |
LSS LOCK STATUS SENSOR (HALL EFFECT) |
| ENVIRONMENTAL |
OPERATIONAL TEMPERATURE RANGE - 20 DEG. C TO 60 DEG. C |
