Description

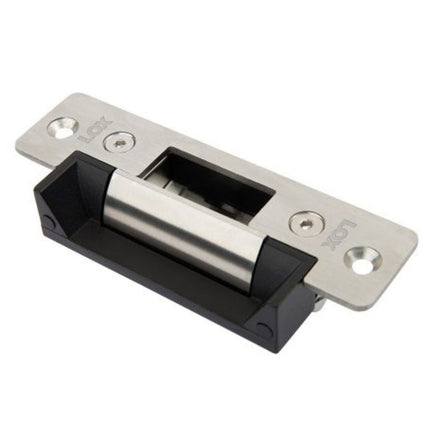

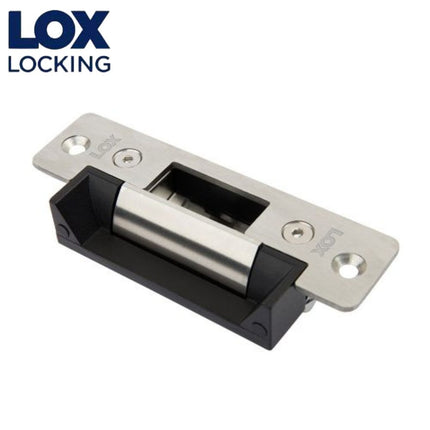

The LOX ES10 Series ANSI Electric Door Strikes is one of the most successful residential & light commercial Electric Strike products in Australia. It is a dual voltage product accepting voltages of either 12 or 24VDC. The LOX ES10 Series Electric Strikes are site interchangeable from Fail- Secure to Fail Safe (Power to Release to Power to Lock) by only using a small screw-driver.
The ES10 Series Strikes are designed to be morticed into a door frame on a single swing door equipped with either a mortice lock or a cylindrical tongue lock. The LOX ES10 Series strikes are pre-drilled to accommodate for extension lips, come with a 5-year warranty and have a holding strength of up to 1200kg. The monitored ES10M version comes with Door Status Sensor (door latch monitoring). The non-monitored ES10 version is weather resistant IP56 rated.
ES10 Facts
- ES10 Weather Resistant (IP56)
- ES10M monitored version available (not weather resistant)
- 5 year warranty
- Simple Power To Lock/Power To Release interchange
- Pre-drilled for extension lips
- Dual-Voltage: 12 or 24VDC
- Fire rated
Datasheet
LOX Light Commercial and Residential Electric Strikes – ANSI Foot Print - ES10
Tech Specs
| ES10 |
ANSI PROFILE NON MONITORED DOOR STRIKE. MORTICE MOUNT, POWER TO LOCK/POWER TO OPEN FIELD SELECTABLE & IP RATED |
| HOLDING STRENGTH |
UP TO 1000KG TESTED 1 MILLION CYCLES |
| VOLTAGE/CURRENT |
DUAL VOLTAGE 12/24VDC 12VDC = 200mA 24VDC = 100mA |
| APPROVALS |
UP TO 4 HOUR FIRE RATED TO A.S STANDARD, CE & C-TICK |
| DSS MONITORING |
DOOR LATCH SENSOR, DOOR LATCH ENGAGED WITHIN STRIKE KEEPER ES10M VERSION |
| IP RATING |
ES10 VERSION IP56 ES10M VERSION NOT WEATHER RESISTANT |
| ENVIRONMENTAL |
OPERATIONAL TEMPERATURE RANGE - 20 DEG. C TO 60 DEG. C. |
