Description

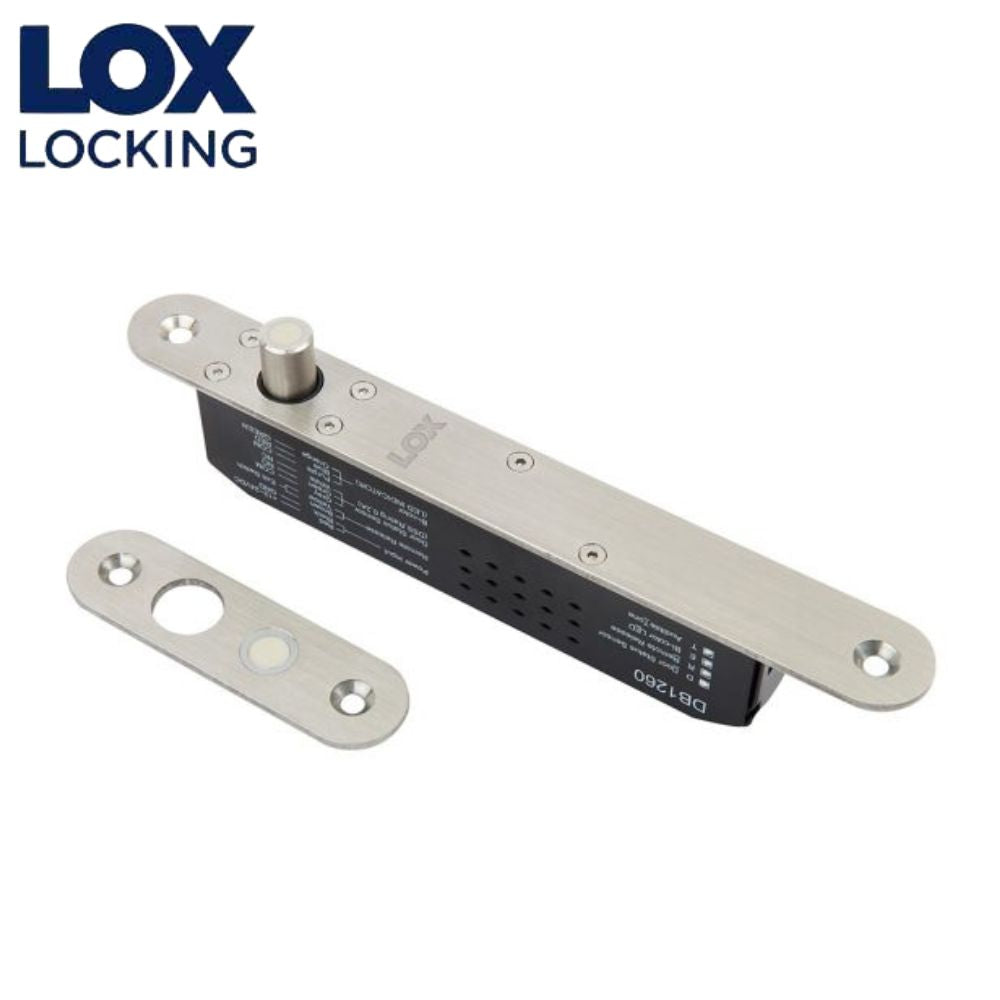

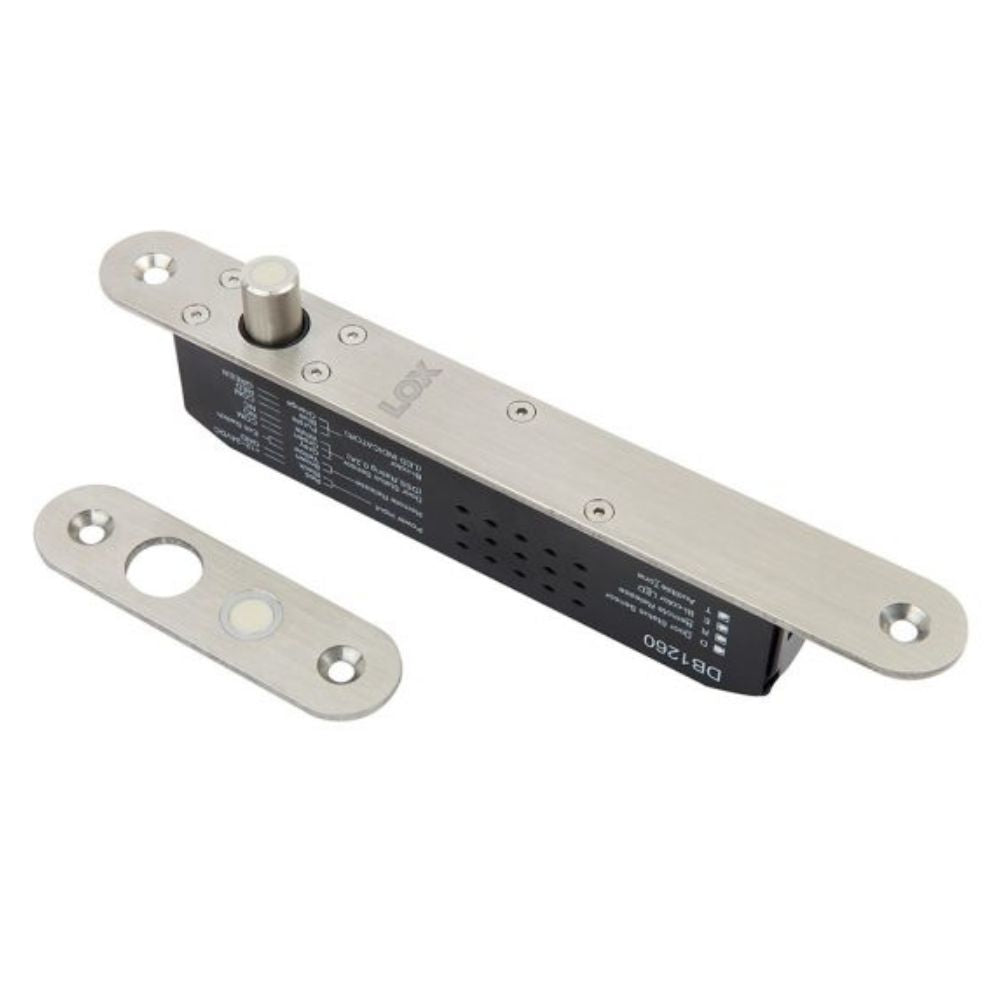

The LOX DB1260 Electric Drop Bolt has been designed to be used on double action (swing through) doors or as an additional locking device in conjunction with an Electric Strike in single door applications. The DB1260 has a 25mm wide face plate and is therefore applicable on narrow style frame installations. It is available in either “Power to Lock” (Fail Safe) or “Power to Open” (Fail Secure). The DB1260 product range provides several glass-door mounting accessories. We do not recommend using this product on Emergency Egress Door.
DB1260PTO Facts
- Internal control circuits protect drop bolt pin from damage
- Power to Lock or Power to Open version available (to be specified)
- Auto lock function
- Built-in varistor (MOV) for surge protection
- Time delay setting at 0/3/6/10 secs
- 1 year warranty
Datasheet
LOX Mortise Mount Electric Drop Bolt, Narrow Style Power To Open (Fail Secure) - DB1260PTO
Tech Specs
| DB1260PTO |
MORTISE MOUNT ELECTRIC DROP BOLT, NARROW STYLE POWER TO OPEN (FAIL SECURE) |
| HOLDING STRENGTH |
UP TO 300KG, TESTED TO 400.000 CYCLES |
| VOLTAGE/CURRENT |
DUAL VOLTAGE 12/24VDC 12VDC = 530mA 24VDC = 260mA |
| APPROVALS |
UP TO 4 HOUR FIRE RATED TO A.S STANDARD, CE & C-TICK |
| DSS MONITORING |
DOOR STATUS SENSOR (REED SWITCH) |
| ENVIRONMENTAL |
OPERATIONAL TEMPERATURE RANGE - 20 DEG. C TO 60 DEG. C |
