Description
The LOX EM3500 Series product line is a comprehensive Electro Magnetic Lock range with up to 280kg holding force. It is one of the most reliable and most successful Electro Magnetic Locks in the Australian market.
THE MONITORED MAGNETIC LOCKS HAVE:
- A built-in Hall Effect Sensor for monitoring the lock/ unlock status of the locking device (LSS – Lock Status Sensor)
- A built-in reed switch contact for monitoring the open/closed status of the door (DSS – Door Status Sensor)
- Highly visible red/green LED Status Light
- Anti-Tamper-Fixing-Plate (monitored version only) to avoid hostile attacks targeted on the dome-nut-fixing bolt of the Armature Plate
EM3500 Facts
- Door and Lock Status monitoring Sensor (DSS & LSS with monitored models)
- Built-in varistor (MOV) surge protection
- CE/RCM Approvals
- Anti Tamper Mounting Plate (with “M” models)
- High visibility red/green Status Light Panel
- Lifetime warranty
- Up to 4 hour fire rated to AS Standard
- No residual magnetism
Datasheet

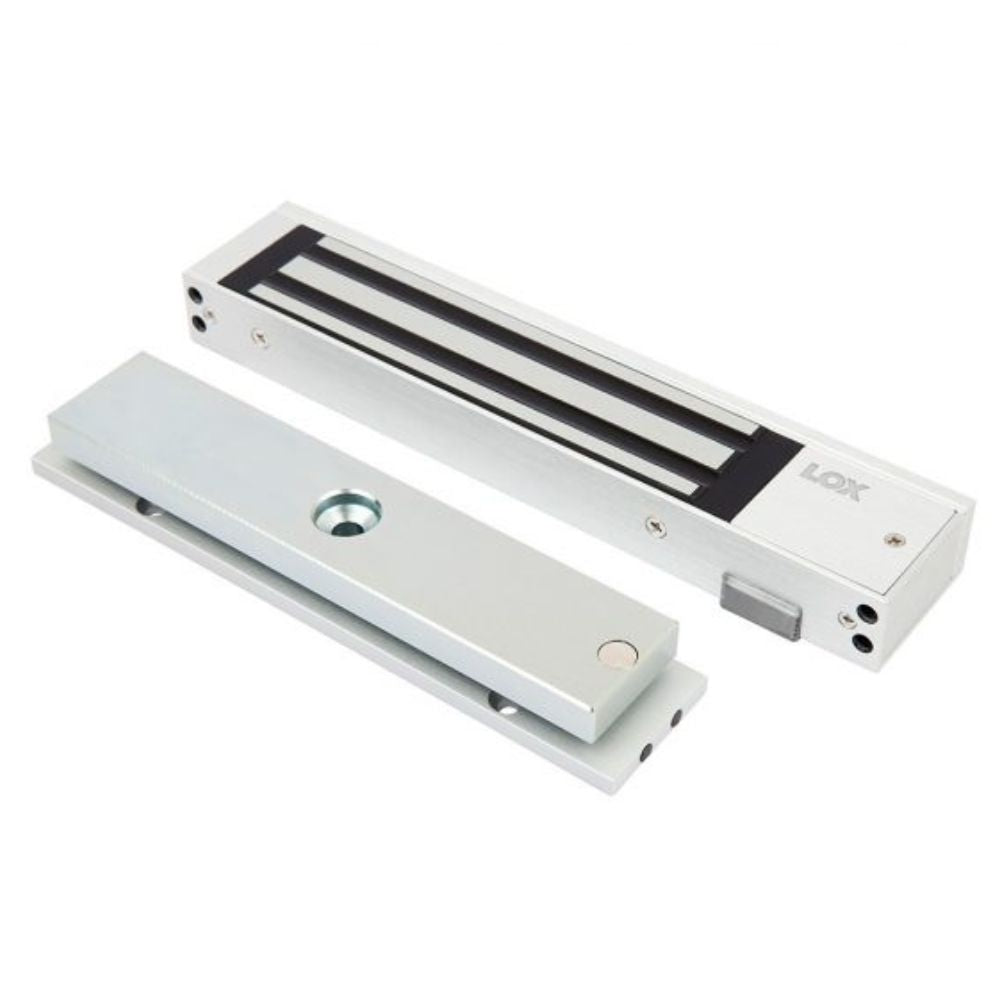

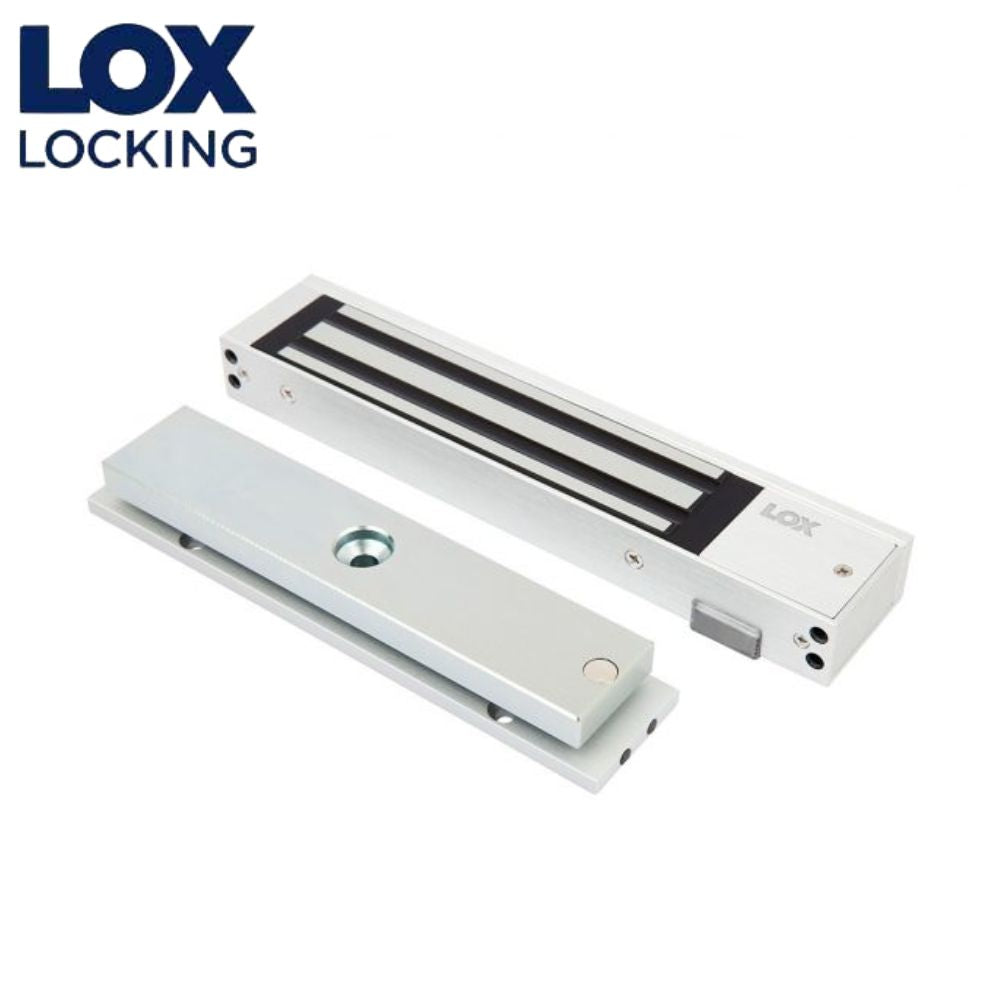

LOX Single Electro Magnetic Lock Monitored - EM3500M
Tech Specs
| EM3500M |
SINGLE ELECTRO MAGNETIC LOCK MONITORED |
| HOLDING STRENGTH |
UP TO 280KG, TESTED TO 1 MILLION CYCLES |
| VOLTAGE/CURRENT |
DUAL VOLTAGE 12/24VDC 12VDC = 530mA 24VDC = 260mA |
| APPROVALS |
UP TO 4 HOUR FIRE RATED TO A.S STANDARD, CE & C-TICK |
| LSS MONITORING |
LSS LOCK STATUS SENSOR (HALL EFFECT) |
| DSS MONITORING |
DOOR STATUS SENSOR (REED SWITCH) |
| LED LIGHT STATUS |
LED LIGHT STATUS INDICATES LOCKED OR UNLOCKED STATUS |
| ENVIRONMENTAL |
OPERATIONAL TEMPERATURE RANGE - 20 DEG. C TO 60 DEG. C |
