Description

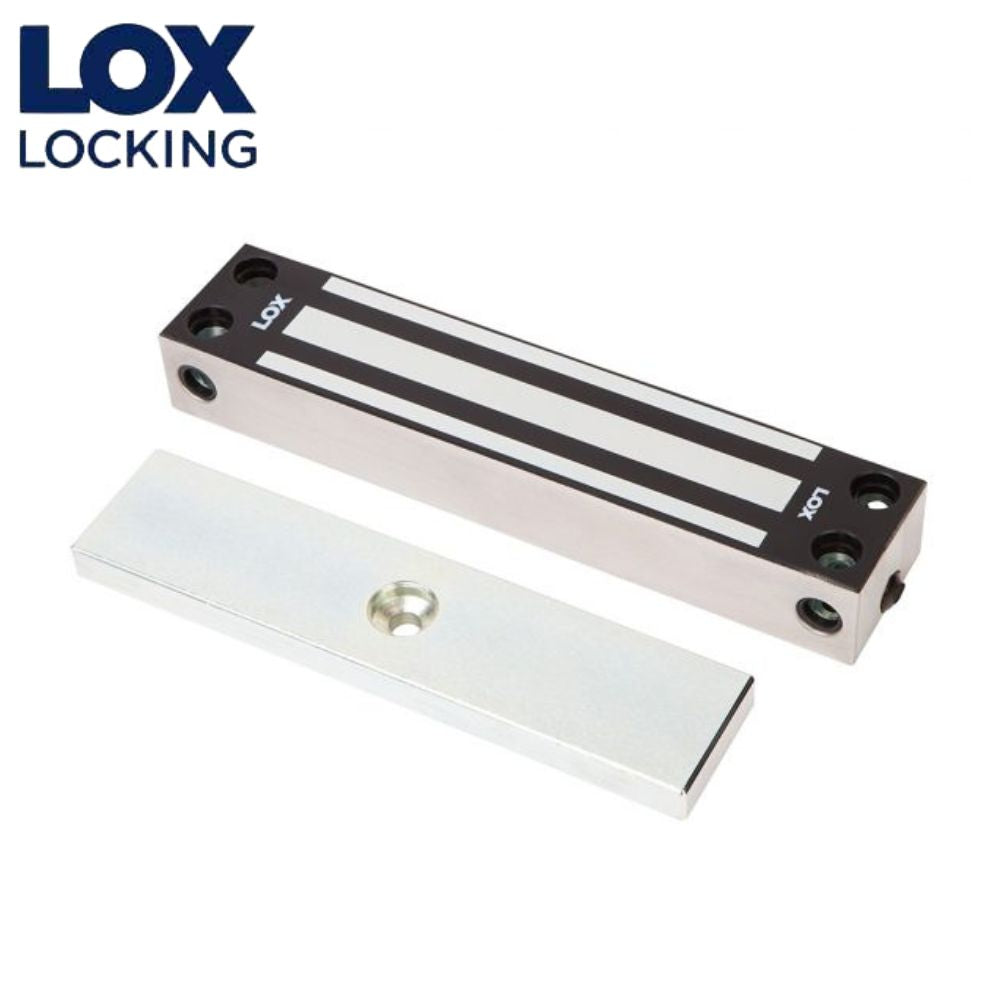

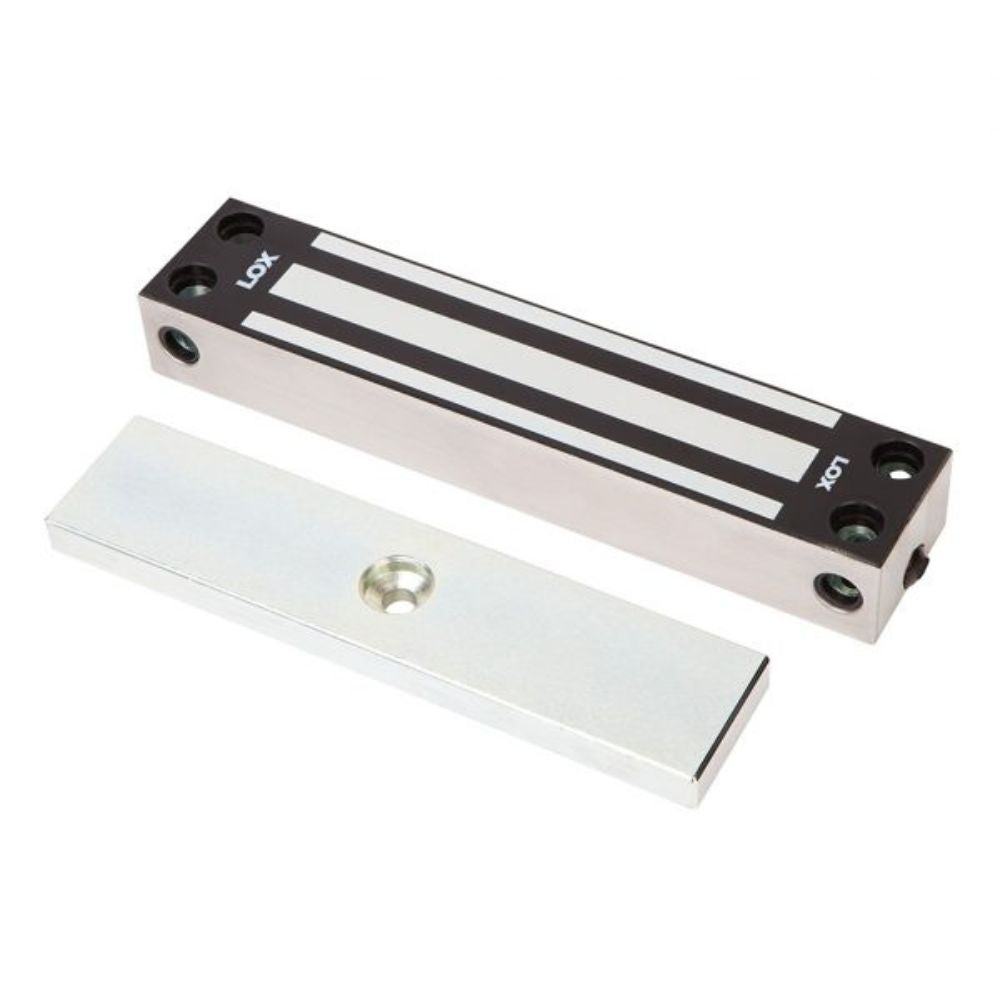

The LOX EM4700 has been designed with a fully enclosed stainless-steel housing. It is one of the most reliable locking devices for true external applications exposed to wind and weather. The EM4700 lock is IP67 rated and a proven locking solution in the harshest environments around Australia such as surf-lifesaving clubhouses and the like. It has a holding force of up to 380kg a dual fixing arrangement (front and header mount), a built-in varistor surge protection and accepts dual voltage of 12VDC and 24VDC.
The EM4700 Electro Magnetic Gate Lock has a Lock Status (LSS) monitoring feature by Hall- Effect and comes with a Lifetime Warranty.
EM4700 Facts
- Up to 380kg holding force
- Lock Status monitoring Sensor (LSS)
- Stainless 304 steel body housing
- Weather resistant IP67
- Lifetime warranty
- CE/RCM
- No residual magnetism
Datasheet
LOX Weather Resistant Electro Magnetic Gate Lock - EM4700
Tech Specs
| EM4700 |
WEATHER RESISTANT ELECTRO MAGNETIC GATE LOCK MONITORED |
| HOLDING STRENGTH |
UP TO 380KG |
| VOLTAGE/CURRENT |
DUAL VOLTAGE 12/24VDC 12VDC = 400mA 24VDC = 200mA |
| APPROVALS |
CE C-TICK |
| LSS MONITORING |
LSS LOCK STATUS SENSOR (HALL EFFECT) |
| EMVIRONMENTAL |
IP67 RATED, OPERATIONAL TEMPERATURE RANGE - 20 DEG. C TO 60 DEG. C |
