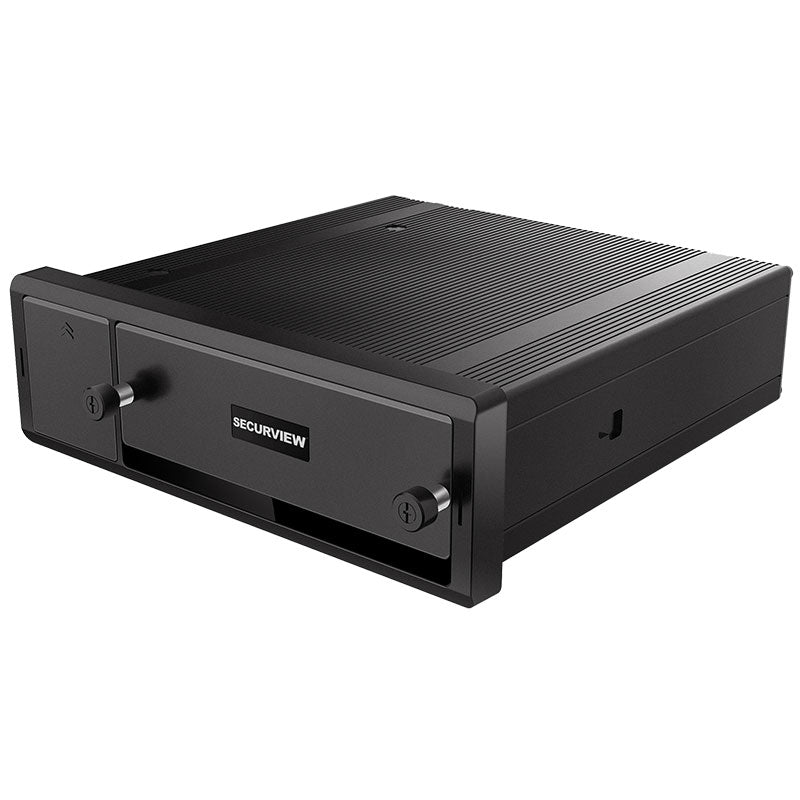

The MXVR-GPS4GW is a 4 channel mobile HDCVI DVR with support for a wide range of mobile cameras to suit your vehicle surveillance needs.
A part of the Mobile Series from Securview, this model combines Full HD video, precision GPS, 4G and WiFi connectivity to deliver peace of mind when on the road. This series offers wide compatibility with all mobile camera technologies, including HDCVI, AHD, TVI, composite or IP* cameras, so you can create a vehicle video solution to your exact requirements.
Features:
• Records 4 channels at 2.0MP / Full HD 1080p up to 25fps
• Support for HDCVI, HDTVI, AHD or analogue cameras (via M12, 4-pin inputs)
• Support for 4CH additional IP cameras via external PoE switch (sold separately)
• GPS tracking coordinate overlay on footage, GPS/GLONASS, includes GPS antenna
• Built-in 4G radio for remote viewing & management (standard size SIM card sold separately)
• Built in 2.4GHz WiFi module for PC web-interface access, includes WiFi antenna
• Storage interface 1 x 2.5'' SATA HDD or SSD and standard SD card slot up to 256GB

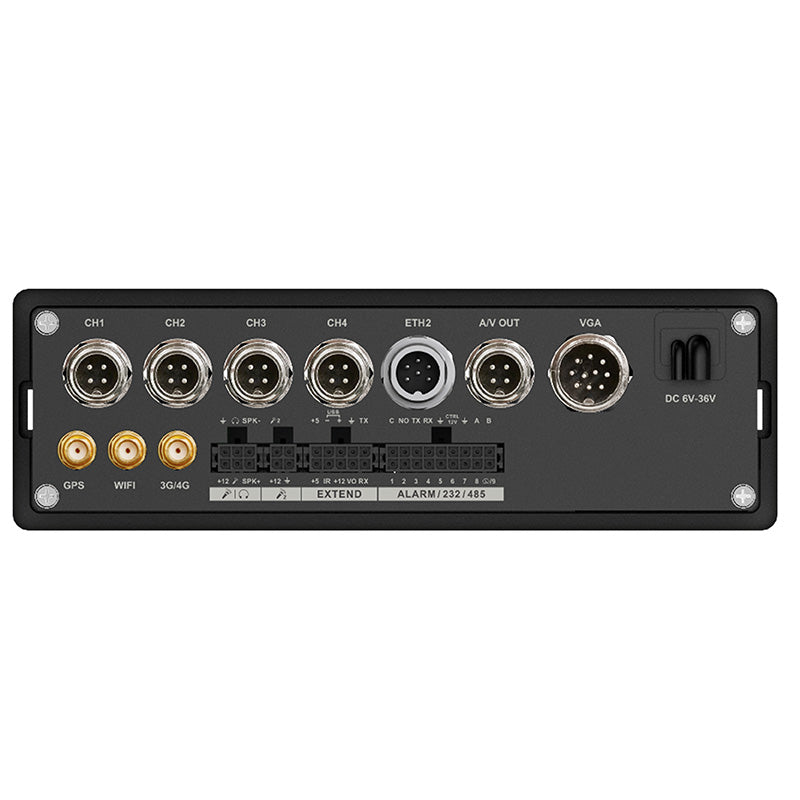

• VGA (M16, 10-pin connector) or composite (M12, 4-pin) display outputs
• Up to 8 alarm inputs and 1 pulse input with 1 controllable output
• Supports HDCVI camera audio inputs as well as 1 external microphone input
• Features RS485, RS232 and CAN auxiliary inputs
• Robust, lockable housing with vibration-dampening design
• Heavy duty M12 video input connectors
• Single DIN size for standardised installation in vehicles
Downloads
Tech Specs
| Specification |
Details |
| Alarm Interface |
Up to 8 channels local input and 1 channel pulse input, 1 controllable 12V 0.75A output |
| Audio Interface |
Supports HDCVI audio cameras and 1 external microphone input |
| Auxiliary Inputs |
2 x RS232, 1 x RS485, 1 x CAN |
| Backup Modes |
USB Device / Network |
| Camera Configuration (Coaxial) |
4 channels, up to 2.0MP / 1080p resolution |
| Camera Configuration (Network) |
4 channels, up to 2.0MP / 1080p resolution (via 6-pin ETH2 port, requires mobile PoE switch & cable, sold separately) |

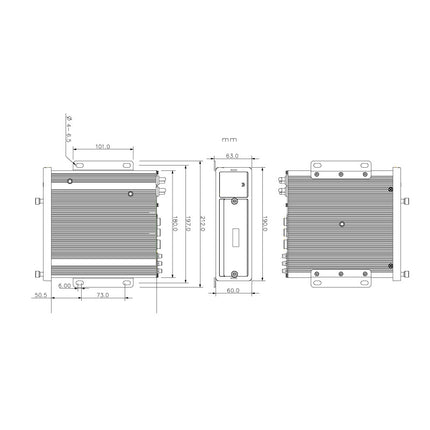

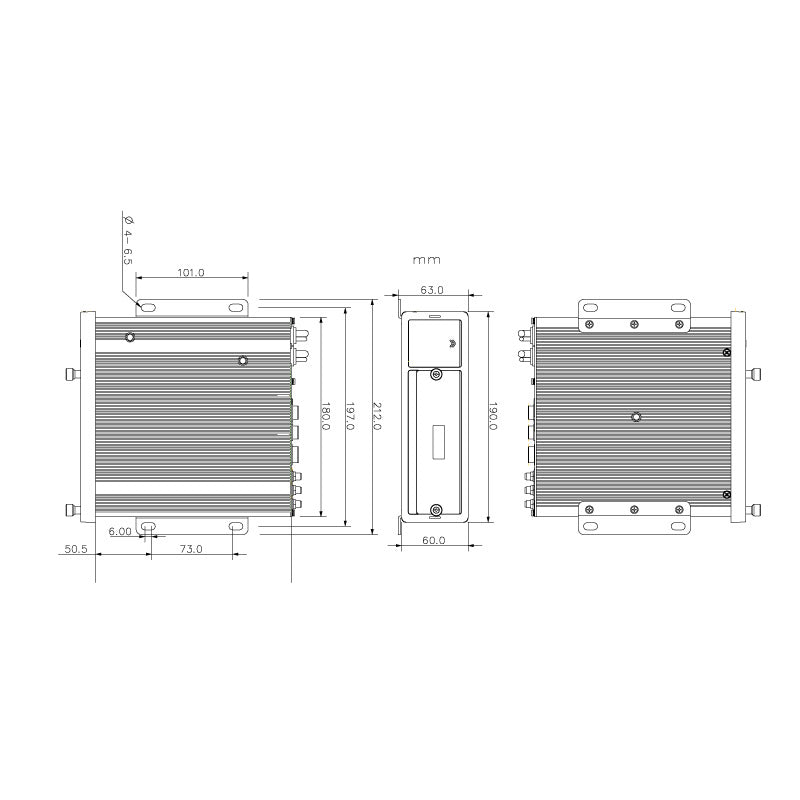

| Dimensions (WxDxH) |
180 x 190 x 50mm / 1 DIN (Front Panel 190 x 60mm) |
| Display Resolution |
1920 x 1080 to 800 x 600 |
| Display Split |
1 / 4 / 8 / 9 |
| Ethernet |
1 x RJ45 port 10/100M (front), 1 x 6-pin ETH2 port (rear) |
| Frame Rate |
1 ~ 25fps |
| GPS |
GPS/GLONASS Satellite Positioning, 1 x SMA GPS Antenna |
| Main Processor |
Embedded Processor |
| Max. User Access |
128 users |
| Network Functions |
TCP/IP, UDP, DHCP, DDNS, FTP, Email, Alarm Server |
| Operating Conditions |
-30 ~ +70°C / 0~90%RH |
| Operating System |
Embedded Linux |
| OSD |
Channel, time, GPS position, license plate |
| Playback Sync |
1 / 4 |
| Power Consumption |
<8.4W (no peripherals) |
| Power Supply |
6 ~ 36VDC |
| Recording Resolution |
Main: Up to 1080p (1920 x 1080), Sub: Up to D1 (720 x 576) |
| Remote View |
iOS (iPhone, iPad); Android devices; PC applications and via web interface |
| Storage Capacity |
1 x 2.5’’ SATA port for HDD/SSD, 1 x SD card slot, up to 256GB |
| USB Interface |
2 x USB2.0 (front), 1 x USB2.0 (rear, via extend port) |
| Video Compression |
H.265 / H.264 |
| Video Input |
4 channels HDCVI / Analogue (M12, 4-pin) |
| Video Output |
1 x VGA (M16, 10-pin), 1 x Composite (M12, 4-pin) |
| Weight |
2.8kg (without HDD) |
| WiFi |
Built-in WiFi module, 1 x 2.4GHz WiFi SMA Antenna |
