Description
Elegant and versatile, the C6W camera is all the protection you need for a large home. It records in 2K resolution and automatically tracks motion in 4x zoom to make sure nothing escapes the eye.
Features
- 2K Resolution
- 360° Panoramic View
- Privacy Shutter
- MicroSD Card up to 256 GB
- Auto-Zoom Tracking
- True-WDR
- Two-Way Talk
- EZVIZ CloudPlay Storage
- Person Detection
- Infrared Night Vision up to 10m (33 ft.)
- H.265 Video Technology
Datasheet
Tech Specs

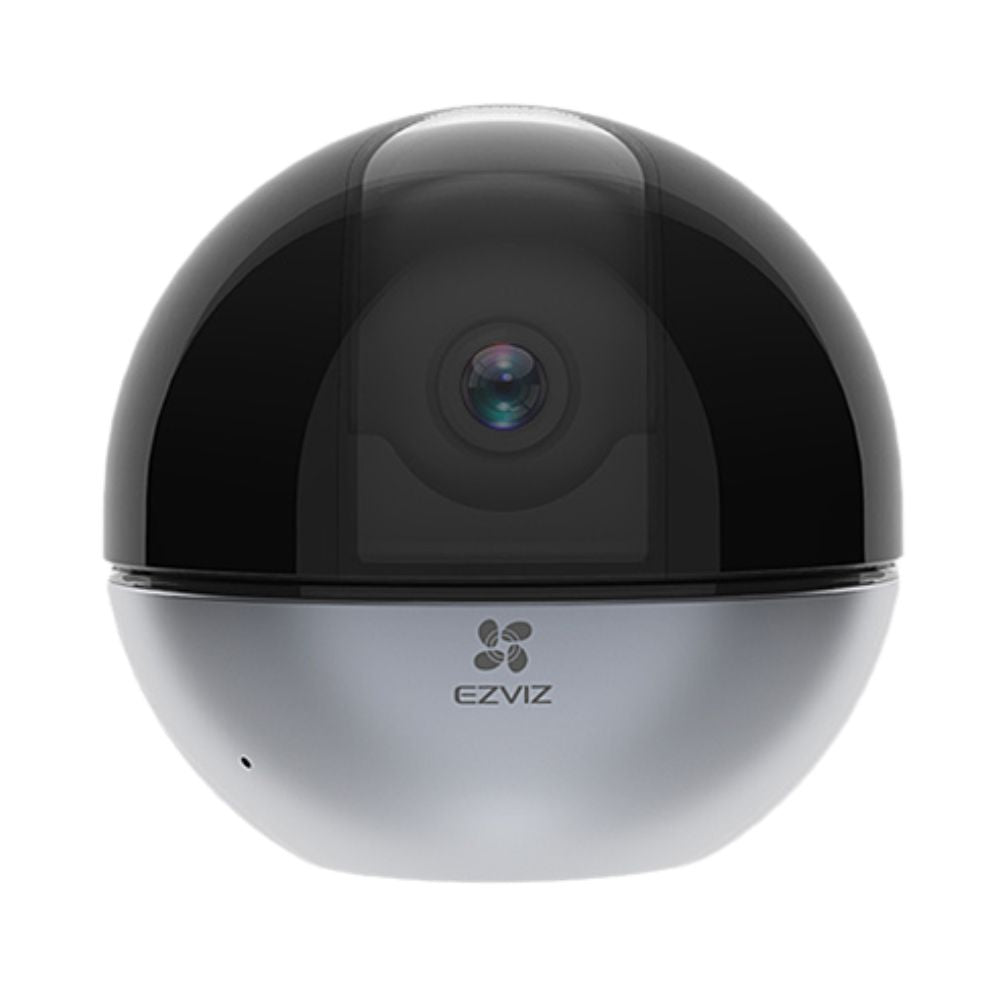

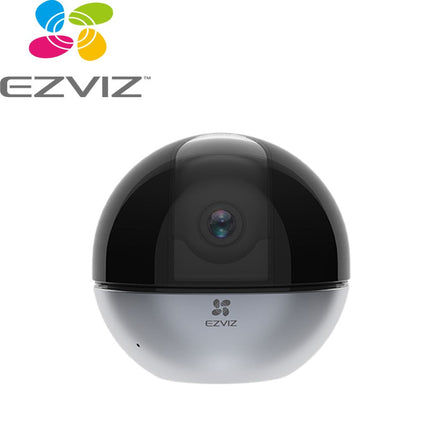

Ezviz Security Camera: Pan & Tilt Wi-Fi Camera - C6W
| Image Sensor |
1/2.7" Progressive Scan CMOS |
| Shutter Speed |
Self-adaptive shutter |
| Lens |
4mm@ F2.0, view angle: 83° (Horizontal), 57°
(Vertical), 104° (Diagonal) |
| PT Angle |
Pan: 340°, Tilt: 75° |
| Minimum Illumination |
0.5 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Lens Mount |
M12 |
| Day & Night |
IR-cut filter with auto-switching |
| DNR |
3D DNR |
| WDR |
True-WDR |
| BLC |
Supports |
| Max. Resolution |
2560 × 1440 |
| Frame Rate |
Max: 25fps; Self-Adaptive during network
transmission |
| Video Compression |
H.265 / H.264 |
| Video Bit Rate |
Ultra-HD; HD; Standard. Adaptive bit rate. |
| Audio Bit Rate |
Self-Adaptive |
| Max. Bitrate |
4Mbps |
| Local Storage |
MicroSD card slot (Max. 256G) |
| Cloud Storage |
EZVIZ Cloud Storage |
| Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n |
| Frequency Range |
2.412 GHz ~ 2.472 GHz |
| Channel Bandwidth |
Supports 20MHz |
| Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate |
11b: 11Mbps, 11g : 54Mbps, 11n: 72Mbps |
| Wi-Fi Pairing |
AP pairing |
| Protocol |
EZVIZ cloud proprietary protocol |
| Interface Protocol |
EZVIZ cloud proprietary protocol |
| Wired Network |
RJ45 × 1 (10M/100M Adaptive Ethernet Port) |
| Operating Conditions |
-10°C ~ 45°C (14°F to 113 °F), Humidity 95% or less
(non-condensing) |
| Power Supply |
DC 5V / 2A |
| Power Consumption |
MAX. 8W |
| Dimensions |
95.8 x 95.8 x 90.6 mm (3.77 x 3.77 x 3.57 inch) |
| Packaging Dimensions |
126 x 126 x 160 mm (4.96 x 4.96 x 6.30 inch) |
| Net Weight |
252 g (8.89 oz) |
| Weight |
513 g (1.13 oz) |
| Smart Alarm |
AI Person Detection |
| Customized Alert Area |
Supports |
| Two-Way Talk |
Supports |
| General Function |
Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image,
Password Protection, Watermark |
