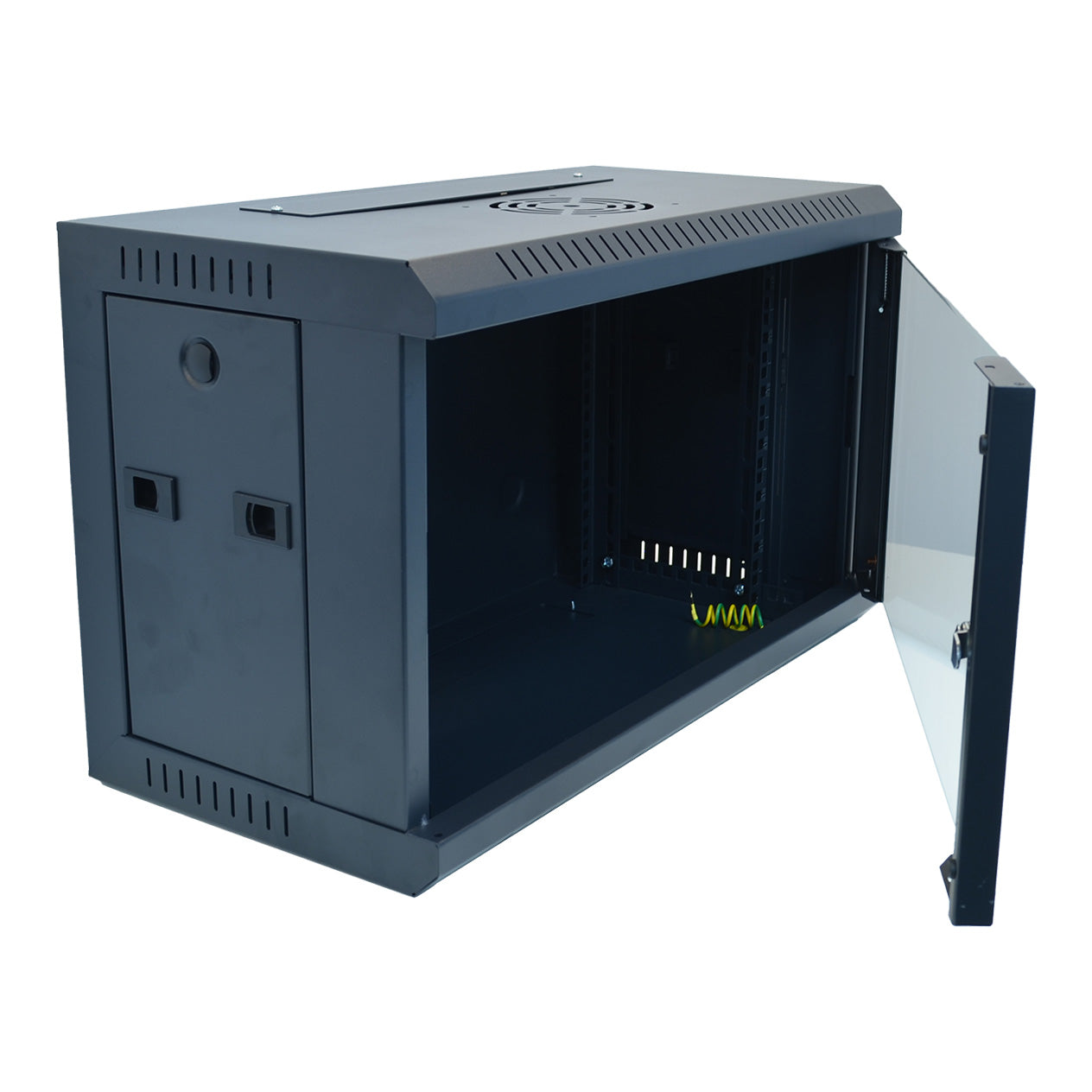

Deliver professional results even in small installations with the VIP Vision range of 300mm deep wall mount rackmount cabinets.
The RMC-B Series is perfect for a variety of network, security and IT applications, offering versatile equipment storage. Cabinets feature knock-out plates on the top and bottom for cable entry, quick-remove side panels, 120mm fan mount and tempered glass 180° swing door with lock. Pre-assembled for your convenience, including cage nuts, washers, cabinet keys and a fitted earthing cable.
Features:
• 19" standard width, 6U rack height cabinet, 300mm total depth
• Overall dimensions 600 x 300 x 370mm (W x D x H)
• Easy installation wall-mount bracket system
• Tempered swing glass door with cabinet lock
• Quick-removable cabinet side panels
• Includes earthing cable and cage nuts/washers
• Top of cabinet space for 120mm fan, sold separately
• Cabinet rack shelf sold separately
• Assembled for convenience & quick install
• Welded frame width powder coated finish
Downloads
Tech Specs
| Specification |
Details |
| Assembled |
Yes |
| Cabinet Depth |
300mm |
| Cabinet Standard |
19'' (482mm) |
| Exterior (WxDxH) |
600 x 300 x 370mm |
| Fan Slots |
Yes (1 x fan slot) |
| Included Shelves |
No |
| Load Capacity |
60kg |
| Lockable |
Yes (Front lock included, side locks optional) |
| Material |
SPCC Steel |
| Mounting Options |
Wall Mount |
| Power Board |
No |
| Rack Units (RU) |
6 |
| Wheels |
No |
1-Year Manufacturer's Warranty
As an authorised distributor, our products are eligible for all standard warranties and firmware updates offered by their manufacturers.
