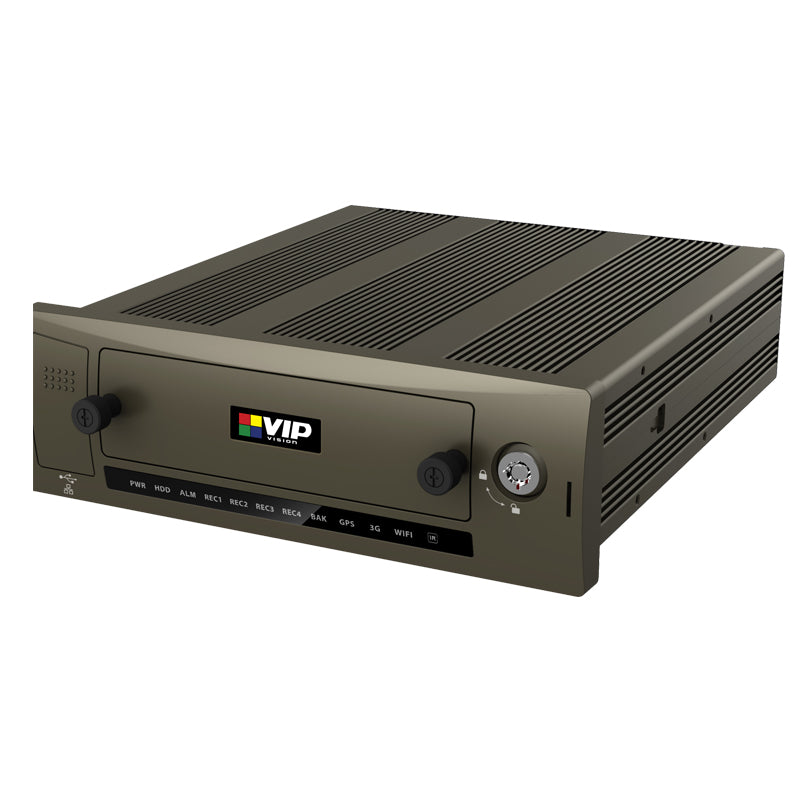

Professional 4 Channel Mobile NVR with GPS, 4G & WiFi
The MCVR-GPS4GW2 is a 4 channel mobile NVR with 4K recording, high precision GPS for vehicle tracking and remote view via 4G, all in a robust, lockable case. Perform essential functions such as monitoring driver and passenger behaviour, gathering video evidence in the event of an accident, proof of delivery and GPS vehicle tracking.
Product Features:
✔️ Records 4 channels at 8.0MP, up to 200Mbps incoming bandwidth
✔️ Combines video footage with GPS tracking overlay
✔️ Ideal for public transport, cash transit, shipping, etc.
✔️ 1 x 2.5'' SATA HDD bay & SD card slot up to 2TB
✔️ Audio, alarm, RS485 and RS232 inputs
✔️ Robust housing; vibration-dampening construction
✔️ Heavy duty M12 video input connectors
✔️ Single DIN standard size
✔️ 4G & WiFi allows for mobile remote viewing from anywhere (SIM not included)
Tech Specs
| Alarm Input / Output |
6 channel |
| Auxiliary Inputs |
1 x RS485 port (for PTZ) |
| Backup Modes |
USB Device/Network/Internal HDD |
| Bit Rate |
48~8192Kb/s |
| Dimensions / Rack Units |
190 x 210 x 60mm |
| Display Resolution |
Configurable from 1920 x 1080 to 1024 x 768 |
| Display Split |
1/4 |
| Ethernet |
1 RJ-45 Port (10/100 Mbps) |
| HDD Modes |
Single (no RAID compatibility) |
| Incoming Bandwidth |
200Mbps |
| Internal HDD |
1x SATA ports, max.2TB |
| Interoperability |
ONVIF 2.3 conformant |
| Main Processor |
Dual-core Embedded Processor |
| Max. User Access |
128 users |
| Network Functions |
TCP/IP, UDP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Email, Alarm Server |
| Operating Environment |
-35°C (heater optional)~+60°C / 10%~95%RH / 86~106kpa |
| Operating System |
Embedded LINUX |
| Optical Interface |
N/A |
| OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Playback Sync |
1 / 4 |
| PoE |
8 ports (IEEE802.3af/at) |
| Power Consumption |
<15W |
| Power over Ethernet |
4 ports (IEEE802.3af/at) |
| Power Supply |
6~36VDC |
| Record Interval |
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Record Modes |
Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
| Recording Resolution |
Configurable from 4K (3840 x 2160) to D1 (704 x 576) |
| Remote View |
iPhone, iPad, Android, Windows Phone |
| Search Modes |
Time/Date, Alarm, Motion Detection & Exact search (accurate to second), Smart search |
| Trigger Events |
Recording, PTZ, Tour, Alarm out, Email, FTP, Snapshot, Buzzer & Screen tips |
| Two-way Talk |
1 Channel Mic in, 1 Channel Mic out |
| USB Interface |
2 ports: 2x USB2.0 |
| Video Compression |
H.265/H.264 |
| Video Detection |
Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank |
| Video Input |
4 channel BNC |
| Video Output |
1 x HDMI, 1 x VGA, 2 x TV |
| Weight |
3kg (without HDD) |
