| Video Input |
4 Channels |
| PoE |
Yes |
| HDD Capacity |
1 HDD |
| Processor & Operation |
Industrial-grade processor, Embedded Linux OS, Web Interface / Local GUI |
| Interoperability |
ONVIF 21.12 (Profile T, Profile S, Profile G), CGI, SDK |
| App Integration |
iOS / Android |
| Recording Resolution |
Configurable from 16.0MP (4920 x 3264) to CIF (352 x 288) |
| Network Bandwidth (AI Disabled) |
80Mbps (incoming/recording/outgoing) |
| Network Bandwidth (AI Enabled) |
80Mbps (incoming/recording/outgoing) |
| Video Compression |
Smart H.265+ / H.265 / H.264 / H.264+ / MJPEG |
| Audio Compression |
G.711a / G.711u / PCM / G726 |
| Playback Channels |
4 Channels |
| Playback Modes |
General Recording, Motion Detection, Intelligent Events, Alarm Triggers |
| Decoding Capacity (AI Disabled) |
4CH @ 8.0MP / 25fps |
| Decoding Capacity (AI Enabled) |
4CH @ 5.0MP / 25fps |
| Backup Method |
USB Device / Network |
| Internal HDD |
1 x SATA bay, supports up to 16TB |
| Audio |
1 x RCA Input, 1 x RCA Output |
| Alarm Interface |
- |
| Alarm Types |
Record, Snapshot, IPC External Alarm Output, Audio, Buzzer, Log, Preset, Email |
| Alarm Actions |
Begin Record, Take Snapshot, Camera External Alarm Output, Audio, Buzzer, NVR Log, Camera Preset, Email |
| Display Output |
1 x HDMI (up to 3840 × 2160), 1 x VGA (up to 1920 × 1080) |
| Display Split |
1st Screen: 1/4, 2nd Screen: 1/4 |
| Display Mode |
HDMI1 + VGA1 (Mirror) |
| Network Input |
1 x 1000Mbps Ethernet Uplink, 4 x PoE 100Mbps (802.3af/at) |
| Network Functions |
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, Easy4ip |
| USB Interface |
1 x Front USB 2.0, 1 x Rear USB 2.0 |
| NVR Operated AI |
Face Detection, Face Recognition, AI Tripwire/Intrusion and AI Human/Vehicle Detection |
| Supported Camera AI |
Face Detection, Face Recognition, AI Tripwire/Intrusion, AI Human/Vehicle Detection, People Counting, Crowd Distribution, Heatmap, ANPR, Audio Detection, Thermal Alarm, Fisheye Dewarp (PC Web Interface) |
| Face Detection Functions |
Gender, Age Group, Glasses, Expressions, Face Mask, Beard |
| Face Detection (By NVR) |
1 Channel (up to 12 face images per second) |
| Face Detection (By Camera) |
4 Channels |
| Face Recognition Capacity |
Up to 10 Face Databases with 200,000 Face Images |
| Face Recognition (By NVR) |
1 Channel (NVR Video Stream Analysis) or 4 Channels using Face Capture Cameras |
| Face Recognition (By Camera) |
4 Channels |
| Human/Vehicle Detection Functions |
AI Tripwire & Intrusion (IVS), AI Motion Detection (SMD) |
| Human/Vehicle Detection (By NVR) |
IVS: 2 Channels (10 Rules per Channel), SMD: 4 Channels |
| Human/Vehicle Detection (By Camera) |
IVS: 4 Channels, SMD: 4 Channels |
| ANPR Functions |
Supports up to 20,000 Plate Numbers with Allowlist & Blocklist |
| ANPR (By Camera) |
4 Channels |
| Video Metadata Functions |
- |
| Video Metadata (By NVR) |
- |
| Video Metadata (By Camera) |
- |
| Power Supply |
53VDC / 1.226A |
| Power Consumption |
NVR: <10W (without HDD) / PoE: Max 25.5W per port, 36W total |
| Operating Environment |
-10°C ~ +55°C / 10 ~ 93%RH |
| Rackmountable |
No |
| Rackmount Units |
- |

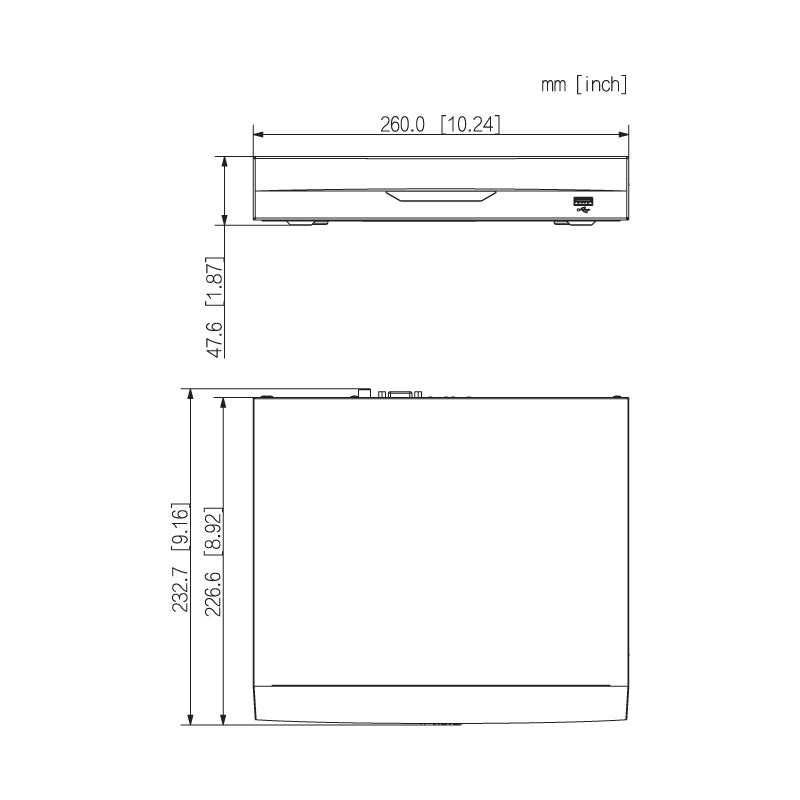

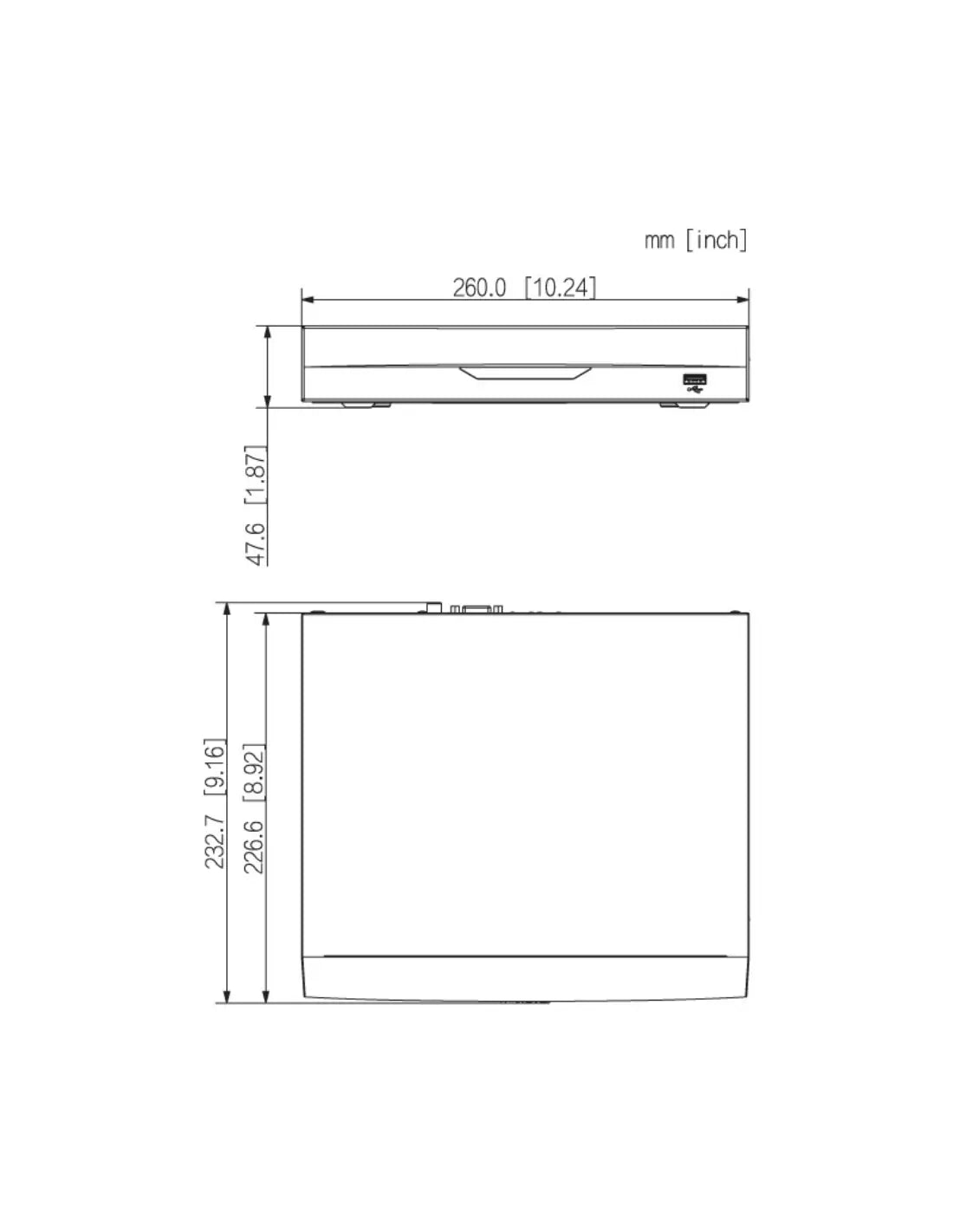

| Dimensions |
260mm x 232.7mm x 47.6mm |
| Weight |
0.86kg (without HDD) |
