| Alarm Interface |
1 channel in: 5 mA 3-5 VDC / 1 channel out: 1,000 mA 30V DC or 500mA 50V DC |
| Audio Interface |
1 input (RCA Port)/ 1 output (RCA Port) / Audio Compression - G.711a; G.711Mu; G726; G.723 |
| Bit Rate |
H.264/H.265: 3 kbps–8192 kbps |
| Bit Rate Control |
Constant bit rate (CBR) / Variable bit rate (VBR) |

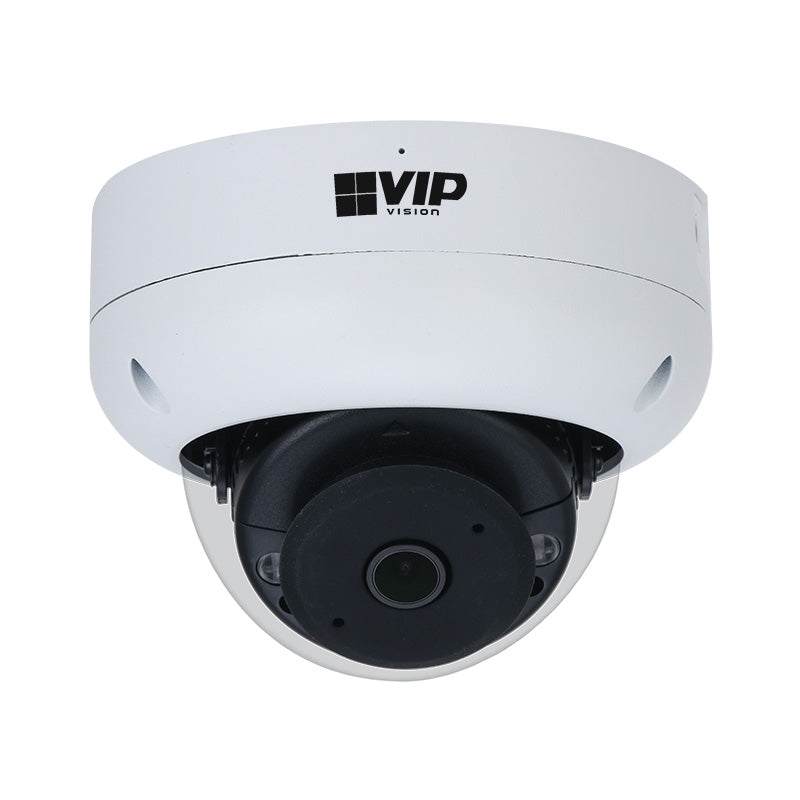

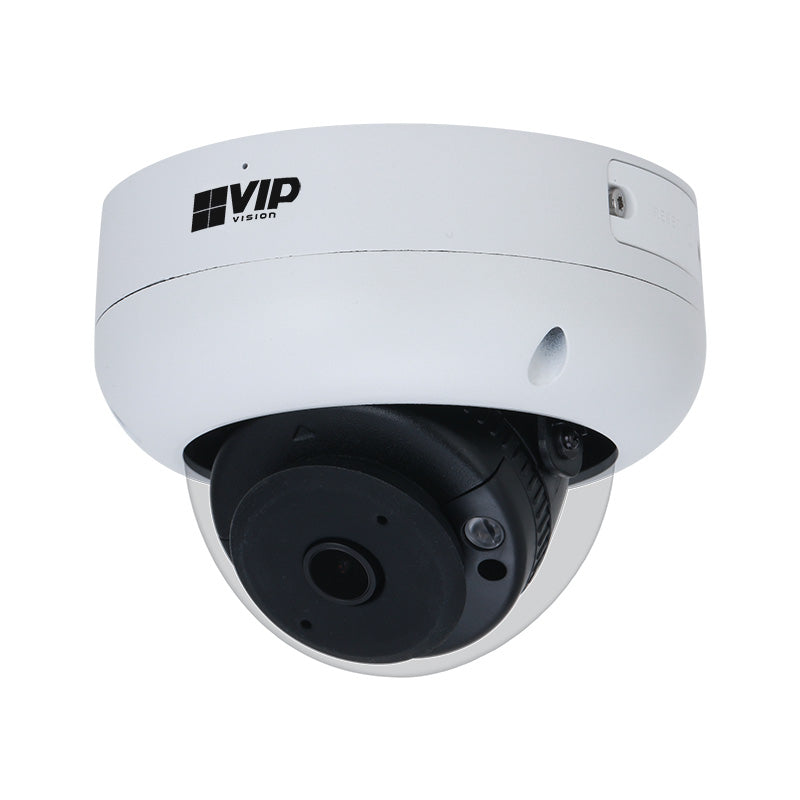

| Camera Type |
Dome |
| Day/Night |
Auto (ICR) / Color / B&W |
| Detect (25px/m) |
52.0 m |

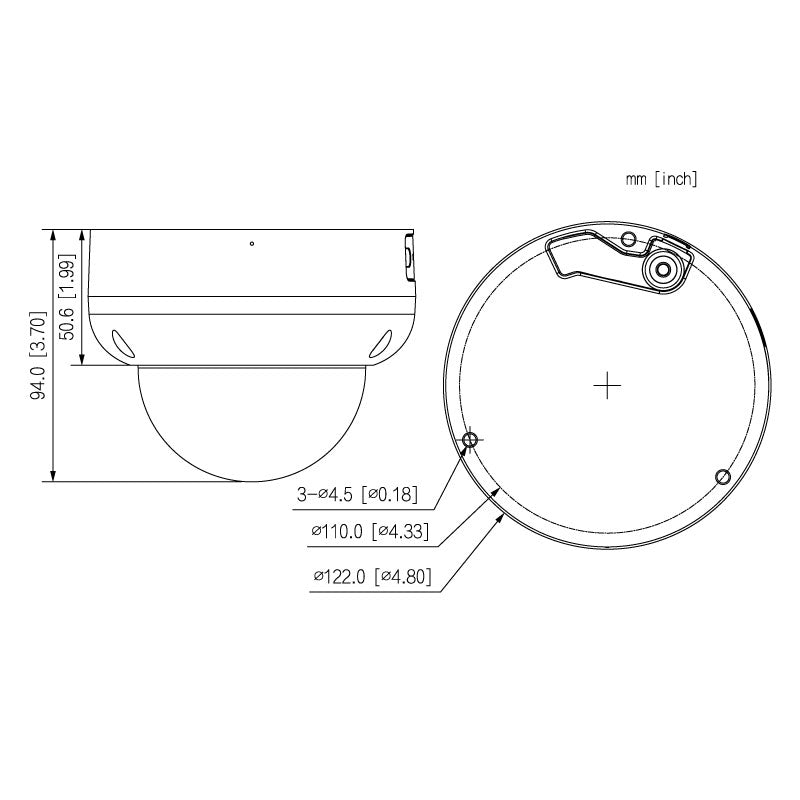

| Dimensions |
Ø122.0 mm x 94 mm |
| Edge Storage |
MicroSD Card (up to 256GB) / NAS / FTP /SFTP |
| Effective Pixels |
2880 (H) x 1620 (V) |
| ePoE |
No |
| Ethernet |
RJ-45 (10/100Base-T) |
| Event Trigger |
Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access |
| Face Attributes |
N/A |
| Face Detection |
N/A |
| Field of View |
180° |
| Focus |
0.6m Min. Focus Distance |
| Frame Rate (Main) |
5.0MP (1 ~ 20fps) / 4.0MP (1 ~ 25fps) |
| Frame Rate (Sub) |
D1 (1 ~ 25fps) |
| Frame Rate (Third) |
1080p (1 ~ 25fps) |
| Gain Control |
Auto / Manual |
| Heat Map |
N/A |
| Housing |
Metal |
| Identify (250px/m) |
5.2 m |
| Image Sensor |
1/2.7" CMOS |
| Infrared System |
3 x Infrared LED, 15m range, Auto/manual on/off control |
| Ingress Protection |
IP67 |
| Intelligent Functions |
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Abandoned Object, Moving Object |
| Intelligent Search |
Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes |
| Interoperability |
ONVIF / PSIA / CGI |
| Lens / Iris |
2.1mm F2.0 Fixed Focal Lens |
| Lens Type |
Fixed Focal |
| Lighting Compensation |
BLC / HLC / WDR (120dB) |
| Max. Resolution |
5.0 Megapixel |
| Max. User Access |
20 Users |
| Min Illumination |
0.01 Lux / F2.0 (Color), 0.001 lux / F2.0 (B/W, 30 IRE), 0 lux (IR on) |
| Net Weight |
550 g |
| Noise Reduction |
3D NR |
| Observe (63px/m) |
20.8 m |
| Operating Conditions |
-40°C ~ +60°C, ≤95% RH |
| Pan/Tilt/Rotation |
Pan: 0° ~ 355° Tilt: 0° ~ 80° Rotation: 0° ~ 355° |
| People Counting |
N/A |
| Perimeter Protection |
Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection |
| Picture Control |
Mirror / Flip (0°, 90°, 180°, 270°) |
| Power Consumption |
<7.7W |
| Power Supply |
12 VDC/PoE |
| Protocol |
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x |
| RAM / ROM |
512 MB/128 MB |
| Recognise (125px/m) |
10.4 m |
| Resolution |
5.0MP (2880 x 1620) / 4.0MP (2688 x 1520) |
| RS485 |
N/A |
| S/N Ratio |
>56 dB |
| Series |
Professional AI Series |
| Smart Scene Adaptive (SSA) |
No |
| Streaming Method |
Unicast / Multicast |
| Vandal Resistance |
IK10 |
| Video Compression |
H.265, H.264, H.264H, H.264B, MJPEG |
| Video Interface |
N/A |
| White Balance |
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom |
