| Alarm Interface |
1 channel in: 5mA 3-5VDC / 1 channel out: 300mA 12VDC |
| Audio Interface |
Built-in Mic & Built-in Speaker / Audio Compression - PCM; G.711a; G.711Mu; G.726; G.723 |
| Bit Rate |
H.265: 32 ~ 20480Kbps / H.264: 12 ~ 20480Kbps |
| Bit Rate Control |
Constant bit rate (CBR) / Variable bit rate (VBR) |

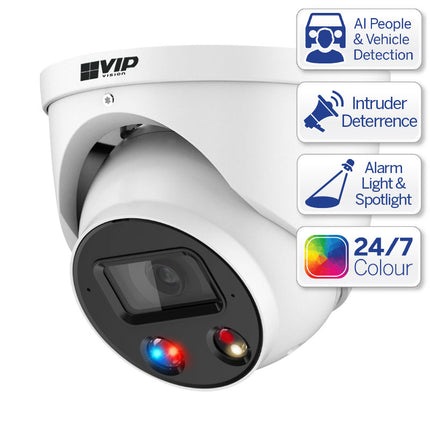

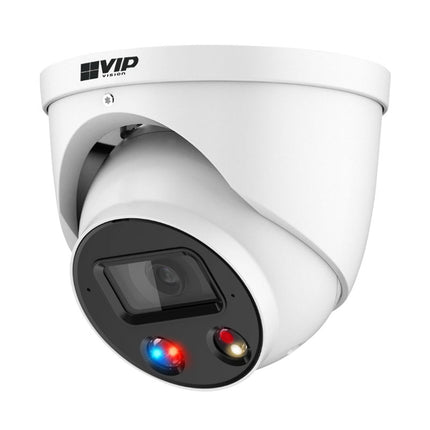

| Camera Type |
Turret |
| Day/Night |
Auto (ICR) / Color / B&W |
| Detect (25px/m) |
66m |

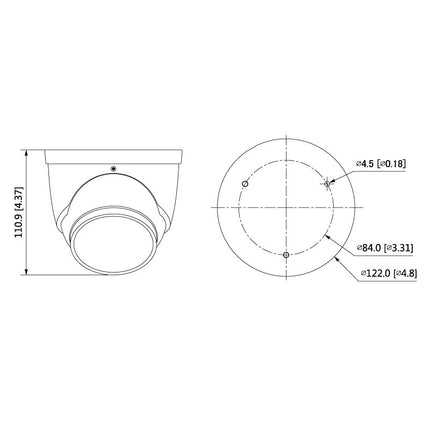

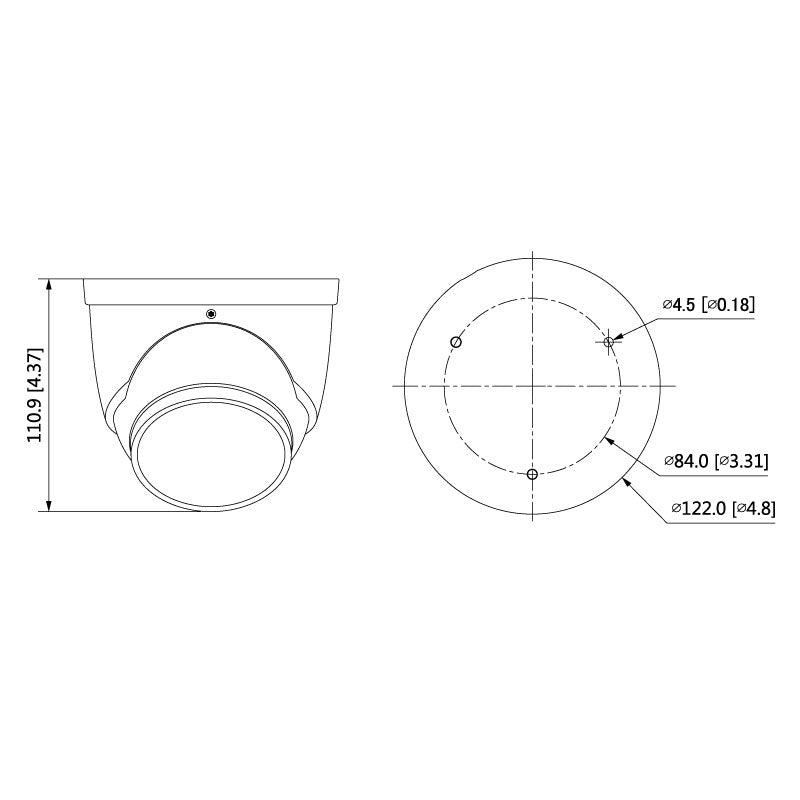

| Dimensions |
Ø122mm x 111mm |
| Edge Storage |
MicroSD Card (up to 256GB) / NAS / FTP / SFTP |
| Effective Pixels |
3200 (H) x 1800 (V) |
| ePoE |
No |
| Ethernet |
RJ-45 (10/100Base-T) |
| Event Trigger |
Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly |
| Face Attributes |
N/A |
| Face Detection |
N/A |
| Field of View |
Horizontal: 97°, Vertical: 70°, Diagonal: 128° |
| Focus |
Auto Focus / 1.5m Min. Focus Distance |
| Frame Rate (Main) |
6.0MP (1 ~ 25fps) |
| Frame Rate (Sub) |
704 x 576 (1 ~ 25fps) |
| Frame Rate (Third) |
1080p (1 ~ 25fps) |
| Gain Control |
Auto / Manual |
| Heat Map |
N/A |
| Housing |
Metal |
| Identify (250px/m) |
7m |
| Image Sensor |
1/2.7” 6.0MP Progressive Scan CMOS |
| Infrared System |
1 x Infrared LED, 30m range, Auto/manual on/off control |
| Ingress Protection |
IP67 |
| Intelligent Functions |
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Illumination, Defog, Object Abandoned / Missing |
| Intelligent Search |
Via NVR Smart Search, Search tripwire/intrusion events by people or vehicle |
| Interoperability |
ONVIF (Profile S, Profile G, Profile T) / P2P / CGI / Milestone |
| LED Lights |
1 x Spotlight (Warm White), 1 x Red & Blue Deterrent Light |
| Lens / Iris |
2.8mm F1.0 Fixed Focal Lens with Fixed Iris |
| Lens Type |
Fixed |
| Lighting Compensation |
BLC / HLC / WDR (120dB) |
| Max. Resolution |
6.0 Megapixel |
| Max. User Access |
20 Users (Total bandwidth: 72MB) |
| Min Illumination |
0.003 Lux/F1.0 (Color), 0.0003 lux/F1.0 (B/W, 30 IRE), 0 lux (IR) |
| Net Weight |
0.75kg |
| Noise Reduction |
3D DNR |
| Observe (63px/m) |
26m |
| Operating Conditions |
-40°C ~ +60°C / ≤95% RH |
| Pan/Tilt/Rotation |
Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360° |
| People Counting |
N/A |
| Perimeter Protection |
Tripwire, Intrusion, fast moving, parking detection (Add recognition of humans & vehicles) |
| Picture Control |
Mirror / Flip (0°, 90°, 180°, 270°) |
| Power Consumption |
Basic: 1.86W (12VDC) / 4.18W (PoE) / Max (IR & LED on): 6.5W (12VDC) / 8.8W (PoE) |
| Power Supply |
12VDC / PoE (802.3af) |
| Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| RAM / ROM |
512MB / 128MB |
| Recognise (125px/m) |
13m |
| Resolution |
6.0MP (3200 x 1800) to CIF (352 x 288) |
| RS485 |
N/A |
| S/N Ratio |
> 56dB |
| Series |
Professional AI Series |
| Smart Scene Adaptive (SSA) |
Yes |
| Streaming Method |
Unicast / Multicast |
| Vandal Resistance |
N/A |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 / H.264H / MJPEG |
| Video Interface |
N/A |
| White Balance |
Auto / Natural / Street Lamp / Outdoor / Manual |
