| Alarm Interface |
1 channel in: 5mA 5VDC/ 1 channel out: 300mA 12VDC |
| Audio Interface |
1 input (RCA Port) / 1 output (RCA Port) / Audio Compression - G.711a; G.711Mu; G726; PCM |
| Bit Rate |
H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps |
| Bit Rate Control |
Constant bit rate (CBR) / Variable bit rate (VBR) |
| Camera Type |
Dome |
| Day/Night |
Auto (ICR) / Color / B&W |
| Detect (25px/m) |
88m (wide) / 290m (tele) |

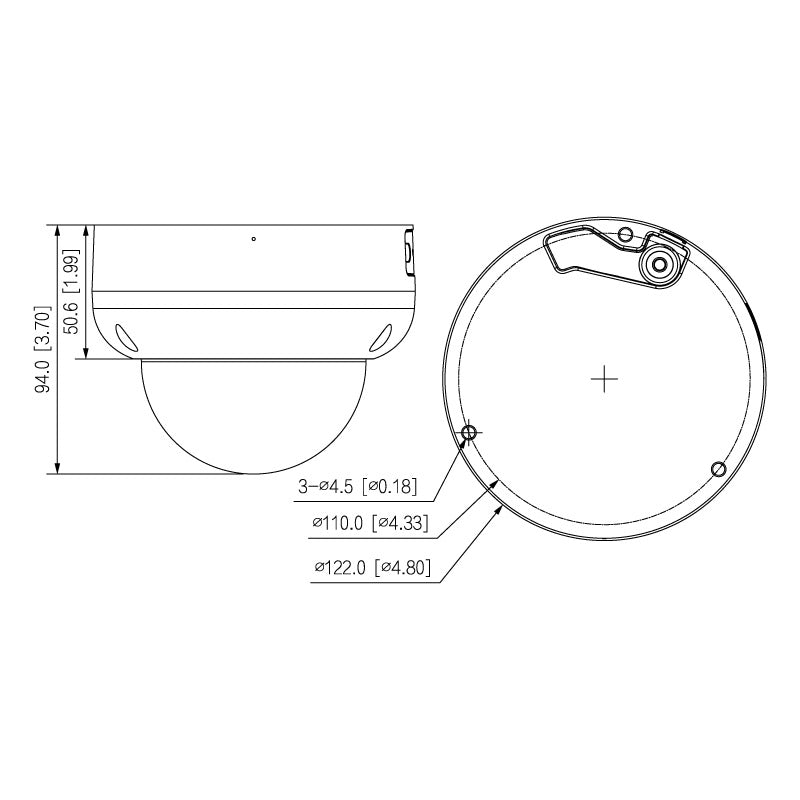

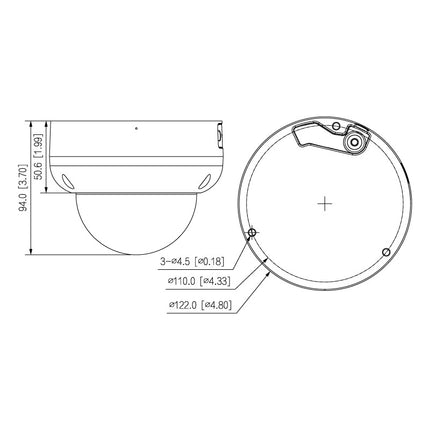

| Dimensions |
Ø122mm x 89mm |
| Edge Storage |
MicroSD Card (up to 256GB) / NAS |
| Effective Pixels |
3840 (H) x 2160 (V) |
| ePoE |
No |
| Ethernet |
RJ-45 (10/100Base-T) |
| Event Trigger |
N/A |
| Face Attributes |
N/A |
| Face Detection |
N/A |
| Field of View |
Horizontal: 109°~30°, Vertical: 56°~17° (5x Optical Zoom) |
| Focus |
Auto Focus / 0.8m Min. Focus Distance |
| Frame Rate (Main) |
8.0MP (1 ~ 25fps) |
| Frame Rate (Sub) |
D1 (1 ~ 25fps) |
| Frame Rate (Third) |
1080p (1 ~ 25fps) |
| Gain Control |
Auto |
| Heat Map |
N/A |
| Housing |
Metal |
| Identify (250px/m) |
9m (wide) / 29m (tele) |
| Image Sensor |
1/2.8’’ 8.0MP Progressive Scan CMOS |
| Infrared System |
3 x Infrared LED, 40m range, Auto/manual on/off control |
| Ingress Protection |
IP67 |
| Intelligent Functions |
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared |
| Intelligent Search |
Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle |
| Interoperability |
ONVIF / P2P / CGI / Milestone / Genetec |
| Lens / Iris |
2.7 ~ 13.5mm F1.5 Motorised Varifocal Lens with Fixed Iris |
| Lens Type |
Motorised Varifocal |
| Lighting Compensation |
BLC / HLC / WDR (120dB) / AI SSA |
| Max. Resolution |
8.0 Megapixel |
| Max. User Access |
20 Users |
| Min Illumination |
0.005 Lux/F1.5 (Color) |
| Net Weight |
0.71kg |
| Noise Reduction |
3D DNR |
| Observe (63px/m) |
35m (wide) / 116m (tele) |
| Operating Conditions |
-30°C ~ +60°C / ≤95% RH |
| Pan/Tilt/Rotation |
Pan: 0° ~ 355°, Tilt: 0° ~ 75°, Rotation: 0° ~ 355° |
| People Counting |
N/A |
| Perimeter Protection |
Tripwire & Intrusion (Add recognition of humans & vehicles) |
| Picture Control |
Mirror / Flip (0°, 90°, 180°, 270°) |
| Power Consumption |
<10.5w |
| Power Supply |
12VDC / PoE (802.3af) |
| Protocol |
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour |
| RAM / ROM |
1GB / 128MB |
| Recognise (125px/m) |
18m (wide) / 58m (tele) |
| Resolution |
8.0MP (3840 x 2160) to CIF (352 x 288) |
| RS485 |
N/A |
| S/N Ratio |
> 56dB |
| Series |
Professional AI Series |
| Smart Scene Adaptive (SSA) |
Yes |
| Streaming Method |
Multicast |
| Vandal Resistance |
IK10 |
| Video Compression |
H.265+ / H.265 /H.264+ / H.264 / H.264B / MJPEG |
| Video Interface |
N/A |
| White Balance |
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom |
