This network PTZ dome offers versatile surveillance and affordability without skipping on highlights of the Pro
AI Series. Ensure all areas are covered with up to 25x optical zoom. Experience impressive AI with real-time face
detection and AI Perimeter Protection technology, providing meaningful video event notifications in real-time.
| Alarm Interface |
1 channel in: 5 mA 3-5 VDC / 1 channel out: 300 mA 12 VDC |
| Audio Interface |
1 input (RCA Port)/ 1 output (RCA Port) / Audio Compression - G.711a; G.711Mu; G726; G.723 |
| Auto Tracking |
Support |
| Bit Rate |
H.264: 2816 kbps–13056 kbps H.265: 1024 kbps–7936 kbps |
| Bit Rate Control |
Constant bit rate (CBR) / Variable bit rate (VBR) |
| Camera Type |
Dome |
| Day/Night |
Auto (ICR) / Color / B&W |
| Detect (25px/m) |
2500 m |
| Digital Zoom |
16x |

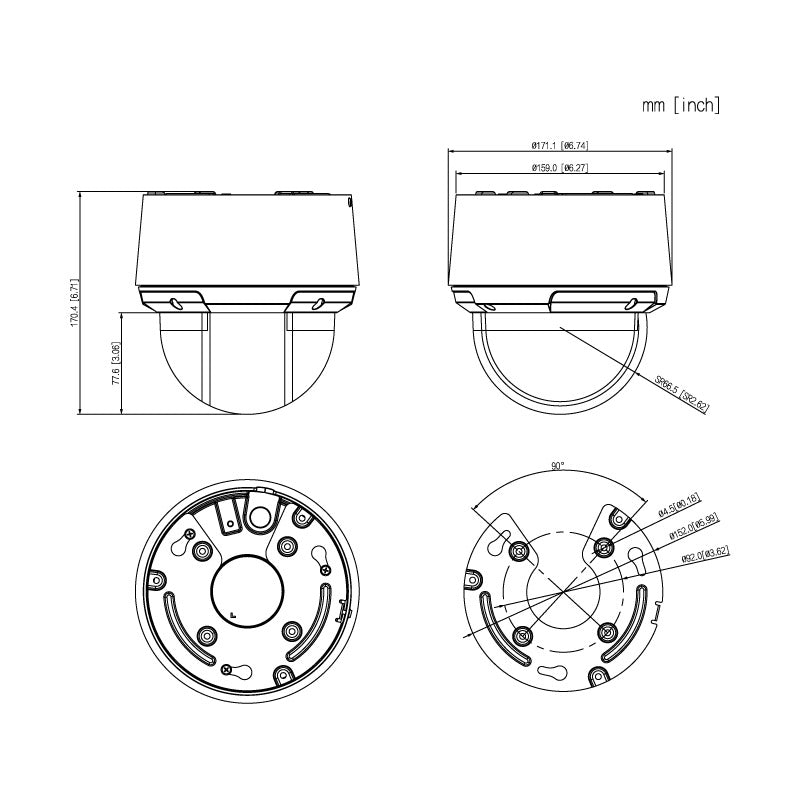

| Dimensions |
Ø168.0 mm × 171.1 mm |
| Edge Storage |
MicroSD Card (up to 256GB) / NAS / Local PC |
| Effective Pixels |
2560 (H) × 1440 (V) |
| ePoE |
No |
| Ethernet |
RJ-45 (10/100Base-T) |
| Event Triggers |
Motion detection / Video tamper / Scene change / Network disconnection / IP address conflict / Illegal access / Storage anomaly |
| Face Capture |
Support |
| Face Recognition |
N/A |
| Field of View |
51.9° ~ 3.0° |
| Focus |
0.5 m–5 m Min. Focus Distance |
| Frame Rate (Main) |
4MP (1–25fps) |
| Frame Rate (Sub) |
D1 (1-25fps) |
| Frame Rate (Third) |
720p (1 ~ 25fps) |
| Gain Control |
Auto / Manual |
| Heat Map |
N/A |
| Housing |
Plastic |
| Identify (250px/m) |
250 m |
| Image Sensor |
1/2.8" CMOS |
| Image Stabilisation |
Electronic |
| Infrared System |
2 x Infrared LED, 100m range, Auto/manual on/off control |
| Ingress Protection |
IP66 |
| Interoperability |
ONVIF / CGI / SDK / P2P |
| IVS Functions |
Abandoned object / Missing object |
| Lens / Iris |
5 mm – 125 mm F1.6 ~ F3.6 Motorised Lens with Auto Iris |
| Lens Type |
Motorised Varifocal |
| Lighting Compensation |
BLC / HLC / WDR (120dB) |
| Max. Resolution |
4.0 Megapixel |
| Max. User Access |
20 Users |
| Metadata |
N/A |
| Min Illumination |
Color: 0.005lux@F1.6 B/W: 0.0005lux@F1.6 0Lux (IR on) |
| Modes / Presets |
Up to 300 presets / 5 Pattern, 8 Tour, Auto Pan, Auto Scan |
| Net Weight |
2.5 kg |
| Noise Reduction |
2D / 3D NR |
| Observe (63px/m) |
987.5 m |
| Operating Conditions |
-40°C ~ +65°C |
| Optical Defog |
N/A |
| Pan / Tilt Range |
Pan: 51.9°–3.0° Tilt: 39.7°–2.2° |
| Pan/Tilt/Rotation |
Pan: 51.9° ~ 3.0° Tilt: 39.7° ~ 2.2° Rotation: 63.1°–3.7° |
| People Counting |
N/A |
| Perimeter Protection |
Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection |
| Picture Control |
Flip 180° |
| Power Consumption |
<21.5W |
| Power Supply |
12 VDC (±30%); PoE (802.3af); ePoE |
| Privacy Masking |
Up to 24 areas |
| Protocol |
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x |
| PTZ Speed |
Pan: 240°/s; Tilt: 160°/s | Manual Pan: 0.1°/s–240°/s Manual Tilt: 0.1°/s–160°/s |
| RAM / ROM |
128 MB / 512 MB |
| Recognise (125px/m) |
500 m |
| Region of Interest |
Support |
| Resolution |
4.0MP (2560 x 1440) to CIF (352 x 288) |
| RS485 |
N/A |
| S/N Ratio |
≥ 55 dB |
| Series |
Professional AI Series |
| Smart Scene Adaptive (SSA) |
No |
| Start-up Action |
Auto-restore to previous PTZ/lens status |
| Streaming Method |
Unicast / Multicast |
| Vandal Resistance |
N/A |
| Video Compression |
H.265/H.264B/H.264M/H.264H/MJPEG/H.265+/H.264+ |
| Video Interface |
1 Output (Vpp 75Ω) |
| White Balance |
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom |
