Description

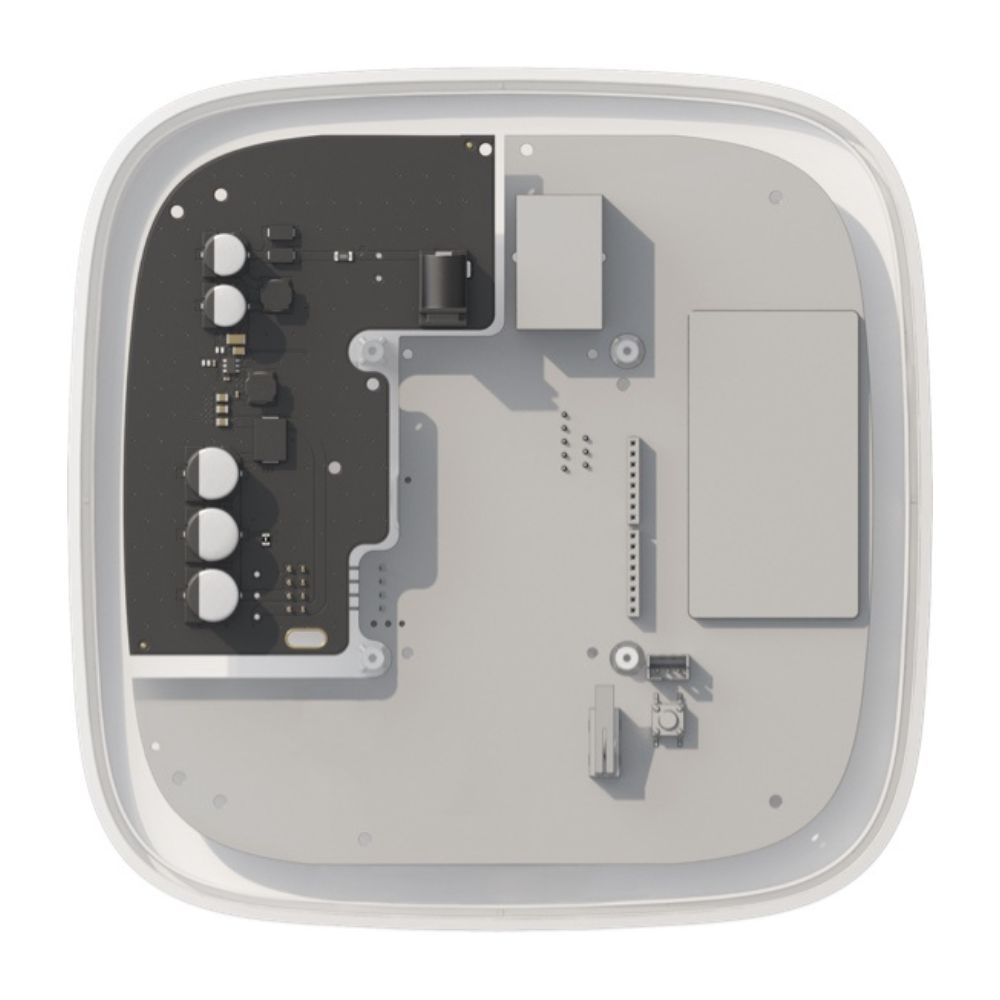

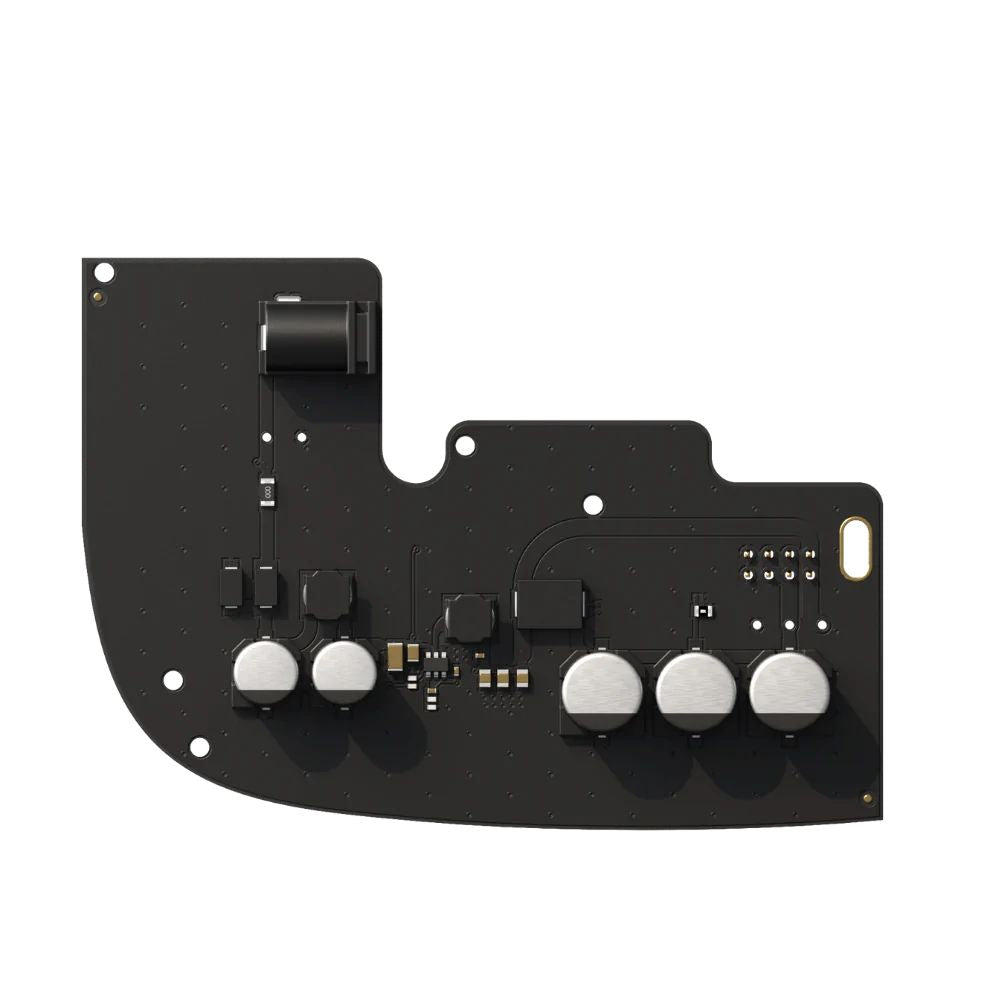

12V PSU for Hub 2 is a power supply unit, connecting the Hub 2 control panels to 12 volt DC sources. This is an electronic board, replacing the standard 110/230 V power supply unit in the body of the device.
Features
- At warehouse
- In trailer
- On yacht
- Power consumption when working from a 12 V power supply
- Compatibility
- Installation
Complete Set
- 12V PSU for Hub 2
- Terminal adapter
- Quick guide
More info about 12V PSU for Hub 2 on Ajax website: https://ajax.systems/products/12vpsu-hub2/
Download
Video
Tech Specs
12V PSU for Hub 2
| Input voltage |
8-20 V DC |
| Output voltage |
4.8 V DC ± 3% |
| Switch on voltage |
8 V DC ± 2.5% |
| Switch off voltage |
6.9-7.5 V (depending on load) |
| Max input current |
< 1 A |
| Max output current |
1,5 A |
| Connection to mains |
Socket: 6.5 × 2 mm
Plug: 5.5 × 2,1 mm |
| Dimensions |
98 × 70 × 17 mm |
| Weight |
28 g |
| Service life |
10 years |
2-Years Warranty
Ajax’s 2-year manufacturer warranty covers defects in materials or errors in the manufacturing process that may occur within 24 months from the date of sale. The warranty does not cover normal wear and tear (device body scrapes, scratches, etc.), wear of the elements caused by improper operation, and normal wear of the device components, mechanical and/or electrical damage (including latent), exposure to direct sunlight, high humidity, and vibration or damage caused by natural disasters.
The warranty does not cover damage to the product resulting from unauthorised repair, installation, and/or replacement of components or programs, including the installation of updates and extensions, performed by anyone other than an authorised representative of the Limited Liability Company “Ajax Systems Manufacturing”.
If a device is faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible.
Please contact our support team at support@SpyMonkey.com.au or 1300-049-519.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
