Description

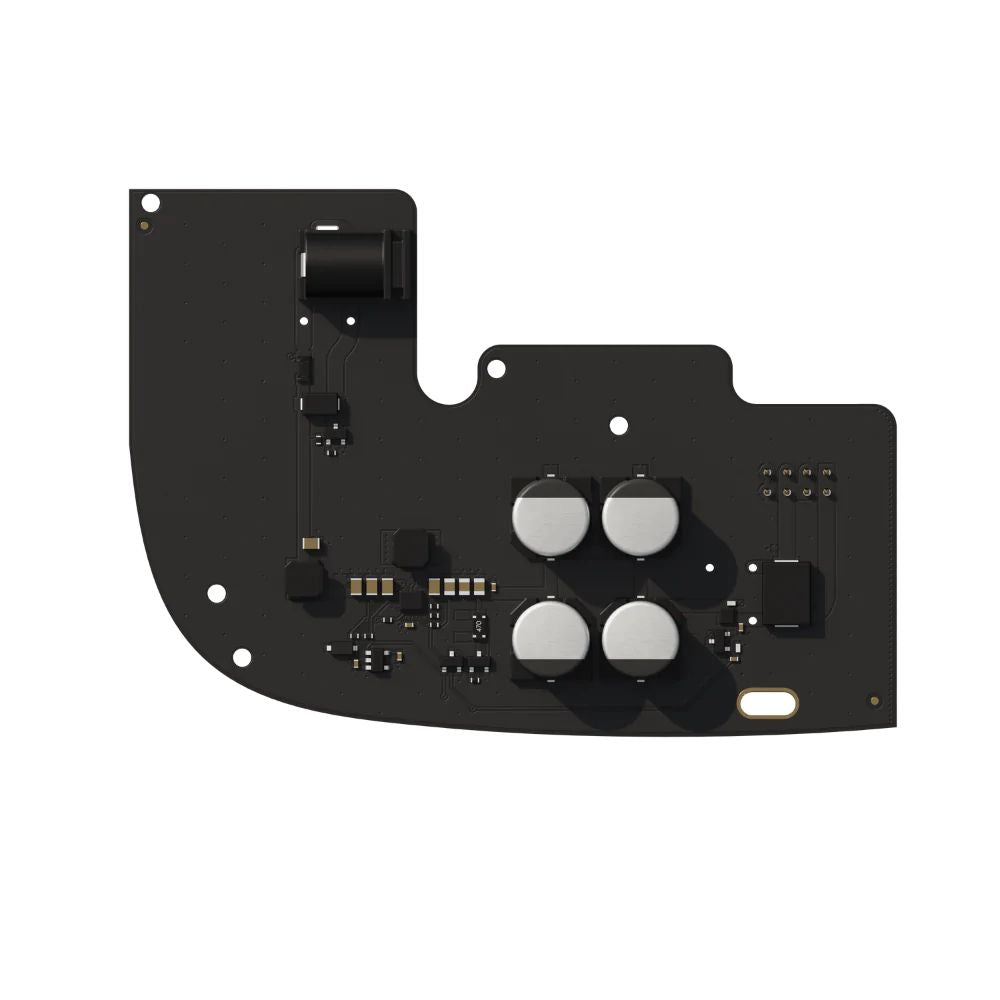

6V PSU Hub 2/Hub 2 Plus is a power supply unit, connecting Hub 2 and Hub 2 Plus control panels to 6 and 12 volt DC sources. This is an electronic board, replacing the standard 110/230 V power supply unit in the body of the device.
Features
- Hub energy consumption calculator when operating from a 6V PSU
- Compatibility- The power supply unit is only compatible with Hub 2 and Hub 2 Plus control panels.
- Installation- 6V PSU is installed into the device body, replacing the pre-installed 110/230 V power supply unit.
Complete Set
- 6V PSU for Hub 2/Hub 2 Plus
- Terminal adapter
- Quick Start Guide
More info about 6V PSU for Hub 2/Hub 2 Plus on Ajax website: https://ajax.systems/products/6vpsu/
Download
Video
Tech Specs
6V PSU for Hub 2/Hub 2 Plus
| Compatibility |
Hub 2 and Hub 2 Plus |
| Input voltage |
4.2-10 V DC |
| Output voltage |
4.8 V DC ± 5% |
| Switch on voltage |
4.2 V DC ± 2.5% |
| Switch off voltage |
3-3.4 V (depending on load) |
| Max input current |
2,2 А on 4,2 V; 0,8 А on 10 V |
| Max output current |
1,5 A |
| Temperature range |
from -10°C to +40°С |
| Humidity |
Up to 75% |
| Connection to mains |
Socket: 6.5 × 2 mm
Plug: 5.5 × 2,1 mm |
| Dimensions |
98 × 70 × 17 mm |
| Weight |
26 g |
| Service life |
10 years |
2-Years Warranty
Ajax’s 2-year manufacturer warranty covers defects in materials or errors in the manufacturing process that may occur within 24 months from the date of sale. The warranty does not cover normal wear and tear (device body scrapes, scratches, etc.), wear of the elements caused by improper operation, and normal wear of the device components, mechanical and/or electrical damage (including latent), exposure to direct sunlight, high humidity, and vibration or damage caused by natural disasters.
The warranty does not cover damage to the product resulting from unauthorised repair, installation, and/or replacement of components or programs, including the installation of updates and extensions, performed by anyone other than an authorised representative of the Limited Liability Company “Ajax Systems Manufacturing”.
If a device is faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible.
Please contact our support team at support@SpyMonkey.com.au or 1300-049-519.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
