Description

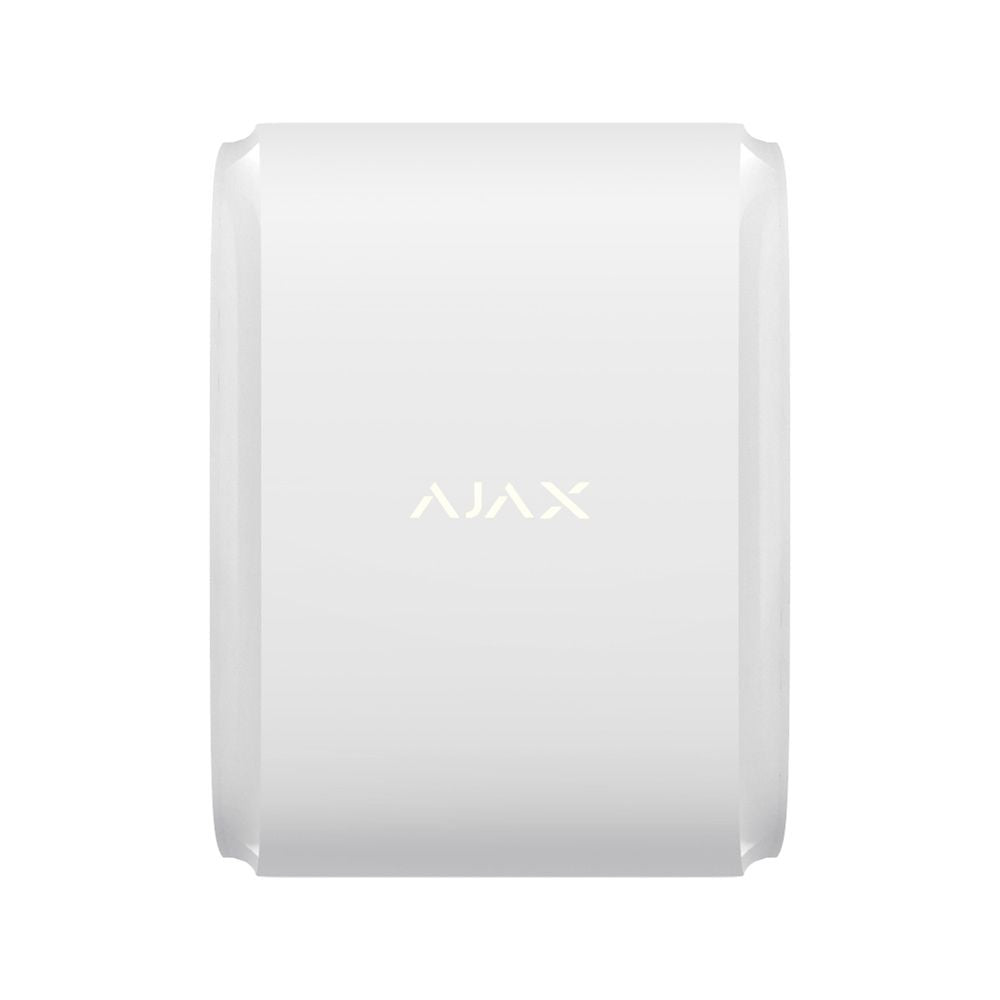

DualCurtain Outdoor is a wireless bidirectional outdoor curtain motion detector with an adjustable detection range of up to 30 meters. The detector features an anti-masking system and ignores pets if set up and installed correctly.
DualCurtain Outdoor has a narrow horizontal detection angle and is designed to control property perimeter and passages: windows, archways, doors, gates.
Features
- Protecting property boundaries
- Engineering accuracy
- Efficiency in the near area
- One enclosure. Two independent detectors
- Resistant to attacks
- Outstanding autonomy
- Installation without brain teasers
Complete Set
-
DualCurtain Outdoor motion detector
-
SmartBracket mounting panel
-
2 × CR123A batteries (pre-installed)
-
Installation kit
- User guide
More info about DualCurtain Outdoor on Ajax website: https://ajax.systems/products/dualcurtain-outdoor/
Download
Video
Tech specs
| Compatibility |
Hub Plus
Hub 2
Hub 2 Plus
ReX
ReX 2
|
| Sensing element |
IR sensor, 2 on each side |
| Motion detection distance |
4 to 15 meters (on each side, depends on settings) |
| Detection angle, horizontal |
4.5° |
| Possibility to deviate the horizontal viewing angle |
Yes, by 3° |
| Motion detection speed |
From 0.3 to 2 m/s |
| Pet immunity option |
Yes. The detector ignores animals up to 80 centimeters in height when installed and set up correctly
Why motion detectors react to animals and how to avoid it
|
| Near area detection |
+ |
| Protection against false triggering |
+ |
| Tamper protection |
+ |
| Protection against masking |
+ |
| Installation |
Outdoors and indoors |
| Radio communication protocol |
Jeweller
Learn more
|
| Radio frequency band |
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the region of sale. |
| Maximum radio signal strength |
6.35 mW (limit up to 20 mW) |
| Radio signal modulation |
GFSK |
| Radio signal range |
Up to 1,700 m (without obstacles)
Learn more
|
| Power supply |
2 CR123 batteries, 3 V |
| Battery life |
Up to 4 years |
| Protection class |
IP54 |
| Operating temperature range |
From -25°C to +60°C |
| Operating humidity |
Up to 95% |
| Dimensions |
174 × 123 × 88 mm |
| Weight |
615 g |
| Service life |
10 years |
| Warranty |
24 months
Learn more
|
